18-8 Stainless Steel Button Head Torx Screws
M3 x 0.50 mm Thread, 8mm Long
Thread | |
Size | M3 |
Pitch | 0.5 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Button |
Profile | Standard |
Height | 1.65 mm |
Diameter | 5.7 mm |
Drive | |
Style | Torx |
Size | T10 |
Length | 8 mm |
Threading | Fully Threaded |
Tensile Strength | 100,000 psi |
Specifications Met | ISO 7380 |
Hardness | Not Rated |
Material | 18-8 Stainless Steel |
Passivation | Passivated |
Performance | Corrosion Resistant |
System of Measurement | Metric |
Country of Origin | Taiwan |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |

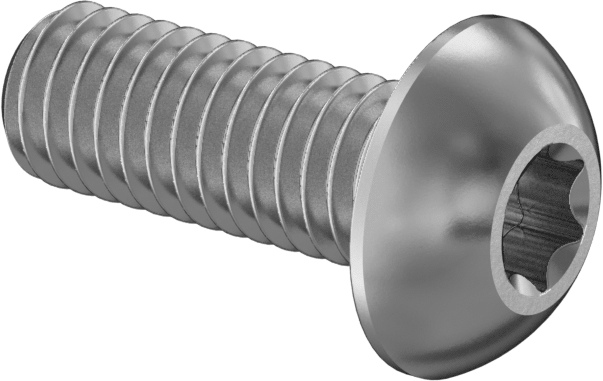

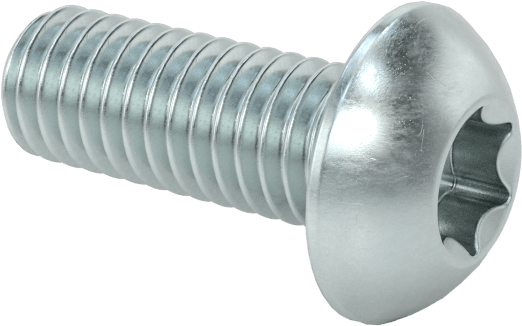

Our most corrosion-resistant button head Torx screws. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With a deep six-lobe opening, the Torx drive prevents your driver from slipping and stripping the drive. Also known as star drives, they withstand more torque than slotted, Phillips, and hex drives.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

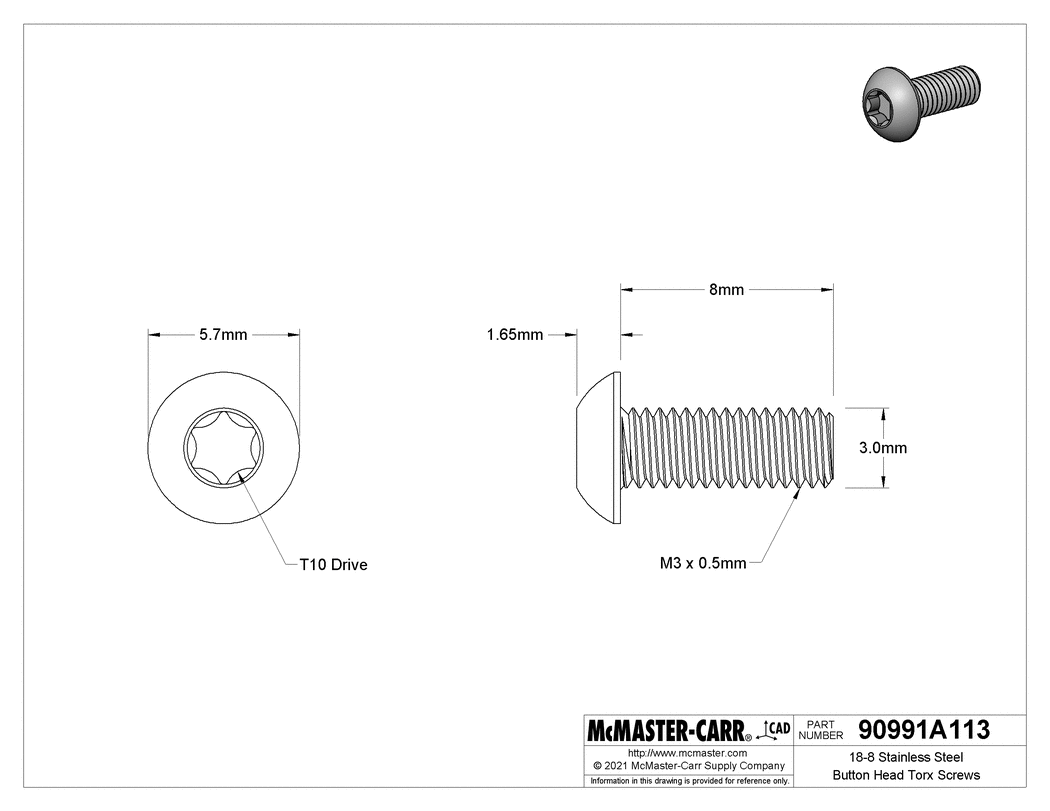

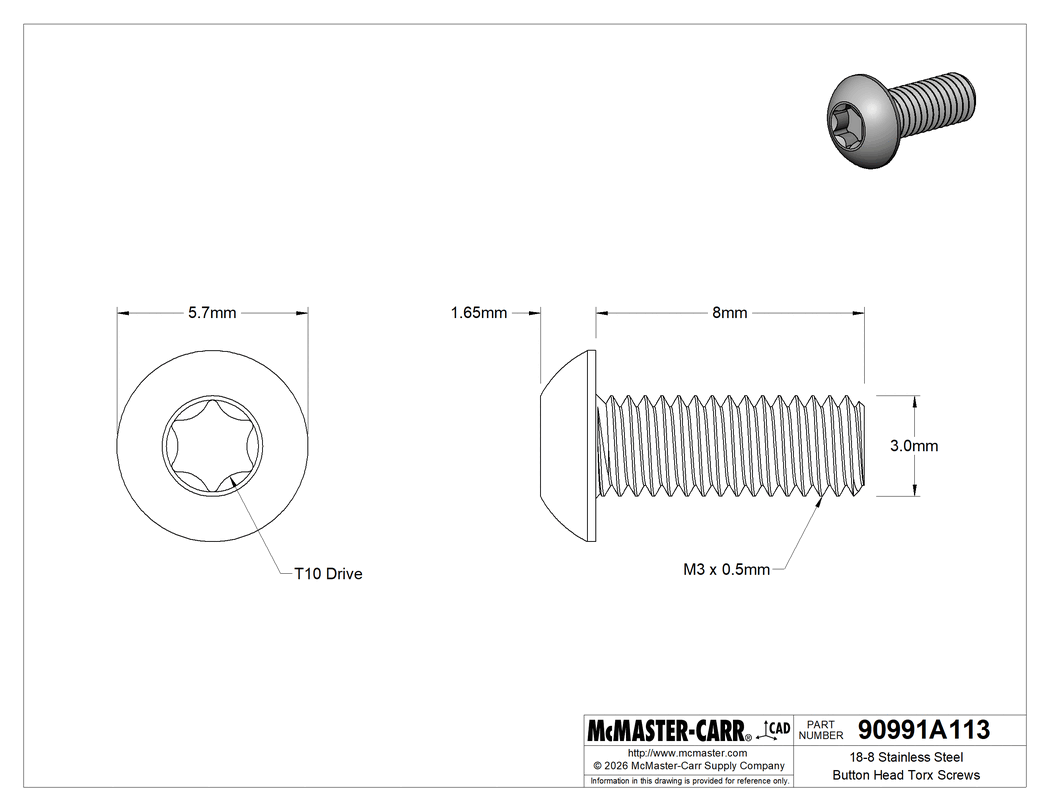

The information in this 3-D model is provided for reference only.
