Stainless Steel Tamper-Resistant Button Head Torx Screws
M6 x 1.00mm Thread, 16mm Long
Thread | |
Size | M6 |
Pitch | 1 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Button |
Profile | Standard |
Height | 3.28 mm |
Diameter | 10.5 mm |
Drive | |
Style | Tamper-Resistant Torx |
Size | T27 |
Length | 16 mm |
Threading | Fully Threaded |
Tensile Strength | 80,000 psi |
Specifications Met | ASTM F879M, ISO 7380 |
Hardness | Rockwell B96 |
Material | 18-8 Stainless Steel |
Passivation | Passivated |
Performance | Corrosion Resistant, Tamper Resistant |
System of Measurement | Metric |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Products | |
Deter unauthorized access in corrosive environments. With a security pin in the drive, you can only turn them with a tamper-resistant Torx driver. Also known as pin-in Torx, the drive has a deep six-lobe opening that withstands high torque without the driver slipping and stripping the drive. Made of stainless steel, these screws won't rust, but they're not as strong as alloy steel. The button head looks similar to a pan head, but it's lower and more compact, taking up less space.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.
L-Keys—Turn screws by hand for more control and less chance of overtightening compared to power tools.
Power Tool Bits—Pair these bits with your power tools to turn screws more quickly than manual tools.

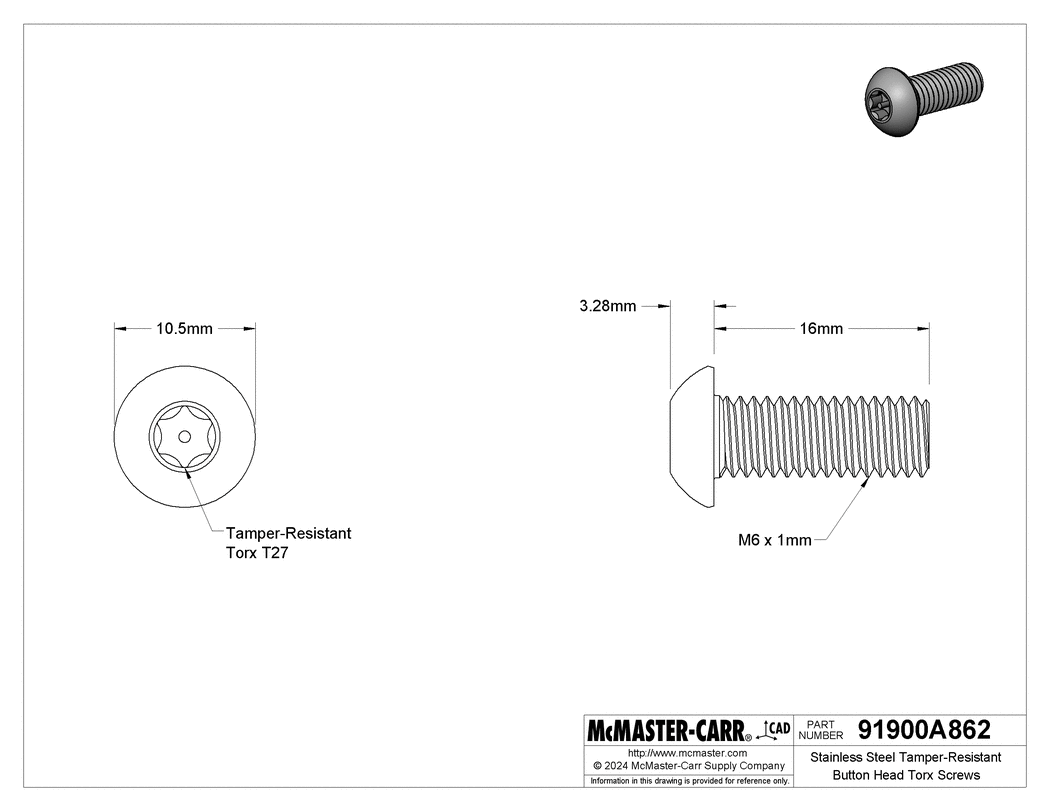

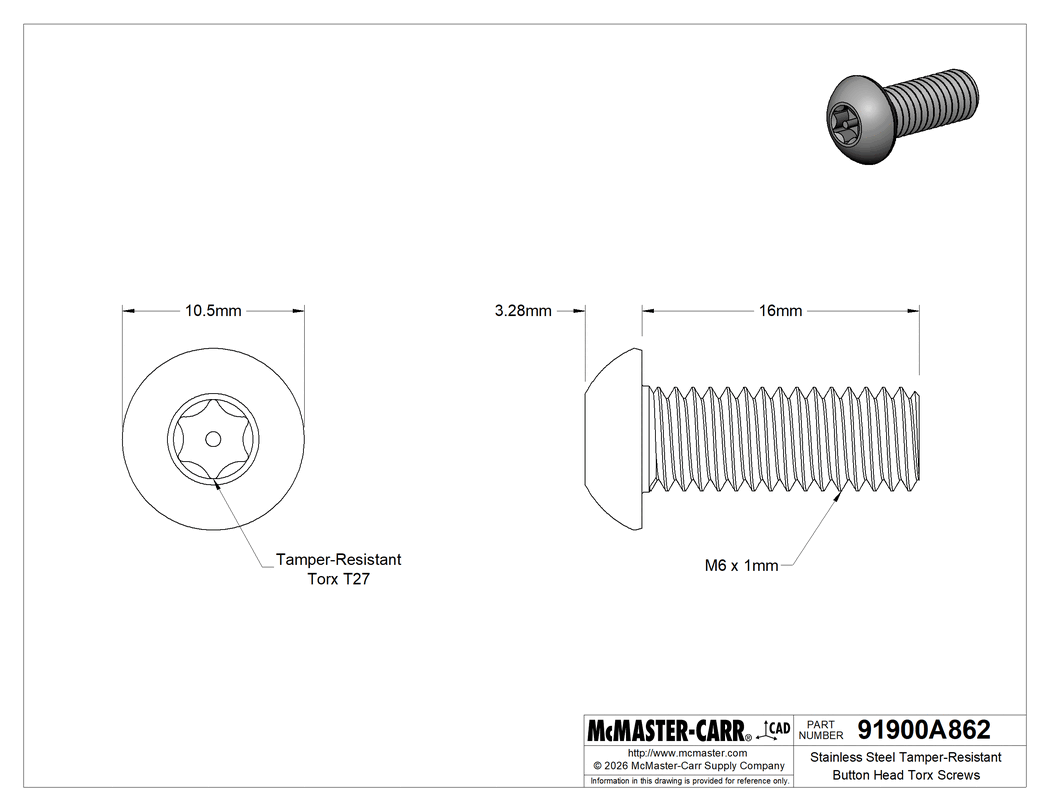

The information in this 3-D model is provided for reference only.
