    Button Head Hex Drive Screw

    Passivated 18-8 Stainless Steel, M3 x 0.50 mm Thread, 6mm Long

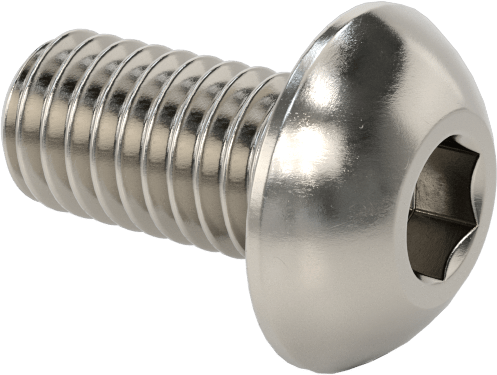

    Image of Product. Front orientation. Button Head Hex Drive Screw, Passivated 18-8 Stainless Steel, M3 x 0.50 mm Thread, 6mm Long.

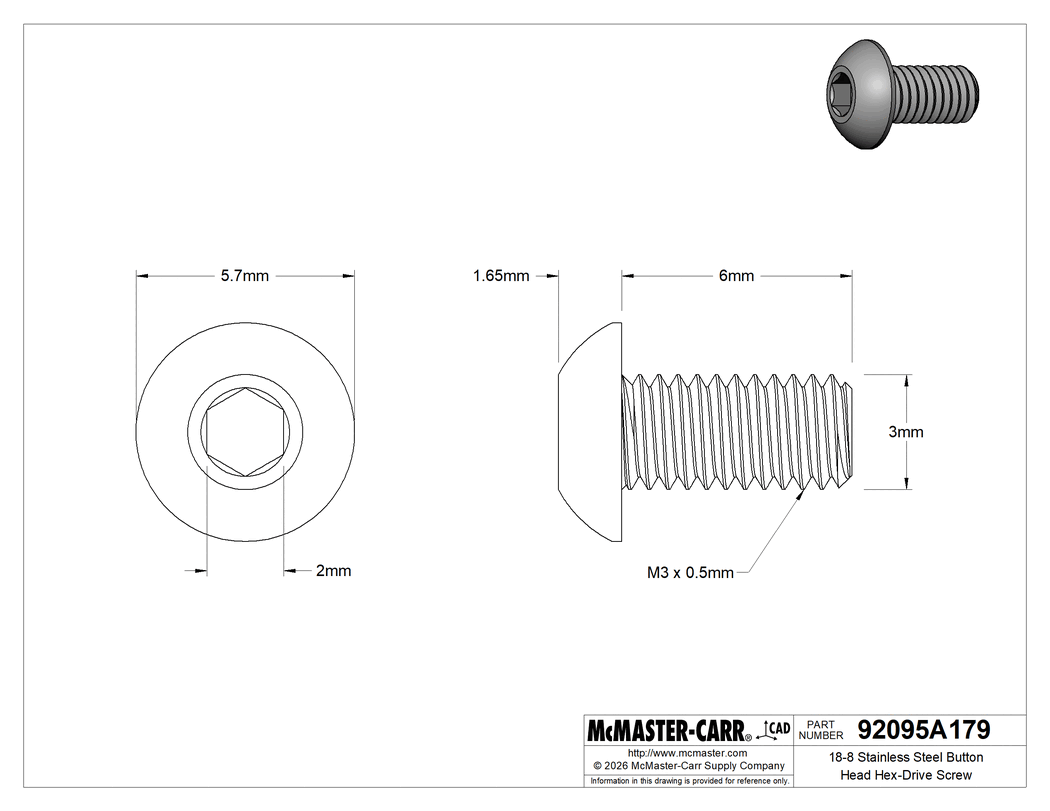

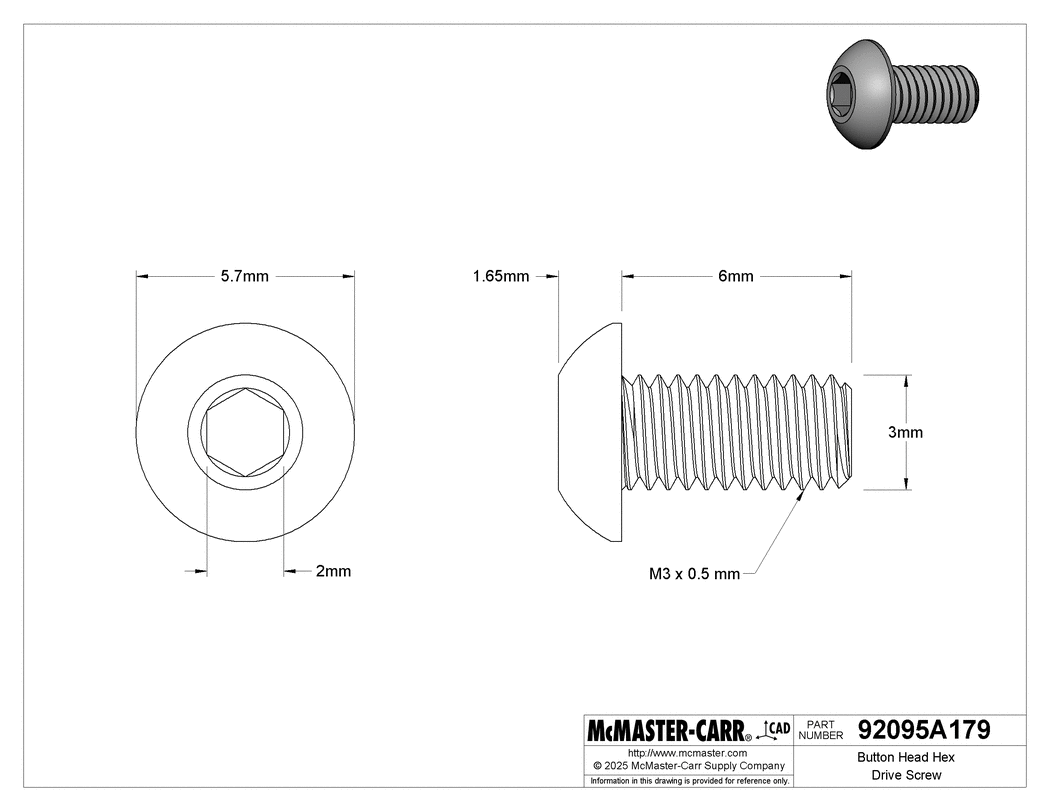

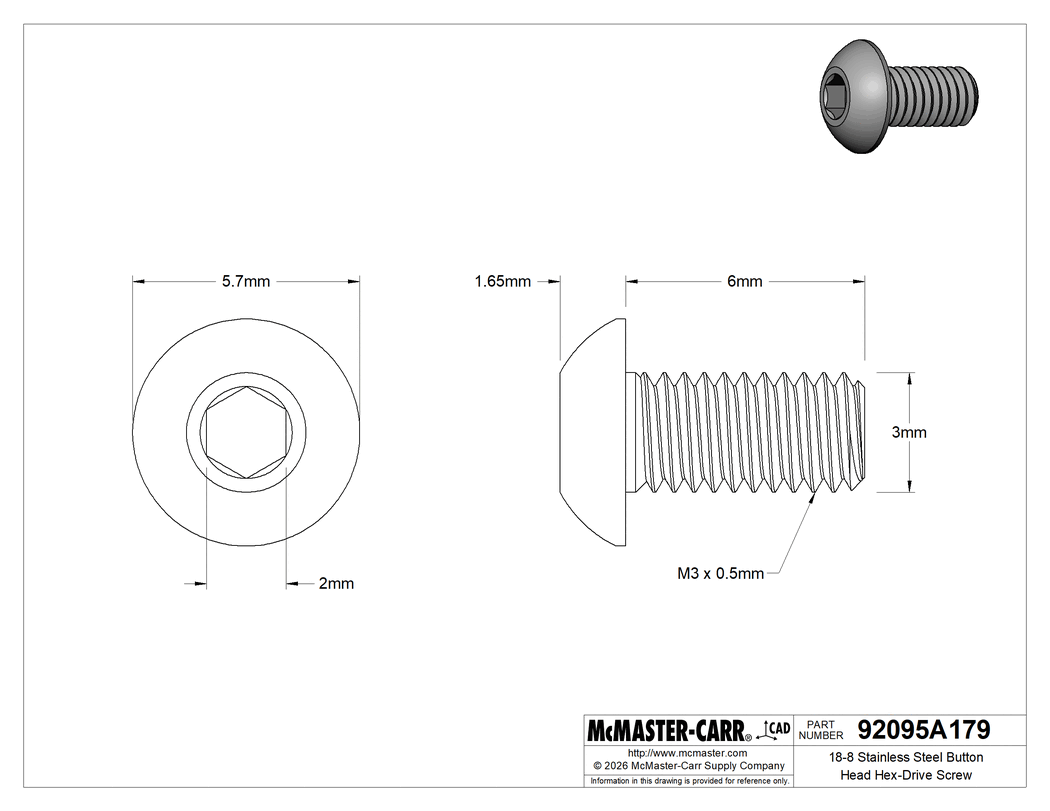

    Technical Drawing of Button Head Hex Drive Screw, Passivated 18-8 Stainless Steel, M3 x 0.50 mm Thread, 6mm Long.
    Image of Product. Back orientation. Button Head Hex Drive Screw, Passivated 18-8 Stainless Steel, M3 x 0.50 mm Thread, 6mm Long.

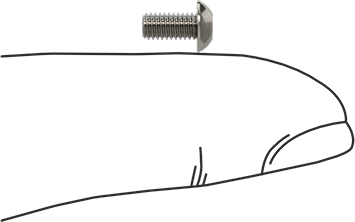

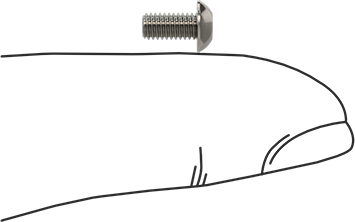

    Image of Product. Side1 orientation. Contains SizingReference. Button Head Hex Drive Screw, Passivated 18-8 Stainless Steel, M3 x 0.50 mm Thread, 6mm Long.
    2-D PDF
    00000 per pack of 100
    92095A179
    Delivers tomorrow 7-9 am
    92095A179
    00000 per pack of 100
    Pack of 100
    Delivers tomorrow 7-9 am
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    M3

    Pitch

    0.5 mm

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    Metric

    Fit

    Metric Class 6g

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Button

    Profile

    Standard

    Height

    1.65 mm

    Diameter

    5.7 mm

    Drive

    Style

    Hex

    Size

    2 mm

    Material

    18-8 Stainless Steel

    Length

    6 mm

    Threading

    Fully Threaded

    Tensile Strength

    70,000 psi

    Specifications Met

    ISO 7380

    Hardness

    Not Rated

    Passivation

    Passivated

    Performance

    Corrosion Resistant

    System of Measurement

    Metric

    Country of Origin

    China

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    These button head screws won't corrode from moisture and chemicals, but they aren't as strong as alloy steel screws. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver.

    Length is measured from under the head.

    18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.
