    Zinc-Plated Steel Button Head Torx Screws

    Class 8.8, M3 x 0.5 mm Thread, 6 mm Long

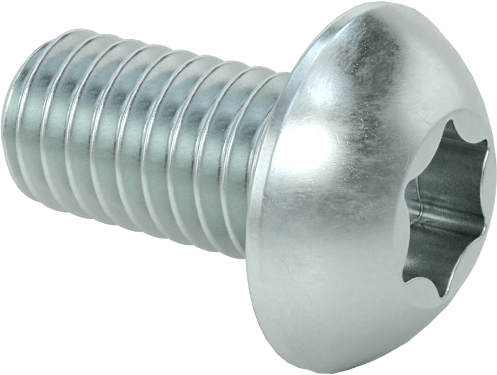

    Image of Product. Front orientation. Zinc-Plated Steel Button Head Torx Screws, Class 8.8, M3 x 0.5 mm Thread, 6 mm Long.

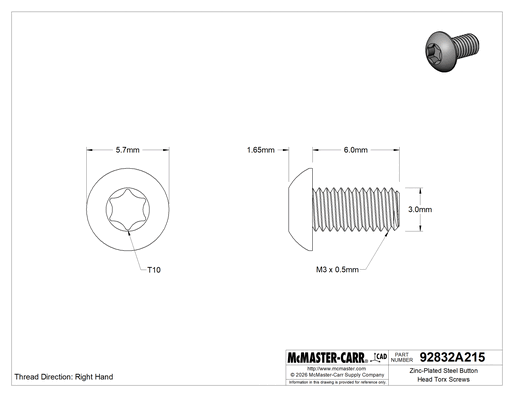

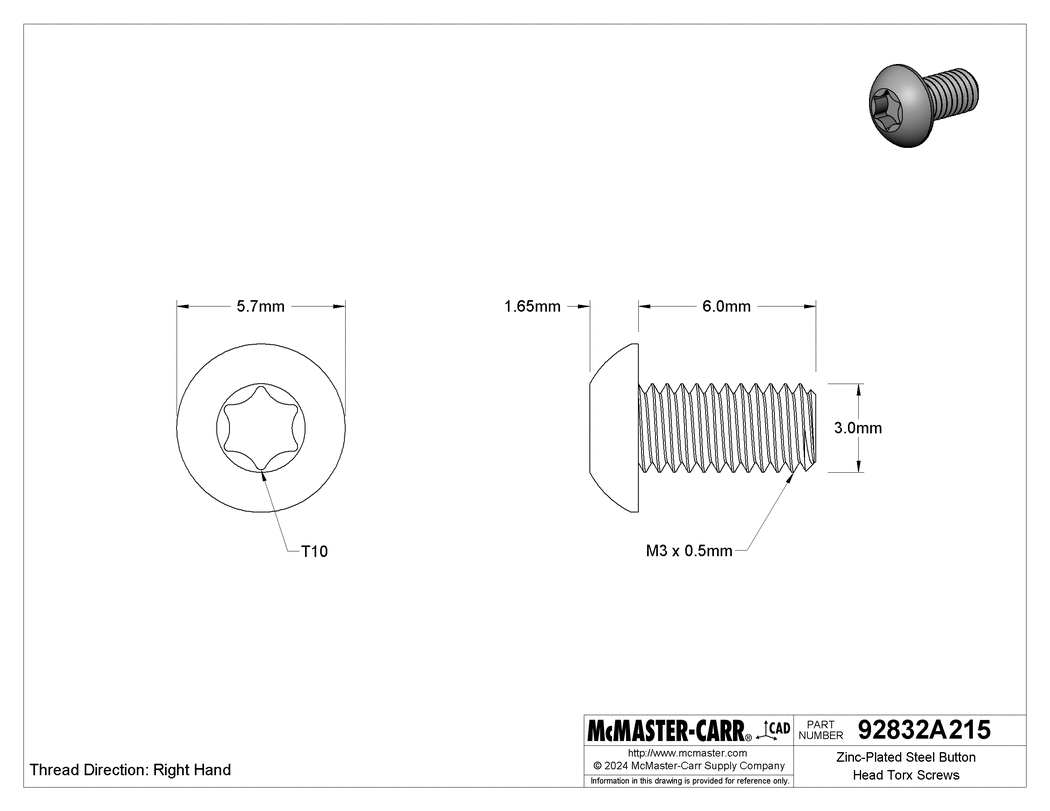

    Technical Drawing of Zinc-Plated Steel Button Head Torx Screws, Class 8.8, M3 x 0.5 mm Thread, 6 mm Long.
    Image of Product. Back orientation. Zinc-Plated Steel Button Head Torx Screws, Class 8.8, M3 x 0.5 mm Thread, 6 mm Long.

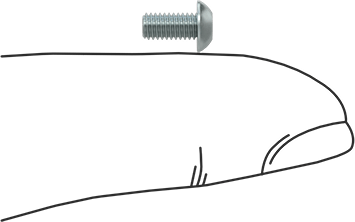

    Image of Product. Side1 orientation. Contains SizingReference. Zinc-Plated Steel Button Head Torx Screws, Class 8.8, M3 x 0.5 mm Thread, 6 mm Long.
    2-D PDF
    00000 per pack of 100
    92832A215
    In stock
    92832A215
    00000 per pack of 100
    Pack of 100
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    M3

    Pitch

    0.5 mm

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    Metric

    Fit

    Metric Class 6h

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Button

    Profile

    Standard

    Height

    1.65 mm

    Diameter

    5.7 mm

    Drive

    Style

    Torx

    Size

    T10

    Length

    6 mm

    Threading

    Fully Threaded

    Tensile Strength

    110,000 psi

    Specifications Met

    ISO 7380

    Fastener Strength Grade/Class

    ISO Class 8.8

    Hardness

    Rockwell C22

    Material

    Zinc-Plated Steel

    System of Measurement

    Metric

    Country of Origin

    Belgium, China, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, Vietnam

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    With a deep six-lobe opening, these Torx screws prevent drivers from slipping and stripping drives. Also known as star drives, they withstand more torque than slotted, Phillips, and hex drives. The button head looks similar to a pan head, but it's lower and more compact, taking up less space.

    Length is measured from under the head.

    Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.
