    Pan Head Screws with Flat and Split Lock Washer

    10-32 Thread Size, 3/4" Long

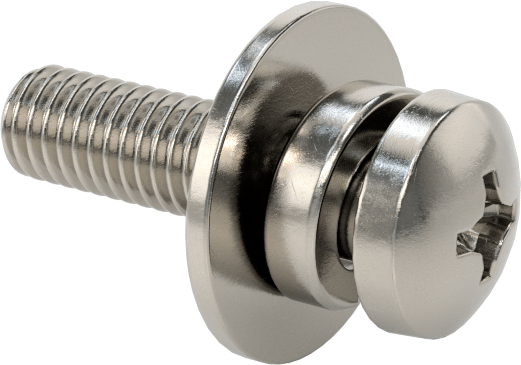

    Image of Product. Front orientation. Pan Head Screws with Flat and Split Lock Washer, 10-32 Thread Size, 3/4" Long.

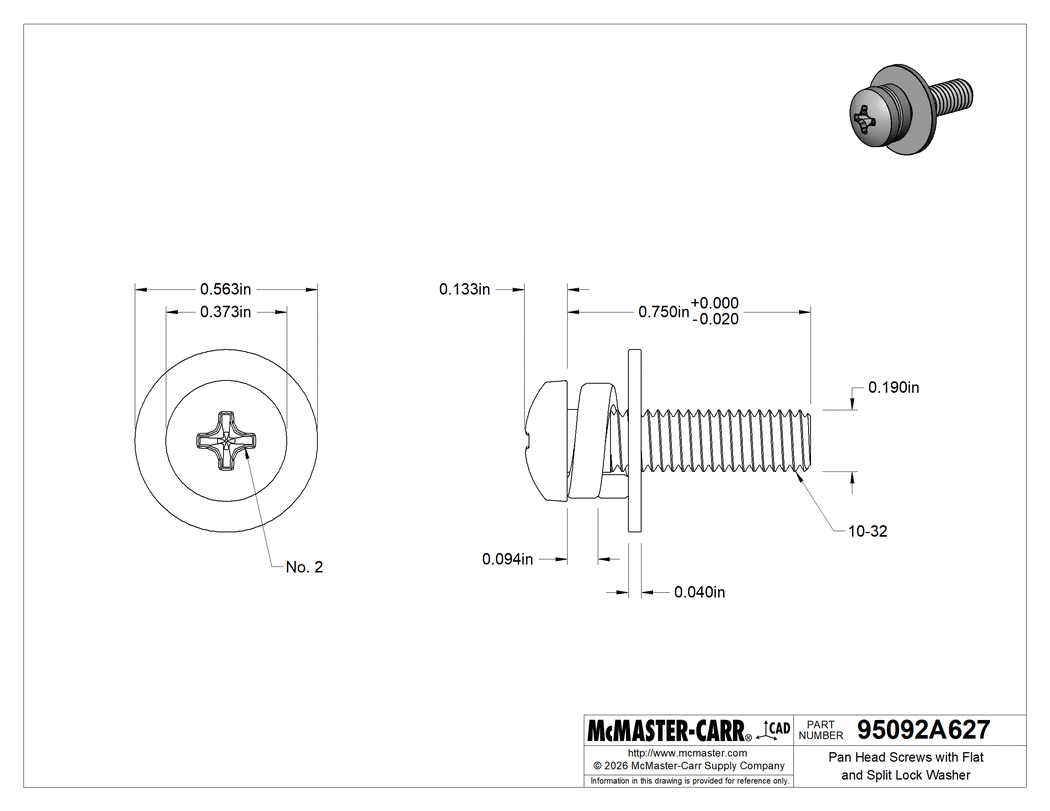

    Technical Drawing of Pan Head Screws with Flat and Split Lock Washer, 10-32 Thread Size, 3/4" Long.
    Image of Product. Back orientation. Pan Head Screws with Flat and Split Lock Washer, 10-32 Thread Size, 3/4" Long.

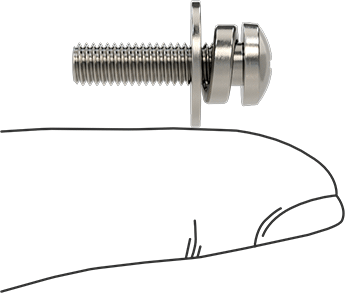

    Image of Product. Side1 orientation. Contains SizingReference. Pan Head Screws with Flat and Split Lock Washer, 10-32 Thread Size, 3/4" Long.
    2-D PDF
    000000 per pack of 10
    95092A627
    Delivers tomorrow 7-9 am
    95092A627
    000000 per pack of 10
    Pack of 10
    Delivers tomorrow 7-9 am
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Locking Type

    Lock Washer

    Thread

    Size

    10-32

    Direction

    Right Hand

    Spacing

    Fine

    Type

    UNF

    Fit

    Unified Standard Class 2A

    Tip Type

    Flat

    Fastener Head Type

    Flanged, Rounded

    Head

    Style

    Pan

    Profile

    Standard

    Height

    0.133"

    Diameter

    0.373"

    Drive

    Style

    Phillips

    Size

    No. 2

    Washer

    Type

    Flat

    Material

    18-8 Stainless Steel

    Flat OD

    0.563"

    Flat Thickness

    0.04"

    Split Thickness

    0.094"

    Material

    18-8 Stainless Steel

    Length

    3/4"

    Length Tolerance

    -0.03" to 0"

    Threading

    Fully Threaded

    Tensile Strength

    70,000 psi

    Specifications Met

    ASME B18.13

    Hardness

    Not Rated

    Passivation

    Passivated

    Performance

    Corrosion Resistant, Vibration Resistant

    Screw Size Decimal Equivalent

    0.190"

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Stop screws from coming loose due to light vibration while protecting your mating surface from damage. These screws have a split lock washer with uneven ends that bite into the screw and the flat washer. Also known as Sems screws, the washers rotate freely but are permanently attached. Made of stainless steel, they won't rust or corrode when exposed to moisture and chemicals. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.

    Length is measured from under the head.

    18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.
