    89 Products

    Chipping Air Hammers

    Image of Product. Front orientation. Air Hammers. Chipping Air Hammers, Curved Grip.
    Image of Product. Front orientation. Air Hammers. Chipping Air Hammers, D-Handle Grip.

    Curved Grip

    D-Handle Grip

    More powerful than Chiseling Air Hammers, use these tools for heavy material removal and in foundry and fabrication shops.
    Piston Stroke—Piston stroke determines the hammering power. The longer the stroke, the greater the power.
    Air Inlet
    For 0.580" Hex
    Chisel Shank
    For 0.680" Round
    Chisel Shank
    Blows per
    min.
    Piston
    Stroke
    Average Air Consumption,
    ft³/min
    Recommended Operating
    Air Pressure, psi
    Pipe
    Size
    Thread
    Type
    Gender
    For Air
    Hose ID
    For Chisel
    Collar Shape
    Overall
    Lg.
    Wt.,
    lb.
    Housing
    Material
    Barrel
    Material
    Each
    Each
    Curved Grip—Lever Speed Control
    2,5001"28903/8
    		NPT
    		Female1/2"Oval15 1/2"14.8SteelSteel0000000000000000000000000000
    2,3002"28903/8
    		NPT
    		Female1/2"Oval16"15.1SteelSteel00000000000000000000000000
    1,7253"29903/8
    		NPT
    		Female1/2"Oval18"16.6SteelSteel00000000000000000000000000
    1,4804"29903/8
    		NPT
    		Female1/2"Oval19"17.5SteelSteel00000000000000000000000000

    D-Handle Grip—Lever Speed Control
    2,4501"28903/8
    		NPT
    		Female1/2"Oval12"16SteelSteel0000000000000000000000000000
    2,3002"28903/8
    		NPT
    		Female1/2"Oval14"18SteelSteel0000000000000000000000000000
    2,1003"28903/8
    		NPT
    		Female1/2"Oval15 1/4"19SteelSteel0000000000000000000000000000
    1,7004"28903/8
    		NPT
    		Female1/2"Oval16 1/2"20SteelSteel0000000000000000000000000000

    Accessories and Replacements for Air Hammers
    Hose Swivels
    Swivel hose connectors eliminate cracked hoses due to kinking and broken inlet bushings. The connectors screw into the air inlet and allow hose to swivel with the hammer.
    For Grip
    Style
    Each
    Curved0000000000000
    D-Handle0000000000000
    Chisel Bits
    Image of Product. Front orientation. Chisel Bits. Chipping Air Hammers, Flat Chisel Bit Blade.

    Flat Chisel Bit Blade

    Image of Product. Front orientation. Chisel Bits. Chipping Air Hammers, Pointed Chisel Bit Blade.

    Pointed Chisel Bit Blade

    0.580" Hex Shank
    0.680"
    Round Shank
    Blade
    Wd.
    Overall
    Lg.
    Shank
    Lg.
    Collar
    Shape
    Material
    Each
    Each
    Flat Chisel Bit Blade
    1"9"2 3/8"OvalSteel00000000000000000000000000
    1"12"2 3/8"OvalSteel000000000000000000000000
    1"18"2 3/8"OvalSteel000000000000000000000000
    1"24"2 3/8"OvalSteel000000000000000000000000
    1"36"2 3/8"OvalSteel———0000000000000
    2"9"2 3/8"OvalSteel000000000000000000000000
    2"12"2 3/8"OvalSteel000000000000000000000000
    3"9"2 3/8"OvalSteel000000000000000000000000

    Pointed Chisel Bit Blade
    1/4"9"2 3/8"OvalSteel000000000000000000000000
    1/4"12"2 3/8"OvalSteel000000000000000000000000

    Air Hammer Replacement Parts
    Style
    Component
    Each

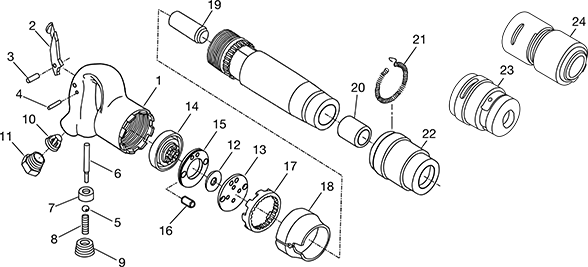

    For Curved Grips
    Image of System. Front orientation. Exploded view. Contains Annotated. Air Hammer Replacement Parts. Chipping Air Hammers, For Curved Grips.
    1Handle000000000000000
    2Throttle Lever0000000000000
    3Throttle Lever Pin000000000000
    4Throttle Lever Stop Pin000000000000
    5Throttle Valve Ball0000000000000
    6Throttle Valve Plunger0000000000000
    7Throttle Valve Plunger Bushing0000000000000
    8Throttle Valve Spring000000000000
    9Throttle Valve Cap0000000000000
    10Air Strainer0000000000000
    11Inlet Bushing0000000000000
    12Valve Washer0000000000000
    13Valve Seat00000000000000
    14Valve Cap00000000000000
    15Valve Spacer00000000000000
    16Dowel Pin0000000000000
    17Locking Ring00000000000000
    18Exhaust Deflector0000000000000
    19Piston (For Models 5957A11, A12, A15, and A16)00000000000000
    19Piston (For Models 5957A13, A14, A17, and A18)00000000000000
    20Hexagon Nozzle0000000000000
    20Round Nozzle0000000000000
    21Lock Spring0000000000000
    22Plain Retainer00000000000000
    23Quick-Change Retainer for Oval Collar Chisels00000000000000
    24Quick-Change Retainer for Oval and Round Collar Chisels00000000000000

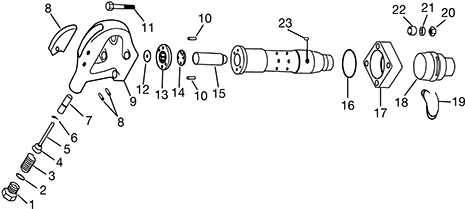

    For D-Handle Grips
    Image of System. Front orientation. Exploded view. Contains Annotated. Air Hammer Replacement Parts. Chipping Air Hammers, For D-Handle Grips.
    1Inlet Bushing00000000000000
    2Inlet O-Ring0000000000000
    3Spring0000000000000
    4Throttle Valve0000000000000
    5Throttle Valve Pin00000000000000
    6Throttle Valve O-Ring0000000000000
    7Throttle Bushing00000000000000
    8Trigger and Two Valve Pins0000000000000
    9Handle000000000000000
    10Valve Pin0000000000000
    11Flange Bolt0000000000000
    12Disc Valve0000000000000
    13Seat Valve00000000000000
    14Valve Bumper0000000000000
    151" Piston00000000000000
    152" Piston00000000000000
    153" Piston00000000000000
    16Absorbing Ring0000000000000
    17Flange000000000000000
    18Retainer00000000000000
    19Retainer Spring00000000000000
    20Nyloc Nut0000000000000
    21Washer0000000000000
    22Spacer0000000000000
    23Plug0000000000000

    Mufflers
    Muffler for D-Handle Grip Hammers—Mufflers cover the tool’s exhaust port to reduce sound.
    Each
    Muffler for D-Handle Grip Hammers00000000000000
