99 Products

Ball-Grip Positioning Arms

Arm Built with Rotating Complete Arm

with Ball, Rigid Connector, and

Universal Mounting Plate


Clamp-On Pipe-Mount Bases, Style A	Clamp-On Pipe-Mount Bases, Style B	Clamp-On Pipe-Mount Bases, Style C	Clamp-On Rectangular Bar Mount Bases, Style D

For Smartphones—Handheld Device Grips, Style E	For Tablets—Handheld Device Grips, Style F	For Tablets—Handheld Device Grips, Style G	For Irregularly-Shaped Devices—Handheld Device Grips, Style H

Ball-and-socket connections allow 360° positioning. Choose a complete arm or select a base, connectors, and accessories to build your own.

To ensure compatibility, select components that have the same ball diameter. Use reducing connectors (sold separately) to pair components with a 1 _1/2" ball diameter to those with a 1" ball diameter.

Bench- and Wall-Mount Complete Arms with Plate Attaching End


Any-Which-Way	Rotating/Tilting Arm

Any-which-way complete arms bend and stay in position. They do not have a ball; affix a screw-on base (sold separately) to attach to a connector. To see the product in motion, click on a part number.

Rotating/Tilting Arm—Rotating/tilting complete arms mount to a bench or a wall. Secure the object you want to position to the attaching end plate. These arms have handles to lock joints into position.

							Base			Attaching End
	Max. Projection	Ht.	Max. Load Cap., lb.	Material	Color	Mounting Fasteners Included	Dia.	No. of Mounting Holes	Mounting Hole Dia.	Plate Dia.	Mounting Hole Dia.	Range of Motion	Max. Tilt Range of Motion	No. of Mounting Holes		Each
Any-Which-Way



		—	7 3/8"	1	Plastic	Black	No	2 1/2"	4	13/64"	2 1/2"	13/64"	—	—	4	00000000	000000


		Rotating/Tilting



				7 1/4"	—	3	Powder-Coated Aluminum	Black	No	2 7/16"	7	3/16"	2 7/16"	3/16"	360°	180°	7	0000000	00000

Wall-Mount Complete Arms


Rotating-Ball Arm	Extended-Reach Rotating Ball Arm

Rotating-Ball Arm—Rotating complete arms have handles to lock joints into position.

To see the product in motion, click on a part number.

									Base
	Max. Projection	Ht.	Ball Dia.	Max. Load Cap., lb.	Material	Ball Material	Color	Mounting Fasteners Included	Lg.	Wd.	No. of Mounting Holes	Mounting Hole Dia.	Max. Range of Motion		Each
Rotating with Ball



		9 1/4"	9"	1 1/2"	3	Powder-Coated Aluminum	Rubber	Black	No	4 3/4"	3 7/8"	6	11/32"	—	0000000	0000000


		Extended-Reach Rotating with Ball



				15 1/4"	11 1/4"	1 1/2"	3	Powder-Coated Aluminum	Rubber	Black	No	4 3/4"	3 7/8"	6	11/32"	330°	0000000	000000

Bench- and Wall-Mount Complete Arms with Ball Attaching End

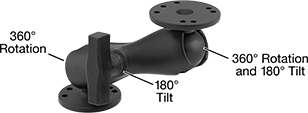

Image of Product. Front orientation. Contains Annotated. Positioning Arms. Ball-Grip Positioning Arms , Bench- and Wall-Mount Complete Arms with Ball Attaching End, Rotating/Tilting-Ball Arm.

Rotating/Tilting-Ball Arm

									Base
	Max. Projection	Ht.	Ball Dia.	Max. Load Cap., lb.	Material	Ball Material	Color	Mounting Fasteners Included	Lg.	Wd.	No. of Mounting Holes	Mounting Hole Dia.	Max. Tilt Range of Motion		Each
Rotating/Tilting with Ball



		14 1/2"	14 1/2"	1 1/2"	3	Powder-Coated Aluminum	Rubber	Black	No	3 7/16"	3 7/16"	4	11/32"	155°	0000000	0000000

Screw-On Bench- and Wall-Mount Bases


Round Base	Diamond Base

Screw-on bases have a universal AMPS (Attachment Mounting Pattern Standard) mounting hole pattern.

Round Base—Round bases attach to components with four AMPS mounting holes.

Diamond Base—Diamond bases attach to components with two AMPS mounting holes.

7 Mounting Holes—Round bases with seven mounting holes have an additional three-hole mounting pattern with a 1.8” bolt circle diameter.

							Mounting				Base
	Ht.	Ball Dia.	Max. Load Cap., lb.	Material	Ball Material	Color	Fasteners Included	Pattern Compatibility	No. of Holes	Hole Dia.	Dia.	Lg.	Wd.		Each
Round Base



		1 1/2"	1"	1	Powder-Coated Aluminum	Rubber	Black	No	AMPS	7	7/32"	2 7/16"	—	—	00000000	000000


		3 1/16"	2 1/4"	5	Powder-Coated Aluminum	Rubber	Black	No	AMPS	4	7/32"	2 7/16"	—	—	00000000	00000


		Diamond Base



				1 1/2"	1"	1	Powder-Coated Aluminum	Rubber	Black	No	AMPS	2	7/32"	—	2 7/16"	1 5/16"	00000000	00000

Clamp-On Pipe-Mount Bases


Style A	Style B	Style C

Style A—Style A bases have a handle to quickly grip or release pipes.

									Base
	Style	Clamping Distance Range	Ht.	Ball Dia.	Max. Load Cap., lb.	Material	Ball Material	Color	Lg.	Wd.		Each
Rotate, Tilt, Side-to-Side, In/Out



		A	5/8" to 1 1/8"	4 3/16"	1"	1	Plastic	Rubber	Black	—	1 7/16"	00000000	000000


		A	5/8" to 1 1/8"	4 1/4"	1 1/2"	3	Plastic	Rubber	Black	—	1 7/16"	00000000	00000
		B	1" to 1 1/4"	3"	1 1/2"	3	Powder-Coated Aluminum	Rubber	Black	2 3/8"	7/8"	0000000	00000
		C	2" to 2 1/2"	3 1/2"	1 1/2"	3	Powder-Coated Aluminum	Rubber	Black	4"	2 1/8"	00000000	00000

Clamp-On Rectangular Bar Mount Bases

Style D

									Base
	Style	Clamping Distance Range	Ht.	Ball Dia.	Max. Load Cap., lb.	Material	Ball Material	Color	Lg.	Wd.		Each
Rotate, Tilt, Side-to-Side, In/Out



		D	0" to 2 1/2"	2 1/2"	1 1/2"	3	Powder-Coated Aluminum	Rubber	Black	3 1/8"	1 1/4"	0000000	000000


		D	0" to 3"	4 11/16"	1"	1	Powder-Coated Aluminum	Rubber	Black	4 7/8"	1 13/16"	00000000	00000
		D	0" to 4"	5 7/16"	1 1/2"	3	Powder-Coated Aluminum	Rubber	Black	5 7/8"	2 9/16"	00000000	00000
		D	0" to 4"	8 5/16"	2 1/4"	6	Powder-Coated Aluminum	Rubber	Black	5 13/16"	2 9/16"	00000000	00000

Threaded Stud Bench- and Wall-Mount Bases

							Mounting Stud
	Ht.	Ball Dia.	Max. Load Cap., lb.	Material	Ball Material	Color	Thread Size	Lg.		Each
Rotate, Tilt, Side-to-Side, In/Out



		3"	1 1/2"	3	Steel	Rubber	Black	1/4"-20	5/8"	00000000	000000


		3"	1 1/2"	3	Steel	Rubber	Black	3/8"-16	3/8"	00000000	00000

Threaded Hole Pipe-Mount Bases

								Mounting
	Ht.	Ball Dia.	Max. Load Cap., lb.	Material	Ball Material	Color	Base Dia.	No. of Holes	Hole Pipe Size	Hole Thread Type		Each
Rotate, Tilt, Side-to-Side, In/Out



		3 1/4"	1 1/2"	3	Aluminum	Rubber	Black	1 1/4"	1	1/2	NPT	00000000	000000

T-Slot-Rail-Mount Bases

	For T-Slot Rail Ht.
	Single	Double, Quad	Ht.	Ball Dia.	Max. Load Cap., lb.	Material	Ball Material	Color	Mounting Fasteners Included	Base Dia.		Each
Rotate, Tilt, Side-to-Side, In/Out



		1", 1 1/2", 30 mm, 40 mm, 45 mm	2", 3", 60 mm, 80 mm, 90 mm	2 1/4"	1 1/2"	3	Steel	Rubber	Black	Yes	1 1/2"	00000000	000000

Bench- and Wall-Mount Magnetic Bases

	Ball Dia.	Max. Load Cap., lb.	Material	Ball Material	Color	Base Dia.		Each
Rotate, Tilt, Side-to-Side, In/Out



	1 3/4"	1"	0.5	Powder-Coated Aluminum	Rubber	Black	2 9/16"	00000000	000000


	2 1/4"	1 1/2"	0.5	Aluminum	Rubber	Black	2 1/2"	0000000	00000

Bench- and Wall-Mount Suction Bases

	Ball Dia.	Max. Load Cap., lb.	Material	Ball Material	Color	Base Dia.		Each
Rotate, Tilt, Side-to-Side, In/Out



	3 1/8"	1"	1	Aluminum	Rubber	Black	3 3/8"	00000000	000000


	3 3/4"	1 1/2"	3	Aluminum	Rubber	Black	3 3/8"	00000000	00000

Bench- and Wall-Mount Adhesive Bases

Adhesive bases attach to a surface with an adhesive pad.

							Base
	Ht.	Ball Dia.	Max. Load Cap., lb.	Material	Ball Material	Color	Lg.	Wd.		Each
Rotate, Tilt, Side-to-Side, In/Out



		3"	1 1/2"	3	Plastic	Rubber	Gray	5 1/2"	7 1/4"	0000000	000000

Rigid Connectors

Rigid connectors have a handle to lock the joints into position.

	For Ball Dia.	Max. Load Cap., lb.	Material	Color		Each
Rotate, Tilt, Side-to-Side, In/Out



	3 1/2"	1 1/2"	3	Powder-Coated Aluminum	Black	0000000	000000


	3 11/16"	1"	1	Powder-Coated Aluminum	Black	00000000	00000
	5 1/8"	2 1/4"	5	Powder-Coated Aluminum	Black	00000000	00000
	5 5/8"	1 1/2"	3	Powder-Coated Aluminum	Black	0000000	00000
	9 1/8"	1 1/2"	3	Powder-Coated Aluminum	Black	0000000	00000

Swivel Connectors

Swivel connectors have two halves that pivot independently so you can lock one joint while positioning the other.

	For Ball Dia.	Max. Load Cap., lb.	Material	Color		Each
Rotate, Tilt, Side-to-Side, In/Out



	6"	1 1/2"	3	Plastic	Black	00000000	000000

Reducing Connectors

Reducing connectors join components with a 1 _1/2" ball diameter to those with a 1" ball diameter. They have handles to lock the joints into position.

	For Ball Dia.	Max. Load Cap., lb.	Material	Color		Each
Rotate, Tilt, Side-to-Side, In/Out



	5 1/4"	1"; 1 1/2"	1	Plastic	Black	00000000	000000

Universal Mounting Plates

								Mounting
	Lg.	Wd.	Ball Dia.	Max. Load Cap., lb.	Material	Ball Material	Color	Fasteners Included	No. of Holes	Hole Dia.		Each
Rotate, Tilt, Side-to-Side, In/Out



		6 1/4"	2"	1 1/2"	3	Powder-Coated Aluminum	Rubber	Black	No	20	7/32"	00000000	000000

For Smartphones—Handheld Device Grips

Style E

Handheld device grips adjust for a secure hold.

Style E—Style E have spring-loaded fingers that you can adjust to fit devices of different sizes. Rubber caps on the fingers create a tight grip on your smartphone or tablet.

	For Diag. Screen Size	Ball Dia.	Max. Load Cap., lb.	Material	Ball Material	Color		Each
Rotate, Tilt, Side-to-Side, In/Out



	E	4.5" to 6.2"	1"	1	Plastic	Rubber	Black	00000000	000000

For Tablets—Handheld Device Grips


Style E	Style F	Style G

Handheld device grips adjust for a secure hold.

Styles E and F—Styles E and F have spring-loaded fingers that you can adjust to fit devices of different sizes. Rubber caps on the fingers create a tight grip on your smartphone or tablet.

Style G—Style G do not have a ball; affix a screw-on base (sold separately) to attach to a connector. Maximum load capacity is based on the screw-on base you choose. Style G have a spring-loaded top bracket that expands, so you can insert your tablet. For a secure hold, the bracket clamps down on your device. They have a keyed lock to prevent your tablet from being removed once it’s in the holder.

								Mounting
	Style	For Diag. Screen Size	Ball Dia.	Max. Load Cap., lb.	Material	Ball Material	Color	Fasteners Included	Pattern Compatibility	No. of Locks	No. of Keys Included		Each
Rotate, Tilt, Side-to-Side, In/Out



		E	7" to 8"	1"	1	Plastic	Rubber	Black	—	—	—	—	00000000	000000


		F	9" to 11"	1 1/2"	3	Plastic	Rubber	Black	—	—	—	—	00000000	000000
		G	7" to 8"	—	—	Plastic	—	Black	Yes	AMPS	1	2	00000000	000000
		G	9" to 10.5"	—	—	Plastic	—	Black	Yes	AMPS	1	2	00000000	000000

For Irregularly-Shaped Devices—Handheld Device Grips

Style H

Handheld device grips adjust for a secure hold.

Style H—Style H do not have a ball; affix a screw-on base (sold separately) to attach to a connector. Maximum load capacity is based on the screw-on base you choose. Style H hold devices that don’t have a uniform shape, such as radios and GPS navigators. They have rubber fingers that adjust to fit around curves, avoid antennas, and grip irregular shapes.

		For Device					Mounting
	Style	Wd.	Ht.	Dp.	Material	Color	Fasteners Included	Pattern Compatibility		Each
Rotate, Tilt, Side-to-Side, In/Out



		H	1 1/4" to 3 1/2"	3 5/8" to 7 1/4"	15/16" to 1 1/2"	Plastic	Black	Yes	AMPS	00000000	000000

Handheld Device Grips Rotation Adapters


Shown Installed with a Device Grip and Screw-On Base (Sold Separately)

Rotation adapters allow your device to be rotated between landscape and portrait mode without unlocking and adjusting the entire positioning arm.

These adapters can only be used with handheld device grips that do not include a ball and have an AMPS mounting hole pattern. Affix a screw-on base (sold separately) to attach to a connector.

		Mounting
Material	Color	Fasteners Included	Pattern Compatibility	Base Dia.		Each



	Plastic	Black	Yes	AMPS	4"	00000000	000000

Tablet and Laptop Holders


AMPS and VESA 75	AMPS

Tablet and laptop holders have spring-loaded brackets that adjust to fit most tablets and compact laptops. They have a universal AMPS mounting hole pattern. They do not have a ball; affix a screw-on base (sold separately) to attach to a connector.

6" Long—6" holders have a VESA (Video Electronics Standards Association) standard mounting hole pattern in addition to an AMPS mounting hole pattern.

					Mounting
	Lg.	Wd.	Material	Color	Fasteners Included	Pattern Compatibility		Each
Rotate, Tilt, Side-to-Side, In/Out



		6"	8 9/16" to 11 1/8"	Plastic	Black	Yes	AMPS VESA 75 × 75	00000000	000000


		10"	10" to 16"	Plastic	Black	Yes	AMPS	00000000	00000

Flat-Panel Monitor Mounting Plates


Monitor	Monitor and Keyboard

Flat-panel monitor mounting plates have a VESA standard mounting hole pattern to attach monitors, tablet holders, and other devices.

Monitor—Mounting plates for monitors do not have a ball; affix a screw-on base (sold separately) to attach to a connector.

For Mounting Keyboards—Mounting plates for monitors and keyboards do not have a ball; affix a screw-on base (sold separately) to attach to a connector.

									Mounting
	For Mounting	Wd.	Ht.	Ball Dia.	Max. Load Cap., lb.	Material	Ball Material	Color	Fasteners Included	Monitor Hole Pattern Compatibility	Keyboard Hole Pattern Compatibility		Each
Rotate, Tilt, Side-to-Side, In/Out



		Monitor	4 3/4"	4 3/4"	1 1/2"	3	Powder-Coated Aluminum	Rubber	Black	No	VESA 100 × 100, VESA 75 × 75	—	0000000	000000


		Monitor, Keyboard	4 13/16"	10 13/16"	—	Not Rated	Powder-Coated Steel	—	Black	Yes	VESA 100 × 100, VESA 75 × 75	AMPS	00000000	00000

Magnetic Trays

Magnetic trays keep fasteners and other small steel items in place. They do not have a ball; affix a screw-on base (sold separately) to attach to a connector.

							Mounting
	Lg.	Wd.	For Ball Dia.	Max. Load Cap., lb.	Material	Color	Fasteners Included	No. of Holes	Hole Dia.		Each
Rotate, Tilt, Side-to-Side, In/Out



		10"	13"	1 1/2"	1	Plastic	Black	No	4	11/64"	00000000	000000

Scanner Gun Holders

Scanner gun holders have rubber fins to grip your scanner gun. These holders have an open bottom, so you can scan items without removing the scanner. They have a universal AMPS mounting hole pattern, but do not have a ball. A screw-on base (sold separately) is required to attach to a connector.

			Opening					Mounting
	Wd.	Ht.	Ht.	Wd.	Max. Load Cap., lb.	Material	Color	Fasteners Included	Pattern Compatibility	No. of Holes	Hole Dia.	Features		Each
Rotate, Tilt, Side-to-Side, In/Out



		5"	5 1/8"	3 1/2"	2 1/8"	3	Plastic	Black	Yes	AMPS	4	7/32"	Open Bottom, Rubber Fins	00000000	000000

Heavy Duty Ball-Grip Positioning Arms

Arm Built with Base, Two Straight

Connectors, Straight Link, Locking

Handle, and Sensor Mount


Machine Vision Camera Mounting Plates, Style A	Machine Vision Camera Mounting Plates, Style B	Machine Vision Camera Mounting Plates, Style C

Machine Vision Camera Mounting Plates, Style D	Sensor Mounting Adapters, Style E	Sensor Mounting Adapters, Style F

With strength for higher load capacities than other ball-grip positioning arms, these arms have a heavy duty construction. Ball-and-socket connections allow 360° positioning. The base, connectors, and links are hollow for routing wires, cables, and small hoses. Select a base, connectors, link, and plate or mount to build a complete arm.

Bases

Base is for use with straight and tee connectors.

	For T-Slot Rail								Mounting
	Ht.	Profile	Dia.	ID	Lg.	Max. Load Cap., lb.	Material	Color	Fasteners Included	No. of Holes	Hole Dia.		Each
Rotate, Tilt, Side-to-Side, In/Out



		1", 1 1/2"	Single	2 1/2"	7/8"	2 1/2"	35	Anodized Aluminum	Blue	Yes	4	1/4"	0000000	000000

Straight Connectors

Straight connector is for use with straight links.

	ID	Lg.	Max. Load Cap., lb.	Material	Color		Each
Rotate, Tilt, Side-to-Side, In/Out



	2"	7/8"	2"	35	Anodized Aluminum	Blue	0000000	000000

Tee Connectors

Tee connector is designed to work with a tee link to create two branches from one base.

	Dia.	ID	Lg.	Max. Load Cap., lb.	Material	Color		Each
Rotate, Tilt, Side-to-Side, In/Out



	180°	2"	1"	2 1/2"	35	Anodized Aluminum	Blue	0000000	000000

Straight Links

	ID	Lg.	Max. Load Cap., lb.	Material	Color		Each
Rotate, Tilt, Side-to-Side, In/Out



	1 1/4"	7/8"	2 3/4"	35	Anodized Aluminum	Blue	0000000	000000


	1 1/4"	7/8"	4 3/4"	35	Anodized Aluminum	Blue	0000000	00000
	1 1/4"	7/8"	6 3/4"	35	Anodized Aluminum	Blue	0000000	00000
	1 1/4"	7/8"	8 3/4"	35	Anodized Aluminum	Blue	0000000	00000
	1 1/4"	7/8"	12 3/4"	35	Anodized Aluminum	Blue	0000000	00000

Tee Links

	ID	Lg.	Max. Load Cap., lb.	Material	Color		Each
Rotate, Tilt, Side-to-Side, In/Out



	1 1/4"	7/8"	4 3/4"	35	Anodized Aluminum	Blue	0000000	000000

Telescoping Links

	ID	Lg.	Max. Load Cap., lb.	Material	Color	Includes		Each
Rotate, Tilt, Side-to-Side, In/Out



	1 3/8"	5/8"	6 3/4" to 10 3/4"	35	Anodized Aluminum	Blue	Adjustable Handle	0000000	0000000

Blank Mounting Plates

Mounting plates require a base and a straight or tee connector to attach to a link. Blank mounting plate allows you to drill custom mounting holes.

						Mounting
	Lg.	Wd.	Max. Load Cap., lb.	Material	Color	Fasteners Included	No. of Holes		Each
Rotate, Tilt, Side-to-Side, In/Out



		4 5/16"	2 1/2"	35	Anodized Aluminum	Blue	Yes	4	0000000	000000

Machine Vision Camera Mounting Plates


Style A	Style B	Style C	Style D

Mounting plates require a base and a straight or tee connector to attach to a link. Machine vision camera mounting plates come with mounting hole patterns for specific brand cameras.

							Mounting
	Style	Lg.	Wd.	Max. Load Cap., lb.	Material	Color	Fasteners Included	Pattern Compatibility	No. of Holes		Each
Rotate, Tilt, Side-to-Side, In/Out



		A	2 3/4"	2 1/2"	35	Anodized Aluminum	Blue	Yes	Cognex In-Sight 2000 Cognex In-Sight 8000	17	0000000	000000


		B	3"	2 1/2"	35	Anodized Aluminum	Blue	Yes	Cognex Dataman 300 Cognex Dataman 302 Cognex Dataman 360 Cognex Dataman 470 Cognex Dataman 474 Cognex Dataman 70 Cognex In-Sight 7000 Cognex In-Sight 7800	17	0000000	00000
		C	4"	3 1/2"	35	Anodized Aluminum	Blue	Yes	Smart Vision ODS75 Smart Vision ODSW75 Smart Vision S75 Smart Vision SC75 Smart Vision SW75	12	0000000	00000
		D	4 5/16"	2 1/2"	35	Anodized Aluminum	Blue	Yes	DALSA BOA Cognex Checker 100 Cognex In-Sight 5000 DALSA DVT Legend 500 Cognex Dataman 100 Cognex Dataman 200 Keyence IV-500/150/2000	29	0000000	00000

Flat-Panel Monitor Mounting Plates

Mounting plates require a base and a straight or tee connector to attach to a link. Flat-panel monitor mounting plate has a VESA (Video Electronics Standards Association) standard mounting hole pattern.

						Mounting
	Lg.	Wd.	Max. Load Cap., lb.	Material	Color	Fasteners Included	Pattern Compatibility	No. of Holes		Each
Rotate, Tilt, Side-to-Side, In/Out



		4 1/2"	4 1/2"	35	Anodized Aluminum	Blue	Yes	VESA 100 × 100 VESA 75 × 75	4	0000000	000000

Sensor Mounting Adapters


Style E	Style F

Sensor mounting adapters are threaded for sensors. They have sight holes so you can view indicator lights.

	For Sensor/Switch OD, mm	Dia.	Lg.	Max. Load Cap., lb.	Material	Color		Each
Rotate, Tilt, Side-to-Side, In/Out



	E	18	1 11/32"	3 3/4"	35	Anodized Aluminum	Blue	0000000	000000


	E	30	1 3/4"	3 3/4"	35	Anodized Aluminum	Blue	0000000	00000
	F	8	3/4"	2 1/4"	35	Anodized Aluminum	Blue	0000000	00000
	F	12	3/4"	2 1/4"	35	Anodized Aluminum	Blue	0000000	00000

Start/Stop Switch Mounts

Start/stop switch mount attaches a switch to a machine.

	Dia.	Lg.	Max. Load Cap., lb.	Material	Color		Each
Rotate, Tilt, Side-to-Side, In/Out



	30	3 1/2"	3 3/4"	35	Anodized Aluminum	Blue	0000000	000000

Vacuum Lifter Mounts

						Air Connection
	Dia.	Lg.	Max. Load Cap., lb.	Material	Color	Pipe Size	Thread Type	Gender	Mounting Hole Pipe Size (Mounting Hole Thread Type)	Mounting Hole Screw Size		Each
Rotate, Tilt, Side-to-Side, In/Out



		1 1/4"	3 1/16"	35	Anodized Aluminum	Blue	1/2	BSPP	Female	1/4 (BSPP); 3/8 (BSPP); 1/2 (BSPP)	M8	00000000	0000000

Locking Handles

Locking handle can be used with straight and tee connectors to lock joints in place to restrict movement.

				Mounting Stud
	Lg.	Material	Color	Thread Size	Lg.		Each
Rotate, Tilt, Side-to-Side, In/Out



		2"	Steel	Black	10-24	1"	0000000	000000

Pipe- and Bar-Mount Monitor Positioning Arms

Mount monitors to round and square bars, such as equipment handles and support beams. These arms have a VESA standard mounting hole pattern to attach monitors, tablet holders, and other compatible devices. Tilt your screen for a better view or raise it to eye level—ball-and-socket joints give these arms 360° range of motion.

Clamp-On Pipe Mount with Plate Attaching End


Pipe Mount Shown Installed

Clamp-on pipe-mount arms have jaws at their base that grip round bars, pipes, and railings. These are often used to mount screens to cart handles.

			Projection					Base		Attaching End
	Display Ht.	Clamping Distance Range	Min.	Max.	Max. Load Cap., lb.	Material	Color	Lg.	Wd.	Range of Motion	Max. Tilt Range of Motion	Mounting Pattern Compatibility		Each
Rotate, Tilt, Side-to-Side, Up/Down, In/Out



		1" to 6"	1 1/4" to 2"	4"	7 3/4"	10	Powder-Coated Aluminum	Black	3 3/4"	1 1/4"	360°	210°	VESA 75 × 75	0000000	000000

Clamp-On Rectangular-Bar Mount with Plate Attaching End


Rectangular-Bar Mount Shown Installed

Clamp-on rectangular-bar-mount arms have plates that clamp to rectangular parts for a secure hold. Use them with square posts, T-slotted framing, and shelving units. These arms have an additional AMPS standard mounting hole pattern, which is commonly used to attach tablet holders and keyboards.

			Projection					Base		Attaching End
	Display Ht.	Clamping Distance Range	Min.	Max.	Max. Load Cap., lb.	Material	Color	Lg.	Wd.	Range of Motion	Max. Tilt Range of Motion	Mounting Pattern Compatibility		Each
Rotate, Tilt, Side-to-Side, Up/Down, In/Out



		0" to 10 1/2"	0" to 3 1/2"	3"	11 3/8"	5	Powder-Coated Steel	Black	6 1/4"	2 13/16"	360°	210°	AMPS, VESA 75 × 75, VESA 100 × 100	0000000	0000000

Suspension Positioning Arms for Enclosures


Example Configuration	All Components Sold Separately

Example Configuration

Hang your human-machine interface and swivel it around to save floor space and comfortably access touch screens, buttons, and other operating equipment. These suspension arms have already-drilled mounting holes that match our HMI enclosures. Route wire from your HMI components to a machine through a hole that runs through the entire arm. To prevent them from swinging too far and hitting people and equipment, locking pins let you restrict how far these arms rotate. Brakes lock their position into place.

Customize a system for your application—you can create hundreds of different variations. A complete suspension arm requires at least a base, a tube, and a mount. Add components to extend your arm up to 80” from the base and expand its range of motion. Arms without a connector support up to 180 lbs. Those with a connector support up to 135 lbs., but the load it can hold decreases by 2 lbs. for every 1” over 40” from the base.

Bases


Wall Mount	Bench Top

Bases mount your arm to a surface.

Wall Mount—Wall bases mount to a wall, the side of a machine, or another vertical surface.

Bench Top—Bench-top bases mount to horizontal surfaces, such as the top of a machine.

			For Tube			Mounting Plate
	Adjustment Movement	Max. Range of Motion	Ht.	Wd.	Ht.	Lg.	Wd.	Hole Dia.	Material	Color	Mounting Fasteners Included	Features		Each
Wall Mount



		Rotate	230°	3 1/2"	2 1/2"	10"	7 1/8"	5 5/8"	0.389"	Powder-Coated Aluminum	White	Yes	Cable Routing Hole, Locking Pins, Swivels	0000000	0000000


		Bench Top



				Rotate	310°	3 1/2"	2 1/2"	7 1/4"	7 3/4"	5 3/4"	0.433"	Powder-Coated Aluminum	White	Yes	Brake, Cable Routing Hole, Locking Pins, Swivels	0000000	000000

Tubes

Tubes extend your arm’s reach.

	Tube
Lg.	Ht.	Wd.	Material	Color	Mounting Fasteners Included	Features		Each



	8"	3 1/2"	2 1/2"	Powder-Coated Aluminum	White	Yes	Cable Routing Hole	000000	0000000


	20"	3 1/2"	2 1/2"	Powder-Coated Aluminum	White	Yes	Cable Routing Hole	0000000	000000
	30"	3 1/2"	2 1/2"	Powder-Coated Aluminum	White	Yes	Cable Routing Hole	0000000	000000
	39"	3 1/2"	2 1/2"	Powder-Coated Aluminum	White	Yes	Cable Routing Hole	0000000	000000

Connectors


90° Angle	S-Shape

Connectors join tubes.

Rotate—Those that rotate create a joint that swivels.

			For Tube
	Adjustment Movement	Max. Range of Motion	Ht.	Wd.	Ht.	Wd.	Dp.	Material	Color	Mounting Fasteners Included	Features		Each
90° Angle



		—	—	3 1/2"	2 1/2"	5 1/8"	3 1/4"	5 1/8"	Powder-Coated Aluminum	White	Yes	Cable Routing Hole	0000000	0000000


		Upward S



				Rotate	310°	3 1/2"	2 1/2"	11 1/2"	5 3/8"	6"	Powder-Coated Aluminum	White	Yes	Cable Routing Hole, Locking Pins, Swivels	0000000	000000


				Downward S



						Rotate	310°	3 1/2"	2 1/2"	12 3/8"	5 3/8"	6"	Powder-Coated Aluminum	White	Yes	Cable Routing Hole, Locking Pins, Swivels	0000000	000000

Mounts


Straight	90° Angle

Mounts connect your arm to an enclosure.

			For Tube
	Adjustment Movement	Max. Range of Motion	Ht.	Wd.	Dia.	Ht.	Wd.	Dp.	Material	Color	Mounting Fasteners Included	Features		Each
Straight



		Rotate	360°	3 1/2"	2 1/2"	5"	—	—	2 5/8"	Powder-Coated Aluminum	White	Yes	Brake, Cable Routing Hole, Locking Pins, Swivels	0000000	0000000


		90° Angle



				Rotate	320°	3 1/2"	2 1/2"	—	5 7/8"	5 1/8"	5 1/2"	Powder-Coated Aluminum	White	Yes	Brake, Cable Routing Hole, Locking Pins, Swivels	0000000	000000

Adapters

Adapters tilt your enclosure for an improved view of and access to your HMI components.

Max. Incline	Dia.	Wd.	Dp.	Material	Color	Cover Material	Mounting Fasteners Included	Features		Each



Tilt	45°	6 3/8"	10"	4 1/4"	Aluminum	Black	Rubber	Yes	Brakes, Cable Routing Hole	0000000	0000000

Laptop Positioning Arms

Set up your laptop where you normally couldn't, such as on a cart handle or vehicle. These arms attach to surfaces to create a secure mounting point for your laptop. Their base is adjustable to fit a variety of laptop sizes.

Clamp-On Pipe Mount

Clamp-on pipe mount arms attach to round bars, pipes, and railings with two adjustable U-bolts. They have two ball-and-socket joints—one below the laptop holder and one above the base. Each joint rotates 360°, so you can move these arms in any direction and lock them in place.

				Projection						Base		Attaching End
	For Diag. Screen Size	Display Ht.	Clamping Distance Range	Min.	Max.	For Device Thickness	Max. Load Cap., lb.	Material	Color	Lg.	Wd.	Range of Motion	Max. Tilt Range of Motion		Each
Rotate, Tilt, Side-to-Side, Up/Down, In/Out



		11" to 17 1/2"	5 1/16" to 12 1/8"	1" to 1 1/4"	10"	13 3/16"	1/2" to 1 3/4"	3	Plastic	Black	2 1/2"	2 1/16"	360°	180°	0000000	0000000

Screw-On Mount

Screw-on arms fasten to flat surfaces, such as the floor of your vehicle. These arms have three pivot points that rotate 360° and lock in position. A ball-and-socket joint connects the arm and the laptop holder, so you can tilt your laptop for a better viewing angle.

			Projection						Mounting			Base
	For Diag. Screen Size	Display Ht.	Min.	Max.	For Device Thickness	Max. Load Cap., lb.	Material	Color	Fasteners Included	No. of Holes	Hole Dia.	Lg.	Wd.	Max. Range of Motion		Each
Rotate, Tilt, Side-to-Side, Up/Down, In/Out



		11" to 17 1/2"	25 1/8" to 32"	10"	17"	1/2" to 1 3/4"	3	Plastic	Black	No	4	9/16"	8"	8"	360°	0000000	0000000

Tablet Positioning Arms

Position your tablet within view while keeping your hands free to work. These arms mount to a variety of surfaces while keeping a secure grip on your tablet.

Clamp-On Rectangular-Bar Mount


Shown Installed

Clamp-on rectangular bar-mount arms have a base that fits around rectangular parts, such as square posts, t-slotted framing, and shelving units. These arms have ball-and-socket joints that give them a 360° range of motion. Tilt or rotate them for a better viewing angle and lock the joints in place.

				Projection					Base		Attaching End
	For Diag. Screen Size	Display Ht.	Clamping Distance Range	Min.	Max.	Max. Load Cap., lb.	Material	Color	Lg.	Wd.	Range of Motion	Max. Tilt Range of Motion		Each
Rotate, Tilt, Side-to-Side, Up/Down, In/Out



		7" to 8"	0" to 6 9/16"	0" to 4"	2 11/16"	9 3/16"	3	Plastic	Black	5 5/16"	2 1/2"	360°	180°	00000000	0000000


		9" to 10.5"	0" to 6 9/16"	0" to 4"	2 13/16"	9 3/8"	3	Plastic	Black	5 5/16"	2 1/2"	360°	180°	00000000	000000

Clamp-On Pipe Mount


Shown Installed

Clamp-on pipe-mount arms attach to round bars, pipes, and railings using adjustable jaws. They’re commonly used to mount screens to cart handles. Clamp-on pipe-mount arms have ball-and-socket joints that give them a 360° range of motion. Tilt or rotate them for a better viewing angle and lock the joints in place.

				Projection					Base		Attaching End
	For Diag. Screen Size	Display Ht.	Clamping Distance Range	Min.	Max.	Max. Load Cap., lb.	Material	Color	Lg.	Wd.	Range of Motion	Max. Tilt Range of Motion		Each
Rotate, Tilt, Side-to-Side, Up/Down, In/Out



		7" to 8"	0" to 8 1/16"	5/8" to 1 1/8"	2 11/16"	10 11/16"	3	Plastic	Black	4 7/8"	1 7/16"	360°	180°	00000000	0000000


		9" to 10.5"	0" to 8 1/16"	5/8" to 1 1/8"	2 13/16"	10 7/8"	3	Plastic	Black	4 7/8"	1 7/16"	360°	180°	00000000	000000

Magnetic Mount


Shown Installed

Magnetic-mount arms cling to magnetic surfaces and have a strong enough hold to be mounted from any orientation, such as on the side of a machine. They’re good for creating a temporary display because they’re easy to move from place to place. Magnetic-mount arms have ball-and-socket joints that give them a 360° range of motion. Tilt or rotate them for a better viewing angle and lock the joints in place.

			Projection						Attaching End
	For Diag. Screen Size	Display Ht.	Min.	Max.	Max. Load Cap., lb.	Material	Color	Base Dia.	Range of Motion	Max. Tilt Range of Motion		Each
Rotate, Tilt, Side-to-Side, Up/Down, In/Out



		7" to 8"	0" to 6 7/8"	2 11/16"	9 1/2"	3	Plastic	Black	2 1/2"	360°	180°	00000000	0000000


		9" to 10.5"	0" to 6 7/8"	2 13/16"	9 11/16"	3	Plastic	Black	2 1/2"	360°	180°	00000000	000000

Suction Mount


Shown Installed

Suction-mount arms are ideal for mounting tablets onto flat surfaces and windows, such as the windshield of your vehicle. The suction cup base creates a strong hold to keep the arm mounted from any orientation. They’re easy to remove and install, so they’re good for when you want a temporary display. Suction-mount arms have ball-and-socket joints that give them a 360° range of motion. Tilt or rotate them for a better viewing angle and lock the joints in place.

			Projection						Attaching End
	For Diag. Screen Size	Display Ht.	Min.	Max.	Max. Load Cap., lb.	Material	Color	Base Dia.	Range of Motion	Max. Tilt Range of Motion		Each
Rotate, Tilt, Side-to-Side, Up/Down, In/Out



		7" to 8"	0" to 7 11/16"	2 11/16"	10 5/16"	3	Plastic	Black	3 5/16"	360°	180°	00000000	0000000


		9" to 10.5"	0" to 7 11/16"	2 13/16"	10 1/2"	3	Plastic	Black	3 5/16"	360°	180°	00000000	000000

Mobile Device Positioning Arms

Keep smartphones and irregularly-shaped devices, such as radios, in sight and within reach. These arms mount to a variety of surfaces and have 360° range of motion thanks to their ball-and-socket joints. Tilt or rotate them for a better viewing angle and lock the joints in place.

For Smartphones—Clamp-On Pipe Mount


Clamp-On Pipe Mount Shown Installed

Arms for smartphones have spring-loaded brackets to grip the outside of your smartphone while leaving the screen visible.

Clamp-on pipe-mount arms attach to round bars, pipes, and railings using adjustable jaws. They’re commonly used to mount screens to cart handles.

								Base
	For Diag. Screen Size	Display Ht.	Clamping Distance Range	Max. Projection	Max. Load Cap.	Material	Color	Lg.	Wd.		Each
Rotate, Tilt, Side-to-Side, Up/Down, In/Out



		5.5" to 6.9"	0" to 1 5/8"	5/8" to 1 1/8"	5"	Not Rated	Plastic	Black	3 9/16"	1 1/8"	0000000	000000

For Smartphones—Suction Mount


Suction Mount Shown Installed

Arms for smartphones have spring-loaded brackets to grip the outside of your smartphone while leaving the screen visible.

Suction-mount arms are ideal for mounting devices onto flat surfaces and windows, such as the windshield of your vehicle. The suction cup base is strong enough to keep the arm securely mounted in any orientation.

			Projection						Attaching End
	For Diag. Screen Size	Display Ht.	Min.	Max.	Max. Load Cap., lb.	Material	Color	Base Dia.	Range of Motion	Max. Tilt Range of Motion		Each
Rotate, Tilt, Side-to-Side, Up/Down, In/Out



		5.5" to 6.9"	3/8" to 7 5/16"	6"	9 5/16"	1	Plastic	Black	3 5/16"	360°	180°	0000000	000000

For Irregularly-Shaped Devices—Clamp-On Rectangular-Bar Mount


Clamp-On Rectangular-Bar Mount Shown Installed

Arms for irregularly-shaped devices hold mobile devices that don’t have a uniform shape, such as radios and GPS navigators. They have rubber fingers that adjust to fit around curves, avoid antennas, and grip asymmetrical devices.

Clamp-on rectangular bar-mount arms have a base that fits around rectangular parts, such as square posts, t-slotted framing, and rails.

			Projection		For Device						Base		Attaching End
	Display Ht.	Clamping Distance Range	Min.	Max.	Wd.	Ht.	Dp.	Max. Load Cap., lb.	Material	Color	Lg.	Wd.	Range of Motion	Max. Tilt Range of Motion		Each
Rotate, Tilt, Side-to-Side, Up/Down, In/Out



		0" to 5 7/8"	0" to 3"	5 7/8"	11 13/16"	1 1/4" to 3 1/2"	3 5/8" to 7 1/4"	15/16" to 1 1/2"	1	Plastic	Black	4 3/4"	1 13/16"	360°	180°	0000000	0000000

For Irregularly-Shaped Devices—Clamp-On Pipe Mount


Clamp-On Pipe Mount Shown Installed

Clamp-on pipe-mount arms attach to round bars, pipes, and railings using adjustable jaws. They’re commonly used to mount screens to cart handles.

			Projection		For Device						Base		Attaching End
	Display Ht.	Clamping Distance Range	Min.	Max.	Wd.	Ht.	Dp.	Max. Load Cap., lb.	Material	Color	Lg.	Wd.	Range of Motion	Max. Tilt Range of Motion		Each
Rotate, Tilt, Side-to-Side, Up/Down, In/Out



		0" to 4 3/8"	5/8" to 1 1/8"	8 1/2"	13 3/4"	1 1/4" to 3 1/2"	3 5/8" to 7 1/4"	15/16" to 1 1/2"	1	Plastic	Black	4 3/16"	1 7/16"	360°	180°	0000000	0000000

For Irregularly-Shaped Devices—Magnetic Mount


Magnetic Mount Shown Installed

Magnetic-mount arms cling to magnetic surfaces. They have a strong enough hold to be mounted from any orientation, such as on the side of a machine or overhead on a ceiling.

		Projection		For Device							Attaching End
	Display Ht.	Min.	Max.	Wd.	Ht.	Dp.	Max. Load Cap., lb.	Material	Color	Base Dia.	Range of Motion	Max. Tilt Range of Motion		Each
Rotate, Tilt, Side-to-Side, Up/Down, In/Out



		0" to 1 3/4"	5 1/8"	8 1/16"	1 1/4" to 3 1/2"	3 5/8" to 7 1/4"	15/16" to 1 1/2"	1	Plastic	Black	2 1/2"	360°	180°	0000000	0000000

For Irregularly-Shaped Devices—Suction Mount


Suction Mount Shown Installed

		Projection		For Device							Attaching End
	Display Ht.	Min.	Max.	Wd.	Ht.	Dp.	Max. Load Cap., lb.	Material	Color	Base Dia.	Range of Motion	Max. Tilt Range of Motion		Each
Rotate, Tilt, Side-to-Side, Up/Down, In/Out



		0" to 6 5/8"	6 7/16"	9 5/16"	1 1/4" to 3 1/2"	3 5/8" to 7 1/4"	15/16" to 1 1/2"	1	Plastic	Black	3 5/16"	360°	180°	0000000	000000
