25 Products

Safety Cabinets for Vertical Storage of Flammables in 55-Gallon Drums


For 1 Drum	For 2 Drums

Rollers inside the cabinet make contents easy to load and remove. An adjustable shelf provides space for 5-gallon cans. The door sill is raised for spill containment.

OSHA regulations restrict storage of more than 60 gallons of flammables with a flash point below 100° F in a single cabinet.

Self Closing—Self-closing cabinets, required in some jurisdictions, have fusible links that melt at 165° F to close the doors.

	Safety Cabinets																		Ramps
	Overall				Max. No. per Cabinet			Shelf
	Wd.	Ht.	Dp.	Wt. Cap., lb.	55-Gal. Drums	5-Gal. Cans	Total No. of Shelves	Movement	Wt. Cap., lb.	Ctr.-to-Ctr. Adjustments	Material	Color	Lock Type (Included)	Flammability Rating	Specs. Met	Certification		Each		Each
Full-Height with Vertical Storage—Assembled







				With 2 Hinged Doors

				31"	65"	31"	1,300	1	1	1	Adjustable	500	2 1/2"	Painted Steel	Yellow	Keyed (Yes)	OSHA Compliant 29 CFR 1910.106, NFPA 30	OSHA Compliant 29 CFR 1910.307	FM Approved	45885T71	000000000	9877T21	0000000


				56"	65"	31"	1,300	2	2	1	Adjustable	500	2 1/2"	Painted Steel	Yellow	Keyed (Yes)	OSHA Compliant 29 CFR 1910.106, NFPA 30	OSHA Compliant 29 CFR 1910.307	FM Approved	45885T72	00000000	9877T21	000000




						With 2 Hinged Self-Closing Doors

						31"	67"	31"	1,300	1	1	1	Adjustable	500	2 1/2"	Painted Steel	Yellow	Keyed (Yes)	OSHA Compliant 29 CFR 1910.106, NFPA 30	OSHA Compliant 29 CFR 1910.307	FM Approved	45885T73	00000000	9877T21	000000


						56"	67"	31"	1,300	2	2	1	Adjustable	500	2 1/2"	Painted Steel	Yellow	Keyed (Yes)	OSHA Compliant 29 CFR 1910.106, NFPA 30	OSHA Compliant 29 CFR 1910.307	FM Approved	45885T74	00000000	9877T21	000000

Accessories for Safety Cabinets

	For Cabinet	Overall
500	31"	31"	27 11/16"	14"	1"	Galvanized Steel	Silver	18	45885T55	000000
500	56"	31"	52 1/2"	14"	1"	Galvanized Steel	Silver	18	45885T56	000000

		Each
Spill-Control Pallet for 1-Drum Cabinet (90 gal. Capacity)	45885T4	0000000
Spill-Control Pallet for 2-Drum Cabinet (110 gal. Capacity)	45885T6	000000

Spill-Control Sheds


For 1 55-Gallon Drum	For 2 55-Gallon Drums	For 4 55-Gallon Drums

For 1 275-Gallon Tank	For 2 275-Gallon Tanks (Bucket Sold Separately)

Store hazardous liquids outside and away from people and workspaces. These sheds are made of polyethylene, so they resist most chemicals, including acids. Their roll-up doors offer access from the front or back to move containers, dispense liquids, and protect contents from the elements. All have two or more holes to secure with padlocks (not included).

For use with 55 gal. drums or 275 gal. IBC tanks, these sheds are EPA compliant 40 CFR 264.175 when used correctly. Choose a shed that’s large enough to hold either 10% of the total capacity of all the containers on it or the full capacity of the largest container—whichever is greater.

Without Drain—Sheds without a drain have fewer potential leak points, but they’re harder to empty after a spill.

With Drain—Sheds with a drain let you empty liquid after a spill without having to remove containers or pump liquids out through the top.

For 2 275-Gallon Tanks—Sheds that hold two 275 gal. tanks have a single, continuous basin, so they can’t be separated into individual sheds.

Unassembled—Unassembled sheds are simple to put together—no fasteners required.

Removable Grating—Sheds with a removable grating are easy to clean.

Buckets—Add a bucket (sold separately) to catch spills and drips when dispensing from the tank. The bucket holds up to 3 gallons. When the bucket fills too high, excess liquid is released into the well of the shed.

	Sheds																						Buckets
					Overall			Usable			Max. Fork
	For No. of 55 gal. Drums	For No. of 275 gal. Tanks	Spill Cap., gal.	Overall Wt. Cap., lb.	Lg.	Wd.	Ht.	Lg.	Wd.	No. of Entry Points for Forklifts	Wd.	Ht.	Color	Lock Type	For Max. No. of Padlocks	For Max. Padlock Shackle Dia.	For Min. Padlock Shackle Lg.	Assembly	For Use Outdoors	Features		Each		Each
Without Drain







				Polyethylene—EPA Compliant 40 CFR 264.175

				1	—	70	800	36"	36"	66"	26"	26"	—	—	—	Yellow	Padlockable	3	5/16"	2"	Assembled	Yes	Roll-Up Doors	5375T47	0000000	———	0


				2	—	58	2,000	60"	37 1/2"	73"	48"	24"	2	8"	3 1/4"	Yellow	Padlockable	2	7/16"	4"	Unassembled	Yes	Removable Grating, Roll-Up Doors	5375T45	00000000	———	0
				4	—	66	6,000	65"	58"	69"	48"	48"	2	7 1/2"	1 3/4"	Yellow	Padlockable	2	7/16"	5"	Unassembled	Yes	Removable Grating, Roll-Up Doors	5375T46	00000000	———	0
				—	1	369	5,000	65"	65"	101"	48"	48"	2	8"	3 1/4"	Yellow	Padlockable	2	7/16"	5 1/2"	Unassembled	Yes	Removable Grating, Roll-Up Doors	5375T54	00000000	———	0
				—	2	535	17,000	128"	67"	96"	52"	52"	2	7 3/4"	3 1/2"	Yellow	Padlockable	4	5/16"	1 1/2"	Assembled	Yes	Removable Grating, Roll-Up Doors	5375T49	00000000	12635T65	0000000


				With Drain







								Polyethylene—EPA Compliant 40 CFR 264.175

								1	—	70	800	36"	36"	66"	26"	26"	—	—	—	Yellow	Padlockable	3	5/16"	2"	Assembled	Yes	Roll-Up Doors	5375T48	000000	———	0


								2	—	58	2,000	60"	37 1/2"	73"	48"	24"	2	8"	3 1/4"	Yellow	Padlockable	2	7/16"	4"	Unassembled	Yes	Removable Grating, Roll-Up Doors	5375T52	00000000	———	0
								4	—	66	6,000	65"	58"	69"	48"	48"	2	7 1/2"	1 3/4"	Yellow	Padlockable	2	7/16"	5"	Unassembled	Yes	Removable Grating, Roll-Up Doors	5375T53	00000000	———	0
								—	1	369	5,000	65"	65"	101"	48"	48"	2	8"	3 1/4"	Yellow	Padlockable	2	7/16"	5 1/2"	Unassembled	Yes	Removable Grating, Roll-Up Doors	5375T55	00000000	———	0
								—	2	535	17,000	128"	67"	96"	52"	52"	2	7 3/4"	3 1/2"	Yellow	Padlockable	4	5/16"	1 1/2"	Assembled	Yes	Removable Grating, Roll-Up Doors	5375T51	00000000	12635T65	000000

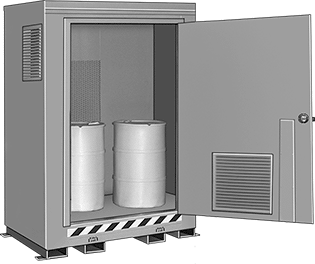

Outdoor Safety Cabinets for Flammables in 55-Gallon Drums

Keep your workplace safe and free up valuable floor space by storing drums outdoors. A secondary reservoir holds leaks from damaged drums and has removable grating for easy sump cleaning.

OSHA regulations restrict storage of more than 60 gallons of flammables with a flash point below 100° F in a single cabinet; do not exceed 120 gallons of any liquid with a flash point.

	Overall
	Wd.	Ht.	Dp.	Wt. Cap.	Max. No. of 55 gal. Drums per Cabinet	Spill Cap., gal.	Material	Color	Lock Type (Included)	Mounting Fasteners Included	Mounting Hole Dia. (No. of)	Flammability Rating	Specs. Met	Certification		Each
Full-Height with Vertical Storage—Assembled







				With 1 Hinged Door

				60"	83"	42"	Not Rated	2	55	Painted Steel	Gray	Keyed (Yes)	No	7/8" (4)	OSHA Compliant 29 CFR 1910.106, NFPA 30	OSHA Compliant 29 CFR 1910.307	FM Approved	4555T61	000000000


				60"	83"	60"	Not Rated	4	68	Painted Steel	Gray	Keyed (Yes)	No	7/8" (4)	OSHA Compliant 29 CFR 1910.106, NFPA 30	OSHA Compliant 29 CFR 1910.307	FM Approved	4555T62	00000000

Safety Cabinets for Horizontal Storage of Flammables in 55-Gallon Drums

Shown with Ramp

Store your drums horizontally to allow gravity-flow dispensing. The door sill is raised for spill containment. These cabinets have space for a drum stand and drip container (both not included).

OSHA regulations restrict storage of more than 60 gallons of flammables with a flash point below 100° F in a single cabinet.

Self Closing—Self-closing cabinets, required in some jurisdictions, have fusible links that melt at 165° F to close the doors.

	Safety Cabinets												Ramps		Replacement Keys
	Overall
	Wd.	Ht.	Dp.	Wt. Cap.	Max. No. of 55 gal. Drums per Cabinet	Material	Color	Lock Type (Included)	For Max. Shackle Dia.	Flammability Rating		Each		Each	Pkg. Qty.		Pkg.
Bench-Height with Horizontal Storage—Assembled







				With 2 Hinged Doors

				30"	50"	48"	Not Rated	1	Painted Steel	Yellow	Keyed (Yes), Padlockable (No)	3/8"	OSHA Compliant 29 CFR 1910.106, NFPA 30	9877T15	000000000	9877T21	0000000	2	4495T96	000000




						With 2 Hinged Self-Closing Doors

						30"	50"	48"	Not Rated	1	Painted Steel	Yellow	Keyed (Yes), Padlockable (No)	3/8"	OSHA Compliant 29 CFR 1910.106, NFPA 30	9877T16	00000000	9877T21	000000	2	4495T96	00000
