60 Products

Lightweight Portable Dock Plates

Lighter than steel, these aluminum dock plates have two handles for quick manual positioning to bridge the gap between a truck and the dock. Use them when loading and unloading with hand trucks, pallet trucks, and other walk-on/walk-off equipment. Plates have a diamond surface texture to provide positive traction.

	Wt. Cap., lb.	Lg.	Overall Wd.	Material	Features		Each
3/8" Thick Plate



	3"	5,200	24"	48"	Aluminum	Two Carrying Handles	2251T34	0000000


	4"	3,000	30"	36"	Aluminum	Two Carrying Handles	2251T28	000000
	4"	4,100	30"	48"	Aluminum	Two Carrying Handles	2251T35	000000
	5"	3,500	36"	48"	Aluminum	Two Carrying Handles	2251T36	000000
	5"	4,100	36"	60"	Aluminum	Two Carrying Handles	2251T43	000000
	7"	1,900	48"	36"	Aluminum	Two Carrying Handles	2251T29	000000
	7"	2,600	48"	48"	Aluminum	Two Carrying Handles	2251T38	000000
	7"	2,900	48"	60"	Aluminum	Two Carrying Handles	2251T47	000000
	9"	1,800	60"	48"	Aluminum	Two Carrying Handles	2251T92	000000


	1/2" Thick Plate



			3"	10,000	24"	60"	Aluminum	Two Carrying Handles	2251T58	000000


			4"	7,800	30"	60"	Aluminum	Two Carrying Handles	2251T59	000000
			4"	9,500	30"	72"	Aluminum	Two Carrying Handles	2251T67	000000
			5"	5,300	36"	48"	Aluminum	Two Carrying Handles	2251T53	000000
			5"	6,600	36"	60"	Aluminum	Two Carrying Handles	2251T66	000000
			5"	7,800	36"	72"	Aluminum	Two Carrying Handles	2251T68	00000000
			7"	3,800	48"	48"	Aluminum	Two Carrying Handles	2251T57	00000000

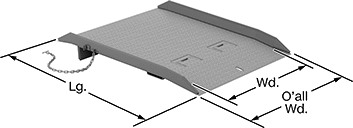

Portable Dock Plates with Forklift Loops

The heaviest dock plates we offer, these are built to endure high-traffic use. Forklift loops on the top flip up for easy maneuvering with a forklift and fold down when not in use. Use plates to bridge the gap between a truck and the dock when loading and unloading with forklifts, battery-operated hand trucks, and other powered equipment. They have a diamond surface texture for positive traction and lips on the sides lessen the chance of vehicle runoff.

Anchoring Pins—Plates have anchoring pins that you drop into any of the eight holes along their edges—this secures the plate in the space between the dock and the truck.

Dock Plates										Replacement Anchoring Pins
					Lip
Max. Ht. Differential	Wt. Cap., lb.	Lg.	Overall Wd.	Material	Material	Color	Features		Each		Each



	5"	15,000	48"	60"	Steel	Painted Steel	Blue	Anchoring Pins	2244T21	000000000	2244T35	000000


	5"	15,000	48"	72"	Steel	Painted Steel	Blue	Anchoring Pins	2244T31	00000000	2244T35	00000
	7"	15,000	60"	60"	Steel	Painted Steel	Blue	Anchoring Pins	2244T22	00000000	2244T35	00000
	7"	15,000	60"	72"	Steel	Painted Steel	Blue	Anchoring Pins	2244T32	00000000	2244T35	00000
	7"	15,000	60"	84"	Steel	Painted Steel	Blue	Anchoring Pins	2244T38	00000000	2244T35	00000
	8 1/2"	15,000	72"	60"	Steel	Painted Steel	Blue	Anchoring Pins	2244T23	00000000	2244T36	00000
	8 1/2"	15,000	72"	72"	Steel	Painted Steel	Blue	Anchoring Pins	2244T33	00000000	2244T36	00000
	8 1/2"	20,000	72"	72"	Steel	Painted Steel	Blue	Anchoring Pins	2244T39	00000000	2244T36	00000
	10"	15,000	84"	72"	Steel	Painted Steel	Blue	Anchoring Pins	2244T34	00000000	2244T37	00000

Portable Dock Plates

These plates allow forklift access so you can move them easily to bridge the gap between a truck and the dock. Use them when loading and unloading with forklifts, battery-operated hand trucks, and other powered equipment. Plates have a diamond surface texture for positive traction and lips on the sides lessen the chance of vehicle runoff.

					Lip
Max. Ht. Differential	Wt. Cap., lb.	Lg.	Overall Wd.	Material	Material	Color	Features		Each



	5"	15,000	36"	60"	Aluminum	Painted Steel	Fluorescent Yellow	Anchoring Legs	21905T81	0000000


	5"	20,000	36"	60"	Aluminum	Painted Steel	Fluorescent Yellow	Anchoring Legs	21905T84	000000
	7"	10,000	48"	60"	Aluminum	Painted Steel	Fluorescent Yellow	Anchoring Legs	21905T82	00000000
	7"	15,000	48"	60"	Aluminum	Painted Steel	Fluorescent Yellow	Anchoring Legs	21905T52	00000000
	10"	10,000	60"	60"	Aluminum	Painted Steel	Fluorescent Yellow	Anchoring Legs	21905T83	00000000
	10"	15,000	60"	60"	Aluminum	Painted Steel	Fluorescent Yellow	Anchoring Legs	21905T74	00000000
	12"	10,000	72"	60"	Aluminum	Painted Steel	Fluorescent Yellow	Anchoring Legs	21905T34	00000000
	12"	15,000	72"	60"	Aluminum	Painted Steel	Fluorescent Yellow	Anchoring Legs	21905T75	00000000

Low-Height Vehicle Ramps

Create a smooth transition for driving forklifts over curbs and into shipping containers. Often used for loading or unloading, these vehicle ramps have a diamond texture on the surface to give wheels traction.

Black Rubber


2 Ramps Included	4 Ramps Included

Rubber ramps are best for occasional use, since fully loaded forklifts will erode their surface over time. Lock them together with the built-in connectors to make a solid ramp, or separate them to use as wheel tracks.

OSHA Compliant 29 CFR 1910.26 and OSHA Compliant 29 CFR 1926.451—Ramps that have OSHA specifications listed meet dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

No. of Ramps Included	Max. Ht. Differential	Wt. Cap., lb.	Lg., ft.	Wd.	Specs. Met		Each
2	6"	10,000	4	11"	OSHA Compliant 29 CFR 1910.26, OSHA Compliant 29 CFR 1926.451	9808N111	0000000
4	6"	20,000	4	11"	OSHA Compliant 29 CFR 1910.26, OSHA Compliant 29 CFR 1926.451	9808N112	000000

Steel

1 Ramp Included

Steel ramps are strong enough to hold up to frequent use. A lip on each side keeps wheels from running off the edge. To keep them from shifting, lock them to your container with the included chains. These ramps have loops built into the top, so you can pick them up and move them with your forklift. The loops fold flat when they’re not in use.

OSHA Compliant 29 CFR 1910.26—Ramps that have OSHA specifications listed meet dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

							Lip
No. of Ramps Included	Max. Ht. Differential	Wt. Cap., lb.	Lg., ft.	Wd.	Overall Wd.	Plate Thk.	Material	Color	Features	Includes	Specs. Met		Each
1	11"	20,000	6	66"	72"	3/8"	Painted Steel	Blue	Forklift Loops	Locking Chains	ANSI MH30.2, OSHA Compliant 29 CFR 1910.26	9808N113	000000000

Portable Dock Plates with Wheels

Use them to bridge the gap between a truck and the dock when loading and unloading with forklifts, battery-operated hand trucks, and other powered equipment. Plates have a diamond surface texture for positive traction and lips on the sides lessen the chance of vehicle runoff.

Telescoping Handles—Telescoping handles with wheels let one person lift and position these plates without using a forklift. You can retract the telescoping handles when the plate is in position.

					Lip
Max. Ht. Differential	Wt. Cap., lb.	Lg.	Overall Wd.	Material	Material	Color	Features		Each



	5"	10,000	48"	60"	Aluminum	Painted Steel	Blue	Anchoring Legs, Telescoping Handles	8178T11	000000000


	5"	15,000	48"	60"	Aluminum	Painted Steel	Blue	Anchoring Legs, Telescoping Handles	8178T13	00000000
	7"	10,000	60"	60"	Aluminum	Painted Steel	Blue	Anchoring Legs, Telescoping Handles	8178T12	00000000
	7"	15,000	60"	60"	Aluminum	Painted Steel	Blue	Anchoring Legs, Telescoping Handles	8178T14	00000000

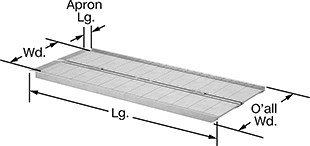

Walk Ramps


Foldable	Not Foldable

Shown Folded

Create a walkway to maneuver hand trucks on or off vehicles and trailers. These ramps come with chains to secure them in place. One end is sloped to provide a smooth transition from the ramp to a truck bed or the ground. The ramp surface has ridges to give wheels traction, and a lip is welded to each side to keep them from running off the edge. Made from aluminum, these ramps are durable and corrosion resistant, so you can use them outdoors.

Note: Not for use with pallet trucks and forklifts.

Foldable—Foldable ramps bend in half for storage. Carry them from job to job with the built-in handle. They have a lighter duty construction and lower capacity than comparable solid ramps.

	Wt. Cap., lb.	Lg., ft.	Wd.	Overall Wd.	Material	Lip Material	Apron Lg.	Foldable	Features		Each
Ridged Surface



	27"	2,800	7	27"	29"	Aluminum	Aluminum	8"	No	Antislip Surface, Two 36" Long Security Chains	2167T12	0000000


	30"	1,200	6	30"	30"	Aluminum	Aluminum	3"	Yes	Antislip Surface, Two 54" Long Security Chains, Carrying Handle	2167T11	000000
	31"	2,500	8	37"	39"	Aluminum	Aluminum	8"	No	Antislip Surface, Two 36" Long Security Chains	2167T13	000000
	37"	2,200	10	37"	39"	Aluminum	Aluminum	8"	No	Antislip Surface, Two 36" Long Security Chains	2167T14	00000000
	46"	1,900	12	37"	39"	Aluminum	Aluminum	8"	No	Antislip Surface, Two 36" Long Security Chains	2167T15	00000000
	61"	1,000	16	37"	39"	Aluminum	Aluminum	8"	No	Antislip Surface, Two 36" Long Security Chains	2167T16	00000000

Low-Height Walk Ramps


Foldable	Shown Folded

Not Foldable

Create a smooth transition over curbs and thresholds. Often used for moving hand trucks, these ramps can also serve as an accessible pathway for wheelchairs and scooters. Made of aluminum, they are lightweight and easy to handle. They can also withstand outdoor use. The ramp surface has a diamond or ridged texture for traction. A barrier along each side keeps wheels from running off the edge.

Foldable—Foldable ramps bend in half for storage.

Cal/OSHA Compliant Title 8 Section 3337 and OSHA Compliant 29 CFR 1910.26—Ramps that have OSHA and Cal/OSHA specifications listed meet dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

	Wt. Cap., lb.	Lg.	Overall Wd.	Material	Foldable	Features	Specs. Met		Each
Diamond Surface



	5"	600	18"	30"	Aluminum	No	Two Carrying Handles	Cal/OSHA Compliant Title 8 Section 3337, OSHA Compliant 29 CFR 1910.26	2187T32	0000000


	5"	700	18"	36"	Aluminum	No	Two Carrying Handles	Cal/OSHA Compliant Title 8 Section 3337, OSHA Compliant 29 CFR 1910.26	2187T33	000000


	Ridged Surface



			8"	600	48"	30"	Aluminum	Yes	Carrying Handle	—	2187T121	000000


			12"	600	72"	30"	Aluminum	Yes	Carrying Handle	—	2187T122	000000

Vehicle Ramps


Shown Disassembled

Drive a fully loaded forklift into a truck, trailer, or dock door from ground level. When you’re done, these ramps break down to the size of a double-wide pallet for storage. They’re often referred to as yard ramps because they’re common in shipping yards. Made entirely of aluminum, these ramps stand up to the weather. The perforated surface gives your vehicle traction in all conditions and allows rain, snow, and dirt to pass through. These ramps have two included ratchet straps to secure them to a vehicle and prevent them from pulling away. Plates on either end facilitate smooth transitions from ground to ramp and ramp to truck.

No tools are needed for setup. Assembly can be completed in as little as 15 minutes with two people and a forklift.

Note: Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

	Wt. Cap., lb.	Ht.	Lg., ft.	Wd.	Overall Wd.	Material	Lip Material	Foldable	Specs. Met	Includes		Each
Perforated Surface



	60"	30,000	15" to 60"	8 to 30	99"	101"	Aluminum	Aluminum	Yes	OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1926.451	Three Adjustable-Height Support Stands, Six Stand Pins with Clips, Eight Ramp Sections, Six Steel Rods with Hooks, Two Ratchet Straps	8417N101	0000000000

Portable Ramps

The tracks on these ramps retract after use for convenient carrying and storage. Originally designed for wheelchairs, they are useful in an industrial setting to roll equipment up a few stairs using a hand truck. Made of aluminum, these platforms are lightweight and easy to handle. They have an antislip surface and lips on the sides to lessen the chance of runoff.

Note: Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

Maximum Height Differential—Maximum height differential indicates the highest rise these ramps can be used at and still comply with ADA standards.

							Lip
Max. Ht. Differential	Wt. Cap. per Pair, lb.	Extended Lg.	Storage Lg.	Wd.	Ramp Adjustment Movement	Material	Material	Ht.	Features	Includes		Pair



	10"	600	60"	36"	4 1/2"	Telescope	Aluminum	Aluminum	2 1/8"	Antislip Surface	Storage Bag	9908N11	0000000


	24"	600	96"	54"	6 3/4"	Telescope	Aluminum	Aluminum	2"	Antislip Surface, Two Carrying Handles	—	9908N12	000000

Curb Ramps


Corner Ramp	Straight Ramp

Create a smooth transition between the street and sidewalk for hand trucks and vehicles. These ramps support up to 4,000 lbs. and are compact and lightweight enough to fit easily in your truck or van. Made of molded rubber, they withstand the weather and have a raised, textured surface for increased traction.

Note: Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

Corner Ramp—Add corner ramps for off-center entry. All ramps have connecting hardware.

Straight Ramp—Use straight ramps on their own, or join multiple together for a wider ramp.

	Wt. Cap., lb.	Ht.	Lg.	Wd.	Material	Color	Features		Each
Ridged Surface



	Corner	4,000	3 3/4"	10"	10"	Rubber	Black	Connecting Hardware	9850N13	000000


	Straight	4,000	3 3/4"	10"	24"	Rubber	Black	Connecting Hardware	9850N11	00000
	Straight	4,000	3 3/4"	10"	36"	Rubber	Black	Connecting Hardware	9850N12	00000

Make-a-Ramp Sets


Shown with Beams (Not Included)	One Set

Convert standard lumber beams into a ramp with these attachments.

For Beam Size	Material	Includes		Each
2 × 8	Steel	Two Steel Ramp Tops, Assembly Hardware	21765T65	000000
