    32 Products

    Miniature Magnetic Drill Bases

    Image of ProductInUse. Drill Not Included. Front orientation. Drill Bases.

    Drill Not Included

    Combine the precision of a drill press with the portability of a drill guide. These drill bases stabilize the Milwaukee electric drill model 0299-20 for perfect 90° holes. Magnetize these to any iron or steel surface with the flip of a switch. You can even secure these bases to walls and ceilings, and the magnet won’t slip until you turn the power off.
    Base
    Dia.
    Base
    Ht.
    Drill
    Travel
    For Min. Surface
    Thk.
    Holding
    Force, lbf
    Voltage,
    V AC
    Control Type
    Wt.,
    lb.
    Each
    4"2 3/8"3.9"0.2"770120On/Off Toggle Switch12000000000000000

    Tap and Drill Bit Stands

    For Drill Bits
    Image of Product. Front orientation. Tap and Drill Bit Stands. For Drill Bits.
    These stands hold one of each bit size. Each hole is marked with the size.
    For
    Drill Bit
    Overall
    Material
    No.
    of
    Size
    Lg.
    Wd.
    Ht.
    Each
    For Inch Drill Bits

    For Jobbers' Length, Short Length, Extended Length
    Steel291/16" to 1/2" (Increments of 1/64")5 5/8"2 5/8"1 1/2"0000000000000
    Steel331/2" to 1" (Increments of 1/64")13"5"2 3/4"000000000000

    For Letter Size Drill Bits

    For Jobbers' Length, Short Length, Extended Length
    Steel26A to Z5 5/8"2 5/8"1 1/2"000000000000

    For Taps and Drill Bits
    Image of Product. Front orientation. Tap and Drill Bit Stands. For Taps and Drill Bits.
    Keep taps and drill bits organized. All holes are labeled with sizes. Taps and drill bits are not included.
    Material
    No. of Taps
    Stored
    Holds Tap Sizes
    No. of Drill
    Bits Stored
    Holds Drill Bit Sizes
    Lg.
    Wd.
    Ht.
    Each
    Plastic16One each of M2, M3
    Two each of M4, M5, M6, M8, M10, M12, M14    		25Two each of 3.3 mm, 4.5 mm, 12 mm
    One each of 1.8 mm, 2.4 mm, 2.5 mm, 3.4 mm, 4.2 mm, 5 mm, 5.25 mm, 5.5 mm, 6.6 mm, 6.8 mm
    7 mm, 8.5 mm, 8.8 mm, 9 mm, 10.2 mm, 10.8 mm, 12.5 mm, 14 mm, 16 mm    		7"4 1/2"1 11/16"0000000000000
    Plastic26Two each of Nos. 2, 3, 4, 5, 6, 8, 10, 12
    Two each of 1/4", 5/16", 3/8", 7/16", 1/2"    		39Two each of 50 ga., 33 ga., 29 ga.
    One each of 47 ga., 45 ga., 44 ga., 43 ga., 42 ga., 39 ga.
    38 ga., 37 ga., 36 ga., 30 ga., 28 ga., 25 ga., 21 ga., 19 ga., 16 ga., 14 ga., 11 ga., 7 ga., 3 ga.
    One each of F, I, Q, U
    Two of 5/16"
    One each of 7/32", 1/4", 3/8", 25/64", 27/64", 7/16", 29/64", 1/2"    		7 3/8"4 11/16"1 11/16"000000000000


    Reduced-Shank Drill Bit Stands

    Image of Product. Front orientation. Tap and Drill Bit Stands. Reduced-Shank Drill Bit Stands.
    Each hole is sized to hold the 1/2" shank of a reduced-shank drill bit and marked with a bit size.
    For Drill Bits
    For
    Drill Bit
    Overall
    Material
    No.
    of
    Size
    Lg.
    Wd.
    Ht.
    Each
    For Inch Drill Bits

    1/2" Drill Bit Shank Size
    Steel331/2" to 1" (Increments of 1/64")13"5"2 3/4"0000000000000


    Tap and Drill Bit Cabinets

    Image of Product. Front orientation. Cabinets. Tap and Drill Bit Cabinets.
    Drawers and labeled compartments provide space for keeping tools organized. Taps and drill bits are not included.
    Holds Tap Sizes
    Holds Drill Bit Sizes
    No. of
    Compartments
    No. of
    Drawers
    Lg.
    Wd.
    Ht.
    Material
    Each
    For Taps and Drill Bits
    Multiples of Nos. 6, 8, 10; Multiples of 1/4", 5/16", 3/8", 7/16", 1/2"Multiples of Nos. 36, 29, 25, 21, 7, 3; Multiples of F, I, U, Q; Multiples of 5/16", 25/64", 27/64", 29/64"29314 5/8"7 3/8"7 3/4"Steel000000000000000

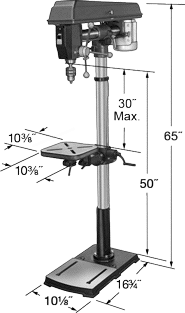

    Adjustable-Speed Economy Floor-Mount Drill Presses

    Image of Product. Front orientation. Contains Annotated. Drill Presses. Adjustable-Speed Economy Floor-Mount Drill Presses, 20" Maximum Workpiece Diameter.
    Image of Product. Front orientation. Contains Annotated. Drill Presses. Adjustable-Speed Economy Floor-Mount Drill Presses, 15" Maximum Workpiece Diameter.
    Image of Product. Front orientation. Contains Annotated. Drill Presses. Adjustable-Speed Economy Floor-Mount Drill Presses, 17" Maximum Workpiece Diameter.

    20" Maximum Workpiece Diameter

    15" Maximum Workpiece

    Diameter

    17" Maximum Workpiece Diameter

    Select from a number of speeds by repositioning the drive belt before starting the drill press.
    Drill Presses
    Replacement Drill
    Press Spring Caps
    Max. Workpiece
    Dia.
    Max. Table
    Cap., lb.
    For Bit Shank
    Type
    For Max. Drill Bit
    Size for Steel
    For Max. Bit
    Shank Size
    Max. No-Load Rotational
    Speed, rpm
    Chuck Key
    Included
    No. of
    Speeds
    Spindle
    Taper No.
    Spindle
    Travel
    Motor Power,
    hp
    Motor Current,
    amp
    Current,
    amp
    Wt.,
    lb.
    Each
    Each
    120V AC/240V AC—Single-Phase Motor

    Morse-Taper Spindle Shank
    20"75Round1 1/4"3/4"3,605Yes16Morse 26"1 1/214.214.2274000000000000000000———0
    15"100Hex, Round5/8"5/8"3,450Yes16Morse 25"1/27.37.31650000000000000000000000000000
    17"100Hex, Round5/8"5/8"3,450Yes16Morse 25"11010180000000000000000000000000000

    Replacement Drill Press Spindles
    Each
    Replacement Spindle Assembly for Drill Presses with 15" Max. Workpiece Dia.00000000000000
    Replacement Spindle Assembly for Drill Presses with 17" Max. Workpiece Dia.0000000000000

    Floor-Mount Drill Presses

    Image of Product. Front orientation. Contains Annotated. Drill Presses. Floor-Mount Drill Presses, 18 1/8" Maximum Workpiece Diameter.
    Image of Product. Front orientation. Contains Annotated. Drill Presses. Floor-Mount Drill Presses, 20" Maximum Workpiece Diameter.

    18 1/8" Maximum Workpiece

    Diameter

    20" Maximum Workpiece

    Diameter

    The weight and rigidity of these presses prevent vibration so you can maintain close tolerances for high-quality metal drilling. Turn the dial on these drill presses while they are running to get the optimum speed for your job.
    20" Maximum Workpiece Diameter—Drill presses with 20" maximum workpiece diameter have a safety guard that swings away for easy tool changes.
    Max. Workpiece
    Dia.
    Max. Table
    Cap., lb.
    For Bit Shank
    Type
    For Max. Drill Bit
    Size for Steel
    For Max. Bit
    Shank Size
    Max. No-Load Rotational
    Speed, rpm
    Chuck Key
    Included
    No. of
    Speeds
    Spindle
    Taper No.
    Spindle
    Travel
    Motor Power,
    hp
    Motor Current,
    amp
    Current,
    amp
    Wt.,
    lb.
    Each
    120V AC—Single-Phase Motor

    Morse-Taper Spindle Shank
    18 1/8"200Hex, Round1 1/16"3/4"1,200YesVariableMorse 35 3/8"26.86.8675000000000000000

    120V AC/240V AC—Single-Phase Motor

    Morse-Taper Spindle Shank
    20"250Hex, Round1 1/4"—2,000NoVariableMorse 36"22525649000000000000000

    240V AC/460V AC—Three-Phase Motor

    Morse-Taper Spindle Shank
    20"250Hex, Round1 1/4"—2,000No—Morse 36"277649000000000000000

    Drill Chuck Arbors
    Each
    Morse Taper Arbor with Drill Chuck for 20" Floor-Mount Drill Presses00000000000000

    Long-Reach Economy Floor-Mount Drill Presses

    Image of Product. Front orientation. Contains Annotated. Drill Presses. Long-Reach Economy Floor-Mount Drill Presses.
    To accommodate large, odd-shaped pieces of material, the head of this drill press moves 12" forward and backward. It also tilts 45° left and 90° right (as viewed when facing the drill press).
    For Max.
    Drill Bit
    Max. Workpiece
    Dia.
    Max. Table
    Cap., lb.
    For Bit Shank
    Type
    Size for
    Steel
    Size for
    Cast Iron
    For Max. Bit
    Shank Size
    Max. No-Load Rotational
    Speed, rpm
    Chuck Key
    Included
    No. of
    Speeds
    Spindle
    Taper No.
    Spindle
    Travel
    Motor Power,
    hp
    Motor Current,
    amp
    Current,
    amp
    Wt.,
    lb.
    Each
    120V AC—Single-Phase Motor

    Morse-Taper Spindle Shank
    33"50Hex, Round3/8"5/8"5/8"3,100Yes5Morse 23 5/32"1/254.8143000000000000000


    Compartmented Under-Table Drill Bit Drawer Cabinets

    Image of Product. Front orientation. Cabinets. Compartmented Under-Table Drill Bit Drawer Cabinets.
    Mount this cabinet underneath a workbench or shelf and store multiple drill bits of each size. The compartments are marked with the bit size and decimal equivalent.
    For
    Drill Bit
    Overall
    No. of
    Compartments
    No. of
    Drawers
    Size
    Lg. Class
    Lg.
    Wd.
    Ht.
    Material
    Features
    Includes
    Mounting Hole
    Dia. (No. of)
    Mounting Fasteners
    Included
    Each
    For Inch Drill Bits
    4211/16" to 1/2" (Increments of 1/64")Jobbers, Short
    		24 1/4"12 1/2"4 1/2"SteelBuilt-In LockTwo Keys1/4" (4)No00000000000000


    Under-Table Drill Bit Drawer Cabinets

    Image of Product. Front orientation. Cabinets. Under-Table Drill Bit Drawer Cabinets.
    Mount this cabinet underneath a workbench or shelf and store your drill bits in the undivided drawer.
    Overall
    No. of
    Compartments
    No. of
    Drawers
    For Lg. Class
    Lg.
    Wd.
    Ht.
    Material
    Features
    Includes
    Mounting Hole
    Dia. (No. of)
    Mounting Fasteners
    Included
    Each
    For Inch, Wire Gauge, Letter Size, Metric Drill Bits
    11Jobbers, Short
    		24 1/4"12 1/2"4 1/2"SteelBuilt-In LockTwo Keys1/4" (4)No00000000000000


    Variable-Speed Economy Floor-Mount Drill Presses

    Image of Product. Front orientation. Contains Annotated. Drill Presses. Variable-Speed Economy Floor-Mount Drill Presses.
    Turn the dial on this drill press while it is running to get the optimum speed for your job. A laser projects a crosshair at the point of bit contact and a digital readout displays the spindle speed.
    Max. Workpiece
    Dia.
    Max. Table
    Cap., lb.
    For Bit Shank
    Type
    For Max. Drill Bit
    Size for Steel
    For Max. Bit
    Shank Size
    Max. No-Load Rotational
    Speed, rpm
    No. of
    Speeds
    Spindle
    Taper No.
    Spindle
    Travel
    Motor Power,
    hp
    Motor Current,
    amp
    Current,
    amp
    Wt.,
    lb.
    Each
    120V AC/240V AC—Single-Phase Motor

    Morse-Taper Spindle Shank
    18"88Hex, Round5/8"5/8"3,000VariableMorse 26"115152450000000000000000


    Reduced-Shank Drill Bit Drawer Cabinets

    Image of Product. Front orientation. Cabinets. Reduced-Shank Drill Bit Drawer Cabinets.
    Store two bits of each size. These cabinets have drawers marked with the bit sizes. They can be stacked up to three high.
    For
    Drill Bit
    Overall
    No. of
    Compartments
    No. of
    Drawers
    Size
    Shank
    Size
    Lg.
    Wd.
    Ht.
    Material
    Each
    For Inch Drill Bits
    2331", 1 1/32", 1 1/16", 1 1/8", 1 5/32", 1 3/16", 1 1/4", 1 5/16", 1 3/8", 1 7/16", 1 1/2"1/2"14 5/8"7 3/8"7 3/4"Steel00000000000000
    60533/64" to 63/64" (Increments of 1/64")1/2"14 5/8"7 3/8"7 3/4"Steel0000000000000


    Drill Bit Drawer Cabinets

    Image of Product. Front orientation. Cabinets. Drill Bit Drawer Cabinets.
    Store multiple bits of each size. These cabinets have drawers marked with the sizes and decimal equivalents. They can be stacked up to three high.
    For
    Drill Bit
    Overall
    No. of
    Compartments
    No. of
    Drawers
    Size, mm
    Lg. Class
    Lg.
    Wd.
    Ht.
    Material
    Features
    Includes
    Each
    For Inch Drill Bits
    2931/16" to 1/2" (Increments of 1/64")Jobbers
    		14 5/8"7 3/8"7 3/4"Steel——0000000000000

    For Wire Gauge Drill Bits
    60560 to 1Jobbers
    		14 5/8"7 3/8"7 3/4"Steel——000000000000
    84580 to 1Jobbers
    		14 5/8"7 3/8"7 3/4"Steel——000000000000

    For Letter Size Drill Bits
    283A to ZJobbers
    		14 5/8"7 3/8"7 3/4"Steel——000000000000

    For Metric Drill Bits
    2931.0 mm to 13.0 mm (Increments of 0.5 mm)Jobbers
    		14 5/8"7 3/8"7 3/4"Steel——000000000000
    6051.0 mm to 6.9 mm (Increments of 0.1 mm)Jobbers
    		14 5/8"7 3/8"7 3/4"Steel——000000000000
    13840.35 mm to 2.5 mm (Increments of 0.05 mm)
    2.6 mm to 10.0 mm (Increments of 0.1 mm)
    10.2
    10.5
    10.8
    11.0
    11.2
    11.5
    11.8
    12.0
    12.2
    12.5
    13.0    		Jobbers, Short
    		26"12"12 1/2"SteelBuilt-In Lock, Undivided bottom drawer for general storageTwo Keys0000000000000

    For Inch, Wire Gauge, Letter Size Drill Bits
    15941/16" to 1/2" (Increments of 1/64")
    60 to 1
    A to Z    		Jobbers
    		26"12"12 1/2"SteelBuilt-In Lock, Undivided bottom drawer for general storageTwo Keys0000000000000
