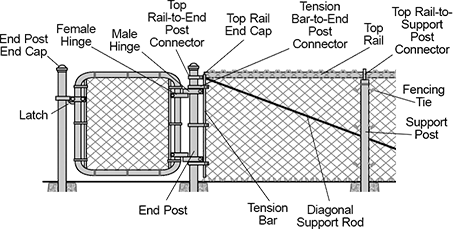

Chain Link Fencing
Fencing Ties
| Wire Dia. | Lg. | Material | Pkg. Qty. | Pkg. | |
| 0.114" | 8 1/4" | Aluminum | 100 | 0000000 | 000000 |
Posts
Diagonal Support Rods
| Lg., ft. | Material | Each | |
| 11 | Galvanized Steel | 0000000 | 000000 |
Connectors
Tension Bar to End Post Connector
Top Rail to End Post Connector
Top Rail to Support Post Connector
| For Post Dia. | For Rail Dia. | Material | Each | |
Tension Bar to End Post Connectors | ||||
|---|---|---|---|---|
| 1 7/8" | __ | Galvanized Steel | 0000000 | 00000 |
| 2 3/8" | __ | Galvanized Steel | 0000000 | 0000 |
| 2 7/8" | __ | Galvanized Steel | 0000000 | 0000 |
Top Rail to End Post Connectors | ||||
| 1 7/8" | __ | Galvanized Steel | 00000000 | 0000 |
| 2 3/8" | __ | Galvanized Steel | 0000000 | 0000 |
| 2 7/8" | __ | Galvanized Steel | 0000000 | 0000 |
Top Rail to Support Post Connectors | ||||
| 1 5/8" | 1 3/8" | Aluminum | 0000000 | 0000 |
| 1 7/8" | 1 5/8" | Aluminum | 0000000 | 0000 |
| 2 3/8" | 1 5/8" | Aluminum | 0000000 | 0000 |
Fasteners
| Material | Pkg. Qty. | Pkg. | |
| Galvanized Steel | 100 | 0000000 | 000000 |
Fence Posts
T-Shaped
U-Shaped
| Ht., ft. | Wd. | Material | Color | Pkg. Qty. | Pkg. | |
T-Shaped | ||||||
|---|---|---|---|---|---|---|
| 5 | 1 1/4" | Enamel-Coated Steel | Green | 5 | 0000000 | 000000 |
| 6 | 1 1/4" | Enamel-Coated Steel | Green | 5 | 0000000 | 00000 |
| 7 | 1 1/4" | Enamel-Coated Steel | Green | 5 | 0000000 | 00000 |
| 8 | 1 1/4" | Enamel-Coated Steel | Green | 5 | 0000000 | 00000 |
U-Shaped | ||||||
| 5 | 2" | Powder-Coated Steel | Green | 5 | 0000000 | 00000 |
| 6 | 2" | Powder-Coated Steel | Green | 5 | 0000000 | 00000 |
| 7 | 2" | Powder-Coated Steel | Green | 5 | 0000000 | 00000 |
Sign Posts
Drive these posts into the ground or use them with a base. Fasten a sign to a post using two 2-1/2" long screws and two nuts (not included).
Galvanized steel sign posts are more corrosion resistant than painted steel posts.
Sign Posts | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Post | Mounting Hole | Green-Painted Steel | Galvanized Steel | Optional Installation Caps | Optional Reflective Covers | |||||||
| Ht., ft. | Wd. | Weight, lbs. | Dia. | Ctr.-to-Ctr. | Each | Each | Each | Each | ||||
| 6 | 2 3/16" | 7 | 3/8" | 1" | 000000 | 000000 | 0000000 | 000000 | 000000 | 00 | 000000 | 000000 |
| 7 | 2 3/16" | 8 | 3/8" | 1" | 0000000 | 00000 | 0000000 | 00000 | 000000 | 00 | 000000 | 00000 |
| 8 | 3 1/8" | 16 | 3/8" | 1" | 000000 | 00000 | 0000000 | 00000 | 000000 | 000000 | 000000 | 00000 |
| 10 | 3 1/8" | 20 | 3/8" | 1" | 000000 | 00000 | 0000000 | 00000 | 000000 | 00000 | 000000 | 00000 |
| 12 | 3 1/8" | 24 | 3/8" | 1" | 000000 | 00000 | 0000000 | 00000 | 000000 | 00000 | 000000 | 00000 |
Bounce-Back Sign Posts with Guard
Bolt Down
In Ground
The plastic guard reduces impact damage to the post and offers more protection to vehicles than other bounce-back sign posts. These posts have a spring at the bottom that offers 360° of flexibility and allows them to rebound after contact. The reflective bands increase visibility in low-light conditions.
Post | Guard | Base | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sign Post Base Type | Ht., ft. | Dia. | Material | Ht. | Dia. | Material | Color | Band Color | Wd. | Lg. | Mounting Fasteners Included | Includes | Each | |
| Bolt Down | 8 1/2 | 1 5/8" | Steel | 52" | 7" | Plastic | Yellow | Reflective Red | 9" | 9" | Yes | Sign Mounting Brackets | 0000000 | 0000000 |
| In Ground | 8 1/2 | 1 5/8" | Steel | 52" | 7" | Plastic | Yellow | Reflective Red | __ | __ | __ | Sign Mounting Brackets | 0000000 | 000000 |
| Replacement Sign Mounting Brackets (Pkg. of 2) | 0000000 | Pkg. | 000000 |
Bounce-Back Sign Posts
Bolt Down
In Ground
Reduce damage to signs, parking lot surfaces, and vehicles by installing these posts that rebound after contact. They have a spring at the bottom that offers 360° of flexibility.
