    204 Products

    Gauge Blocks

    Image of Product. Front orientation. Gauge Blocks. Gauge Blocks, Rectangle.

    Rectangle

    Image of Attribute. Front orientation. Contains Annotated. Gauge Blocks.
    A true source of measurement, use these gauge blocks to calibrate measuring equipment, mark precise layouts, or position your fixture or machine components just right. All blocks include a certificate of compliance to certify their sizes are within tolerance. The certificate also lists when each block will require recalibration.

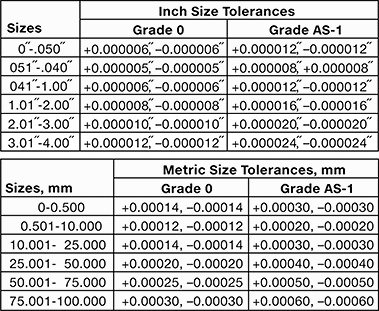

    Each block has a grade per ASME B89.1.9. Grades are based on tolerance—the smaller the tolerance, the greater the accuracy.
    Use a gauge block holder (not included) to create a custom repeatable measurement by stacking multiple blocks together.
    Grade 0 Gauge Block—Grade 0 gauge blocks are our most accurate. They help verify that precise measuring instruments, such as micrometers and calipers, are taking accurate readings.
    Grade AS-1 Gauge Block—Grade AS-1 gauge blocks have a slightly higher tolerance. They’re the most common grade of gauge block.
    Ceramic—Ceramic blocks are more resistant to wear and corrosion than steel blocks. They won’t expand or contract as temperatures change. Use them in cleanrooms—they’re nonmagnetic so they won’t pick up any iron or dust.
    Steel—Steel blocks are the most common choice for gauge blocks.
    Gauge Size,
    mm
    Gauge Size Tolerance,
    mm
    Lg.,
    mm
    Wd.,
    mm
    Mfr.
    Material
    Specs. Met
    Each
    Rectangle

    Grade 0 Gauge Block
    0.2-0.00014 to 0.00014309MitutoyoSteelASME B89.1.92249A560000000
    0.4-0.00014 to 0.00014309MitutoyoSteelASME B89.1.92249A1100000
    0.5-0.00014 to 0.00014309MitutoyoCeramicASME B89.1.92233A62600000
    0.5-0.00014 to 0.00014309MitutoyoSteelASME B89.1.92249A5700000
    0.7-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A1200000
    1-0.00012 to 0.00012309MitutoyoCeramicASME B89.1.92233A62700000
    1-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A2200000
    1.03-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A5800000
    1.1-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92233A59500000
    1.2-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92233A59600000
    1.3-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A5900000
    1.4-0.00012 to 0.00012309MitutoyoCeramicASME B89.1.92233A62800000
    1.4-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A6100000
    1.5-0.00012 to 0.00012309MitutoyoCeramicASME B89.1.92233A62900000
    1.5-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A6200000
    1.6-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92233A59100000
    1.7-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92233A59200000
    1.8-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92233A59300000
    1.9-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92233A59400000
    2-0.00012 to 0.00012309MitutoyoCeramicASME B89.1.92233A91900000
    2-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A2300000
    2.5-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A2400000
    3-0.00012 to 0.00012309MitutoyoCeramicASME B89.1.92233A63100000
    3-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A2500000
    3.5-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A2600000
    4-0.00012 to 0.00012309MitutoyoCeramicASME B89.1.92233A63200000
    4-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A2700000
    4.5-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92233A60300000
    5-0.00012 to 0.00012309MitutoyoCeramicASME B89.1.92233A63300000
    5-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A2800000
    5.5-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A6300000
    6-0.00012 to 0.00012309MitutoyoCeramicASME B89.1.92233A63400000
    6-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A2900000
    6.5-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92233A60400000
    7-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A6400000
    7.5-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92233A60500000
    8-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A6500000
    8.5-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92233A60600000
    9-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92233A59700000
    9.5-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A3100000
    10-0.00012 to 0.00012309MitutoyoCeramicASME B89.1.92233A63500000
    10-0.00012 to 0.00012309MitutoyoSteelASME B89.1.92249A6600000
    10.5-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A60700000
    11-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A59800000
    11.5-0.00014 to 0.00014359MitutoyoCeramicASME B89.1.92233A63600000
    11.5-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92249A3200000
    12-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92249A3300000
    12.5-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A60800000
    13-0.00014 to 0.00014359MitutoyoCeramicASME B89.1.92233A63700000
    13-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92249A3400000
    13.5-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A60900000
    14-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92249A3500000
    14.5-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A61100000
    15-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92249A3600000
    15.5-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A61200000
    16-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A59900000
    16.5-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A61300000
    17-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A91700000
    17.5-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92249A3700000
    18-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92249A3800000
    18.5-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A61400000
    19-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A60100000
    19.5-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A61500000
    20-0.00014 to 0.00014359MitutoyoCeramicASME B89.1.92233A638000000
    20-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92249A3900000
    20.5-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A61600000
    21-0.00014 to 0.00014359MitutoyoCeramicASME B89.1.92233A639000000
    21-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92249A6700000
    21.5-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A61700000
    22-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92249A4100000
    22.5-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A61800000
    23-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A60200000
    23.5-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A61900000
    24-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92249A4200000
    24.5-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92233A91800000
    25-0.00014 to 0.00014359MitutoyoCeramicASME B89.1.92233A927000000
    25-0.00014 to 0.00014359MitutoyoSteelASME B89.1.92249A4300000
    30-0.0002 to 0.0002359MitutoyoSteelASME B89.1.92249A4400000
    40-0.0002 to 0.0002359MitutoyoCeramicASME B89.1.92233A641000000
    40-0.0002 to 0.0002359MitutoyoSteelASME B89.1.92249A4500000
    50-0.0002 to 0.0002359MitutoyoCeramicASME B89.1.92233A642000000
    50-0.0002 to 0.0002359MitutoyoSteelASME B89.1.92249A4600000
    60-0.00025 to 0.00025359MitutoyoSteelASME B89.1.92233A62100000
    70-0.00025 to 0.00025359MitutoyoSteelASME B89.1.92249A6800000
    75-0.00025 to 0.00025359MitutoyoCeramicASME B89.1.92233A643000000
    75-0.00025 to 0.00025359MitutoyoSteelASME B89.1.92249A4700000
    80-0.0003 to 0.0003359MitutoyoSteelASME B89.1.92249A4800000
    90-0.0003 to 0.0003359MitutoyoSteelASME B89.1.92233A62200000
    100-0.0003 to 0.0003359MitutoyoCeramicASME B89.1.92233A644000000
    100-0.0003 to 0.0003359MitutoyoSteelASME B89.1.92249A6900000
    150-0.0004 to 0.0004359MitutoyoSteelASME B89.1.92249A49000000
    200-0.0005 to 0.0005359MitutoyoSteelASME B89.1.92249A51000000
    300-0.0007 to 0.0007359MitutoyoSteelASME B89.1.92233A623000000
    400-0.0009 to 0.0009359MitutoyoSteelASME B89.1.92233A624000000
    500-0.0011 to 0.0011359MitutoyoSteelASME B89.1.92233A62500000000

    Grade AS-1 Gauge Block
    0.5-0.0003 to 0.0003309MitutoyoCeramicASME B89.1.92233A67300000
    0.5-0.0003 to 0.0003309MitutoyoSteelASME B89.1.92233A65400000
    1-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A65500000
    1.1-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A64600000
    1.2-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A64700000
    1.3-0.0002 to 0.0002309MitutoyoCeramicASME B89.1.92233A67400000
    1.5-0.0002 to 0.0002309MitutoyoCeramicASME B89.1.92233A67500000
    1.5-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A65600000
    1.8-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A64500000
    2-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A65700000
    3-0.0002 to 0.0002309MitutoyoCeramicASME B89.1.92233A67600000
    3-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A65800000
    4-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A65900000
    4.5-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A65100000
    5-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A92800000
    6-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A66100000
    6.5-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A65200000
    7-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A66200000
    7.5-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A65300000
    8-0.0002 to 0.0002309MitutoyoCeramicASME B89.1.92233A67700000
    8-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A66300000
    9-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A64800000
    9.5-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A66400000
    10-0.0002 to 0.0002309MitutoyoSteelASME B89.1.92233A66500000
    13-0.0003 to 0.0003359MitutoyoCeramicASME B89.1.92233A67800000
    13-0.0003 to 0.0003359MitutoyoSteelASME B89.1.92233A66600000
    14-0.0003 to 0.0003359MitutoyoCeramicASME B89.1.92233A67900000
    15-0.0003 to 0.0003359MitutoyoSteelASME B89.1.92233A66700000
    17-0.0003 to 0.0003359MitutoyoSteelASME B89.1.92233A64900000
    18-0.0003 to 0.0003359MitutoyoSteelASME B89.1.92233A66800000
    20-0.0003 to 0.0003359MitutoyoCeramicASME B89.1.92233A937000000
    20-0.0003 to 0.0003359MitutoyoSteelASME B89.1.92233A66900000
    25-0.0003 to 0.0003359MitutoyoSteelASME B89.1.92233A92900000
    50-0.0004 to 0.0004359MitutoyoSteelASME B89.1.92233A67100000
    100-0.0006 to 0.0006359MitutoyoSteelASME B89.1.92233A67200000


    Mitutoyo Gauge Block Sets with Calibration Certificate

    Image of Product. Front orientation. Contains Annotated, MultipleImages. Gauge Blocks. Mitutoyo Gauge Block Sets with Calibration Certificate.
    Image of Attribute. Front orientation. Contains Annotated. Gauge Blocks. Mitutoyo Gauge Block Sets with Calibration Certificate.
    Image of Attribute. Front orientation. Gauge Blocks. Mitutoyo Gauge Block Sets with Calibration Certificate.

    Use the Mitutoyo gauge blocks in these sets individually or together to take precise measurements or calibrate your measuring tools. They are often used to mark layouts, align machine components, and check that parts are within tolerance. All come with a certificate traceable to NIST to certify they were calibrated in a lab and meet tight tolerances. The blocks are individually numbered for recalibration.
    Put multiple gauge blocks together in a gauge holder (not included) to create a custom repeatable measurement. Add wear blocks (not included) on each end to prevent your gauge block combinations from wearing down over time.

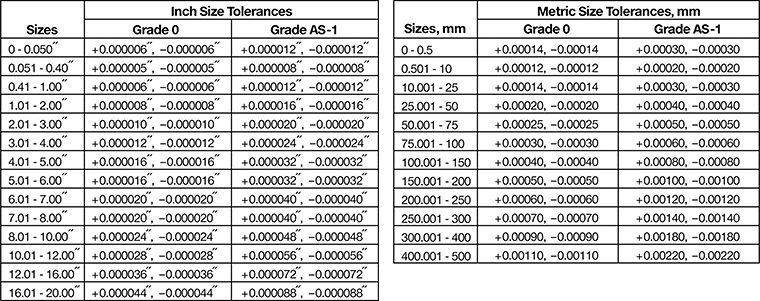

    Each block has a grade per ASME B89.1.9. Grades are based on tolerance—the smaller the tolerance, the greater the accuracy.
    Grade 0 Gauge Block—Grade 0 gauge blocks are our most accurate. They help verify that precise measuring instruments, such as micrometers and calipers, are taking accurate readings.
    Grade AS-1 Gauge Block—Grade AS-1 gauge blocks have a slightly higher tolerance. They’re the most common grade of gauge block.
    Ceramic—Ceramic blocks are more resistant to wear and corrosion than steel blocks. They won’t expand or contract as temperatures change. Use them in cleanrooms—they’re nonmagnetic so they won’t pick up any iron or dust.
    Steel—Steel blocks are the most common choice for gauge blocks.
    No. of
    Pieces
    Mfr. Model
    No.
    Includes
    Material
    Specs. Met
    Each
    Metric

    Grade 0 Gauge Block
    10516-103-26One block each in sizes 1, 1.25, 1.5, 2, 3, 5, 10, 15, 20, and 25 mmSteelASME B89.1.92262A40000000
    47516-358-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 1.005 mm    		CeramicASME B89.1.92262A3600000000
    47516-958-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 1.005 mm    		SteelASME B89.1.92262A2800000000
    56516-354-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 0.5 mm    		CeramicASME B89.1.92262A3500000000
    56516-954-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 0.5 mm    		SteelASME B89.1.92262A2600000000
    87516-346-2619 blocks in sizes 0.5 to 9.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Ten blocks in sizes 10 to 100 mm in 10 mm increments    		CeramicASME B89.1.92262A3400000000
    87516-946-2619 blocks in sizes 0.5 to 9.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Ten blocks in sizes 10 to 100 mm in 10 mm increments    		SteelASME B89.1.92262A600000000
    103516-342-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    One block in size 1.005 mm    		CeramicASME B89.1.92262A3300000000
    103516-942-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    One block in size 1.005 mm    		SteelASME B89.1.92262A2300000000
    112516-338-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    One block in size 1.0005 mm    		CeramicASME B89.1.92262A3100000000
    112516-938-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    One block in size 1.0005 mm    		SteelASME B89.1.92262A2100000000

    Grade AS-1 Gauge Block
    10516-101-26One block each in sizes 1, 1.25, 1.5, 2, 3, 5, 10, 15, 20, and 25 mmSteelASME B89.1.92262A5000000
    47516-359-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 1.005 mm    		CeramicASME B89.1.92262A3700000000
    47516-959-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 1.005 mm    		SteelASME B89.1.92262A2900000000
    56516-955-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 0.5 mm    		SteelASME B89.1.92262A2700000000
    87516-947-2619 blocks in sizes 0.5 to 9.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Ten blocks in sizes 10 to 100 mm in 10 mm increments    		SteelASME B89.1.92262A2500000000
    103516-943-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    One block in size 1.005 mm    		SteelASME B89.1.92262A2400000000
    112516-339-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    One block in size 1.0005 mm    		CeramicASME B89.1.92262A3200000000
    112516-939-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    One block in size 1.0005 mm    		SteelASME B89.1.92262A2200000000


    Mitutoyo Gauge Block Sets

    Use the Mitutoyo gauge blocks in these sets individually or together to take precise measurements or calibrate your measuring tools. They are often used to mark layouts, align machine components, and check that parts are within tolerance. All blocks include a certificate of compliance to certify their sizes are within tolerance. The certificate also lists when each block will require recalibration.
    Put multiple gauge blocks together in a gauge holder (not included) to create a custom repeatable measurement. Add wear blocks (not included) on each end of your gauge block combinations to prevent them from wearing down over time.
    Each block has a grade per ASME B89.1.9. Grades are based on tolerance—the smaller the tolerance, the greater the accuracy.
    Metric
    Square—Square blocks have a hole that runs through their center. Stack multiple square blocks together and secure them with a rod (not included).
    Grade 0 Gauge Block—Grade 0 gauge blocks are our most accurate. They help verify that precise measuring instruments, such as micrometers and calipers, are taking accurate readings.
    Grade AS-1 Gauge Block—Grade AS-1 gauge blocks have a slightly higher tolerance. They’re the most common grade of gauge block.
    Ceramic—Ceramic blocks are more resistant to wear and corrosion than steel blocks. They won’t expand or contract as temperatures change. Use them in cleanrooms—they’re nonmagnetic so they won’t pick up any iron or dust.
    Steel—Steel blocks are the most common choice for gauge blocks.
    No. of
    Pieces
    Mfr. Model
    No.
    Includes
    Material
    Each
    Rectangle
    Image of Product. Front orientation. Gauge Blocks. Mitutoyo Gauge Block Sets, Rectangle.

    Grade 0 Gauge Block
    8516-115-26One block each in sizes 25, 50, 75, 100, 125, 150, 175, and 200 mmSteel2210A139000000000
    10516-103-26One block each in sizes 1, 1.25, 1.5, 2, 3, 5, 10, 15, 20, and 25 mmSteel2262A1000000
    47516-358-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 1.005 mm    		Ceramic2210A13700000000
    47516-958-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 1.005 mm    		Steel2210A12600000000
    56516-354-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 0.5 mm    		Ceramic2210A13500000000
    56516-954-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 0.5 mm    		Steel2210A12400000000
    87516-346-2619 blocks in sizes 0.5 to 9.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Ten blocks in sizes 10 to 100 mm in 10 mm increments    		Ceramic2210A13300000000
    87516-946-2619 blocks in sizes 0.5 to 9.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Ten blocks in sizes 10 to 100 mm in 10 mm increments    		Steel2262A300000000
    103516-342-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    One block in size 1.005 mm    		Ceramic2210A13100000000
    103516-942-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    One block in size 1.005 mm    		Steel2210A12100000000
    112516-338-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    One block in size 1.0005 mm    		Ceramic2210A12800000000
    112516-938-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    One block in size 1.0005 mm    		Steel2210A11800000000

    Grade AS-1 Gauge Block
    8516-116-26One block each in sizes 25, 50, 75, 100, 125, 150, 175, and 200 mmSteel2210A14100000000
    10516-101-26One block each in sizes 1, 1.25, 1.5, 2, 3, 5, 10, 15, 20, and 25 mmSteel2262A2000000
    47516-359-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 1.005 mm    		Ceramic2210A13800000000
    47516-959-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 1.005 mm    		Steel2210A12700000000
    56516-355-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 0.5 mm    		Ceramic2210A13600000000
    56516-955-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 0.5 mm    		Steel2210A12500000000
    87516-347-2619 blocks in sizes 0.5 to 9.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Ten blocks in sizes 10 to 100 mm in 10 mm increments    		Ceramic2210A13400000000
    87516-947-2619 blocks in sizes 0.5 to 9.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Ten blocks in sizes 10 to 100 mm in 10 mm increments    		Steel2210A12300000000
    103516-343-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    One block in size 1.005 mm    		Ceramic2210A13200000000
    103516-943-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    One block in size 1.005 mm    		Steel2210A12200000000
    112516-339-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    One block in size 1.0005 mm    		Ceramic2210A12900000000
    112516-939-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    One block in size 1.0005 mm    		Steel2210A11900000000

    Square
    Image of Product. Front orientation. Gauge Blocks. Mitutoyo Gauge Block Sets, Square.

    Grade 0 Gauge Block
    8516-752-26Three blocks in sizes 125, 150, 175 mm in 25 mm increments
    Three blocks in sizes 300, 400, and 500 mm in 100 mm increments
    Two blocks in sizes 200 and 250 mm in 50 mm increments    		Steel2210A14200000000
    32516-466-26Nine blocks in sizes 1 to 9 mm in 1 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 1.005 mm
    One block in size 60 mm
    Three blocks in sizes 10 to 30 mm in 10 mm increments    		Steel2210A15300000000
    47516-458-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 1.005 mm    		Steel2210A15100000000
    76516-450-2619 blocks in sizes 0.5 to 9.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 10 to 40 mm in 10 mm increments
    One block in size 1.005 mm
    Three blocks in sizes 50 to 100 mm in 25 mm increments    		Steel2210A14800000000
    103516-442-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    One block in size 1.005 mm    		Steel2210A14600000000
    112516-438-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    One block in size 1.005 mm    		Steel2210A14400000000

    Grade AS-1 Gauge Block
    8516-753-26Three blocks in sizes 125, 150, 175 mm in 25 mm increments
    Three blocks in sizes 300, 400, and 500 mm in 100 mm increments
    Two blocks in sizes 200 and 250 mm in 50 mm increments    		Steel2210A14300000000
    32516-467-26Nine blocks in sizes 1 to 9 mm in 1 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 1.005 mm
    One block in size 60 mm
    Three blocks in sizes 10 to 30 mm in 10 mm increments    		Steel2210A15400000000
    47516-459-2624 blocks in sizes 1 to 24 mm in 1 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    One block in size 1.005 mm    		Steel2210A15200000000
    76516-451-2619 blocks in sizes 0.5 to 9.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 10 to 40 mm in 10 mm increments
    One block in size 1.005 mm
    Three blocks in sizes 50 to 100 mm in 25 mm increments    		Steel2210A14900000000
    103516-443-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    One block in size 1.005 mm    		Steel2210A14700000000
    112516-439-2649 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    One block in size 1.005 mm    		Steel2210A14500000000


    Starrett Gauge Block Sets with Calibration Certificate

    Image of Product. Front orientation. Gauge Blocks. Starrett Gauge Block Sets with Calibration Certificate.
    Image of Attribute. Front orientation. Contains Annotated. Gauge Blocks. Starrett Gauge Block Sets with Calibration Certificate.
    Use the Starrett gauge blocks in these sets individually or together to take precise measurements or calibrate your measuring tools. They are often used to mark layouts, align machine components, and check that parts are within tolerance. All have been laboratory calibrated and include NIST traceable certification with the tested measurements. The blocks are individually numbered for recalibration.
    Each block has a grade per ASME B89.1.9. Grades are based on tolerance—the smaller the tolerance, the greater the accuracy. Grade 0 means these gauge blocks are our most accurate. They help verify that precise measuring instruments, such as micrometers and calipers, are taking accurate readings.
    Use a gauge block holder (not included) to create a custom repeatable measurement by stacking multiple blocks together. To prevent your gauge block combinations from wearing down over time, add wear blocks (not included) on each end.
    Metric
    Image of Product. Front orientation. Gauge Blocks. Starrett Gauge Block Sets with Calibration Certificate, Rectangle.
    Image of Product. Front orientation. Gauge Blocks. Starrett Gauge Block Sets with Calibration Certificate, Square.

    Rectangle

    Square

    Image of Attribute. Front orientation. Metric. Starrett Gauge Block Sets with Calibration Certificate.

    Square—Square blocks have a hole that runs through their center. Stack multiple square blocks together and secure them with a rod (not included).
    Grade 0 Gauge Block—Grade 0 gauge blocks are our most accurate. They help verify that precise measuring instruments, such as micrometers and calipers, are taking accurate readings.
    Ceramic—Ceramic blocks are more resistant to wear and corrosion than steel blocks. They won’t expand or contract as temperatures change. Use them in cleanrooms—they’re nonmagnetic so they won’t pick up any iron or dust.
    Steel—Steel blocks are the most common choice for gauge blocks.
    No. of
    Pieces
    Mfr. Model
    No.
    Includes
    Material
    Specs. Met
    Each
    Rectangle

    Grade 0 Gauge Block
    9RS 9.MA1One block each in sizes 1, 2, 2.25, 2.5, 3, 5, 10, 15, and 25 mmSteelASME B89.1.92305A40000000
    45RS 45.MA1Nine blocks in sizes 1 to 9 mm in 1 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    Nine blocks in sizes 10 to 90 mm in 10 mm increments    		SteelASME B89.1.92305A20900000000
    45RY 45.MA1Nine blocks in sizes 1 to 9 mm in 1 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    Nine blocks in sizes 1.01 to 1.09 mm in 0.01 mm increments
    Nine blocks in sizes 1.1 to 1.9 mm in 0.1 mm increments
    Nine blocks in sizes 10 to 90 mm in 10 mm increments    		CeramicASME B89.1.92305A21200000000
    88RS 88.MA119 blocks in sizes 0.5 to 9.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 mm to 1.49 mm in 0.01 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    One block in size 1.0005 mm
    Ten blocks in sizes 10 to 100 mm in 10 mm increments    		SteelASME B89.1.92305A8500000000
    88RY 88.MA119 blocks in sizes 0.5 to 9.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    One block in size 1.0005 mm
    Ten blocks in sizes 10 to 100 mm in 10 mm increments    		CeramicASME B89.1.92305A21300000000
    112RS 112.MA149 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 1.01 to 1.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 1.001 to 1.009 mm in 0.001 mm increments
    One block in size 1.0005 mm    		SteelASME B89.1.92305A21100000000

    Square

    Grade 0 Gauge Block
    88S2S 88.MA119 blocks in sizes 0.5 mm to 9.5 mm in 0.5 mm increments
    49 blocks in sizes 2.01 to 2.49 mm in 0.01 mm increments
    Nine blocks in sizes 2.001 to 2.009 mm in 0.001 mm increments
    One block in size 2.0005 mm
    Ten blocks in sizes 10 mm to 100 mm in 10 mm increments    		SteelASME B89.1.92305A21500000000
    112S2S 112.MA149 blocks in sizes 0.5 to 24.5 mm in 0.5 mm increments
    49 blocks in sizes 2.01 to 2.49 mm in 0.01 mm increments
    Four blocks in sizes 25 to 100 mm in 25 mm increments
    Nine blocks in sizes 2.001 to 2.009 mm in 0.001 mm increments
    One block in size 2.0005 mm    		SteelASME B89.1.92305A21600000000


    Mitutoyo Electronic Height Gauge Calibrators

    Image of Product. Front orientation. Height Gauge Calibrators. Mitutoyo Electronic Height Gauge Calibrators.
    Image of Product. Riser Block. Front orientation. Height Gauge Calibrators. Mitutoyo Electronic Height Gauge Calibrators.

    Riser Block

    Set the standard for your height gauges. These calibrators combine gauge blocks—a true source of measurement—and a micrometer head for refining the gauge block measurement even more. Since they’re so precise at checking that height gauges take accurate readings, they’re often used in metrology labs. Rather than stacking gauge blocks, line up your height gauge against the built-in blocks. They’re staggered to expose both the top and bottom faces, which lets you check height from either bottom up or top down. To fine-tune the entire stack up and down, twist the micrometer head. No need to calculate anything, since the counter keeps track of adjustments and total height shows on the display.
    These calibrators include a zero-setting block to make sure your measurements start from an exact reference point. They also have zero-position memory to retain the measuring position even when turned off. This is also known as absolute (ABS) positioning. To warn you about issues that could skew readings, such as low battery and calculation errors, they show alerts on the display. An SPC data output lets you connect them to a computer or data processor to analyze data and monitor measurements in real time.
    Riser blocks (sold separately) extend the height range. Precisely manufactured, they have tolerances as tight as our typical gauge blocks of similar sizes. Snap them seamlessly to the bottom of your calibrator with the pins. To add the riser height to your total measurement, input the height into the calibrator’s counter.
    Measuring
    Range
    Accuracy
    Measuring
    Increments
    Overall
    Inch
    Metric,
    mm
    Inch
    Metric
    Inch
    Metric,
    mm
    Wd.
    Ht.
    Batteries
    Included
    Mfr. Model
    No.
    Each
    0.5" to 12"12 to 300±0.0001"±0.003 mm0.0001"0.0025 7/8"18 7/8"Yes515-3757806N17000000000
    0.5" to 18"12 to 450±0.0001"±0.003 mm0.0001"0.0025 7/8"24 3/4"Yes515-3777806N1800000000
    0.5" to 24"12 to 600±0.0001"±0.003 mm0.0001"0.0026 11/16"30 7/8"Yes515-3797806N1900000000
    Accessories for Height Gauge Calibrators
    Riser Blocks
    Gauge
    Size
    Gauge Size Tolerance
    Material
    Mfr. Model
    No.
    Each
    6"-0.00002" to 0.00002"Cast Iron515-1167806N14000000000
    12"-0.00004" to 0.00004"Cast Iron515-1177806N1500000000
    24"-0.00008" to 0.00008"Cast Iron515-1187806N1600000000
    150 mm-0.0006 mm to 0.0006 mmCast Iron515-1137806N1100000000
    300 mm-0.001 mm to 0.001 mmCast Iron515-1147806N1200000000
    450 mm-0.002 mm to 0.002 mmCast Iron515-1157806N1300000000
    Cables
    Image of Product. Front orientation. Mitutoyo Cords. Mitutoyo Electronic Height Gauge Calibrators.
    Cables connect calibrators to your computer, Mitutoyo miniprocessor, or multiplexer.
    Electrical Connection
    Data Processor
    Connection
    Mfr. Model
    No.
    Each
    40" Long
    Mitutoyo Data Out Switch C10-Pin Mitutoyo Connector95914920395A7000000

    80" Long
    Mitutoyo Data Out Switch C10-Pin Mitutoyo Connector95915020395A7500000

    back to top
