Grab Bar Type Grab Bar Type |
|---|
|
Material Material |
|---|
|
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) REACH (Registration,Evaluation, Authorization and Restriction of Chemicals) |
|---|
|
DFARS (Defense Acquisition Regulations Supplement) DFARS (Defense AcquisitionRegulations Supplement)  |
|---|
RoHS (Restriction of Hazardous Substances) RoHS (Restriction ofHazardous Substances) |
|---|
|

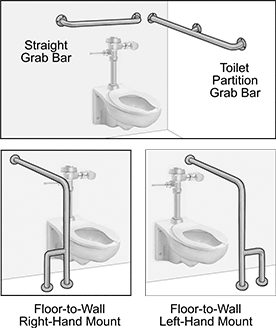

Mounting Orientation Mounting Orientation |
|---|
|
Grab Bars
 |  Smooth |
 Textured |
Provide safety and support for users with limited mobility. Grab bars help you comply with ADA when properly installed.
| Bar Dia. | Lg. | Ht. | Projection | Mount. Orientation | Material | Mount. Flange Dia. | Mount. Hardware Included | Specifications Met | Each | |
Smooth | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Toilet Partition | ||||||||||
| 1 1/4" | 48" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 000000 |
| 1 1/2" | 48" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
Straight | ||||||||||
| 1 1/4" | 12" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
| 1 1/4" | 16" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
| 1 1/4" | 18" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
| 1 1/4" | 24" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
| 1 1/4" | 36" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
| 1 1/4" | 42" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
| 1 1/4" | 48" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
| 1 1/2" | 12" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
| 1 1/2" | 16" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
| 1 1/2" | 18" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
| 1 1/2" | 24" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
| 1 1/2" | 36" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
| 1 1/2" | 42" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
| 1 1/2" | 48" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
Floor-to-Wall | ||||||||||
| 1 1/2" | __ | 33" | 32 1/4" | Left Hand | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 000000 |
| 1 1/2" | __ | 33" | 32 1/4" | Right Hand | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 000000 |
Textured | ||||||||||
Toilet Partition | ||||||||||
| 1 1/4" | 48" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 00000 |
| 1 1/2" | 48" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 000000 |
Straight | ||||||||||
| 1 1/4" | 12" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 00000 |
| 1 1/4" | 16" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 00000 |
| 1 1/4" | 18" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 00000 |
| 1 1/4" | 24" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 00000 |
| 1 1/4" | 36" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 00000 |
| 1 1/4" | 42" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 00000 |
| 1 1/4" | 48" | __ | 2 3/4" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 00000 |
| 1 1/2" | 12" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 00000 |
| 1 1/2" | 16" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 00000 |
| 1 1/2" | 18" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 00000 |
| 1 1/2" | 24" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 00000 |
| 1 1/2" | 36" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 00000 |
| 1 1/2" | 42" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 00000 |
| 1 1/2" | 48" | __ | 3" | __ | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 00000 |
Floor-to-Wall | ||||||||||
| 1 1/2" | __ | 33" | 32 1/4" | Left Hand | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 000000 |
| 1 1/2" | __ | 33" | 32 1/4" | Right Hand | Stainless Steel | 3" | Yes | ADA Compliant, ANSI A117.1 | 00000000 | 000000 |
ADA-Compliant Railings
Make stairs and ramps safe and accessible for all with these ADA-compliant railings. They’re made of high-strength galvanized steel for durability and corrosion resistance, even outdoors. These railings are paintable and can be cut to length.
Ground-mount railings are supported by posts that mount to your staircase or ramp. They’re inline with the posts to give you space to navigate in narrow areas. Add an additional post for extra support if your railing extends beyond six ft.
Wall-mount railings are supported by brackets that mount to your wall. They’re commonly used for stairs or ramps that don’t have space for mounting posts. Because they’re offset with the wall, a portion of the grab bar juts out for easy access. Add another wall bracket for more support if your railing is longer than six ft.
For technical drawings and 3-D models, click on a part number.
Ground-Mount Railings
Ground Mounted Railing
Posts for Ground-Mount Railings
Post
Mounting Holes | ||||
|---|---|---|---|---|
| Number of | Diameter | Mounting Hardware | Each | |
Galvanized Steel | ||||
Inline | ||||
| 2 | 9/16" | Fasteners Not Included | 0000000 | 0000000 |
Wall-Mount Railings
Wall Mounted Railing with Offset Rail
Wall Brackets for Wall-Mount Railings
Wall Bracket for Offset Rail
Mounting Holes | |||||
|---|---|---|---|---|---|
| Offset Depth | Number of | Diameter | Mounting Hardware | Each | |
Galvanized Steel | |||||
Offset | |||||
| 2 1/2" | 3 | 5/16" | Fasteners Not Included | 0000000 | 000000 |
