Station Activation Station Activation |
|---|
|
Spray Arm Finish Spray Arm Finish |
|---|
|
Specifications Met Specifications Met |
|---|
|
Environmental Rating Environmental Rating |
|---|
|

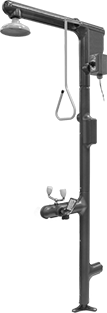

Hazardous-Location Freeze-Resistant
Shower Stations with Eye Wash
Stations are FM approved for Class I, Division 2, Groups B, C, and D hazardous locations. They are heated and can be fully exposed to the elements without freezing in temperatures as low as -50° F. They connect to your facility's plumbing and drain automatically to prevent the pipes from freezing. Housed in a water- and dust-tight junction box with a pilot light, the thermostat keeps the water at a comfortable temperature.
Shower Head | Inlet | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe Material | Valve Material | Material | Dia. | Station Activation | Pipe Connection Type | Pipe Size | Thread Type | Gender | Electrical Connection Type | Voltage | No. of Wire Leads | Mount. Hole Dia. | Fasteners Included | Specifications Met | Environmental Rating | Each | |
Eye and Face Coverage | |||||||||||||||||
| Galvanized Steel | Chrome-Plated Brass | ABS | 8" | Pull Handle, Push Handle | Threaded | 1 | NPT | Male | Hardwire | 120V AC | 3 | 1/2" | No | ANSI Z358.1 FM Approved NEMA 4X Junction Box | FM Class I, Division 2, Group B FM Class I, Division 2, Group C FM Class I, Division 2, Group D | 0000000 | 000000000 |
Freeze-Resistant Shower Stations with Eye Wash
These heated stations can be fully exposed to the elements without freezing in temperatures as low as -50° F. They connect to your facility's plumbing and drain automatically to prevent the pipes from freezing. Housed in a water- and dust-tight junction box with a pilot light, the thermostat keeps the water at a comfortable temperature.
Shower Head | Inlet | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe Material | Valve Material | Material | Dia. | Station Activation | Pipe Connection Type | Pipe Size | Thread Type | Gender | Electrical Connection Type | Voltage | No. of Wire Leads | Mount. Hole Dia. | Fasteners Included | Specifications Met | Each | |
Eye and Face Coverage | ||||||||||||||||
| Galvanized Steel | Chrome-Plated Brass | ABS | 8" | Pull Handle, Push Handle | Threaded | 1 | NPT | Male | Hardwire | 120V AC | 3 | 1/2" | No | ANSI Z358.1; NEMA 4X Junction Box | 0000000 | 000000000 |
Through-Wall Freeze-Resistant
Shower Stations with Eye Wash
You can install the shower head and eye wash in an unheated area, but the valve must be installed indoors to keep water flowing at a comfortable temperature. Station connects to your facility's plumbing and drains automatically to prevent the pipes from freezing.
Shower Head | Inlet for Crank Handle | Inlet for Push Handle | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe Material | Valve Material | Material | Dia. | Station Activation | Pipe Connection Type | Pipe Size | Thread Type | Gender | Pipe Connection Type | Pipe Size | Thread Type | Gender | For Max. Wall Thick. | Specifications Met | Each | |
Eye and Face Coverage | ||||||||||||||||
| Galvanized Steel | Chrome-Plated Bronze | ABS | 8" | Crank Handle, Push Handle | Threaded | 1 1/4 | NPT | Female | Threaded | 1/2 | NPT | Female | 12 3/4" | ANSI Z358.1 | 0000000 | 000000000 |
