Toilet Partition Components
 |  Painted Steel Almond |  Painted Steel Dark Gray | ||||||
 Painted Steel Light Gray |  Painted Steel Tan | |||||||
 Painted Steel White |  Stainless Steel | |||||||
 Plastic Laminate Almond |  Plastic Laminate Beige | |||||||
 Plastic Laminate Blue |  Plastic Laminate White |  Plastic Laminate Gray |  Plastic Cream |  Plastic Dark Blue |  Plastic Gray |  Plastic Tan |  Plastic White | |
Design your own partitions, add to your existing partition, or replace individual components and hardware. Hardware is included with doors; all other components require installation hardware (sold separately). To account for the hardware, the doors and panels are slightly smaller than the width listed. Headrails can be cut to size.
ADA doors help you comply with ADA when properly installed.
Steel partitions are the industry standard.
Stainless steel partitions are corrosion resistant.
Plastic laminate partitions are for use in low-humidity environments.
Plastic partitions are our most durable and damage-resistant partitions. They are often used in harsh environments and washdown areas.
For the best match, order color samples (sold separately).
Column | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Thick. | Core Construction | Trim Shoe Material | Mount. Hardware Included | Includes | Choose a Color | Each | |
Columns | |||||||||
| 84" | 3" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 84" | 4" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 84" | 5" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 84" | 6" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 84" | 7" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 84" | 8" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 84" | 10" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 84" | 12" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 84" | 18" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 84" | 22" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 84" | 24" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
Column | ||||||||
|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Thick. | Core Construction | Trim Shoe Material | Mount. Hardware Included | Includes | Each | |
Columns | ||||||||
| 84" | 3" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 0000000 |
| 84" | 4" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 |
| 84" | 5" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 |
| 84" | 6" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 |
| 84" | 7" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 |
| 84" | 8" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 |
| 84" | 10" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 |
| 84" | 12" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 |
| 84" | 18" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 |
| 84" | 22" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 |
| 84" | 24" | 1 1/4" | Honeycomb | Stainless Steel | No | Anchor Kit | 0000000 | 000000 |
Column | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Thick. | Core Construction | Trim Shoe Material | Mount. Hardware Included | Includes | Choose a Color | Each | |
Columns | |||||||||
| 82" | 3" | 1" | Particleboard | Stainless Steel | No | Anchor Kit | 0000000 | 0000000 | |
| 82" | 4" | 1" | Particleboard | Stainless Steel | No | Anchor Kit | 00000000 | 000000 | |
| 82" | 5" | 1" | Particleboard | Stainless Steel | No | Anchor Kit | 00000000 | 000000 | |
| 82" | 6" | 1" | Particleboard | Stainless Steel | No | Anchor Kit | 00000000 | 000000 | |
| 82" | 7" | 1" | Particleboard | Stainless Steel | No | Anchor Kit | 00000000 | 000000 | |
| 82" | 8" | 1" | Particleboard | Stainless Steel | No | Anchor Kit | 00000000 | 000000 | |
| 82" | 10" | 1" | Particleboard | Stainless Steel | No | Anchor Kit | 00000000 | 000000 | |
| 82" | 12" | 1" | Particleboard | Stainless Steel | No | Anchor Kit | 00000000 | 000000 | |
| 82" | 18" | 1" | Particleboard | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 82" | 22" | 1" | Particleboard | Stainless Steel | No | Anchor Kit | 00000000 | 000000 | |
| 82" | 24" | 1" | Particleboard | Stainless Steel | No | Anchor Kit | 00000000 | 000000 | |
Column | ||||||||
|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Thick. | Trim Shoe Material | Mount. Hardware Included | Includes | Choose a Color | Each | |
Columns | ||||||||
| 82" | 3" | 1" | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 82" | 4" | 1" | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 82" | 5" | 1" | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 82" | 6" | 1" | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 82" | 7" | 1" | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 82" | 8" | 1" | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 82" | 10" | 1" | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 82" | 12" | 1" | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 82" | 18" | 1" | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 82" | 22" | 1" | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
| 82" | 24" | 1" | Stainless Steel | No | Anchor Kit | 0000000 | 000000 | |
Urinal Partitions
Fasteners require a Torx T27 tamper-resistant screwdriver. To account for the hardware, the doors and panels are slightly smaller than the width listed.
Steel partitions are the industry standard.
Stainless steel partitions are corrosion resistant.
Plastic laminate partitions are for use in low-humidity environments.
Plastic partitions are our most durable and damage-resistant partitions. They are often used in harsh environments and washdown areas.
For the best match, order color samples (sold separately).
Overall | Panel | Column | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Dp. | Ht. | Wd. | Thick. | Ht. | Wd. | Thick. | Core Construction | Mount. Hardware Included | Choose a Color | Each | |
Floor-Braced Partitions | |||||||||||||
| 70" | 7" | 24" | 58" | 22" | 1" | 70" | 7" | 1 1/4" | Honeycomb | Yes | 000000 | 0000000 | |
| 70" | 7" | 36" | 58" | 34" | 1" | 70" | 7" | 1 1/4" | Honeycomb | Yes | 000000 | 000000 | |
Wall-Hung Partitions | |||||||||||||
| 48" | 1" | 18" | __ | __ | __ | __ | __ | __ | Honeycomb | Yes | 00000000 | 000000 | |
| 48" | 1" | 24" | __ | __ | __ | __ | __ | __ | Honeycomb | Yes | 00000000 | 000000 | |
| 48" | 1" | 30" | __ | __ | __ | __ | __ | __ | Honeycomb | Yes | 00000000 | 000000 | |
Overall | Panel | Column | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Dp. | Ht. | Wd. | Thick. | Ht. | Wd. | Thick. | Core Construction | Mount. Hardware Included | Each | |
Floor-Braced Partitions | ||||||||||||
| 70" | 7" | 24" | 58" | 22" | 1" | 70" | 7" | 1 1/4" | Honeycomb | Yes | 000000 | 0000000 |
| 70" | 7" | 36" | 58" | 34" | 1" | 70" | 7" | 1 1/4" | Honeycomb | Yes | 000000 | 000000 |
Wall-Hung Partitions | ||||||||||||
| 48" | 1" | 18" | __ | __ | __ | __ | __ | __ | Honeycomb | Yes | 0000000 | 000000 |
| 48" | 1" | 24" | __ | __ | __ | __ | __ | __ | Honeycomb | Yes | 0000000 | 000000 |
| 48" | 1" | 30" | __ | __ | __ | __ | __ | __ | Honeycomb | Yes | 0000000 | 000000 |
Overall | Panel | Column | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Dp. | Ht. | Wd. | Thick. | Ht. | Wd. | Thick. | Core Construction | Mount. Hardware Included | Choose a Color | Each | |
Floor-Braced Partitions | |||||||||||||
| 70" | 7" | 24" | 58" | 22" | 1" | 70" | 7" | 1 1/4" | Particleboard | Yes | 000000 | 0000000 | |
| 70" | 7" | 36" | 58" | 34" | 1" | 70" | 7" | 1 1/4" | Particleboard | Yes | 000000 | 000000 | |
Wall-Hung Partitions | |||||||||||||
| 48" | 1" | 18" | __ | __ | __ | __ | __ | __ | Particleboard | Yes | 0000000 | 000000 | |
| 48" | 1" | 24" | __ | __ | __ | __ | __ | __ | Particleboard | Yes | 0000000 | 000000 | |
| 48" | 1" | 30" | __ | __ | __ | __ | __ | __ | Particleboard | Yes | 0000000 | 000000 | |
Overall | Panel | Column | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Dp. | Ht. | Wd. | Thick. | Ht. | Wd. | Thick. | Mount. Hardware Included | Choose a Color | Each | |
Floor-Braced Partitions | ||||||||||||
| 70" | 7" | 24" | 55" | 22" | 1" | 70" | 7" | 1" | Yes | 0000000 | 0000000 | |
| 70" | 7" | 36" | 55" | 34" | 1" | 70" | 7" | 1" | Yes | 0000000 | 000000 | |
Wall-Hung Partitions | ||||||||||||
| 48" | 1" | 18" | __ | __ | __ | __ | __ | __ | Yes | 0000000 | 000000 | |
| 48" | 1" | 24" | __ | __ | __ | __ | __ | __ | Yes | 0000000 | 000000 | |
| 48" | 1" | 30" | __ | __ | __ | __ | __ | __ | Yes | 0000000 | 000000 | |
Toilet Partitions
Fasteners require a Torx T27 tamper-resistant screwdriver. To account for the hardware, the doors and panels are slightly smaller than the width listed.
ADA partitions help you comply with ADA when properly installed.
Steel partitions are the industry standard.
Stainless steel partitions are corrosion resistant.
Plastic laminate partitions are for use in low-humidity environments.
Plastic partitions are our most durable and damage-resistant partitions. They are often used in harsh environments and washdown areas.
For the best match, order color samples (sold separately).
Overall | Door | Panel | Column | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Partition Type | Ht. | Wd. | Dp. | Ht. | Wd. | Thick. | Ht. | Wd. | Thick. | Ht. | Wd. | Thick. | Core Construction | Mount. Hardware Included | Specifications Met | Choose a Color | Each | |
| Corner | 84" | 37" | 60" | 58" | 24" | 1" | 58" | 58" | 1" | 82" 82" | 4" 8" | 1 1/4" 1 1/4" | Honeycomb | Yes | __ | 0000000 | 0000000 | |
| ADA Corner | 84" | 62" | 60" | 58" | 36" | 1" | 58" | 58" | 1" | 82" 82" | 22" 3" | 1 1/4" 1 1/4" | Honeycomb | Yes | ANSI A117.1 | 0000000 | 000000 | |
| Add-On | 84" | 36" | 60" | 58" | 24" | 1" | 58" | 58" | 1" | 82" | 12" | 1 1/4" | Honeycomb | Yes | __ | 0000000 | 000000 | |
Overall | Door | Panel | Column | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Partition Type | Ht. | Wd. | Dp. | Ht. | Wd. | Thick. | Ht. | Wd. | Thick. | Ht. | Wd. | Thick. | Core Construction | Mount. Hardware Included | Specifications Met | Each | |
| Corner | 84" | 37" | 60" | 58" | 24" | 1" | 58" | 58" | 1" | 82" 82" | 5" 7" | 1 1/4" 1 1/4" | Honeycomb | Yes | __ | 0000000 | 000000000 |
| ADA Corner | 84" | 62" | 60" | 58" | 36" | 1" | 58" | 58" | 1" | 82" 82" | 22" 3" | 1 1/4" 1 1/4" | Honeycomb | Yes | ANSI A117.1 | 0000000 | 00000000 |
| Add-On | 84" | 36" | 60" | 58" | 24" | 1" | 58" | 58" | 1" | 82" | 12" | 1 1/4" | Honeycomb | Yes | __ | 0000000 | 00000000 |
Overall | Door | Panel | Column | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Partition Type | Ht. | Wd. | Dp. | Ht. | Wd. | Thick. | Ht. | Wd. | Thick. | Ht. | Wd. | Thick. | Core Construction | Mount. Hardware Included | Specifications Met | Choose a Color | Each | |
| Corner | 84" | 37" | 60" | 58" | 24" | 1" | 58" | 58" | 1" | __ | __ | __ | Particleboard | Yes | __ | 0000000 | 0000000 | |
| ADA Corner | 84" | 62" | 60" | 58" | 36" | 1" | 58" | 58" | 1" | __ | __ | __ | Particleboard | Yes | ANSI A117.1 | 0000000 | 000000 | |
| Add-On | 84" | 36" | 60" | 58" | 24" | 1" | 58" | 58" | 1" | 84" | 12" | 1" | Particleboard | Yes | __ | 0000000 | 000000 | |
Overall | Door | Panel | Column | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Partition Type | Ht. | Wd. | Dp. | Ht. | Wd. | Thick. | Ht. | Wd. | Thick. | Ht. | Wd. | Thick. | Mount. Hardware Included | Specifications Met | Choose a Color | Each | |
| Corner | 84" | 37" | 60" | 55" | 24" | 1" | 55" | 58" | 1" | 82" 82" | 7" 5" | 1" 1" | Yes | __ | 000000 | 000000000 | |
| ADA Corner | 84" | 62" | 60" | 55" | 36" | 1" | 55" | 58" | 1" | 82" 82" | 18" 7" | 1" 1" | Yes | ANSI A117.1 | 000000 | 00000000 | |
| Add-On | 84" | 36" | 60" | 55" | 24" | 1" | 55" | 58" | 1" | 82" | 12" | 1" | Yes | __ | 0000000 | 00000000 | |
Replacement Hardware Kits for Urinal Partitions
Use one of these kits to replace rusty or broken hardware on urinal partitions.
Floor-Braced
Partitions
Wall-Hung
Partitions
Mounting Hardware Kits for Toilet Partition Components
These kits include all brackets and fasteners needed for mounting partitions. A Torx T27 tamper-resistant screwdriver is required.
For Stainless Steel and Steel | For Plastic Laminate | For Plastic | ||||||
|---|---|---|---|---|---|---|---|---|
| Material | Mount. Fasteners Included | Each | Each | Each | ||||
For Attaching Panel to Wall and Column, Headrail to Column and Wall | ||||||||
| 1 | Chrome-Plated Zinc | Yes | 00000000 | 000000 | 0000000 | 000000 | 000000 | 00 |
| 1 | Aluminum | Yes | 000000 | 00 | 000000 | 00 | 0000000 | 000000 |
For Attaching Panel to Wall and Column | ||||||||
| 2 | Chrome-Plated Zinc | Yes | 00000000 | 00000 | 000000 | 00000 | 000000 | 00 |
| 2 | Aluminum | Yes | 000000 | 00 | 000000 | 00 | 0000000 | 00000 |
For Attaching Column to Wall, Headrail to Wall | ||||||||
| 3 | Chrome-Plated Zinc | Yes | 00000000 | 00000 | 0000000 | 00000 | 000000 | 00 |
| 3 | Aluminum | Yes | 000000 | 00 | 000000 | 00 | 0000000 | 00000 |
For Attaching Panel to Column (Inline) | ||||||||
| 4 | Chrome-Plated Zinc | Yes | 00000000 | 0000 | 00000000 | 0000 | 000000 | 00 |
| 4 | Stainless Steel | Yes | 000000 | 00 | 000000 | 00 | 0000000 | 00000 |
Replacement Hardware Kits for Toilet Partitions
For Steel and Stainless Steel | For Plastic Laminate | For Plastic | |||||
|---|---|---|---|---|---|---|---|
| For Column Wd. | Material | Each | Each | Each | |||
| 3" | Stainless Steel | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 |
| 4" | Stainless Steel | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 00000 |
| 5" | Stainless Steel | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 00000 |
| 6" | Stainless Steel | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 00000 |
| 7" | Stainless Steel | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 00000 |
| 8" | Stainless Steel | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 00000 |
| 10" | Stainless Steel | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 00000 |
| 12" | Stainless Steel | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 00000 |
| 18" | Stainless Steel | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 00000 |
| 22" | Stainless Steel | 00000000 | 00000 | 00000000 | 00000 | 0000000 | 00000 |
| 24" | Stainless Steel | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 00000 |

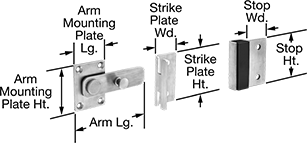

Mortise-Mount Toilet Partition Latches
These concealed latches snap together. Reversible for right- and left-hand mounting, each latch comes with a strike plate that has a built-in door stop for toilet partitions.
Style B is ADA compliant when properly installed.
For technical drawings and 3-D models, click on a part number.
Strike Plate | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Style | For Door Thick. | For Door Hole Dia. | Arm Lg. | Ht. | Wd. | Mounting Fasteners Included | Specifications Met | Each | |
For Use On Metal—Offset Bolt | |||||||||
Chrome-Plated Zinc | |||||||||
| A | 1" | 1 1/4" | __ | 2 1/2" | 1 3/16" | Yes | __ | 0000000 | 000000 |
| B | 1" | 1 1/4" | 3 3/4" | 2 1/2" | 1 3/16" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
For Use On Laminate and Plastic—Straight Bolt | |||||||||
Chrome-Plated Zinc | |||||||||
| A | 1" | 1 1/4" | __ | 2 1/2" | 1 3/16" | Yes | __ | 0000000 | 00000 |
| B | 1" | 1 1/4" | 3 3/4" | 2 1/2" | 1 3/16" | Yes | ADA Compliant, ANSI A117.1 | 0000000 | 00000 |
Slide-Bolt Toilet Partition Latches
Each latch comes with a strike plate and door stop. All are reversible for right- and left-hand mounting.
For technical drawings and 3-D models, click on a part number.
Latches | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Strike Plate | Stop | Bolt | Replacement Latches | Replacement Strike Plates | Replacement Door Stops | ||||||||||||
| Ht. | Wd. | Ht. | Wd. | Ht. | Wd. | Wd. | Thick. | Projection | Mounting Fasteners Included | Each | Each | Each | Each | ||||
Chrome-Plated Zinc—Polished | |||||||||||||||||
| 4" | 2" | 2 1/2" | 1 1/8" | 2 1/2" | 1 1/4" | 3/4" | 3/16" | 1 9/16" | Yes | 00000000 | 000000 | 00000000 | 000000 | 00000000 | 00000 | 00000000 | 00000 |
| 4 1/2" | 1 7/8" | 2 1/2" | 1 1/8" | 2 1/2" | 1 1/4" | 1" | 3/16" | 1 9/16" | Yes | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 0000 | 00000000 | 0000 |
304 Stainless Steel—Dull | |||||||||||||||||
| 4" | 2" | 2 1/2" | 1 1/8" | 2 1/2" | 1 1/4" | 3/4" | 3/16" | 1 9/16" | Yes | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 00000 |
| 4 1/2" | 1 7/8" | 2 1/2" | 1 1/8" | 2 1/2" | 1 1/4" | 1" | 3/16" | 1 9/16" | Yes | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 00000 |
Swinging-Bar Toilet Partition Latches
Each latch comes with a strike plate and door stop.
For technical drawings and 3-D models, click on a part number.
Latches | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Arm | Arm Mounting Plate | Strike Plate | Stop | Replacement Latches | Replacement Strike Plates | Replacement Door Stops | ||||||||||||
| Lg. | Ht. | Thick. | Lg. | Ht. | Ht. | Wd. | Ht. | Wd. | Projection | Mounting Fasteners Included | Each | Each | Each | Each | ||||
304 Stainless Steel—Dull | ||||||||||||||||||
| 3 1/4" | 7/8" | 1/8" | 2" | 1 1/2" | 2 1/2" | 1 5/16" | 2 1/2" | 1 1/8" | 3/4" | Yes | 00000000 | 000000 | 00000000 | 000000 | 00000000 | 000000 | 00000000 | 000000 |
