Wall-Mount Sinks
Styles A and D help comply with ADA when properly installed.
O'all | Bowl Inside | Faucet Holes | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | No. of | Dia. | Ctr.-to-Ctr. | Mounting Fasteners Included | For Use Outdoors | Features | Includes | Each | |
Sinks | ||||||||||||||||
White Porcelain—Meets ANSI 112 | ||||||||||||||||
| A | 21" | 18 3/4" | 10 1/4" | 16" | 10 3/4" | 8 1/4" | 1 1/4" | 3 | 1 1/4" | 4" | No | No | Overflow Hole | One Mounting Bracket | 0000000 | 000000 |
304 Stainless Steel | ||||||||||||||||
| C | 18" | 15" | 7" | 9 1/2" | 14 1/2" | 6" | 1 1/2" | 3 | 1 1/4" | 4" | No | No | Seamless Bowl | Drain with Strainer, One Mounting Bracket, Tailpiece | 0000000 | 000000 |
| D | 18" | 22" | 8" | 14" | 12" | 5" | 1 1/2" | 3 | 1 1/4" | 4" | Yes | No | Seamless Bowl | Drain with Strainer, Tailpiece, Three Mounting Brackets | 0000000 | 000000 |
Countertop Sinks
Stainless steel sinks offer the best corrosion and chemical resistance. They're undercoated to prevent condensation.
To install Style C, apply sealant (not included) to rim and drop into your counter.
Use optional installation clips to install Style D sinks in countertops that are 3/4" or thicker, or countertops made of material that cannot be nailed into. 13" × 13" and 15" × 15" sinks require eight installation clips, while larger sinks require 12.
O'all | Bowl Inside | For Countertop Hole | Faucet Holes | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Wd. | Dp. | Drain Opening Dia. | No. of | Dia. | Ctr.-to-Ctr. | Mounting Hardware Included | For Use Outdoors | Each | |
Sinks | ||||||||||||||||
304 Stainless Steel | ||||||||||||||||
| C | 15" | 15" | 6 1/8" | 12" | 10" | 6" | 14 3/8" | 14 3/8" | 2" | 2 | 1 1/4" | 4" | Yes | No | 0000000 | 0000000 |
| D | 13" | 13" | 7 5/8" | 10" | 10" | 7 1/2" | 12 1/4" | 12 1/4" | 3 1/2" | 0 | __ | __ | Yes | No | 00000000 | 000000 |
| D | 15" | 15" | 7 5/8" | 12" | 12" | 7 1/2" | 14 1/4" | 14 1/4" | 3 1/2" | 0 | __ | __ | Yes | No | 0000000 | 000000 |
O'all | Bowl Inside | For Countertop Hole | Inlet | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Wd. | Dp. | Drain Opening Dia. | Spout Type | Pipe Size | Thread Type | Flow Rate, gpm | Mounting Hardware Included | For Use Outdoors | Includes | Each | |
Sinks with Chrome-Plated Brass Faucet | ||||||||||||||||||
304 Stainless Steel | ||||||||||||||||||
| C | 15" | 15" | 6 1/8" | 12" | 10" | 6" | 14 3/8" | 14 3/8" | 2" | Swivel | 1/2 | NPS | 2.2 | Yes | No | Drain with Strainer, Tailpiece | 0000000 | 0000000 |
Hands-Free Wash Fountains
You won't have to wait to wash up with these multi-user fountains. Step on the pedals for water; release them to stop the flow. These sinks are chemical and corrosion resistant.
Location | O'all | Pedestal | Inlet | Drain | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of Users | Inlet | Venting | Rim Ht. | Bowl Inside Ht. | Dia. | Wd. | Dp. | Flow Rate, gpm | Material | Color | Pipe Size | Thread Type | Gender | Pipe Size | Thread Type | Gender | Each | ||
Floor/Wall Mount—Wall Drain | |||||||||||||||||||
| A | 3 | Wall | Floor/Wall | 29 1/4" | 9" | __ | 36" | 25 3/4" | 1.3 | Plastic | Gray | 1/2 | NPT | Female | 2 | NPT | Male | 00000000 | 000000000 |
| A | 4 | Wall | Floor/Wall | 29 1/4" | 9" | __ | 54" | 35 1/4" | 3 | Plastic | Gray | 1/2 | NPT | Female | 2 | NPT | Male | 00000000 | 00000000 |
Floor Mount—Floor Drain | |||||||||||||||||||
| B | 5 | Floor | Floor Drain | 29 1/4" | 9" | 36" | __ | __ | 2 | Plastic | Gray | 1/2 | NPT | Female | 2 | NPT | Male | 00000000 | 00000000 |
| B | 5 | Top | Top | 29 1/4" | 9" | 36" | __ | __ | 2 | Plastic | Gray | 1/2 | NPT | Female | 2 | NPT | Male | 00000000 | 00000000 |
Location | O'all | Pedestal | Inlet | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of Users | Inlet | Venting | Rim Ht. | Bowl Inside Ht. | Dia. | Wd. | Dp. | Flow Rate, gpm | Material | Color | Pipe Size | Thread Type | Gender | For Drain Pipe OD | Each | ||
Floor/Wall Mount—Wall Drain | |||||||||||||||||
| C | 2 | Wall | Floor/Wall | 34" | 4 1/2" | __ | 27 1/2" | 17 1/4" | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 1 1/2" | 0000000 | 000000000 |
| D | 3 | Wall | Floor/Wall | 34" | 4 1/2" | __ | 38" | 32" | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 1 1/2" | 0000000 | 00000000 |
| D | 4 | Wall | Floor/Wall | 34" | 4 1/2" | __ | 38" | 32" | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 1 1/2" | 0000000 | 00000000 |
Floor Mount—Floor Drain | |||||||||||||||||

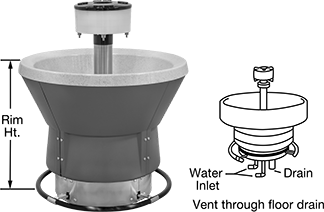

| E | 8 | Floor | Floor Drain | 34" | 4 1/2" | 54" | __ | __ | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 2" | 00000000 | 00000000 |

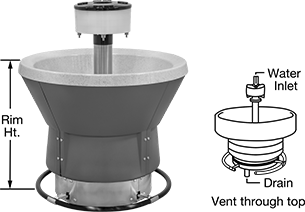

| E | 8 | Top | Top | 34" | 4 1/2" | 54" | __ | __ | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 2" | 00000000 | 00000000 |
Touch-Free Wash Fountains
You won't have to wait to wash up with these multi-user fountains. Place your hands in front of the sensor for water. These sinks are chemical and corrosion resistant. They operate at 24 volts AC (from 120 volts AC) with a step-down transformer that draws 3 amps. Sensor and transformer are UL listed.
Location | O'all | Pedestal | Inlet | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of Users | Inlet | Venting | Rim Ht. | Bowl Inside Ht. | Dia. | Wd. | Dp. | Flow Rate, gpm | Material | Color | Pipe Size | Thread Type | Gender | For Drain Pipe OD | Each | ||
Stainless Steel Bowl—Assembled | |||||||||||||||||
Floor/Wall Mount—Wall Drain | |||||||||||||||||
| A | 2 | Wall | Floor/Wall | 34" | 4 1/2" | __ | 27 1/2" | 17 1/4" | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 1 1/2" | 00000000 | 000000000 |
| B | 3 | Wall | Floor/Wall | 34" | 4 1/2" | __ | 38" | 32" | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 1 1/2" | 00000000 | 00000000 |
| B | 4 | Wall | Floor/Wall | 34" | 4 1/2" | __ | 38" | 32" | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 1 1/2" | 00000000 | 00000000 |
Floor Mount—Floor Drain | |||||||||||||||||
| C | 8 | Floor | Floor Drain | 34" | 4 1/2" | 54" | __ | __ | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 2" | 000000000 | 00000000 |
| D | 8 | Top | Top | 34" | 4 1/2" | 54" | __ | __ | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 2" | 000000000 | 00000000 |
