Machine Guards

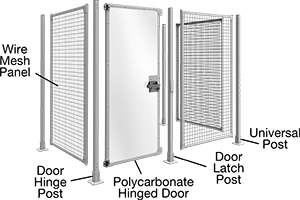

Combine posts, panels, and doors to create a barrier around equipment.
When standing on the side of the door that swings away from you, left-hand doors open to the left; right-hand doors open to the right.
Hinged doors have a slide-bolt latch.
Corner posts allow you to create a 90° corner with two panels. Inline posts allow you to connect two panels in a straight line.
The assembled width measures the installed width of a panel or door when mounted with posts on each side.
Panels
Wire Mesh Panel
Solid Panel
Pegboard Panel
Peg Hole | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Assembled Wd. | Ht. | Floor Clearance When Assembled | Wire Dia. | Material Thick. | Dia. | Center-to-Center | Mounting Hardware | Each | |
Wire Mesh—Powder-Coated Steel | ||||||||||
| 9 7/8" | 1' 1 7/8" | 6'6 3/4" | 6" | 0.165" | __ | __ | __ | Connecting Fasteners Included | 0000000 | 000000 |
| 1'9 5/8" | 2' 1 5/8" | 6'6 3/4" | 6" | 0.165" | __ | __ | __ | Connecting Fasteners Included | 0000000 | 000000 |
| 2'9 1/2" | 3' 1 1/2" | 6'6 3/4" | 6" | 0.165" | __ | __ | __ | Connecting Fasteners Included | 0000000 | 000000 |
| 3'9 1/4" | 4' 1 1/4" | 6'6 3/4" | 6" | 0.165" | __ | __ | __ | Connecting Fasteners Included | 0000000 | 000000 |
| 4'9 1/8" | 5' 1 1/8" | 6'6 3/4" | 6" | 0.165" | __ | __ | __ | Connecting Fasteners Included | 0000000 | 000000 |
Solid—Polycarbonate Plastic | ||||||||||
| 9 7/8" | 1' 1 7/8" | 6'6 3/4" | 6" | __ | 3/16" | __ | __ | Connecting Fasteners Included | 0000000 | 000000 |
| 1'9 5/8" | 2' 1 5/8" | 6'6 3/4" | 6" | __ | 3/16" | __ | __ | Connecting Fasteners Included | 0000000 | 000000 |
| 2'9 1/2" | 3' 1 1/2" | 6'6 3/4" | 6" | __ | 3/16" | __ | __ | Connecting Fasteners Included | 0000000 | 000000 |
| 3'9 1/4" | 4' 1 1/4" | 6'6 3/4" | 6" | __ | 3/16" | __ | __ | Connecting Fasteners Included | 0000000 | 000000 |
| 4'9 1/8" | 5' 1 1/8" | 6'6 3/4" | 6" | __ | 3/16" | __ | __ | Connecting Fasteners Included | 0000000 | 000000 |
Pegboard—Polyethylene Plastic | ||||||||||
| 1'9 5/8" | 2' 1 5/8" | 6'6 3/4" | 6" | __ | 1/4" | 9/32" | 1" | Connecting Fasteners Included | 0000000 | 000000 |
| 2'9 1/2" | 3' 1 1/2" | 6'6 3/4" | 6" | __ | 1/4" | 9/32" | 1" | Connecting Fasteners Included | 0000000 | 000000 |
Hinged Doors
Solid Hinged Door
Replacement Latch Bracket
Replacement Handle
Replacement Door Hinge
Replacement Latch
Replacement Latch Assembly
Doors | Replacement Latch Assemblies | Replacement Latches | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mounting Orientation | Wd. | Assembled Wd. | Ht. | Floor Clearance When Assembled | Material Thick. | Mounting Hardware | Each | Each | Each | |||
Solid—Polycarbonate Plastic | ||||||||||||
| Left Hand | 2'9" | 3' 1" | 6'6 3/4" | 6" | 3/16" | Connecting Fasteners Included | 00000000 | 0000000 | 0000000 | 0000000 | 0000000 | 000000 |
| Right Hand | 2'9" | 3' 1" | 6'6 3/4" | 6" | 3/16" | Connecting Fasteners Included | 00000000 | 000000 | 0000000 | 000000 | 0000000 | 00000 |
Sliding Doors
Solid Sliding Door
Posts
Post
| Style | Wd. | Dp. | Ht. | Material Thick. | Mounting Hardware | Each | |
Powder-Coated Steel | |||||||
|---|---|---|---|---|---|---|---|
| Corner | 2" | 2" | 7'1 1/2" | 1/8" | Connecting Fasteners Included | 0000000 | 000000 |
| Door Hinge | 2" | 2" | 7'1 1/2" | 1/8" | Connecting Fasteners Included | 0000000 | 00000 |
| Door Latch | 2" | 2" | 7'1 1/2" | 1/8" | Connecting Fasteners Included | 0000000 | 00000 |
| End | 2" | 2" | 7'1 1/2" | 1/8" | Connecting Fasteners Included | 0000000 | 00000 |
| Inline | 2" | 2" | 7'1 1/2" | 1/8" | Connecting Fasteners Included | 0000000 | 00000 |
Quick-Access Machine Guards
These panels lift on and off their posts in seconds, so you can protect machinery while providing access for maintenance. Panels can be permanently secured to the posts with the included clips.
When standing on the side of the door that swings away from you, left-hand doors open to the left; right-hand doors open to the right.
The assembled width measures the installed width of a panel or door when mounted with posts on each side.
For added protection around larger machines, choose 8 ft. high posts and 7' 6" high doors. To create taller panels, pair 5' 6" high panels with 2 ft. high panels of the same width and add them to the posts.
Panels
Panel
Wire Mesh Opening | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Assembled Wd. | Ht. | Floor Clearance When Assembled | Ht. | Wd. | Wire Dia. | Color | Mounting Hardware | Specifications Met | Each | |
Wire Mesh—Powder-Coated Steel | |||||||||||
| 0'10" | 1' 3" | 2'0" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 000000000 | 000000 |
| 0'10" | 1' 3" | 5'6" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 00000000 | 00000 |
| 1'4" | 1' 9" | 2'0" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 000000000 | 00000 |
| 1'4" | 1' 9" | 5'6" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 000000000 | 00000 |
| 1'10" | 2' 3" | 2'0" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 000000000 | 00000 |
| 1'10" | 2' 3" | 5'6" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 00000000 | 00000 |
| 2'4" | 2' 9" | 2'0" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 000000000 | 00000 |
| 2'4" | 2' 9" | 5'6" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 000000000 | 000000 |
| 2'10" | 3' 3" | 2'0" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 000000000 | 00000 |
| 2'10" | 3' 3" | 5'6" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 00000000 | 00000 |
| 3'4" | 3' 9" | 2'0" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 000000000 | 00000 |
| 3'4" | 3' 9" | 5'6" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 000000000 | 000000 |
| 3'10" | 4' 3" | 2'0" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 00000000 | 00000 |
| 3'10" | 4' 3" | 5'6" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 00000000 | 000000 |
| 4'10" | 5' 3" | 2'0" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 000000000 | 000000 |
| 4'10" | 5' 3" | 5'6" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 00000000 | 000000 |
| 5'10" | 6' 3" | 2'0" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 000000000 | 000000 |
| 5'10" | 6' 3" | 5'6" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 00000000 | 000000 |
| 6'10" | 7' 3" | 2'0" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 000000000 | 000000 |
| 6'10" | 7' 3" | 5'6" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 00000000 | 000000 |
| 7'10" | 8' 3" | 2'0" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 000000000 | 000000 |
| 7'10" | 8' 3" | 5'6" | 6" | 2" | 2" | 0.16" | Black | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 00000000 | 000000 |
Single Hinged Doors
Single Hinged Door
Wire Mesh Opening | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Assembled Wd. | Ht. | Mounting Orientation | Floor Clearance When Assembled | Ht. | Wd. | Wire Dia. | Color | Includes | Mounting Hardware | Specifications Met | Each | |
Wire Mesh—Powder-Coated Steel | |||||||||||||
| 3'10" | 4' 3" | 5'6" | Left Hand or Right Hand | 6" | 2" | 2" | 0.16" | Black | Door Latch Kit, Two Posts | Connecting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 00000000 | 0000000 |
Posts
Corner/Inline Post
| Style | Wd. | Dp. | Ht. | Material Thick. | Color | Number of Mounting Plates | Mounting Hardware | Specifications Met | Each | |
Powder-Coated Steel | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Corner/Inline | 2 1/2" | 2 1/2" | 6'0" | 1/16" | Yellow | 1 | Mounting Fasteners Included | ANSI/RIA R15.06, CAN/CSA Z434, OSHA Compliant 29 CFR 1910.212 | 00000000 | 000000 |
Replacement Door Latch Assemblies
Door Latch Assembly
| Each | ||
| 000000000 | 000000 |
T-Slotted Framing Machine Guards
Framed in aluminum T-slotted extrusions, these customizable machine guards provide multiple points of attachment for other components and structures.
Doors have a magnetic latch. They can be mounted to swing open to the left or right.
Panels
Wire Mesh
Solid
Wire Mesh Opening | Extrusion | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Overall Wd. | No. of Posts | Floor Clearance When Assembled | Ht. | Wd. | Wire Dia. | Material Thick. | Ht. | Wd. | T-Slot Wd. | Mounting Hardware | Choose a Color | Each | |
6 ft. Overall Ht. | |||||||||||||
Wire Mesh—PVC-Coated Steel | |||||||||||||
| 1'6" | 2 | 6" | 1" | 1" | 0.0781" | __ | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 0000000 | |
| 2'0" | 2 | 6" | 1" | 1" | 0.0781" | __ | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 000000 | |
| 2'6" | 2 | 6" | 1" | 1" | 0.0781" | __ | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 000000 | |
| 3'0" | 2 | 6" | 1" | 1" | 0.0781" | __ | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 000000 | |
| 3'6" | 2 | 6" | 1" | 1" | 0.0781" | __ | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 000000 | |
| 4'0" | 2 | 6" | 1" | 1" | 0.0781" | __ | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 000000 | |
Solid—Polycarbonate | |||||||||||||
| 1'6" | 2 | 6" | __ | __ | __ | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | __ | 0000000 | 000000 |
| 2'0" | 2 | 6" | __ | __ | __ | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | __ | 0000000 | 000000 |
| 2'6" | 2 | 6" | __ | __ | __ | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | __ | 0000000 | 000000 |
| 3'0" | 2 | 6" | __ | __ | __ | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | __ | 0000000 | 000000 |
| 3'6" | 2 | 6" | __ | __ | __ | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | __ | 00000000 | 000000 |
| 4'0" | 2 | 6" | __ | __ | __ | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | __ | 00000000 | 000000 |
7 ft. Overall Ht. | |||||||||||||
Wire Mesh—PVC-Coated Steel | |||||||||||||
| 1'6" | 2 | 6" | 1" | 1" | 0.0781" | __ | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 000000 | |
| 2'0" | 2 | 6" | 1" | 1" | 0.0781" | __ | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 000000 | |
| 2'6" | 2 | 6" | 1" | 1" | 0.0781" | __ | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 000000 | |
| 3'0" | 2 | 6" | 1" | 1" | 0.0781" | __ | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 000000 | |
| 3'6" | 2 | 6" | 1" | 1" | 0.0781" | __ | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 000000 | |
| 4'0" | 2 | 6" | 1" | 1" | 0.0781" | __ | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 000000 | |
Solid—Polycarbonate | |||||||||||||
| 1'6" | 2 | 6" | __ | __ | __ | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | __ | 0000000 | 000000 |
| 2'0" | 2 | 6" | __ | __ | __ | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | __ | 0000000 | 000000 |
| 2'6" | 2 | 6" | __ | __ | __ | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | __ | 0000000 | 000000 |
| 3'0" | 2 | 6" | __ | __ | __ | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | __ | 0000000 | 000000 |
| 3'6" | 2 | 6" | __ | __ | __ | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | __ | 00000000 | 000000 |
| 4'0" | 2 | 6" | __ | __ | __ | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | __ | 00000000 | 000000 |
Hinged Doors
Solid
Extrusion | ||||||||
|---|---|---|---|---|---|---|---|---|
| Wd. | Floor Clearance When Assembled | Material Thick. | Ht. | Wd. | T-Slot Wd. | Mounting Hardware | Each | |
5'6" Ht. | ||||||||
Solid—Polycarbonate | ||||||||
| 3'0" | 6" | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 0000000 |
| 4'0" | 6" | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 000000 |
6'6" Ht. | ||||||||
Solid—Polycarbonate | ||||||||
| 3'0" | 6" | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 000000 |
| 4'0" | 6" | 1/4" | 1 1/2" | 1 1/2" | 0.320" | Connecting Fasteners Included | 0000000 | 000000 |
Machine-Mount T-Slotted Framing Machine Guards
Compact in size, these guards can be mounted directly to a machine or workbench. Panels are framed in aluminum T-slotted extrusions to provide multiple points of attachment for other components.
Panels
Wire Mesh Opening | Extrusion | 1'0" Ht. | 1'9" Ht. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Ht. | Wd. | Wire Dia. | Material Thick. | Ht. | Wd. | T-Slot Wd. | Choose a Color | Each | Each | ||
Wire Mesh—PVC-Coated Steel | ||||||||||||
| 1'0" | 1/2" | 1/2" | 0.0625" | __ | 1" | 1" | 0.26" | Black, Yellow | 0000000 | 0000000 | 0000000 | 0000000 |
| 2'0" | 1/2" | 1/2" | 0.0625" | __ | 1" | 1" | 0.26" | Black, Yellow | 0000000 | 000000 | 0000000 | 000000 |
| 3'0" | 1/2" | 1/2" | 0.0625" | __ | 1" | 1" | 0.26" | Black, Yellow | 0000000 | 000000 | 0000000 | 000000 |
Solid—Polycarbonate | ||||||||||||
| 1'0" | __ | __ | __ | 3/16" | 1" | 1" | 0.26" | __ | 0000000 | 000000 | 0000000 | 000000 |
| 2'0" | __ | __ | __ | 3/16" | 1" | 1" | 0.26" | __ | 0000000 | 000000 | 0000000 | 000000 |
| 3'0" | __ | __ | __ | 3/16" | 1" | 1" | 0.26" | __ | 0000000 | 000000 | 0000000 | 000000 |
Hinged Chip Guards
Screen Panel
Solid Panel
Reinforced Screen Panel
Protect personnel and equipment from flying chips with these portable panels.
Panels with a screen protect against larger chips and allow air to pass through. The reinforced screen panels have a grille that provides more impact resistance than the screen alone. Solid panels provide the most protection.
Panels | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Clarity | Thick. | Screen Ht. | Material | Ht. | Wd. | No. of | Wd. | Each | |
Screen Panel | |||||||||
| Semi-Clear | 1/32" | 33" | Aluminum | 80" | 88" | 3 | 29" | 0000000 | 0000000 |
| Semi-Clear | 1/32" | 35 1/2" | Aluminum | 80" | 88" | 3 | 29" | 0000000 | 000000 |
Reinforced Screen Panel | |||||||||
| Semi-Clear | 1/32" | 33" | Aluminum | 80" | 88" | 3 | 29" | 0000000 | 000000 |
| Semi-Clear | 1/32" | 35 1/2" | Aluminum | 80" | 88" | 3 | 29" | 0000000 | 000000 |
Solid Panel | |||||||||
| Clear | 1/8" | __ | Acrylic | 80" | 88" | 3 | 29" | 0000000 | 000000 |
| Opaque | 1/32" | __ | Aluminum | 80" | 88" | 3 | 29" | 0000000 | 000000 |
Swing-Arm Chip Guards
Bolt-In Mount
Bolt-In/Magnetic Mount
Mount near a machine to deflect flying chips away from the immediate area. Guards swing in and out as needed and can be locked in any vertical position.
Guards | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mounting Holes | Replacement Panels | ||||||||||||
| Extended Arm Lg. | Ht. | Wd. | Thick. | Material | Clarity | Arm Material | No. of | Dia. | Mounting Hardware | Each | Each | ||
Bolt-In Mount | |||||||||||||
| 20" | 9" | 14" | 1/8" | Polycarbonate | Clear | Steel | 4 | 1/4" | Fasteners Included | 0000000 | 0000000 | 0000000 | 000000 |
| 31" | 9" | 14" | 1/8" | Polycarbonate | Clear | Steel | 4 | 1/4" | Fasteners Included | 0000000 | 000000 | 0000000 | 00000 |
Bolt-In/Magnetic Mount | |||||||||||||
| 14 1/2" | 5" | 9" | 3/16" | Polycarbonate | Clear | PVC | 2 | 1/4" | Fasteners Not Included | 0000000 | 000000 | 0000000 | 00000 |
| Clamp Kit | 0000000 | Each | 000000 |
Flexible-Arm Chip Guards
Mount near a machine to deflect debris away from the immediate area. Guards bend and twist in any direction.
Bolt-In Mount
Replacement Panels | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Thick. | Material | Clarity | Arm Material | Mounting Hardware | Each | Each | ||
12" Extended Arm Lg. | ||||||||||
| 6" | 6" | 1/8" | Polycarbonate | Clear | Steel | Fasteners Included | 0000000 | 000000 | 0000000 | 000000 |
| 8" | 8" | 1/8" | Polycarbonate | Clear | Steel | Fasteners Included | 0000000 | 00000 | 0000000 | 00000 |
| 10" | 10" | 1/8" | Polycarbonate | Clear | Steel | Fasteners Included | 0000000 | 00000 | 0000000 | 00000 |
| 12" | 12" | 1/8" | Polycarbonate | Clear | Steel | Fasteners Included | 0000000 | 00000 | 0000000 | 00000 |
18" Extended Arm Lg. | ||||||||||
| 6" | 6" | 1/8" | Polycarbonate | Clear | Steel | Fasteners Included | 0000000 | 00000 | 0000000 | 00000 |
| 8" | 8" | 1/8" | Polycarbonate | Clear | Steel | Fasteners Included | 0000000 | 00000 | 0000000 | 00000 |
| 10" | 10" | 1/8" | Polycarbonate | Clear | Steel | Fasteners Included | 0000000 | 00000 | 0000000 | 00000 |
| 12" | 12" | 1/8" | Polycarbonate | Clear | Steel | Fasteners Included | 0000000 | 00000 | 0000000 | 00000 |
Clamp-On Mount
12" Extended Arm Lg. | 18" Extended Arm Lg. | Replacement Panels | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Thick. | Material | Clarity | Arm Material | Max. Clamp Opening | Each | Each | Each | |||
| 6" | 6" | 1/8" | Polycarbonate | Clear | Steel | 2" | 0000000 | 000000 | 0000000 | 000000 | 0000000 | 000000 |
| 8" | 8" | 1/8" | Polycarbonate | Clear | Steel | 2" | 0000000 | 00000 | 0000000 | 00000 | 0000000 | 00000 |
| 10" | 10" | 1/8" | Polycarbonate | Clear | Steel | 2" | 0000000 | 00000 | 0000000 | 00000 | 0000000 | 00000 |
| 12" | 12" | 1/8" | Polycarbonate | Clear | Steel | 2" | 0000000 | 00000 | 0000000 | 00000 | 0000000 | 00000 |
Magnetic Mount
12" Extended Arm Lg. | 18" Extended Arm Lg. | Replacement Panels | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Thick. | Material | Clarity | Arm Material | Each | Each | Each | |||
| 6" | 6" | 1/8" | Polycarbonate | Clear | Steel | 0000000 | 000000 | 0000000 | 000000 | 0000000 | 000000 |
| 8" | 8" | 1/8" | Polycarbonate | Clear | Steel | 0000000 | 00000 | 0000000 | 00000 | 0000000 | 00000 |
| 10" | 10" | 1/8" | Polycarbonate | Clear | Steel | 0000000 | 00000 | 0000000 | 00000 | 0000000 | 00000 |
| 12" | 12" | 1/8" | Polycarbonate | Clear | Steel | 0000000 | 00000 | 0000000 | 00000 | 0000000 | 00000 |
Bend-and-Stay Positioning Arms
Stronger and with greater load capacities than gooseneck-style positioning arms, these arms keep their shape even when moving or when exposed to vibration. They’re often used in robotics and conveyor applications when frequent repositioning isn’t required.
All accessories include the necessary hardware for attaching them to arms.
Clamp-on bases have two arm attachment locations. Place arms straight or at a right angle from the clamping screw. Clamp-on bases with a rubber V-block can be mounted to rounded surfaces such as pipe and railings.
Attach up to five arms to your base with multi-arm adapters.
Ball-and-socket adapters and ball-and-socket connectors allow 360° rotation and up to 90° tilt. A locking knob keeps them in place.
Parallel brackets grip the ends of flat items. Threaded studs convert the threaded hole on your positioning arm.
Thread adapters convert the thread size and type on your positioning arm.
Secure items to attaching-end mounting pads with glue, hook and loop, screws, or other fasteners.
Arms
Positioning Arm
Base | Attaching End | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Projection | Dia. | Max. Load Cap., lbs. | Material | Color | Mount Type | Mounting Thread Size | Mounting Hole Thread Type | Mounting Fasteners Included | Mount Type | Mounting Thread Size | Mounting Thread Type | Mounting Fasteners Included | Each | |
| 6" | 5/8" | 20 | Vinyl-Coated Copper | Black | Threaded Hole | 3/8"-24 | UNF | Yes | Threaded Hole | 3/8"-24 | UNF | Yes | 00000000 | 000000 |
| 9" | 5/8" | 7 | Vinyl-Coated Copper | Black | Threaded Hole | 3/8"-24 | UNF | Yes | Threaded Hole | 3/8"-24 | UNF | Yes | 00000000 | 00000 |
| 12" | 5/8" | 5 | Vinyl-Coated Copper | Black | Threaded Hole | 3/8"-24 | UNF | Yes | Threaded Hole | 3/8"-24 | UNF | Yes | 00000000 | 00000 |
| 18" | 5/8" | 3 | Vinyl-Coated Copper | Black | Threaded Hole | 3/8"-24 | UNF | Yes | Threaded Hole | 3/8"-24 | UNF | Yes | 00000000 | 00000 |
| 24" | 5/8" | 2.5 | Vinyl-Coated Copper | Black | Threaded Hole | 3/8"-24 | UNF | Yes | Threaded Hole | 3/8"-24 | UNF | Yes | 00000000 | 00000 |
| 30" | 5/8" | 2 | Vinyl-Coated Copper | Black | Threaded Hole | 3/8"-24 | UNF | Yes | Threaded Hole | 3/8"-24 | UNF | Yes | 00000000 | 00000 |
| 36" | 5/8" | 0.5 | Vinyl-Coated Copper | Black | Threaded Hole | 3/8"-24 | UNF | Yes | Threaded Hole | 3/8"-24 | UNF | Yes | 00000000 | 00000 |
Screw-On Bases
Screw On Base
Arm | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Lg. | Thick. | Max. Load Cap., lbs. | Material | Color | Surface Mounting Fasteners Included | Mount Type | Mounting Fasteners Included | Each | |
| 3" | 3" | 1/4" | 20 | Powder-Coated Steel | Black | Yes | Screw On | Yes | 00000000 | 000000 |
Screw-On Right-Angle Bases
Right-Angle Base
Arm | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Lg. | Thick. | Max. Load Cap., lbs. | Material | Color | Surface Mounting Fasteners Included | Mount Type | Mounting Fasteners Included | Each | |
| 3" | 3" | 2" | 20 | Powder-Coated Steel | Black | Yes | Screw On | Yes | 00000000 | 000000 |
Clamp-On Bases
Clamp On Base
For Max. Mounting Surface | Arm | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Lg. | Thick. | Dia. | Max. Load Cap., lbs. | Material | Color | Mount Type | Mounting Fasteners Included | Features | Includes | Each | |
| 1 1/4" | 5 1/2" | 1 5/8" | __ | 20 | Powder-Coated Steel | Black | Screw On | Yes | Padded Base Clamp | __ | 00000000 | 000000 |
| 1 7/8" | 8 1/4" | 2 5/8" | 2" | 20 | Powder-Coated Steel | Black | Screw On | Yes | Padded Base Clamp, Ratchet Handle | Rubber V-Block | 00000000 | 00000 |
Magnetic Bases
Magnetic Base
Arm | |||||||
|---|---|---|---|---|---|---|---|
| Dia. | Thick. | Max. Pull, lbs. | Case Material | Mount Type | Mounting Fasteners Included | Each | |
| 4 7/8" | 1/2" | 200 | Nickel-Plated Steel | Screw On | Yes | 00000000 | 000000 |
Weighted Bases
Weighted Base
Arm | |||||||
|---|---|---|---|---|---|---|---|
| Dia. | Max. Load Cap., lbs. | Material | Color | Mount Type | Mounting Fasteners Included | Each | |
| 9" | 20 | Powder-Coated Steel | Black | Screw On | Yes | 00000000 | 000000 |
Multi-Arm Adapters
Multi-Arm Adapter
Base | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Lg. | Thick. | Max. Load Cap., lbs. | Material | Color | Mount Type | Mounting Thread Size | Mounting Hole Thread Type | Includes | Each | |
| 1 1/4" | 1 1/4" | 1 1/4" | 5 | Anodized Aluminum | Black | Threaded Hole, Threaded Stud | 3/8"-24 | UNF | Six 3/8"-24 Threaded Studs | 00000000 | 000000 |
Ball-and-Socket Adapters
Ball-and-Socket Adapter
Attaching End | Arm Attaching End | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Rotation Range of Motion | Tilt Range of Motion | Mount Type | Mounting Thread Size | Mounting Thread Type | Max. Load Cap., lbs. | Body Material | Color | Mount Type | Mounting Thread Size | Mounting Thread Type | Features | Each | |
| 2 1/2" | 360° | 90° | Threaded Stud | 1/4"-20 | UNC | 6 | Anodized Aluminum | Black | Threaded Stud | 3/8"-24 | UNF | Locking Knob, Rubber-Padded Camera Seat | 00000000 | 000000 |
Ball-and-Socket Connectors
Ball-and-Socket Connector
Attaching End | Arm Attaching End | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Rotation Range of Motion | Tilt Range of Motion | Mount Type | Mounting Fasteners Included | Mounting Thread Size | Mounting Thread Type | Max. Load Cap., lbs. | Material | Color | Mount Type | Mounting Thread Size | Mounting Thread Type | Features | Each | |
| 3 7/8" | 360° | 90° | Threaded Hole | Yes | 3/8"-24 | UNF | 6 | Anodized Aluminum | Black | Threaded Stud | 3/8"-24 | UNF | Locking Knob | 00000000 | 000000 |
Parallel Brackets
Parallel Bracket
Arm Attaching End | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| For Device Ht. | For Min. Device Wd. | Max. Load Cap., lbs. | Material | Color | Mount Type | Mounting Fasteners Included | Features | Each | |
| 5 3/4"-8" | 3" | 2 | Plastic | Black | Screw On | Yes | Adjustable Arms | 00000000 | 000000 |
Threaded Studs
Threaded Stud
Attaching End | ||||||
|---|---|---|---|---|---|---|
| Length | Material | Mount Type | Mounting Thread Size | Mounting Thread Type | Each | |
| 1" | 303 Stainless Steel | Threaded Stud | 3/8"-24 | UNF | 00000000 | 00000 |
Thread Adapters
Adapter with
Threaded
Hole
Threaded
Hole
Adapter with
Threaded
Stud
Threaded
Stud
Attaching End | Arm Attaching End | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Mounting Thread Size | Mounting Thread Pitch, mm | Mounting Thread Type | Mounting Fasteners Included | Material | Mount Type | Mounting Thread Size | Mounting Thread Type | Each | |
Threaded Hole | ||||||||||
| 1 3/4" | 1/4"-20 | __ | UNC | Yes | 303 Stainless Steel | Threaded Stud | 3/8"-24 | UNF | 00000000 | 00000 |
| 1 3/4" | 10-24 | __ | UNC | Yes | 303 Stainless Steel | Threaded Stud | 3/8"-24 | UNF | 00000000 | 0000 |
| 1 3/4" | 8-32 | __ | UNC | Yes | 303 Stainless Steel | Threaded Stud | 3/8"-24 | UNF | 00000000 | 0000 |
| 1 3/4" | M10 | 1.5 | Metric | Yes | 303 Stainless Steel | Threaded Stud | 3/8"-24 | UNF | 00000000 | 0000 |
| 1 3/4" | M8 | 1.25 | Metric | Yes | 303 Stainless Steel | Threaded Stud | 3/8"-24 | UNF | 00000000 | 0000 |
Threaded Stud | ||||||||||
| 1 5/16" | 5/8"-27 | __ | UNS | __ | 303 Stainless Steel | Threaded Stud | 3/8"-24 | UNF | 00000000 | 0000 |
Right-Angle Thread Adapters
Right-Angle Thread Adapter
Attaching End | Arm Attaching End | |||||||
|---|---|---|---|---|---|---|---|---|
| Mount Type | Mounting Fasteners Included | Lg. | Material | Mount Type | Mounting Thread Size | Mounting Thread Type | Each | |
| Screw On | Yes | 2 1/2" | 303 Stainless Steel | Threaded Stud | 3/8"-24 | UNF | 00000000 | 00000 |
Attaching-End Mounting Pads
Machine Guards
Machine Guard
Arm Attaching End | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Wd. | Lg. | Thick. | Material | Color | Mount Type | Mounting Fasteners Included | Includes | Each | |
| 10" | 12" | 1/4" | Plastic | Clear | Screw On | Yes | Right-Angle Thread Adapter | 00000000 | 000000 |
