Made-to-Order Press-Fit Drill Bushings
Mount flush with jig plates for precise drilling. These bushings can also be used as spacers, shims, and machinery bushings.

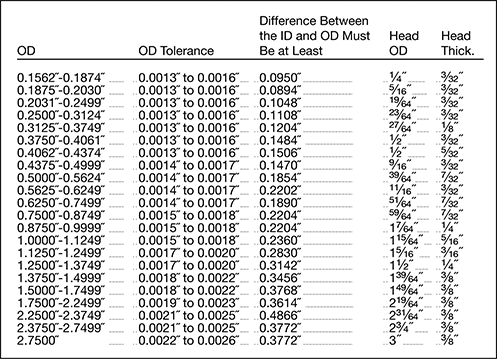

To Order: Specify ID, OD, and length from the ranges listed. The difference between the ID and OD must be at least 0.07".
| Choose an ID | Choose an OD | Choose a Length | Length Tolerance | Drill Bushing Type | Material | Hardness | Each | |||||||
| 0.0135" to 2.2656" in 0.0001" increments | 0.1562" to 2.7500" in 0.0001" increments | 0.1250" to 3.0000" | -0.015" to 0.015" | P | Steel | Rockwell C61 | 8491A901 | 000000 | ||||||
Made-to-Order Press-Fit Drill Bushing
ID, in.: Please specify any ID between 0.0135" and 2.2656" in 0.0001" increments. ID, in.: Please specify any ID between 0.0135" and 2.2656" in 0.0001" increments.
OD, in.: Please specify any OD between 0.1562" to 2.7500" in 0.0001" increments. OD, in.: Please specify any OD between 0.1562" to 2.7500" in 0.0001" increments.
Length, in.: Please specify any length between 0.1250" and 3.0000". Length, in.: Please specify any length between 0.1250" and 3.0000". Each  Select a compatible file type: Parasolid Solidworks 2022 and Parasolid files now available Solidworks 2022, PDF, and DWG files now available Parasolid files now available | ||||||||||||||
