Magnetic Levels

Clear All

	Mount Type Mount Type	Show

Magnetic

	Mount Type Mount Type	Hide

	System of Measurement System of Measurement

Inch

	Length Length

	Height Height

	Housing Material Housing Material

Aluminum

Plastic

Brass

	Housing Color Housing Color

	Shape Shape

	Vial Material Vial Material

Plastic

Glass

	Sensitivity Sensitivity

	Number of Horizontal Vials Number of Horizontal Vials

	Number of Vertical Vials Number of Vertical Vials

	Width Width

	REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) REACH (Registration, Evaluation, Authorization and Restriction of Chemicals)

REACH Compliant

	Display Type Display Type

	Digital

	DFARS (Defense Acquisition Regulations Supplement) DFARS (Defense Acquisition Regulations Supplement)

DFARS Specialty Metals
COTS-Exempt

	RoHS (Restriction of Hazardous Substances) RoHS (Restriction of Hazardous Substances)

RoHS Compliant

RoHS Compliant with
Exemptions

	Power Source Power Source

Battery

	Batteries Included Batteries Included

Yes

	Battery Size Battery Size

AAA

CR2032

	Numeric Increments Numeric Increments

0.1°

10°

15°

	Laser Shape Laser Shape

Dot

Line

	Material Material

Aluminum

Plastic

Rubber

	Range Range

55 Products

About Durometer Hardness Scales

Commonly called torpedo levels, these have tapered ends to fit into small spaces. The V-groove provides stability on curved surfaces.

			No. of Vials				Housing
Lg.	Wd.	Ht.	Horizontal	Vertical	45°	Sensitivity	Material	Color	Vial Material	Features		Each
10"	3/4"	2 1/8"	1	1	1	0.132 in./ft., 38 min./0.1"	Aluminum	Orange	Plastic	V-Groove, Top-Reading Window	0000000	000000

Glow-in-the-Dark Magnetic Levels for Tight Spaces

Glow-in-the-dark vials are easy to read in low light. Commonly called a torpedo level, this has tapered ends to fit into small spaces. The V-groove provides stability on curved surfaces.

			No. of Vials				Housing
Lg.	Wd.	Ht.	Horizontal	Vertical	45°	Sensitivity	Material	Color	Vial Material	Features		Each
9"	3/8"	1 13/16"	1	1	1	0.132 in./ft., 38 min./0.1"	Aluminum	Orange	Plastic	Glow-In-The-Dark Vials, V-Groove, Top-Reading Window	00000000	000000

High-Visibility Magnetic Economy Levels for Tight Spaces

This brightly-colored level is easy to spot. Also known as a torpedo level, it has a high-impact plastic housing with tapered ends for fitting into small spaces. The V-groove provides stability on curved surfaces.

			No. of Vials				Housing
Lg.	Wd.	Ht.	Horizontal	Vertical	45°	Sensitivity	Material	Color	Vial Material	Features		Each
9"	3/4"	2 3/4"	1	1	1	0.024 in./ft., 6 min./0.1"	Plastic	Yellow/Black	Plastic	V-Groove	00000000	000000

Magnetic Economy Levels for Tight Spaces

The high-impact plastic housing on this level has tapered ends for fitting into small spaces. Also known as a torpedo level. The V-groove provides stability on curved surfaces.

			No. of Vials				Housing
Lg.	Wd.	Ht.	Horizontal	Vertical	45°	Sensitivity	Material	Color	Vial Material	Features		Each
9"	5/8"	1 1/2"	1	1	1	0.133 in./ft., 38 min./0.1"	Plastic	Blue	Acrylic Plastic	V-Groove	0000000	00000

With Two Vertical Vials

			No. of Vials			Housing
Lg.	Wd.	Ht.	Horizontal	Vertical	Sensitivity	Material	Color	Vial Material	Features		Each
18"	1"	2 1/4"	1	2	0.133 in./ft., 38 min./0.1"	Aluminum	Black	Plastic	Top-Reading Window	000000	000000
24"	1"	2 1/4"	1	2	0.133 in./ft., 38 min./0.1"	Aluminum	Black	Plastic	Top-Reading Window	000000	00000
36"	1"	2 1/4"	1	2	0.133 in./ft., 38 min./0.1"	Aluminum	Black	Plastic	Top-Reading Window	000000	00000
48"	1"	2 1/4"	1	2	0.133 in./ft., 38 min./0.1"	Aluminum	Black	Plastic	Top-Reading Window	000000	00000
72"	1"	2 1/4"	2	3	0.133 in./ft., 38 min./0.1"	Aluminum	Black	Plastic	Top-Reading Window	000000	00000
96"	1"	2 1/4"	2	3	0.133 in./ft., 38 min./0.1"	Aluminum	Black	Plastic	Top-Reading Window	0000000	00000

Magnetic Levels with Pitch Gauge

One of the horizontal vials is a pitch gauge that reads slope in 1/8" increments. Also known as torpedo levels. They have a V-groove for stability on curved surfaces.

			No. of Vials					Housing
Lg.	Wd.	Ht.	Horizontal	Vertical	45°	Sensitivity	Pitch Increments	Material	Color	Vial Material	Features		Each
12"	5/8"	1 5/8"	2	1	1	0.133 in./ft., 38 min./0.1"	1/8" per ft.	Aluminum	Blue	Acrylic Plastic	Pitch Gauge, V-Groove, Top-Reading Window	000000	000000
12"	3/4"	2 1/8"	2	1	1	0.133 in./ft., 38 min./0.1"	1/8" per ft.	Aluminum	Black	Plastic	Pitch Gauge, V-Groove, Top-Reading Window	0000000	00000

Magnetic Pocket Levels

About the size of a pen, this level is small enough to carry around with you.

					Housing
Lg.	Wd.	Ht.	Number of Horizontal Vials	Sensitivity	Material	Color	Vial Material		Each
4"	5/8"	5/8"	1	0.108 in./ft., 30 min./0.1"	Aluminum	Red	Acrylic Plastic	0000000	000000

Magnetic Heavy Duty Levels

The sturdy box-style housing has precision-machined leveling surfaces to ensure accuracy.

			No. of Vials			Housing
Lg.	Wd.	Ht.	Horizontal	Vertical	Sensitivity	Material	Color	Vial Material		Each
24"	1"	2 3/4"	1	2	0.133 in./ft., 38 min./0.1"	Aluminum	Blue	Acrylic Plastic	0000000	000000
48"	1"	2 3/4"	1	2	0.133 in./ft., 38 min./0.1"	Aluminum	Blue	Acrylic Plastic	0000000	00000

Magnetic Digital Levels

These levels have a plastic housing. The LCD shows angle in degrees and percent of slope.

			No. of Vials			Housing
Lg.	Wd.	Ht.	Horizontal	Vertical	Sensitivity	Material	Color	Vial Material	Batteries Included		Each
7 7/8"	3/4"	1 3/4"	1	1	0.021 in./ft., 6 min./0.1"	Plastic	Black	Acrylic Plastic	Yes	00000000	000000

Horizontal-Surface-Mount Tubular Levels

Mount these levels to a table or other horizontal surface and they will indicate when you're level on the horizontal plane.

For technical drawings and 3-D models, click on a part number.

Style E

				Housing					Mounting Holes
Lg.	Wd.	Ht.	Sensitivity	Material	Color	Vial Material	Mount Type	Mounting Fasteners Included	No. of	Dia.	Ctr.-to-Ctr.		Each
3"	9/16"	9/16"	0.157 in./ft., 45 min./0.1"	Plastic	Black	Plastic	Screw On, Magnetic	No	2	0.15"	2.562"	0000000	000000

Vertical-Surface-Mount Tubular Levels

Mount these levels to a wall or other vertical surface and they will indicate when you're level on the horizontal plane.

For technical drawings and 3-D models, click on a part number.

					Housing
	Lg.	Wd.	Ht.	Sensitivity	Material	Color	Vial Material	Mount Type		Each
A	1 1/2"	1 1/8"	9/16"	0.140 in./ft., 45 min./0.1"	Painted Brass	Black	Glass	Magnetic	0000000	000000

Magnetic Surface-Mount High-Temperature Circular Mountable Levels

Be spot-on in all directions of the horizontal plane. Also known as a bull's eye level, this level has a glass vial that resists temperature variations and chemicals.

For technical drawings and 3-D models, click on a part number.

Style	Base Dia.	Overall Ht.	No. of Centering Circles	Sensitivity	Housing Material	Vial Material		Each
A	11/16"	3/8"	1	0.453 in./ft., 130 min./0.1"	Chrome-Plated Brass	Glass	0000000	000000
A	7/8"	7/16"	1	0.157 in./ft., 45 min./0.1"	Chrome-Plated Brass	Glass	0000000	00000
A	1"	7/16"	1	0.157 in./ft., 45 min./0.1"	Chrome-Plated Brass	Glass	0000000	00000
A	1 1/4"	1/2"	1	0.157 in./ft., 45 min./0.1"	Chrome-Plated Brass	Glass	0000000	00000
A	1 7/16"	9/16"	1	0.070 in./ft., 20 min./0.1"	Chrome-Plated Brass	Glass	0000000	00000
A	1 3/4"	11/16"	1	0.035 in./ft., 10 min./0.1"	Chrome-Plated Brass	Glass	0000000	00000
A	2 1/4"	3/4"	1	0.035 in./ft., 10 min./0.1"	Chrome-Plated Brass	Glass	0000000	000000
A	2 3/4"	3/4"	1	0.035 in./ft., 10 min./0.1"	Chrome-Plated Brass	Glass	0000000	000000
B	1"	1/2"	1	0.157 in./ft., 45 min./0.1"	Chrome-Plated Brass	Glass	0000000	00000

Pipe and Conduit Bending Levels

A thumb screw secures to the end of your pipe or conduit to ensure accuracy when bending. A V-groove provides stability on curved surfaces.

			No. of Vials				Housing
Lg.	Wd.	Ht.	Horizontal	Vertical	45°	30°	Material	Color	Vial Material	Mount Type	Features		Each
5 1/2"	3/4"	1 1/2"	1	1	1	1	Aluminum	Green	Acrylic Plastic	Magnetic	V-Groove, Top-Reading Window	0000000	000000

Magnetic Post Levels

Use this 90° level to position posts and corners.

		No. of Vials			Housing
Ht.	Leg Lg.	Horizontal	Vertical	Sensitivity	Material	Color	Vial Material	Strap Material		Each
5 1/8"	3 1/2"	2	1	0.133 in./ft., 38 min./0.1"	Plastic	Yellow	Acrylic Plastic	Rubber	0000000	00000

Adjustable Dot-to-Line Leveling Lasers

Twist the head to switch between a dot, a horizontal line, or a vertical line. Project accurate level references onto walls when hanging light fixtures or installing pipe.The laser light is red and is best viewed indoors. The body has a V-groove for stability on curved surfaces. It can be mounted to a tripod. Also known as a torpedo level.

		Size				O'all			No. of Vials						Mount. Holes
Accuracy	Range	Dot	Line	Laser Class	Wavelength Range, nm	Lg.	Wd.	Ht.	Horizontal	Vertical	45°	Cross Check	Sensitivity	Mount Type	No. of	Thread Size	Batteries Included		Each
±1/8" @ 50 ft.	100 ft.	1/4" @ 50 ft.	1/4" @ 50 ft.	Class IIIa	640-660	7 3/8"	1"	2"	1	1	1	1	0.133 in./ft., 38 min./0.1"	Screw On, Magnetic Base	1	1/4"-20	Yes	000000	0000000

Multiple Dot Leveling Lasers

This level projects three dots simultaneously to verify your installation is straight, level, and plumb. Project accurate level references onto walls and ceilings when hanging light fixtures or installing pipe. Project accurate level references onto walls and ceilings when hanging light fixtures or installing pipe.The laser light is red and is best viewed indoors. The body has a V-groove for stability on curved surfaces. It can be mounted to a tripod. Also known as a torpedo level.

					O'all			No. of Vials						Mount. Holes
Accuracy	Range	Dot Size	Laser Class	Wavelength Range, nm	Lg.	Wd.	Ht.	Horizontal	Vertical	45°	Cross Check	Sensitivity	Mount Type	No. of	Thread Size	Batteries Included		Each
±1/8" @ 50 ft.	100 ft.	1/4" @ 50 ft.	Class IIIa	640-660	9 1/2"	1"	2 1/4"	1	1	1	1	0.133 in./ft., 38 min./0.1"	Screw On, Magnetic Base	1	1/4"-20	Yes	000000	0000000

Automatic Leveling Dot Lasers

3 Dots

5 Dots

Set these lasers on any surface, and they'll level themselves within about 4°. Whether you're hanging a drop ceiling or aligning bench tops, your installation will be at the right height. Laser lights are best viewed indoors. Lasers can be mounted to a tripod.

					O'all				Mount. Holes
No. of Dots	Accuracy	Range	Laser Class	Wavelength Range, nm	Lg.	Wd.	Ht.	Mount Type	No. of	Thread Size	Batteries Included		Each
3	+/-1/8" @ 30 ft.	125 ft.	Class II	500-540	4 1/2"	2"	4 1/2"	Screw On, Magnetic Base	1	1/4"-20	Yes	0000000	0000000
5	+/-1/8" @ 30 ft.	125 ft.	Class II	500-540	4 1/2"	2"	4 1/2"	Screw On, Magnetic Base	1	1/4"-20	Yes	0000000	000000

Magnetic-Base Long-Distance Leveling Lasers

Red Laser

Green Laser

Leveling Plate

Mark a dot up to 500 feet across your plant for long-range applications such as laying out conveyors and positioning ventilation systems. These lasers are also known as torpedo levels.

Red lasers are dimmer than green lasers, so they’re best viewed indoors.

Green lasers appear up to 10 times brighter than red lasers, so they remain visible from farther distances and in brightly lit areas, including outdoors.

Use a leveling plate for mounting the laser to a tripod, or placing it on a surface. The plate has three adjustable legs to level the laser.

90° beam splitter converts one dot into two dots set at a 90° angle.

Dot-to-line converter changes the dot into a vertical or horizontal line.

Magnetic-Base Long-Distance Leveling Lasers
					O'all			No. of Vials							Leveling Plate
Laser Color	Accuracy	Range	Laser Class	Wavelength, nm	Lg.	Wd.	Ht.	Horizontal	Vertical	45°	Sensitivity	Batteries Included		Each		Each
Red	±1/8" @ 100 ft.	500 ft.	Class IIIa	635	6 1/2"	5/8"	1 3/8"	1	1	1	0.017 in./ft., 5 min./0.1"	Yes	00000000	0000000	00000000	0000000
Green	±1/8" @ 100 ft.	500 ft.	Class IIIa	532	6 1/2"	5/8"	1 3/8"	1	1	1	0.017 in./ft., 5 min./0.1"	Yes	00000000	000000	00000000	000000

Dot-to-Line Converter	00000000	Each	0000000
90° Beam Splitter	00000000	Each	000000

Pulley Aligning Lasers

Red Laser

Green Laser

Check for proper alignment of pulley systems with these magnetic-mount lasers. Place them on pulleys, gears, or sprockets made of ferrous metals, such as steel.

Red lasers are best for indoor environments, since they’re dimmer than green lasers.

Green lasers appear up to 10 times brighter than red lasers, so they’re easier to see outdoors or in bright indoor lighting, as well as from far away.

For Pulley								O'all
Spacing	Dia.	Accuracy	Range	Line Size	Laser Class	Wavelength, nm	Tolerance per Foot	Lg.	Wd.	Ht.	Container Type	Batteries Included	Includes		Each
Red Laser
3"-20 ft.	3"-36"	1/16" @ 10 ft. 5/16" @ 50 ft.	50 ft.	12 ft. @ 10 ft.	Class II	635	-0.002" to 0.002"	6 3/4"	5/8"	1 3/4"	Plastic Case	Yes	One 30-150 lb. Capacity Belt Tension Tester, One 100-300 lb. Capacity Belt Tension Tester, Three Adjustable Targets	0000000	0000000
Green Laser
3"-20 ft.	3"-36"	1/16" @ 10 ft. 5/16" @ 50 ft.	50 ft.	12 ft. @ 10 ft.	Class II	532	-0.002" to 0.002"	6 3/4"	5/8"	1 3/4"	Plastic Case	Yes	Three Adjustable Targets	0000000	00000000

Aligning-Laser Targets

Targets have a bull’s-eye center as well as inch and millimeter graduation marks along the sides.

Color	Ht.	Wd.	Material	Mount Type		Each
Red	4"	3"	Plastic	Magnetic Base	0000000	000000
Reflective Red	4"	3"	Plastic	Magnetic Base	0000000	00000

Pocket Digital Angle Indicators

At 2 1/4" square and 1" wide, this angle indicator easily fits into your pocket. Choose an alternate zero point with the push of a button.

			Overall						Batteries
Angle Measuring Range	Accuracy	Numeric Increments	Lg.	Wd.	Ht.	Material	Display Type	Mount Type	Included	No. Required	Size	Features		Each
-180° to 180°	±0.2°	0.1°	2 1/4"	1"	2 1/4"	Aluminum	LCD	Magnetic Base	No	1	AAA	Automatic Shut-Off	0000000	000000

Pocket Digital Angle Indicators with Level

At 2 1/4" square and 1" wide, this angle indicator easily fits into your pocket. It also shows level on the display and has a hold button that freezes the reading. Choose an alternate zero point with the push of a button. The display pops up for easy viewing. A V-groove provides stability on curved surfaces.

			Overall							Batteries
Angle Measuring Range	Accuracy	Numeric Increments	Lg.	Wd.	Ht.	Material	Color	Display Type	Mount Type	Included	No. Required	Size	Features		Each
-180° to 180°	±0.2°	0.1°	2 1/4"	1"	2 1/4"	Plastic	Black	LCD	Magnetic Base	No	2	AAA	Level, V-Groove, Display-Freezing Button, Automatic Shut-Off	0000000	000000

Digital Angle Indicators with Laser

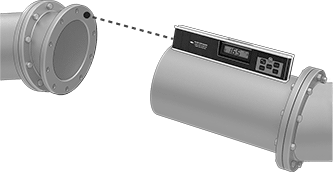

Align guide rails or lay pipe at specific angles from a flat surface. The laser light is red and is best viewed indoors. The display shows the precise angle of the beam and rotates for overhead measurements. The audible level indicator tells you when the tool is level and plumb.

				Laser			O'all
Angle Measuring Range	Accuracy	No. of Measuring Quadrants	Quadrant Angle Measuring Range	Accuracy	Range	Dot Size	Lg.	Wd.	Ht.	Mount Type	Batteries Included	Features		Each
0°-360°	±0.2°	4	0°-90°	±1/8" @ 50 ft.	0-200 ft.	1/4" @ 50 ft.	10 1/2"	1 1/4"	2 1/4"	Screw On, Magnetic Base	Yes	Audible Level Indicator, Backlit Display	0000000	0000000

Magnetic-Mount Angle Indicators

Temporarily mount these indicators to a metal surface. They have four quadrants that each read any angle from 0° to 90°.

V-groove provides stability on curved surfaces.

For technical drawings and 3-D models, click on a part number.

						No. of Vials			O'all
	Angle Measuring Range	Accuracy	No. of Measuring Quadrants	Quadrant Angle Measuring Range	Dial Dia.	Horizontal	Graduation Marks	Numeric Increments	Lg.	Wd.	Ht.	Material	Color	Features		Each
A	0°-360°	±5°	4	0°-90°	2"	1	5°	15°	2 5/8"	3/4"	3"	Plastic	Black	__	0000000	00000
B	0°-360°	±0.5°	4	0°-90°	4"	__	1°	10°	4 3/4"	1"	4 3/4"	Plastic	Orange	V-Groove	00000000	00000

Heavy Duty Magnetic-Mount Angle Indicators

This angle indicator has a horizontal leveling vial and can measure angles between 0° and 180°. Base has a V-groove for stability on curved surfaces.

					Vial				O'all
Angle Measuring Range	Accuracy	No. of Measuring Quadrants	Quadrant Angle Measuring Range	Dial Dia.	Sensitivity	Accuracy	Graduation Marks	Numeric Increments	Lg.	Wd.	Ht.	Material	Features		Each
0°-180°	±1.5°	2	0°-90°	1 3/4"	0.144 in./ft., 41 min./0.1"	0° to 2°	2.5°	10°	9"	7/8"	2"	Aluminum	V-Groove	0000000	0000000

Digital Protractors with Level and Laser

A dot laser extends the working distance 200 feet beyond the tool length. This tool has two digital displays that invert when turned upside down; one shows the base angle and the other shows the moveable arm angle. It also has a lock to hold the arm in position, a hold button that freezes the display, auto shutoff, and 1/4"-20 threads for connecting to a tripod.

				Closed		Laser
Arm Lg.	Angle Measuring Range	Accuracy	Numeric Increments	Ht.	Thick.	Accuracy	Class	Color	Material	Color	Display Type	Mount Type	Batteries Included		Each
21"	0°-180°	±0.1°	0.1°	2 1/2"	1 1/2"	±1/2" @ 200 ft.	Class IIIa	Red	Aluminum	Black/Silver	LCD	Screw On, Magnetic Back	Yes	0000000	0000000

Magnetic Bumpers

A magnetic base makes it easy to attach, move, and replace these bumpers on metal surfaces. Use them for guarding, aligning, and positioning parts. Made of SBR rubber, all of these bumpers have good abrasion resistance. They also have a hard rating to withstand high levels of impact. An embedded steel washer adds strength.

For technical drawings and 3-D models, click on a part number.

SBR Rubber with Steel Embedded Washer
OD	Ht.	Temp. Range, °F	For Use Outdoors	Hardness Rating	Hardness	Nonmarking	Color		Each
1/2"	1/4"	0° to 180°	No	Hard	Durometer 70A	No	Black	0000000	00000
5/8"	9/32"	0° to 180°	No	Hard	Durometer 70A	No	Black	0000000	0000
3/4"	13/32"	0° to 180°	No	Hard	Durometer 70A	No	Black	0000000	0000
7/8"	17/32"	0° to 180°	No	Hard	Durometer 70A	No	Black	0000000	0000
1 1/32"	5/8"	0° to 180°	No	Hard	Durometer 70A	No	Black	0000000	00000

Wall-Mount Door Stops

Concave

Designed to mount at the point of contact between a door handle and the wall, these stops prevent handles from damaging walls when doors swing open. All are nonmarking.

Concave stops are best for preventing damage to button-locking door knobs and handles.

Magnetic-back stop is easy to attach, move, and replace on metal surfaces.

Rubber stops are abrasion resistant.

For technical drawings and 3-D models, click on a part number.

Base
Material	Dia.	Projection	Material	Nonmarking	Color		Each
Concave
Magnetic Back
Rubber	1 3/4"	3/4"	Rubber	Yes	Gray	0000000	000000
