Adapters for Morse Taper Drill Chuck Arbors
If your Morse taper arbor is too small or large for your machine spindle, insert it into one of these adapters. Also known as sleeves or shell sockets.
For Machine Spindle Morse Taper | For Arbor Shank Morse Taper | ||||||
|---|---|---|---|---|---|---|---|
| Number | Dia. | Number | Dia. | Overall Lg. | Material | Each | |
| 2 | 0.7" | 1 | 0.475" | 3 5/8" | Steel | 0000000 | 000000 |
| 3 | 0.938" | 1 | 0.475" | 3 7/8" | Steel | 0000000 | 00000 |
| 3 | 0.938" | 2 | 0.7" | 4 3/8" | Steel | 0000000 | 00000 |
| 4 | 1.231" | 1 | 0.475" | 4 7/8" | Steel | 0000000 | 00000 |
| 4 | 1.231" | 2 | 0.7" | 4 7/8" | Steel | 0000000 | 00000 |
| 4 | 1.231" | 3 | 0.938" | 5 1/2" | Steel | 0000000 | 00000 |
| 5 | 1.748" | 2 | 0.7" | 6 1/8" | Steel | 0000000 | 00000 |
| 5 | 1.748" | 3 | 0.938" | 6 1/8" | Steel | 0000000 | 00000 |
| 5 | 1.748" | 4 | 1.231" | 6 11/16" | Steel | 0000000 | 00000 |
| 6 | 2.494" | 4 | 1.231" | 8 9/16" | Steel | 0000000 | 000000 |
| 6 | 2.494" | 5 | 1.748" | 8 9/16" | Steel | 0000000 | 000000 |

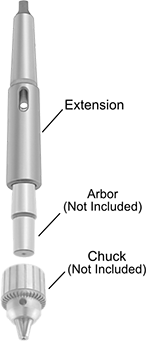

Extensions for Morse Taper Drill Chuck Arbors
Insert your Morse taper arbor into one of these extensions to get additional reach.
For Machine Spindle Morse Taper | For Arbor Shank Morse Taper | ||||||
|---|---|---|---|---|---|---|---|
| Number | Dia. | Number | Dia. | Overall Lg. | Material | Each | |
| 2 | 0.7" | 2 | 0.7" | 6 57/64" | Steel | 0000000 | 000000 |
| 2 | 0.7" | 3 | 0.938" | 7 23/32" | Steel | 0000000 | 00000 |
| 3 | 0.938" | 2 | 0.7" | 7 41/64" | Steel | 0000000 | 00000 |
| 3 | 0.938" | 3 | 0.938" | 8 29/64" | Steel | 0000000 | 00000 |
| 3 | 0.938" | 4 | 1.231" | 9 7/16" | Steel | 0000000 | 000000 |
| 4 | 1.231" | 3 | 0.938" | 9 29/64" | Steel | 0000000 | 00000 |
| 4 | 1.231" | 4 | 1.231" | 10 7/16" | Steel | 0000000 | 000000 |
| 4 | 1.231" | 5 | 1.748" | 11 13/16" | Steel | 0000000 | 000000 |
| 5 | 1.748" | 4 | 1.231" | 11 13/16" | Steel | 0000000 | 000000 |
| 5 | 1.748" | 5 | 1.748" | 13 3/16" | Steel | 0000000 | 000000 |
