16 Products

Hands-Free Wash Fountains

Style A

Style B

Style C

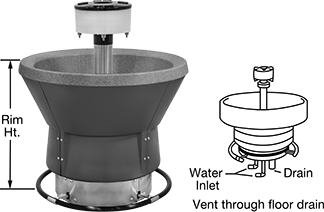

Floor Inlet

Style C

Top Inlet

You won't have to wait to wash up with these multi-user fountains. Step on the pedals for water; release them to stop the flow. These sinks are chemical and corrosion resistant.

			Location				Overall				Pedestal		Inlet
	Style	No. of Users	Inlet	Venting	Rim Ht.	Bowl Inside Ht.	Dia.	Wd.	Dp.	Flow Rate, gpm	Material	Color	Pipe Size	Thread Type	Gender	For Drain Pipe OD		Each
Stainless Steel Bowl—Assembled







				Floor/Wall Mount—Wall Drain

				A	2	Wall	Floor/Wall	34"	4 1/2"	—	27 1/2"	17 1/4"	0.5	Vinyl-Coated Steel	Black	1/2	NPT	Male	1 1/2"	2629K27	000000000


				B	3	Wall	Floor/Wall	34"	4 1/2"	—	38"	32"	0.5	Vinyl-Coated Steel	Black	1/2	NPT	Male	1 1/2"	2629K37	00000000
				B	4	Wall	Floor/Wall	34"	4 1/2"	—	38"	32"	0.5	Vinyl-Coated Steel	Black	1/2	NPT	Male	1 1/2"	2629K47	00000000




						Floor Mount—Floor Drain

						C	8	Floor	Floor Drain	34"	4 1/2"	54"	—	—	0.5	Vinyl-Coated Steel	Black	1/2	NPT	Male	2"	2629K541	00000000


						C	8	Top	Top	34"	4 1/2"	54"	—	—	0.5	Vinyl-Coated Steel	Black	1/2	NPT	Male	2"	2629K542	00000000

Touch-Free Wash Fountains

Style A

Style B

Style C

Style D

You won't have to wait to wash up with these multi-user fountains. Place your hands in front of the sensor for water. These sinks are chemical and corrosion resistant. They operate at 24 volts AC (from 120 volts AC) with a step-down transformer that draws 3 amps. Sensor and transformer are UL listed.

			Location				Overall				Pedestal		Inlet
	Style	No. of Users	Inlet	Venting	Rim Ht.	Bowl Inside Ht.	Dia.	Wd.	Dp.	Flow Rate, gpm	Material	Color	Pipe Size	Thread Type	Gender	For Drain Pipe OD		Each
Stainless Steel Bowl—Assembled







				Floor/Wall Mount—Wall Drain

				A	2	Wall	Floor/Wall	34"	4 1/2"	—	27 1/2"	17 1/4"	0.5	Vinyl-Coated Steel	Black	1/2	NPT	Male	1 1/2"	29805K51	000000000


				B	3	Wall	Floor/Wall	34"	4 1/2"	—	38"	32"	0.5	Vinyl-Coated Steel	Black	1/2	NPT	Male	1 1/2"	29805K53	00000000
				B	4	Wall	Floor/Wall	34"	4 1/2"	—	38"	32"	0.5	Vinyl-Coated Steel	Black	1/2	NPT	Male	1 1/2"	29805K54	00000000




						Floor Mount—Floor Drain

						C	8	Floor	Floor Drain	34"	4 1/2"	54"	—	—	0.5	Vinyl-Coated Steel	Black	1/2	NPT	Male	2"	29805K561	00000000


						D	8	Top	Top	34"	4 1/2"	54"	—	—	0.5	Vinyl-Coated Steel	Black	1/2	NPT	Male	2"	29805K562	00000000

Wall-Mount Sinks


Style H	Style J

		O'all			Bowl Inside					Inlet
	Style	Wd.	Dp.	Ht.	Wd.	Dp.	Ht.	Drain Opening Dia.	Spout Type	Pipe Size	Thread Type	Flow Rate, gpm	Mounting Fasteners Included	For Use Outdoors	Includes		Each
Sinks with Chrome-Plated Brass Faucet







				304 Stainless Steel

				H	48"	20"	33 3/4"	45"	16 1/2"	8"	3 1/2"	Swivel, Fixed	1/2	NPT	2.2	No	No	Drain with Strainer, Tailpiece, Three Mounting Brackets	2856K32	000000000


				J	60"	20"	33 3/4"	57"	16 1/2"	8"	3 1/2"	Swivel, Fixed	1/2	NPT	2.2	No	No	Drain with Strainer, Tailpiece, Three Mounting Brackets	2856K34	00000000

Replacement Faucet Cartridges

		Each
Replacement Hot Water Faucet Cartridge for Styles H and J	2633K67	000000
Replacement Cold Water Faucet Cartridge for Styles H and J	2633K66	00000

Portable Hand Washing Stations


2 Stations	4 Stations

To prevent the spread of illness, these stations give people a place to wash their hands wherever they need it. Each has a sink basin, faucet, soap dispenser, and paper towel dispenser. Start and stop the flow of water using the foot pedal, instead of using your hands. They have one tank for supplying fresh water and a second, separate tank for storing wastewater. To drain water out of them, all have a drain plug. They’re lightweight when they’re empty, so it only takes one or two people to move them.

All are made from materials that meet strict FDA standards. They also meet EPA standards for drinking water.

2 Stations and 4 Stations—Two- and four-station units accommodate multiple users at the same time, so they’re good for busy areas, such as parks, outdoor events, worksites, stadiums, and military sites. Two-station units also have handles for moving them easily.

	Cap., gal.
No. of Stations	Freshwater Tank	Wastewater Tank	Ht.	Wd.	Dp.	No. of Uses	Wt., lb.	For Use Outdoors	Shipping Std.	Specs. Met	Food Industry Std.	Features		Each







			LDPE

			2	22	24	62"	26 1/2"	21 1/2"	1,480	70	Yes	CFR Title 42 Section 72	EPA Compliant 40 CFR 141	FDA Compliant 21 CFR 175.300, FDA Compliant 21 CFR 177.1520, FDA Compliant 21 CFR 178.3297	Drain Hole, Drain Plug, Handles, Paper Towel Dispenser, Soap Dispenser	6699N13	0000000


			4	20	22	58"	22 1/2"	22 1/2"	1,280	60	Yes	CFR Title 42 Section 72	EPA Compliant 40 CFR 141	FDA Compliant 21 CFR 175.300, FDA Compliant 21 CFR 177.1520, FDA Compliant 21 CFR 178.3297	Drain Hole, Drain Plug, Paper Towel Dispenser, Soap Dispenser	6699N11	000000
