For Maximum Trailer Weight For Maximum Trailer Weight |
|---|
|
|
Coupler Type Coupler Type |
|---|
|
Vertical Capacity Vertical Capacity |
|---|
|
|
Mount Type Mount Type |
|---|
|
DFARS (Defense Acquisition Regulations Supplement) DFARS (Defense AcquisitionRegulations Supplement)  |
|---|
RoHS (Restriction of Hazardous Substances) RoHS (Restriction ofHazardous Substances) |
|---|
|
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) REACH (Registration,Evaluation, Authorization and Restriction of Chemicals) |
|---|
|
Drawbar Couplers
Also known as pintle hitches, drawbar couplers are used with drawbar rings to connect a trailer to your vehicle for towing. Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the drawbar ring or hitch ball. Use Grade 8 fasteners (included with some couplers) for mounting. Mount couplers directly to a vehicle or use a mounting plate insert to mount them to a hitch receiver. See Mounting Plate Inserts for Drawbar Couplers and Hitch Receivers.
Combination ball/eye couplers include a ball for use with hitch-ball connections.
Note: Capacity is reduced 25% in off-road use.
For technical drawings and 3-D models, click on a part number.

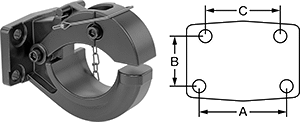

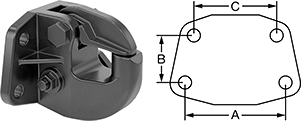

Mounting Hole | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Each | |
| 10,000 | 2,000 | 2" | 1 7/8" | 6 1/16" | Steel | Yes | 1/2" | 3 3/8" | 1 3/4" | 0000000 | 0000000 |

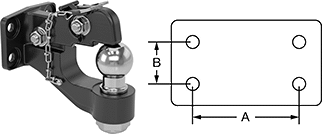

Hitch Ball | Mounting Hole | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Dia. | Material | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Each | |
| 16,000 | 3,000 | 2 1/16" | 2" | 7 3/4" | Steel | 2" | Chrome Plated Steel | No | 1/2" | 3 3/8" | 1 3/4" | 000000 | 0000000 |
| 16,000 | 3,000 | 2 3/8" | 1 13/16" | 7 3/4" | Steel | 2 5/16" | Chrome Plated Steel | No | 1/2" | 3 3/8" | 1 3/4" | 000000 | 000000 |

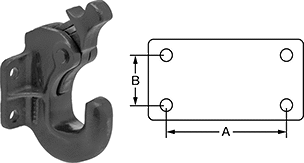

Mounting Hole | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Each | |
| 30,000 | 4,500 | 2" | 1 1/2" | 6" | Steel | No | 5/8" | 4" | 2 5/8" | 000000 | 0000000 |

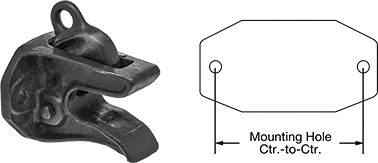

Mounting Hole | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. | Each | |
| 12,000 | Not Rated | 2" | 1" | 5 13/16" | Steel | No | 5/8" | 4 1/4" | 000000 | 0000000 |

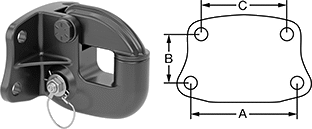

Mounting Hole | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. | Each | |
| 60,000 | Not Rated | 2" | 1 13/16" | 5" | Steel | No | 1" | 6 1/2" | 000000 | 0000000 |
Drawbar Rings
These rings mount to a trailer and connect to the drawbar coupler or tow hook on a vehicle to create a towing connection. Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the drawbar ring.
Note: Capacity is reduced 25% in off-road use.
For technical drawings and 3-D models, click on a part number.
Overall | Ring | Mounting Hole | Mounting Plate | Thread | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | Dp. | Ht. | Material | ID | Thick. | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Wd. | Ht. | Stud Length | Size | Length | Each | |
Bolt On | |||||||||||||||||
| 1 | 42,000 | 7,000 | 6 11/16" | 6" | Steel | 2 1/2" | 1 1/4" | 5/8" | 4 1/2" | 4 1/2" | 6" | 6" | __ | __ | __ | 00000000 | 0000000 |
| 2 | 60,000 | 15,000 | 6 13/16" | 6 3/8" | Steel | 3" | 1 5/8" | 3/4" | 4 1/2" | 4 1/2" | 6 5/8" | 6 3/8" | __ | __ | __ | 00000000 | 000000 |
| 2 | 100,000 | 20,000 | 6 13/16" | 6 3/8" | Steel | 3" | 1 5/8" | 7/8" | 4 1/2" | 4 1/2" | 6 5/8" | 6 3/8" | __ | __ | __ | 00000000 | 000000 |
Threaded Stud | |||||||||||||||||
| 3 | 15,000 | 3,000 | 9 1/8" | __ | Steel | 2 1/2" | 1 1/2" | __ | __ | __ | __ | __ | 3 1/4" | 1 1/2"-6 | 1 3/4" | 00000000 | 000000 |
Weld On | |||||||||||||||||
| 4 | 12,000 | 1,800 | 8 9/16" | __ | Steel | 2" | 7/8" | __ | __ | __ | __ | __ | __ | __ | __ | 00000000 | 00000 |
| 5 | 90,000 | 13,500 | 9 5/16" | __ | Steel | 2 3/8" | 1 5/8" | __ | __ | __ | __ | __ | __ | __ | __ | 00000000 | 000000 |
Tow Hooks
For an easy towing connection, mount these hooks to a bumper or trailer. Maximum trailer weight is the total weight being towed.
Note: Capacity is reduced 25% in off-road use.
For technical drawings and 3-D models, click on a part number.
Overall | Mounting Hole | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Dp. | Ht. | Material | Hook Opening Wd. | Dia. | Ctr.-to-Ctr. | Mounting Plate Thick. | Each | |
| 10,000 | 3 1/4" | 5" | Steel | 1 5/8" | 1/2" | 1 3/8" | 1" | 000000 | 000000 |
