Drawbar Rings
These rings mount to a trailer and connect to the drawbar coupler or tow hook on a vehicle to create a towing connection. Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the drawbar ring.
Note: Capacity is reduced 25% in off-road use.
For technical drawings and 3-D models, click on a part number.
Overall | Ring | Mounting Hole | Mounting Plate | Thread | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | Dp. | Ht. | Material | ID | Thick. | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Wd. | Ht. | Stud Length | Size | Length | Each | |
Bolt On | |||||||||||||||||
| 1 | 42,000 | 7,000 | 6 11/16" | 6" | Steel | 2 1/2" | 1 1/4" | 5/8" | 4 1/2" | 4 1/2" | 6" | 6" | __ | __ | __ | 00000000 | 0000000 |
| 2 | 60,000 | 15,000 | 6 13/16" | 6 3/8" | Steel | 3" | 1 5/8" | 3/4" | 4 1/2" | 4 1/2" | 6 5/8" | 6 3/8" | __ | __ | __ | 00000000 | 000000 |
| 2 | 100,000 | 20,000 | 6 13/16" | 6 3/8" | Steel | 3" | 1 5/8" | 7/8" | 4 1/2" | 4 1/2" | 6 5/8" | 6 3/8" | __ | __ | __ | 00000000 | 000000 |
Threaded Stud | |||||||||||||||||
| 3 | 15,000 | 3,000 | 9 1/8" | __ | Steel | 2 1/2" | 1 1/2" | __ | __ | __ | __ | __ | 3 1/4" | 1 1/2"-6 | 1 3/4" | 00000000 | 000000 |
Weld On | |||||||||||||||||
| 4 | 12,000 | 1,800 | 8 9/16" | __ | Steel | 2" | 7/8" | __ | __ | __ | __ | __ | __ | __ | __ | 00000000 | 00000 |
| 5 | 90,000 | 13,500 | 9 5/16" | __ | Steel | 2 3/8" | 1 5/8" | __ | __ | __ | __ | __ | __ | __ | __ | 00000000 | 000000 |

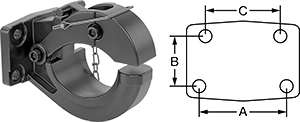

Drawbar Couplers
Also known as pintle hitches, drawbar couplers are used with drawbar rings to connect a trailer to your vehicle for towing. Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the drawbar ring or hitch ball. Use Grade 8 fasteners (included with some couplers) for mounting. Mount couplers directly to a vehicle or use a mounting plate insert to mount them to a hitch receiver. See Mounting Plate Inserts for Drawbar Couplers and Hitch Receivers.
Combination ball/eye couplers include a ball for use with hitch-ball connections.
Note: Capacity is reduced 25% in off-road use.
For technical drawings and 3-D models, click on a part number.

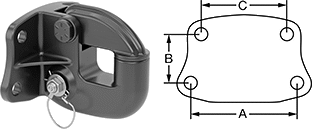

Mounting Hole | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Each | |
| 10,000 | 2,000 | 2" | 1 7/8" | 6 1/16" | Steel | Yes | 1/2" | 3 3/8" | 1 3/4" | 0000000 | 0000000 |

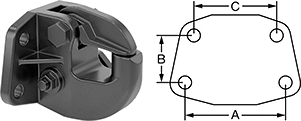

Hitch Ball | Mounting Hole | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Dia. | Material | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Each | |
| 16,000 | 3,000 | 2 1/16" | 2" | 7 3/4" | Steel | 2" | Chrome Plated Steel | No | 1/2" | 3 3/8" | 1 3/4" | 000000 | 0000000 |
| 16,000 | 3,000 | 2 3/8" | 1 13/16" | 7 3/4" | Steel | 2 5/16" | Chrome Plated Steel | No | 1/2" | 3 3/8" | 1 3/4" | 000000 | 000000 |

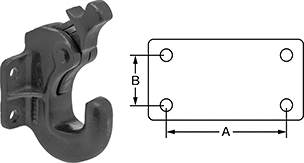

Mounting Hole | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Each | |
| 30,000 | 4,500 | 2" | 1 1/2" | 6" | Steel | No | 5/8" | 4" | 2 5/8" | 000000 | 0000000 |
Mounting Hole | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. | Each | |
| 12,000 | Not Rated | 2" | 1" | 5 13/16" | Steel | No | 5/8" | 4 1/4" | 000000 | 0000000 |

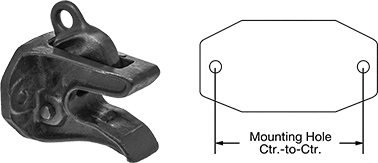

Mounting Hole | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. | Each | |
| 60,000 | Not Rated | 2" | 1 13/16" | 5" | Steel | No | 1" | 6 1/2" | 000000 | 0000000 |
Hitch Inserts
Use these inserts in hitch-ball connections for towing. They fit into a receiver that's attached to a vehicle. Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the hitch ball.
Combination ball/eyes give you the versatility of mating with a drawbar ring or hitch-ball coupler. The higher capacity is for the drawbar ring; the lower capacity is for the hitch ball.
Multi-size hitch balls provide three sizes in one. The larger hitch ball sizes have higher capacities.
Eyes and combination ball/eyes with multi-size hitch balls allow for more range of movement than ball hitches, making them good for use on uneven surfaces. Since they can also tow higher capacities than ball hitches, they’re often used to haul large items.
Use clevises as a hitch or ball mount to connect parts for towing. They can also be used with rings.
Use rings with clevises to evenly distribute pressure. They also keep tow chains and straps from slipping.
Hitch Ball | ||||||||
|---|---|---|---|---|---|---|---|---|
| For Maximum Trailer Weight, lbs. | Vertical Capacity, lbs. | Overall Depth | For Hitch Receiver Size | Number of Hitch Balls Included | Diameter | Material | Each | |
| 7,000/12,000 | 2,400 | 15 11/32" | 2" Square | 1 | 2" | Chrome-Plated Steel | 0000000 | 0000000 |
| For Maximum Trailer Weight, lbs. | Vertical Capacity, lbs. | Overall Depth | For Hitch Receiver Size | Each | |
| 20,000 | 4,000 | 14 3/8" | 2" Square | 0000000 | 0000000 |
Hitch Ball | ||||||||
|---|---|---|---|---|---|---|---|---|
| For Maximum Trailer Weight, lbs. | Vertical Capacity, lbs. | Overall Depth | For Hitch Receiver Size | Number of Hitch Balls Included | Diameter | Material | Each | |
| 6,000/10,000/14,000 | 600, 1,000, 1,400 | 13 1/2" | 2 1/2" Square | 3 | 1 7/8", 2", 2 5/16" | Chrome-Plated Steel | 0000000 | 0000000 |
| For Maximum Trailer Weight, lbs. | Vertical Capacity, lbs. | For Pin Diameter | Opening Width | Overall Depth | For Hitch Receiver Size | Each | |
| 5,000 | 500 | 1" | 2" | 15" | 2" Square | 0000000 | 000000 |
Ring | |||||||
|---|---|---|---|---|---|---|---|
| For Maximum Trailer Weight, lbs. | Vertical Capacity | ID | Thickness | Overall Depth | For Hitch Receiver Size | Each | |
| 12,000 | Not Rated | 2 1/2" | 1 1/4" | 11 7/16" | 2" Square | 0000000 | 000000 |

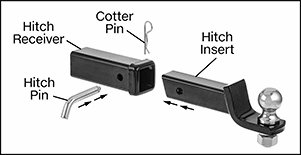

Hitch Receivers
Mount these receivers to a vehicle. Use them with an insert and pin to create a complete hitch for towing. Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the drawbar ring or hitch ball.
For technical drawings and 3-D models, click on a part number.
Mounting Plate | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | Hitch Receiver Size | Material | Color | Mounting Hole Center-to-Center | Wd. | Dp. | Each | |
| 5,000 | 500 | 2" Square | Powder-Coated Steel | Black | 8 1/2" | 12" | 4 1/2" | 0000000 | 000000 |
| For Max. Trailer Wt. | Vertical Capacity | Overall Dp. | Hitch Receiver Size | Material | Color | Each | |
| Not Rated | Not Rated | 8" | 2" Square | Powder-Coated Steel | Black | 0000000 | 000000 |
Hitch Pins
These pins secure inserts to a receiver on a vehicle as part of a connection for towing.
For technical drawings and 3-D models, click on a part number.
Tow Hooks
For an easy towing connection, mount these hooks to a bumper or trailer. Maximum trailer weight is the total weight being towed.
Note: Capacity is reduced 25% in off-road use.
For technical drawings and 3-D models, click on a part number.
Overall | Mounting Hole | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Dp. | Ht. | Material | Hook Opening Wd. | Dia. | Ctr.-to-Ctr. | Mounting Plate Thick. | Each | |
| 10,000 | 3 1/4" | 5" | Steel | 1 5/8" | 1/2" | 1 3/8" | 1" | 000000 | 000000 |
