    Wraparound Cord Grip

    Surface-Mount Housing for 4 Small Inserts, 2.9" Long

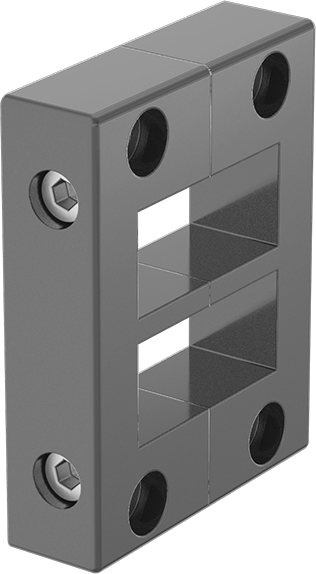

    Image of Product. Front orientation. Wraparound Cord Grip, Surface-Mount Housing for 4 Small Inserts, 2.9" Long.

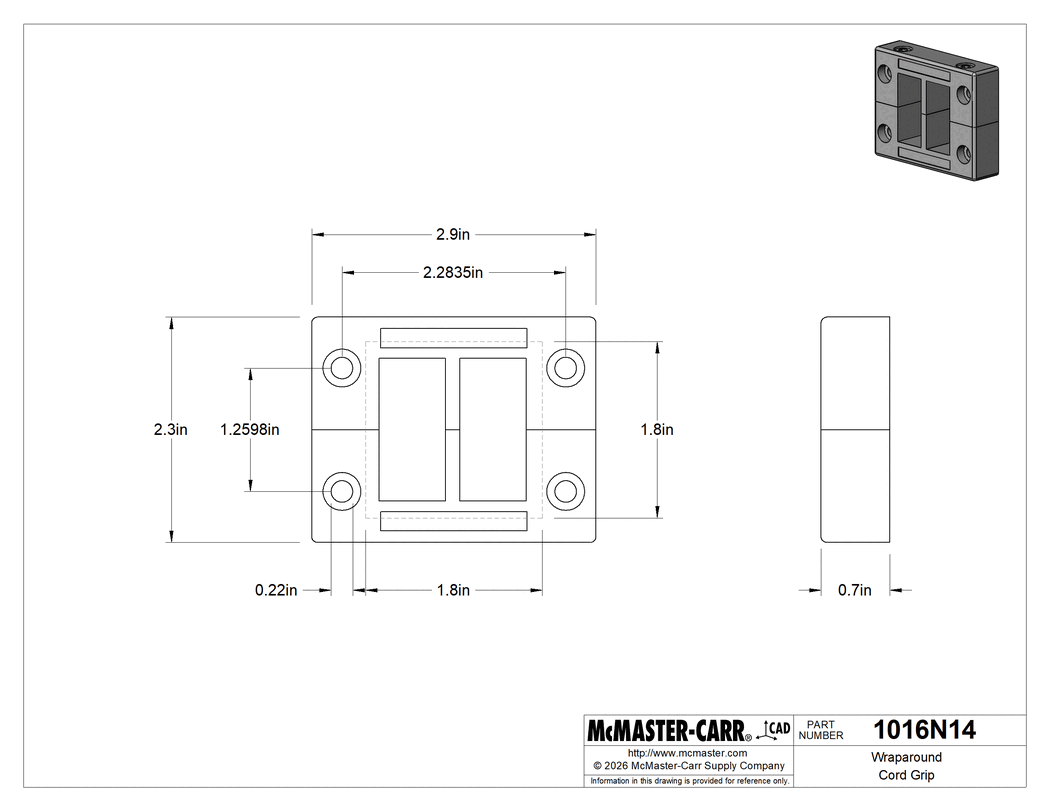

    Technical Drawing of Wraparound Cord Grip, Surface-Mount Housing for 4 Small Inserts, 2.9" Long.
    Image of Product. Surface-Mount Housing Shown Open. Front orientation. Exploded view. Wraparound Cord Grip, Surface-Mount Housing for 4 Small Inserts, 2.9" Long.
    Surface-Mount Housing Shown Open
    Image of Specification. 4 Small Inserts (2.9" Lg.). Front orientation. Wraparound Cord Grip, Surface-Mount Housing for 4 Small Inserts, 2.9" Long.
    4 Small Inserts (2.9" Lg.)
    2-D PDF
    000000 each
    1016N14
    In stock
    1016N14
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Mounting Location

    Surface

    Component

    Housing

    Material

    Black Nylon

    For No. of Inserts

    4 Small

    Shape

    Straight

    For Insert

    Height

    0.83"

    Width

    0.83"

    Length

    2.9"

    Width

    2.3"

    Depth

    0.7"

    For Panel Cutout

    Length

    1.8"

    Width

    1.8"

    Mounting Fasteners Included

    No

    Mounting Holes

    Number of

    4

    Diameter

    0.22"

    Temperature Range

    -20° F to 190° F

    Features

    Rubber Gasket

    Enclosure Rating

    NEMA 12, IP54

    Certification

    UL Recognized Component, C-UL Recognized Component, DNV-GL Type Approved

    Environment

    Dusty, Wet, Oily

    Flammability Rating

    UL 94 V-0

    Flexibility

    Rigid

    Country of Origin

    Germany

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    392690.9988

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Attach a cable entry panel to cord without removing connectors and rewiring. These cable entry panels have a two-piece design to fit around cables with connectors. Choose a housing and then select inserts (sold separately). Inserts have a slit, eliminating the need to thread cable through them.
