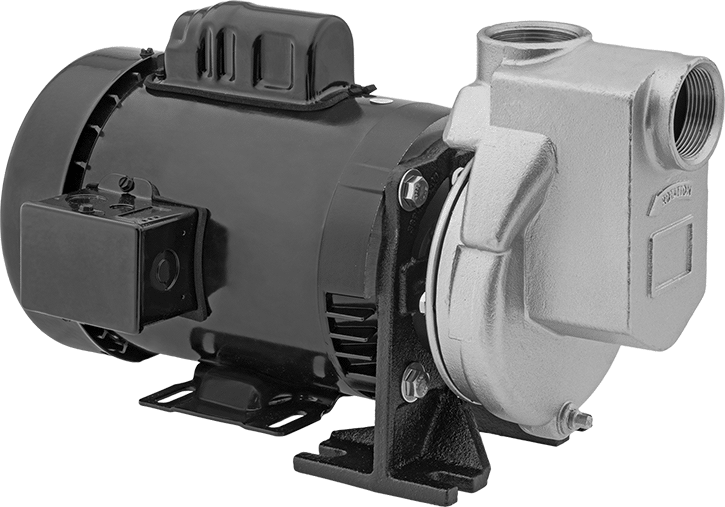

Self-Priming Stainless Steel Circulation Pump
for Chemicals, 240/460V AC, 2 hp
Voltage | 240V AC/460V AC |
Electrical Phase | Three |
Thermal Protection | Without Thermal Overload Protection |
Electrical Connection Type | Hardwire |
Maximum Viscosity | 20 cP |
Maximum Flow Rate | 132 gpm |
Flow Rate | |
@ 40 Feet of Head | 82 gpm |
@ 50 Feet of Head | 60 gpm |
@ 60 Feet of Head | 14 gpm |
Maximum Feet of Head | 63 ft. |
Maximum Pressure | 75 psi |
Temperature | |
Minimum | 40° F |
Maximum | 250° F |
Power | 2 hp |
Current | 6 amp/3 amp |
Intake | |
Location | Front |
Connection Port | Pipe |
Connection | Threaded |
Connection Type | 1 1/2 Female NPT |
Discharge | |
Location | Top |
Connection Port | Pipe |
Connection | Threaded |
Connection Type | 1 1/2 Female NPT |
Overall | |
Length | 17 1/4" |
Width | 8 3/4" |
Height | 9 1/2" |
Chemical Resistance | |
Excellent | Ammonium Hydroxide, Diesel Fuel, Kerosene, Motor Oil, Water |
Moderate | Salt Water |
Poor | Deionized Water, Sodium Hypochlorite (Bleach), Water-Based Paint, Hydrochloric Acid (20% Concentration), Hydrochloric Acid (37% Concentration), Hydrochloric Acid (100% Concentration), Nitric Acid (20% Concentration), Nitric Acid (50% Concentration), Nitric Acid (100% Concentration), Phosphoric Acid (<40% Concentration), Phosphoric Acid (≥40% Concentration), Sodium Hydroxide (Caustic Soda) (20% Concentration), Sodium Hydroxide (Caustic Soda) (50% Concentration), Sodium Hydroxide (Caustic Soda) (80% Concentration), Sulfuric Acid (<10% Concentration), Sulfuric Acid (10-75% Concentration), Sulfuric Acid (>75% Concentration) |
Duty Cycle | Continuous |
For Use With | Ammonium Hydroxide, Motor Oil, Paint |
Frequency | 60 Hz |
Housing Material | 300 Series Stainless Steel |
Impeller Material | 300 Series Stainless Steel |
Maximum Solids Diameter | 1/8" |
Motor Enclosure Type | Totally Enclosed Fan-Cooled (TEFC) |
Number of Mounting Holes | 4 |
Optimal Operating Point @ Feet of Head | 60 gpm @ 50 ft. |
Optimal Operating Range @ ft. of Head | 14 gpm to 90 gpm @ 60 ft. of head to 35 ft. of head |
Performance | Self-Priming |
Power Source | Electric |
Priming Type | Initial Fill |
Pump Style | Circulating |
Pump Type | Centrifugal |
Runs Dry | No |
Self-Priming Height | |
Minimum | Not Rated |
Maximum | 6 ft. |
Warning Message | Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
Wetted Parts Material | 300 Series Stainless Steel |
Wire Connection | Wire Leads |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 841370.2005 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Self-priming up to 6 ft., these pumps have a stainless steel housing sealed with PTFE to resist chemicals such as ammonia. The motor is totally enclosed fan-cooled (TEFC) for use in dusty, dirty, and damp environments. Pumps are self-priming after you fill the pump chamber with liquid. As liquid in the chamber is expelled, a suction force is created which allows the pump to draw liquid upward.
Note: Pumps must be filled with liquid before use. They need a constant flow of liquid and cannot run dry. If flow control is needed, place valves or reducers on the discharge side; never restrict the inlet of a pump with a valve or reducer.
