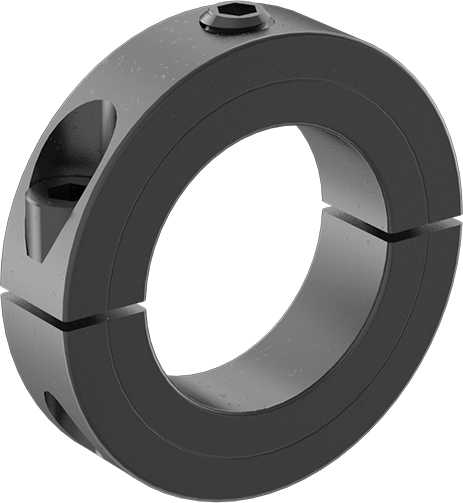

Set Screw Two-Piece Shaft Collar
for 1-1/4" Shaft Diameter, Black-Oxide 1215 Carbon Steel
Material | Black-Oxide Carbon Steel |
For Shaft Diameter | 1 1/4" |
OD | 2 1/16" |
Width | 1/2" |
Set Screw | |
Type | Hex Socket |
Material | Steel |
Number Included | 1 |
Clamping Screw | |
Type | Socket Head |
Material | Steel |
Number Included | 2 |
Construction | Two Piece |
For Shaft Type | Round |
Performance | Ultra Machinable |
Shaft Mount Type | Set Screw |
Steel Grade | 1215 Carbon Steel |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848790.0080 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Attach these traditional collars anywhere along a shaft when other components are already installed or you can't access the ends. Their set screw digs into the shaft for a tight, permanent hold, but one that leaves a gouge. For maximum holding power, make sure the set screw is harder than the shaft.
Black-Oxide Carbon Steel—Dark and matted for a finished look, but with minimal corrosion resistance. Best for dry environments.

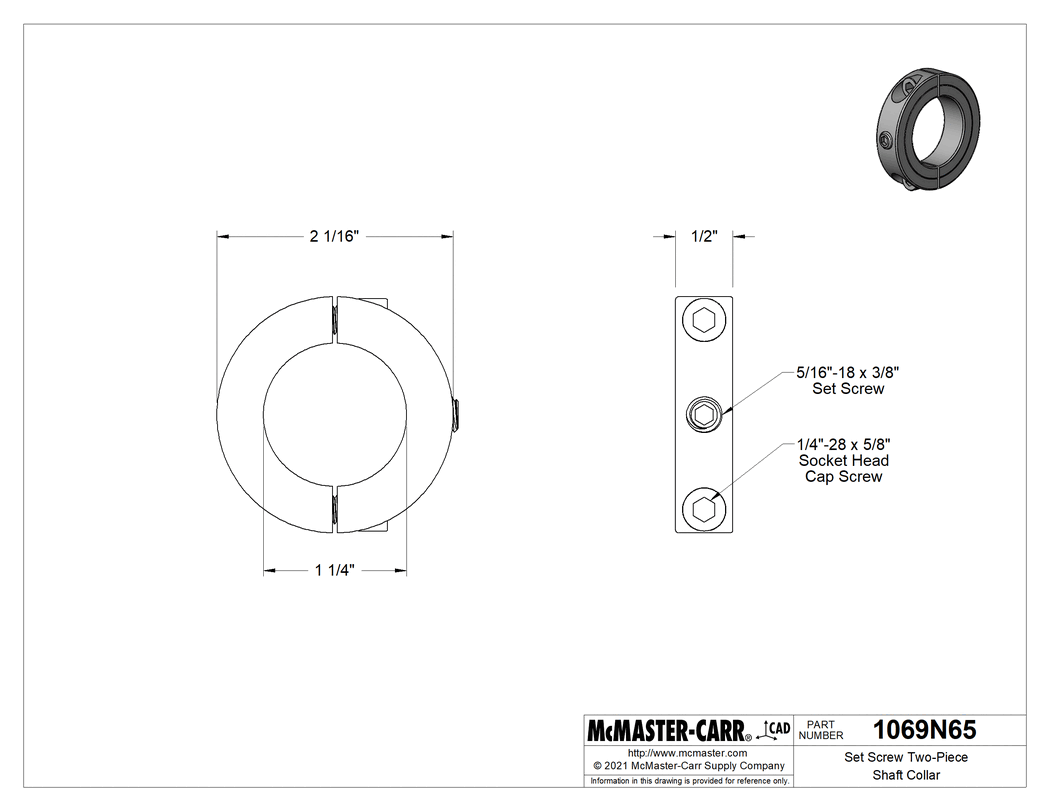

The information in this 3-D model is provided for reference only.
