    Electrically Operated Oil Dispenser

    with Flow-Adjustment Valve, 64 oz. Capacity, 24V DC

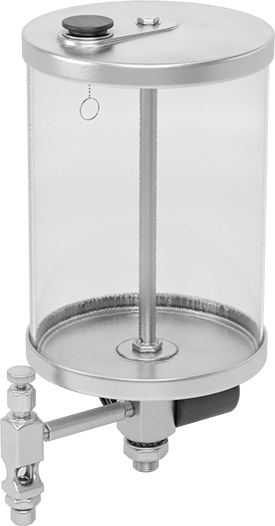

    Image of Product. Front orientation. Electrically Operated Oil Dispenser, with Flow-Adjustment Valve, 64 oz. Capacity, 24V DC.

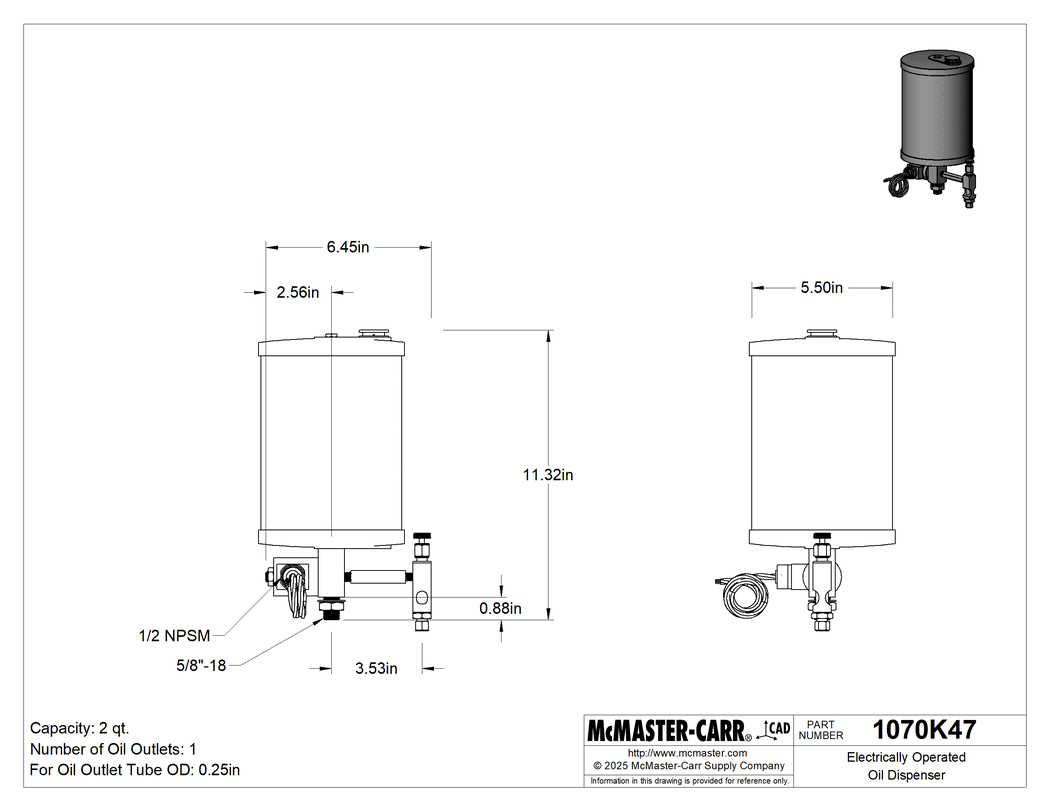

    Technical Drawing of Electrically Operated Oil Dispenser, with Flow-Adjustment Valve, 64 oz. Capacity, 24V DC.
    Image of Product. Back orientation. Electrically Operated Oil Dispenser, with Flow-Adjustment Valve, 64 oz. Capacity, 24V DC.

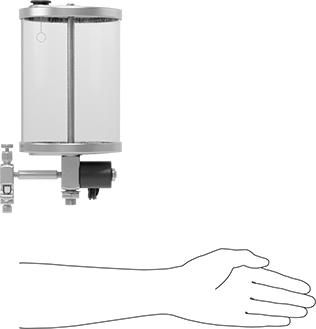

    Image of Product. Side1 orientation. Contains SizingReference. Electrically Operated Oil Dispenser, with Flow-Adjustment Valve, 64 oz. Capacity, 24V DC.
    2-D PDF
    0000000 each
    1070K47
    In stock
    1070K47
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Oil Outlet

    Number of

    1

    Connection

    Compression

    For Tube OD

    1/4"

    Gender

    Female

    Voltage

    24V DC

    Current

    0.4 amp

    Capacity

    2 qt.

    Bowl Diameter

    5 1/2"

    Overall

    Height

    11 5/16"

    Width

    6 7/16"

    Housing Material

    Aluminum

    Bowl Material

    Plastic

    Pressure Regulation Method

    Vented

    Maximum Temperature

    160° F

    Mounting Thread Size

    5/8"-18

    Bowl Clarity

    Clear

    Electrical Connection Type

    Hardwire

    Features

    Glass Flow Sight

    Flow Adjustment Mechanism

    Dial

    Flow Control Type

    Adjustable, On/Off

    Flow On/Off Mechanism

    Solenoid

    For Maximum Viscosity

    ISO Grade

    Not Rated

    SAE Grade

    Not Rated

    Saybolt Seconds Universal Grade

    Not Rated

    AGMA Grade

    Not Rated

    For Use With

    Oil

    Mounting Thread Type

    UNF

    Power Source

    Gravity

    Valve Position

    Fail Closed

    Wire Connection

    Wire Leads

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    902610.7000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Related Product

    24V DC Replacement Coil

    A solenoid automatically starts and stops flow to dispense lubricant only while equipment is running. When wired to a machine’s on/off switch, the solenoid remains closed until the machine is turned on. Turn the dial on the valve to adjust flow. Dispensers can be used with any oil grade. Flow rate depends on temperature.
