Class 10.9 High-Strength Steel Threaded Rod

M12 x 1.75 mm Thread Size, 1 M Long

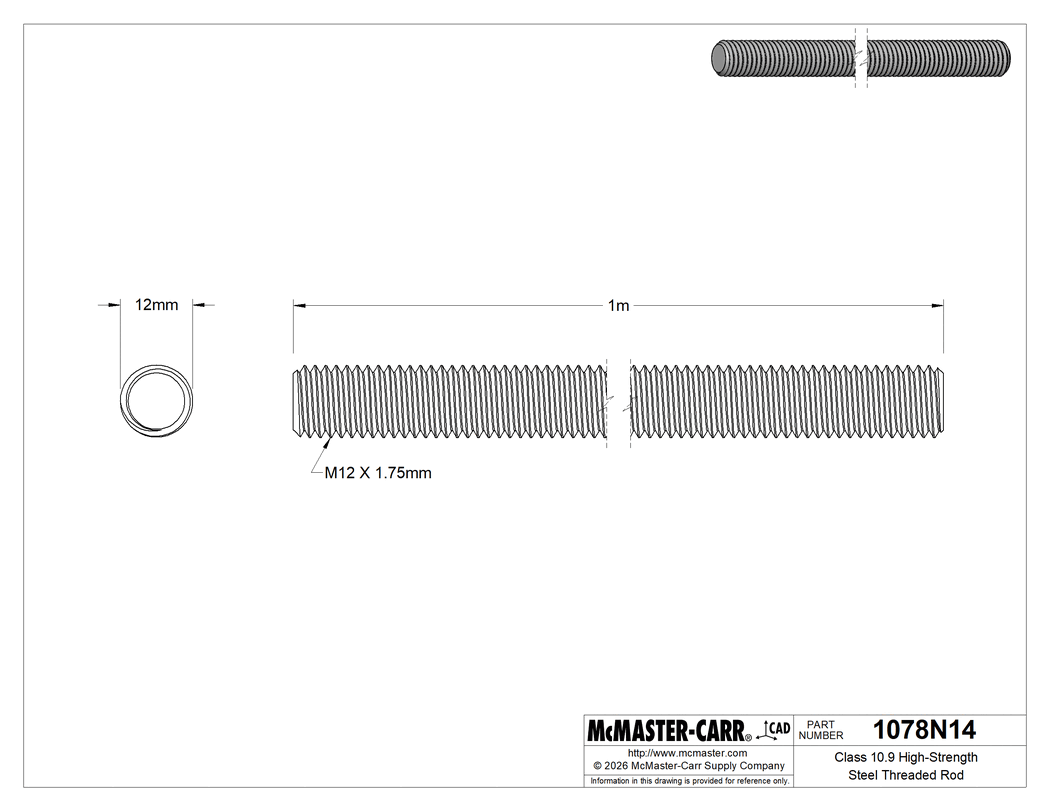

Technical Drawing of Class 10.9 High-Strength Steel Threaded Rod, M12 x 1.75 mm Thread Size, 1 M Long.

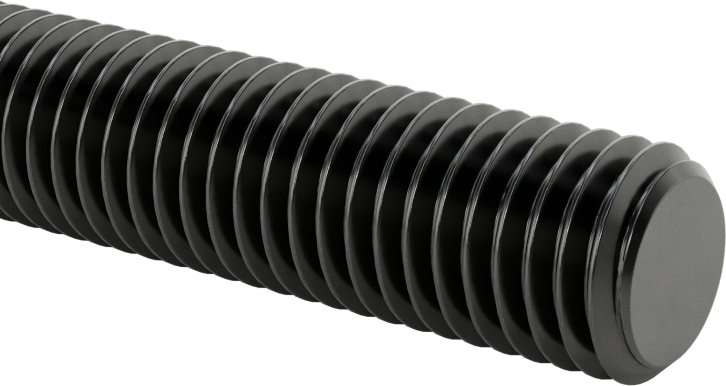

Image of Product. Side1 orientation. Contains SizingReference. Class 10.9 High-Strength Steel Threaded Rod, M12 x 1.75 mm Thread Size, 1 M Long.

2-D PDF

000000 each

1078N14

In stock

1078N14

000000 each

QuantityEach

In stock

Select a compatible file type: Parasolid

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Thread Direction	Right Hand
Sold As	Individual
Fastener Strength Rating	High
Thread Size	M12 × 1.75 mm
Length	1 m
Tensile Strength	150,000 psi
Fastener Strength Grade/Class	Class 10.9
Hardness	Rockwell C32
Specifications Met	DIN 976
Material	Steel
System of Measurement	Metric
Thread Fit	Metric Class 6g
Thread Spacing	Coarse
Thread Type	Metric
Threading	Fully Threaded
Country of Origin	Czech Republic, Germany
DFARS Compliance	Specialty Metals Compliant (252.225-7009)
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.5000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	No

Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.

High-Strength Steel—With a tensile strength of 150,000 psi, these rods are strong enough to stabilize steel frameworks and structural supports, such as I-beams. They are about 25% stronger than medium-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also high-strength steel.
