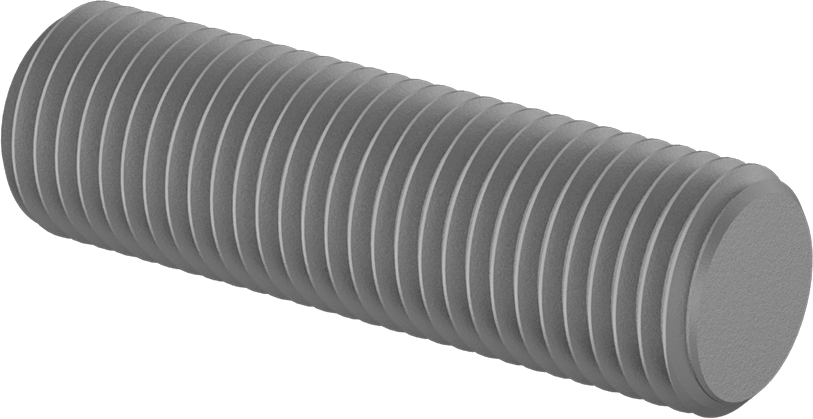

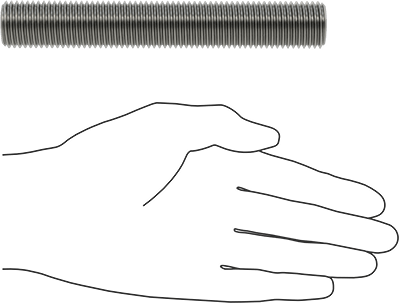

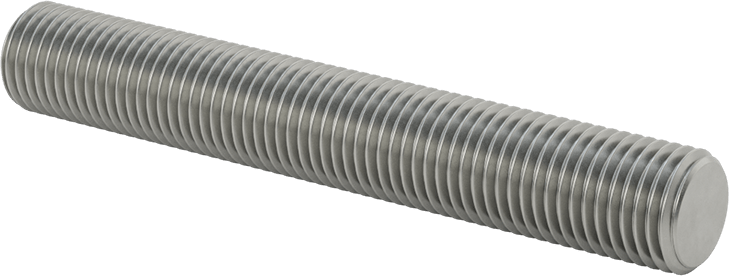

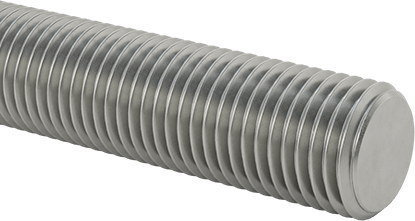

Class 10.9 High-Strength Steel Threaded Rod
M22 x 2.5 mm Thread Size, 150 mm Long
Thread Direction | Right Hand |
Fastener Strength Rating | High |
Thread Size | M22 × 2.5 mm |
Length | 150 mm |
Tensile Strength | 150,000 psi |
Fastener Strength Grade/Class | Class 10.9 |
Hardness | Rockwell C32 |
Specifications Met | DIN 976 |
Material | Steel |
System of Measurement | Metric |
Thread Fit | Metric Class 6g |
Thread Spacing | Coarse |
Thread Type | Metric |
Threading | Fully Threaded |
Country of Origin | Czech Republic, Germany |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.
High-Strength Steel—With a tensile strength of 150,000 psi, these rods are strong enough to stabilize steel frameworks and structural supports, such as I-beams. They are about 25% stronger than medium-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also high-strength steel.
Steel—Best for dry environments since moisture will cause these rods to rust.

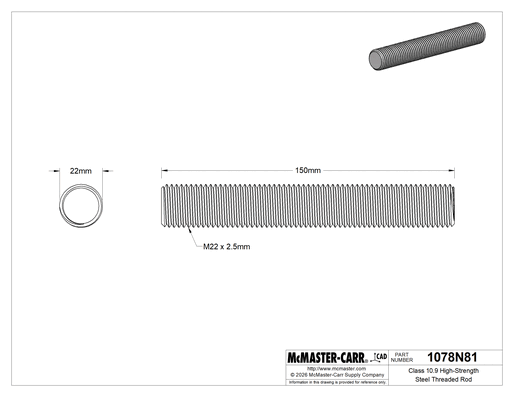

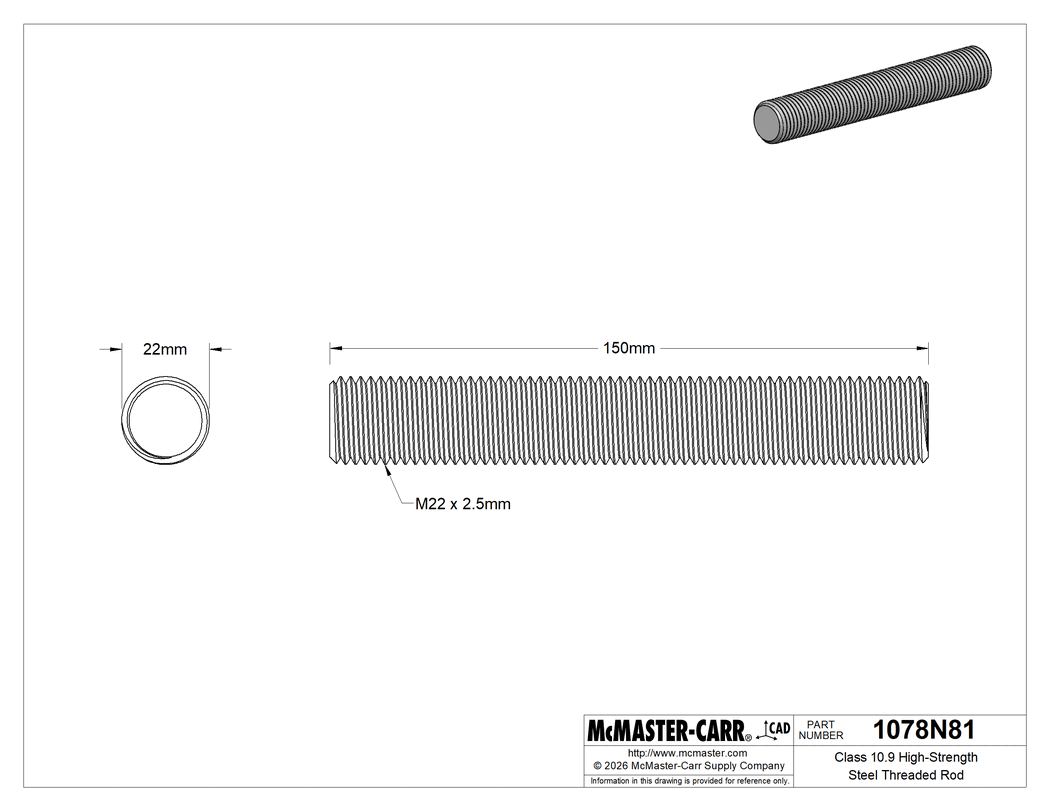

The information in this 3-D model is provided for reference only.
