    Oil-Resistant Aramid/Buna-N Adhesive-Back Gasket

    with Bolt Holes, for 6 Pipe Size, ANSI Class 150

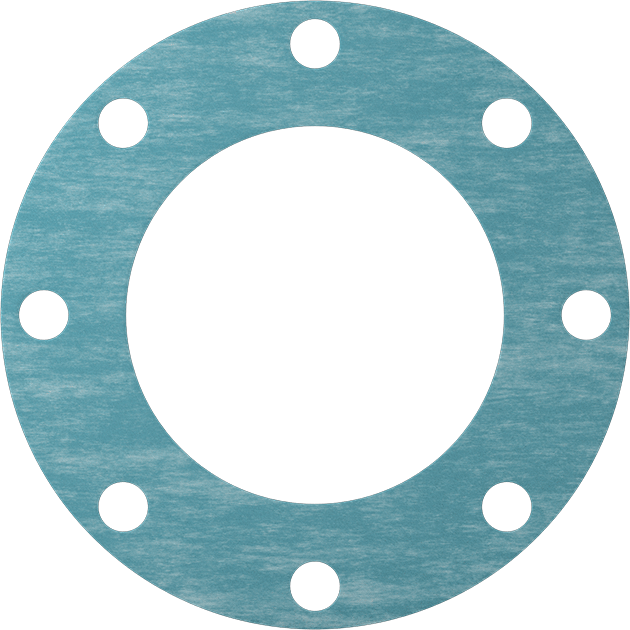

    Image of Product. Front orientation. Oil-Resistant Aramid/Buna-N Adhesive-Back Gasket, with Bolt Holes, for 6 Pipe Size, ANSI Class 150.

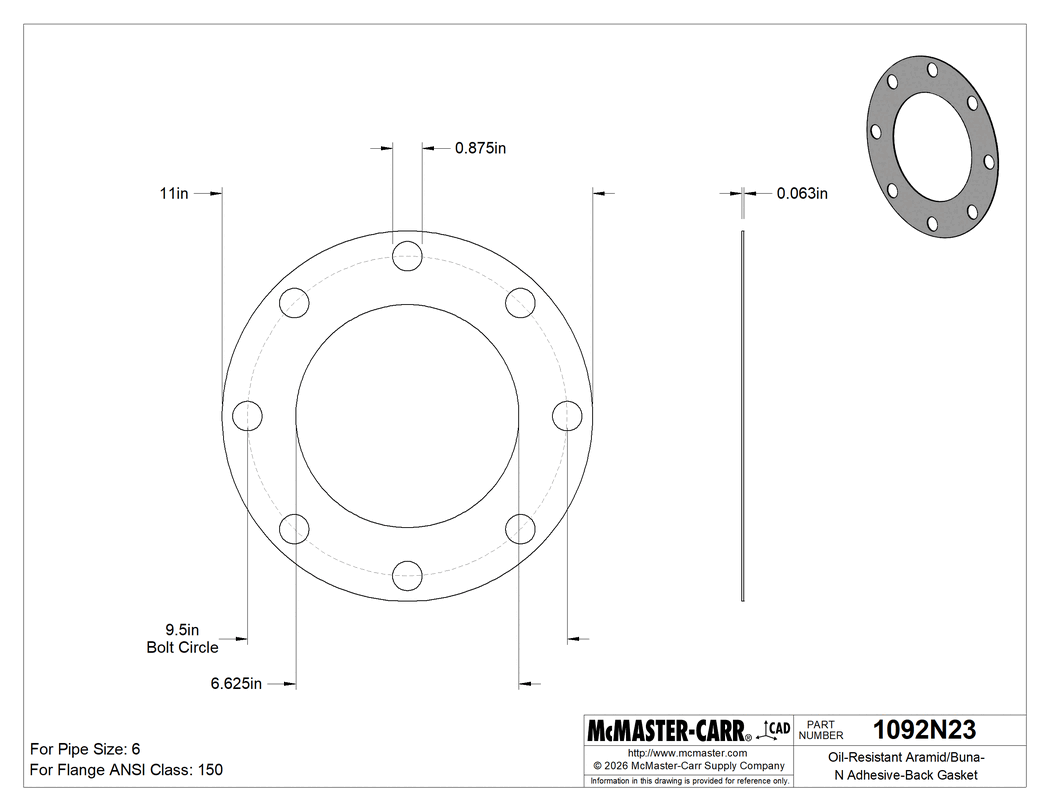

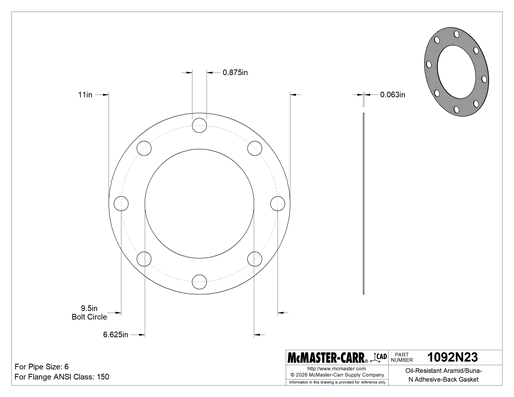

    Technical Drawing of Oil-Resistant Aramid/Buna-N Adhesive-Back Gasket, with Bolt Holes, for 6 Pipe Size, ANSI Class 150.
    Image of Product. Front orientation. Oil-Resistant Aramid/Buna-N Adhesive-Back Gasket, with Bolt Holes, for 6 Pipe Size, ANSI Class 150.
    Image of Product. Back orientation. Oil-Resistant Aramid/Buna-N Adhesive-Back Gasket, with Bolt Holes, for 6 Pipe Size, ANSI Class 150.
    Image of ProductInUse. Front orientation. Oil-Resistant Aramid/Buna-N Adhesive-Back Gasket, with Bolt Holes, for 6 Pipe Size, ANSI Class 150.

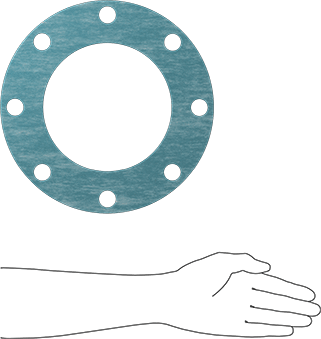

    Image of Product. Side1 orientation. Contains SizingReference. Oil-Resistant Aramid/Buna-N Adhesive-Back Gasket, with Bolt Holes, for 6 Pipe Size, ANSI Class 150.
    2-D PDF
    000000 each
    1092N23
    In stock
    1092N23
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Backing Type

    Adhesive

    For Flange Standard

    ANSI

    For Flange ANSI Class

    150

    Thickness

    1/16"

    For Pipe Size

    6

    ID

    6 5/8"

    OD

    11"

    Number of Bolt Holes

    8

    Maximum Pressure

    1,000 psi

    Temperature Range

    -100° F to 400° F

    Hardness

    Not Rated

    Color

    Blue

    Adhesive

    Material

    Acrylic Plastic

    Minimum Temperature

    Not Rated

    Maximum Temperature

    125° F

    Material

    Aramid-Reinforced Buna-N

    Performance

    Oil Resistant

    Shape

    Ring with Bolt Holes

    Country of Origin

    Mexico, United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    401693.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    These Aramid-reinforced Buna-N gaskets resist oil, water, and aliphatic hydrocarbons such as ethylene. Commonly called full-face gaskets, they cover the entire face of flat-surface pipe flanges and align with the bolt holes.

    Adhesive Backing—Adhesive-back gaskets stay in place to make installation easier.

    For ANSI Flanges—Gaskets for ANSI flanges are sized so all gasket specifications meet ANSI standards.

    For ANSI Class 150—Gaskets for ANSI Class 150 flanges are compatible with low-pressure pipe flanges.
