    MXL Series Lightweight Timing Belt Pulley

    1.24" OD

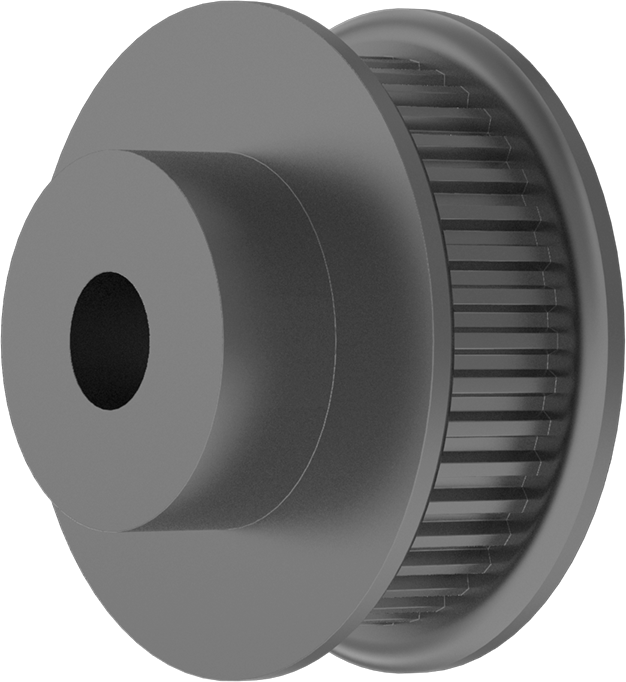

    Image of Product. Front orientation. MXL Series Lightweight Timing Belt Pulley, 1.24" OD.

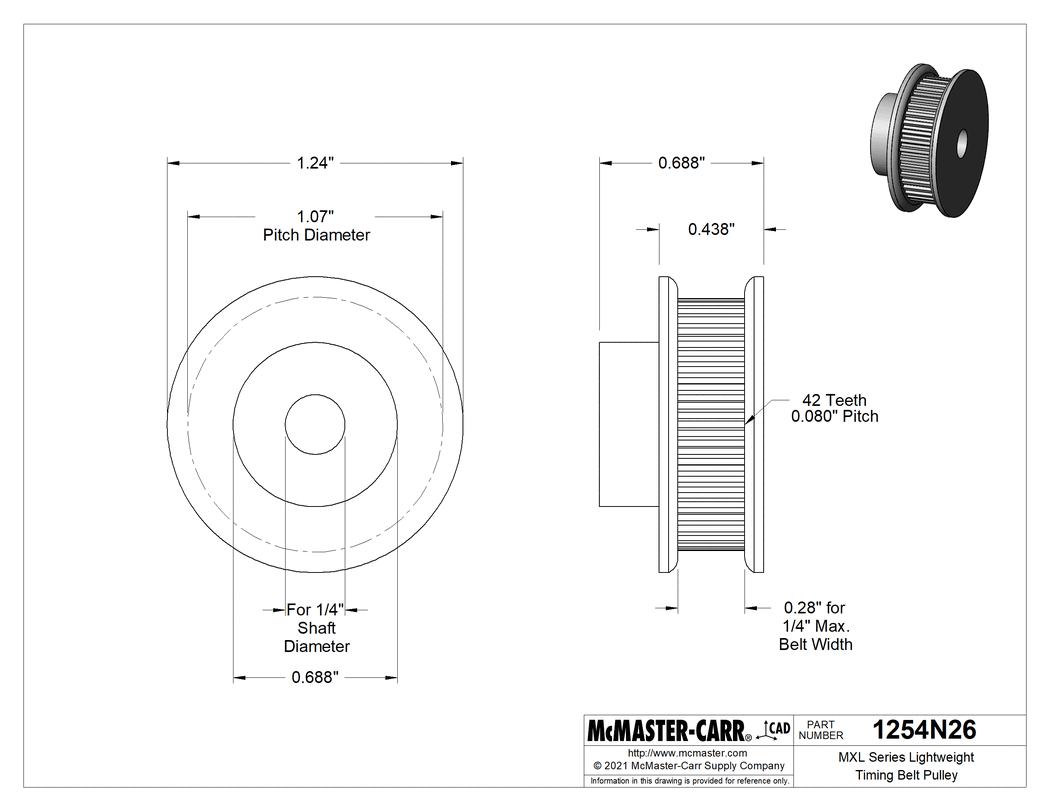

    Technical Drawing of MXL Series Lightweight Timing Belt Pulley, 1.24" OD.
    Image of Attribute. Front orientation. Contains Annotated, Border. MXL Series Lightweight Timing Belt Pulley, 1.24" OD.

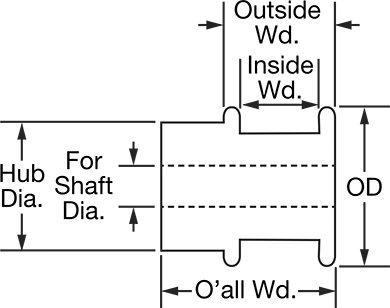

    Image of Attribute. With Hub and Two Flanges (18 Teeth or More). Front orientation. Contains Annotated. MXL Series Lightweight Timing Belt Pulley, 1.24" OD.
    With Hub and Two Flanges (18 Teeth or More)
    2-D PDF
    00000 each
    1254N26
    In stock
    1254N26
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Tooth Profile

    Trapezoidal

    For Belt Trade Size

    MXL

    Material

    Polycarbonate

    For Maximum Belt Width

    1/4"

    Pitch

    0.080"

    Number of Teeth

    42

    Bore Type

    Plain

    For Shaft Diameter

    1/4"

    Pitch Diameter

    1.07"

    Number of Flanges

    2

    Hub Type

    Standard

    Belt Type

    Timing

    Fabrication

    Molded

    Hub Diameter

    0.688"

    Inside Width

    0.28"

    OD

    1 1/4"

    Outside Width

    0.438"

    Overall Width

    0.688"

    Performance

    Lightweight

    Pulley Type

    Drive

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    848350.8080

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Naturally rust resistant and lightweight, these plastic pulleys are ideal for machines that require frequent washdowns. Trapezoidal teeth, the original tooth profile, mesh with matching belts to transmit power without slipping.

    Plain Bore—Do it your way—machine the bore to your exact shaft size or add a set screw or keyway.

    The information in this 3-D model is provided for reference only.
