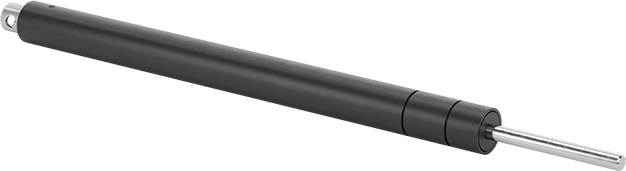

Precise-Control Linear Speed Limiter
3" Stroke Length
Speed Limiting Force | Compression |
Adjustability | Adjustable |
Adjustment Mechanism | Variable |
Stroke Length | 3" |
Extended Length | 14.71" |
Compressed Length | 11.76" |
Minimum Force | 12 lbf |
Maximum Force | 780 lbf |
Free Travel of Stroke | 0% |
Body | |
Material | Anodized Aluminum |
Diameter | 0.94" |
Rod | |
Material | Chrome-Plated Steel |
Diameter | 0.31" |
Seal Material | EPDM |
Temperature Range | 32° F to 140° F |
Force Mechanism | Oil |
Maximum Cycles | 1,500,000 |
Mounting Position | Any Angle |
Refillable | No |
Removable End Fittings | No |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(a)-I |
Schedule B Number | 848790.0080 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Regulate the speed or feed rate of drill presses, milling machines, lathes, and similar devices. These speed limiters have a knob with numbered scale so you can make precise adjustments to the resistance. Insert a rod in the mounting hole in the knob to rotate for adjustments.
A cycle is one rod stroke from extended to compressed and back to the original extended position.
0% Free Travel of Stroke—Free travel of stroke is 0%, so the entire stroke is speed controlled.

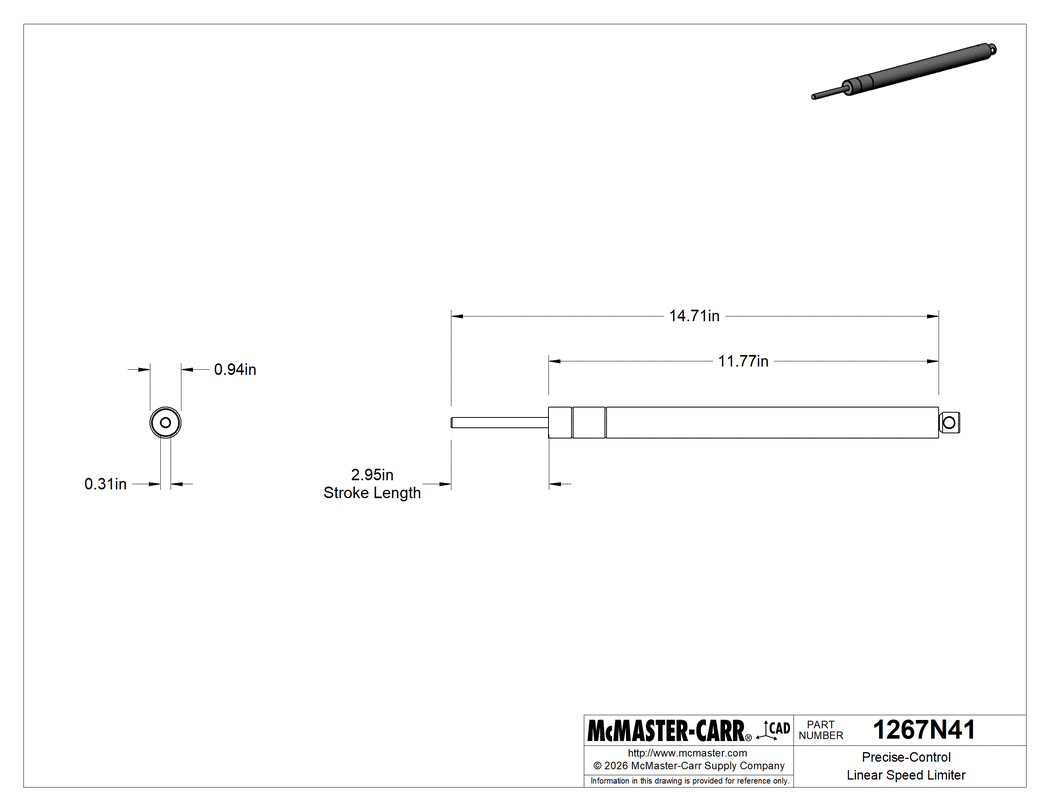

The information in this 3-D model is provided for reference only.
