    Polyethylene Screw-on Caps

    1"-14 Thread Size

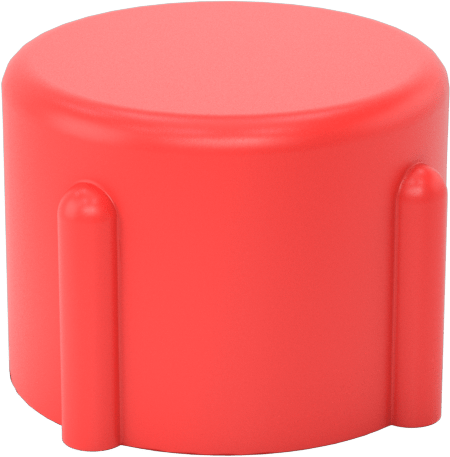

    Image of Product. Bottom orientation. Polyethylene Screw-on Caps, 1"-14 Thread Size.

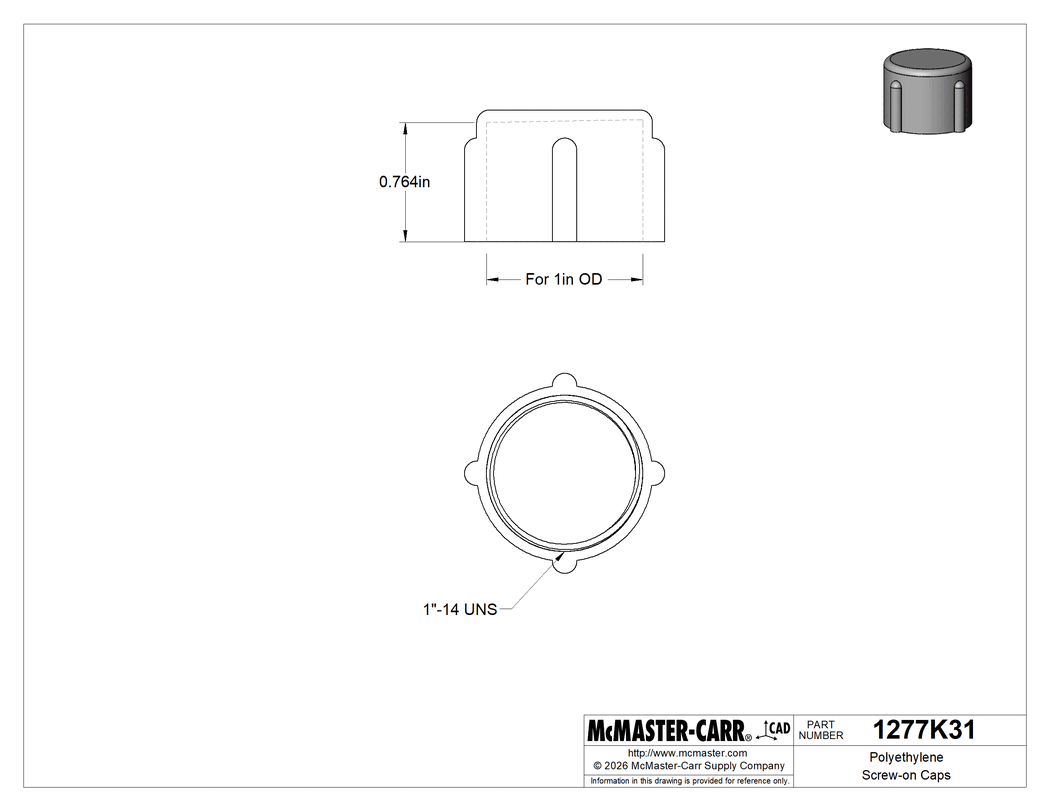

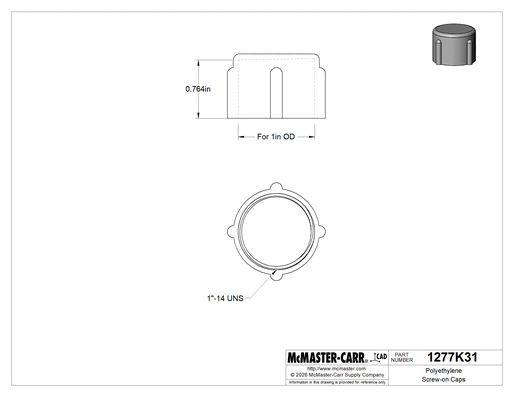

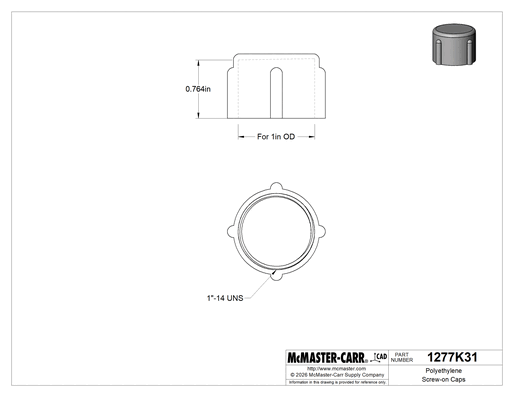

    Technical Drawing of Polyethylene Screw-on Caps, 1"-14 Thread Size.
    Image of Product. Bottom orientation. Polyethylene Screw-on Caps, 1"-14 Thread Size.

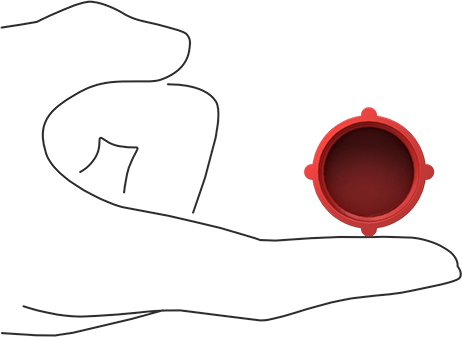

    Image of Product. Side1 orientation. Contains SizingReference. Polyethylene Screw-on Caps, 1"-14 Thread Size.
    2-D PDF
    000000 per pack of 100
    1277K31
    In stock
    1277K31
    000000 per pack of 100
    Pack of 100
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Use With

    Pipe, Rods, Tubing

    Material

    Polyethylene

    Compatible Connection

    Straight-Thread Pipe Fittings

    Thread

    Size

    1"-14

    Type

    UNS

    For OD

    1"

    Inside Height

    25/32"

    Flexibility

    Rigid

    Maximum Temperature

    150° F

    Color

    Red

    Attachment Type

    Screw On

    For Shape

    Round

    Performance

    Chemical Resistant, High Visibility

    Profile Shape

    Straight

    System of Measurement

    Inch

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    392350.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Thread onto male pipe and fittings for the most secure fit. These caps keep dust, paint, and coatings out of threads and pipe. They also protect from damage during manufacturing, shipping, and storage.

    Polyethylene—These tough caps are hard and wear resistant to hold up against scrapes and gouges.

    The information in this 3-D model is provided for reference only.
