    Panel-Mount RJ45 Adapter

    Shielded Screw-on, Zinc, Category 6A, 4-40 UNC Holes

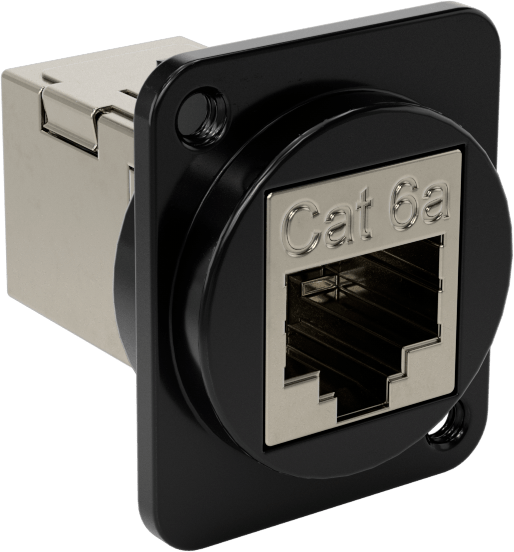

    Image of Product. Front orientation. Panel-Mount RJ45 Adapter, Shielded Screw-on, Zinc, Category 6A, 4-40 UNC Holes.

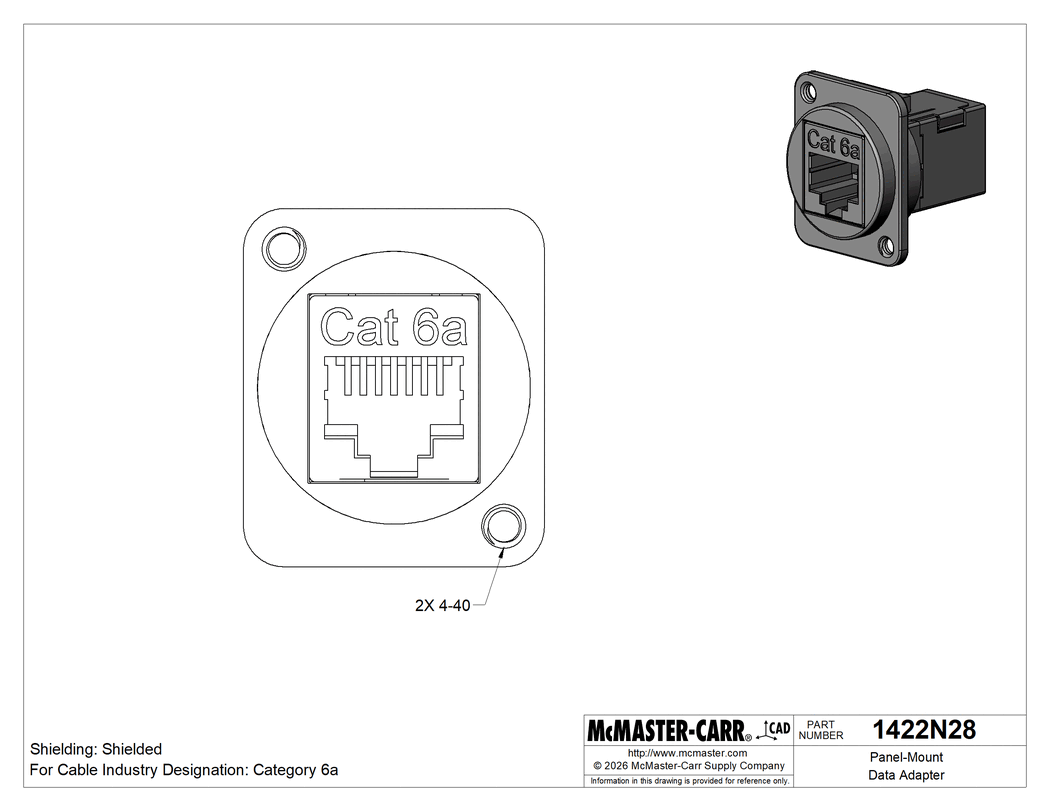

    Technical Drawing of Panel-Mount RJ45 Adapter, Shielded Screw-on, Zinc, Category 6A, 4-40 UNC Holes.
    Image of Product. Back orientation. Panel-Mount RJ45 Adapter, Shielded Screw-on, Zinc, Category 6A, 4-40 UNC Holes.
    Image of Product. Back orientation. Panel-Mount RJ45 Adapter, Shielded Screw-on, Zinc, Category 6A, 4-40 UNC Holes.

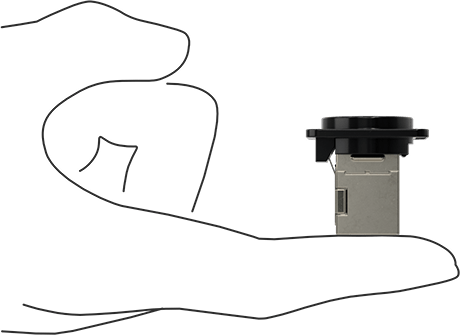

    Image of Product. Side1 orientation. Contains SizingReference. Panel-Mount RJ45 Adapter, Shielded Screw-on, Zinc, Category 6A, 4-40 UNC Holes.
    2-D PDF
    000000 each
    1422N28
    In stock
    1422N28
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Shielding

    Shielded

    Mount Type

    Screw On

    Electrical Connector Component

    Adapter

    Connections

    RJ45 Female × RJ45 Female

    Housing Material

    Zinc

    Mounting Hole Thread Type

    UNC

    Ethernet Cable Category

    6A

    For Panel Cutout Diameter

    0.95"

    Mounting

    Fasteners Included

    Yes

    Number of Holes

    2

    Color

    Black

    Mounting Hole Thread Size

    4-40

    Mounting Location

    Panel

    Number of Wires

    8

    Shape

    Straight

    Signal Type

    Data

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    853669.5050

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Mount these adapters in a panel cutout.

    Shielded—Shielded adapters protect equipment from electromagnetic interference.

    RJ45 Female × RJ45 Female—These adapters have an RJ45 female connection on both ends to join two Ethernet cords.

    Zinc Housing—Zinc adapters are more durable than plastic adapters.
