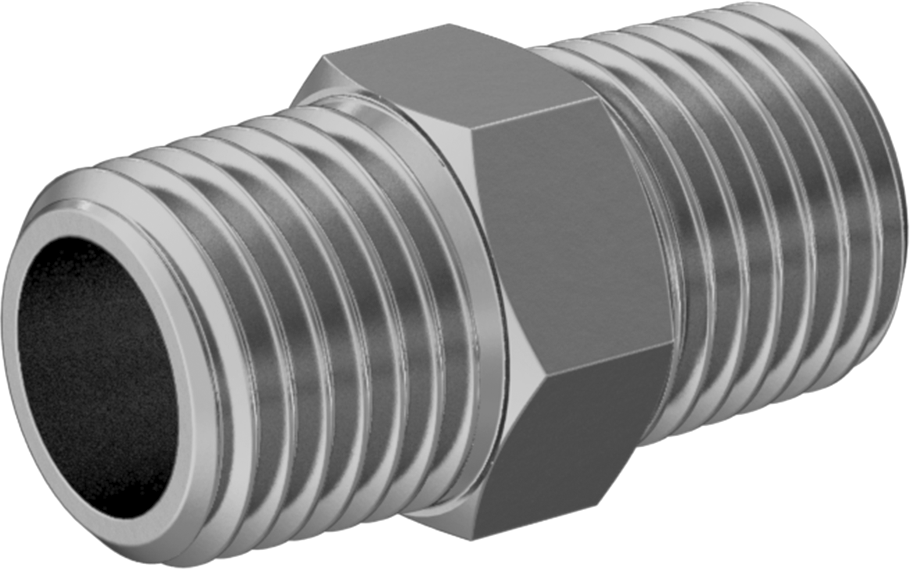

Threaded Brass Pipe Fitting for Drinking Water
High-Pressure, Straight Connector, 1/4 NPTF Male

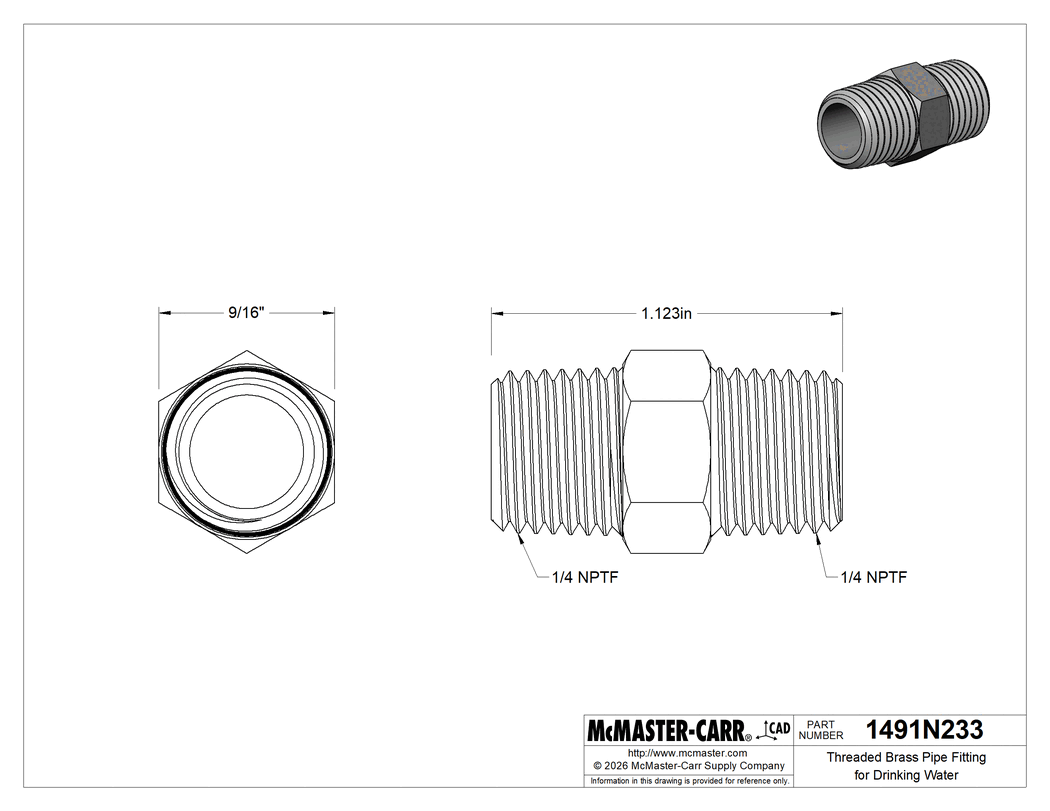

2-D PDF
00000 each
1491N233
In stock
1491N233
00000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Pressure Rating | High Pressure |
Shape | Straight |
Fitting Type | Connector |
Fitting Connection | NPTF Male |
Pipe Size | 1/4 |
Body Shape | Hex |
Material | Brass |
Maximum Pressure @ Temperature | 1,000 psi @ 72° F |
Connects To | Pipe |
Environment | Food and Beverage |
Fabrication | Machined |
Food Industry Standard | NSF/ANSI 61 |
For Use With | Drinking Water |
Hex Width | 9/16" |
Length | 1 1/8" |
Performance | Corrosion Resistant |
System of Measurement | Inch |
Threading | Threaded on Both Ends |
Country of Origin | India |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 741220.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Use these heavy duty fittings for high-pressure drinking water applications. They are brass which has good corrosion resistance. They meet NSF/ANSI 61 safety standards for use with drinking water systems.
NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.
NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.
