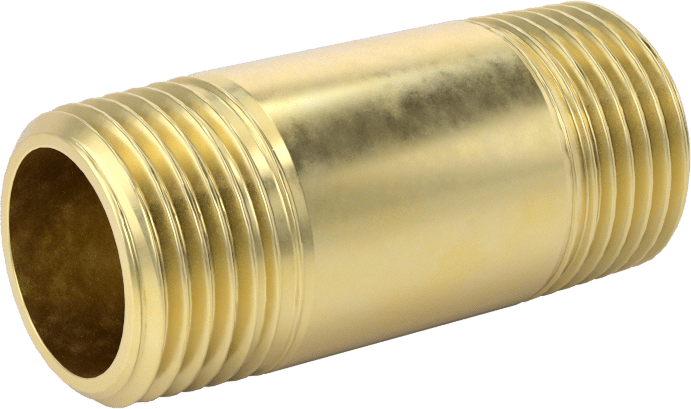

Brass Threaded Pipe Nipple for Drinking Water
High-Pressure, Threaded on Both Ends, 3/8 NPT, 1-1/2" Long

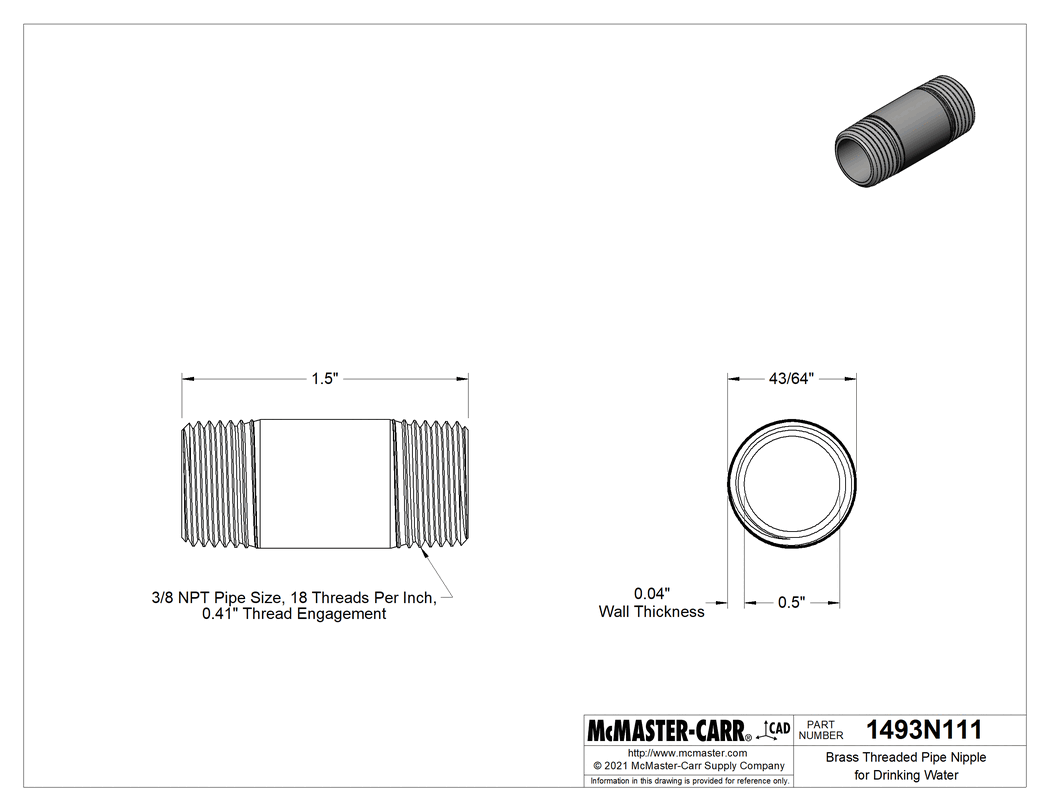

2-D PDF
00000 each
1493N111
In stock
1493N111
00000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Pressure Rating | High Pressure |
Shape | Straight |
Fitting Type | Pipe |
Threading | Threaded on Both Ends |
Fitting Connection | NPT Male |
Pipe Size | 3/8 |
Length | 1 1/2" |
Material | Brass |
Maximum Pressure @ Temperature | 1,000 psi @ 72° F |
Connects To | Pipe |
Environment | Food and Beverage |
Fabrication | Machined |
Food Industry Standard | NSF/ANSI 61 |
For Use With | Drinking Water |
ID | 0.5" |
OD | 43/64" |
Performance | Corrosion Resistant |
System of Measurement | Inch |
Wall Thickness | 0.04" |
Country of Origin | India |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 741220.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Use this heavy duty pipe for high-pressure drinking water applications. It is brass, which has good corrosion resistance. It meets NSF/ANSI 61 safety standards for use with drinking water systems.
NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.
The information in this 3-D model is provided for reference only.
