    Rod Wiper for Open Grooves

    for 2-1/4" Rod Diameter

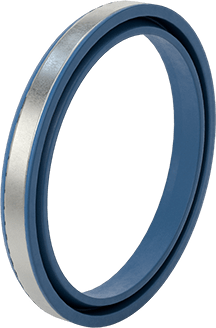

    Image of Product. Front orientation. Rod Wiper for Open Grooves, for 2-1/4" Rod Diameter.

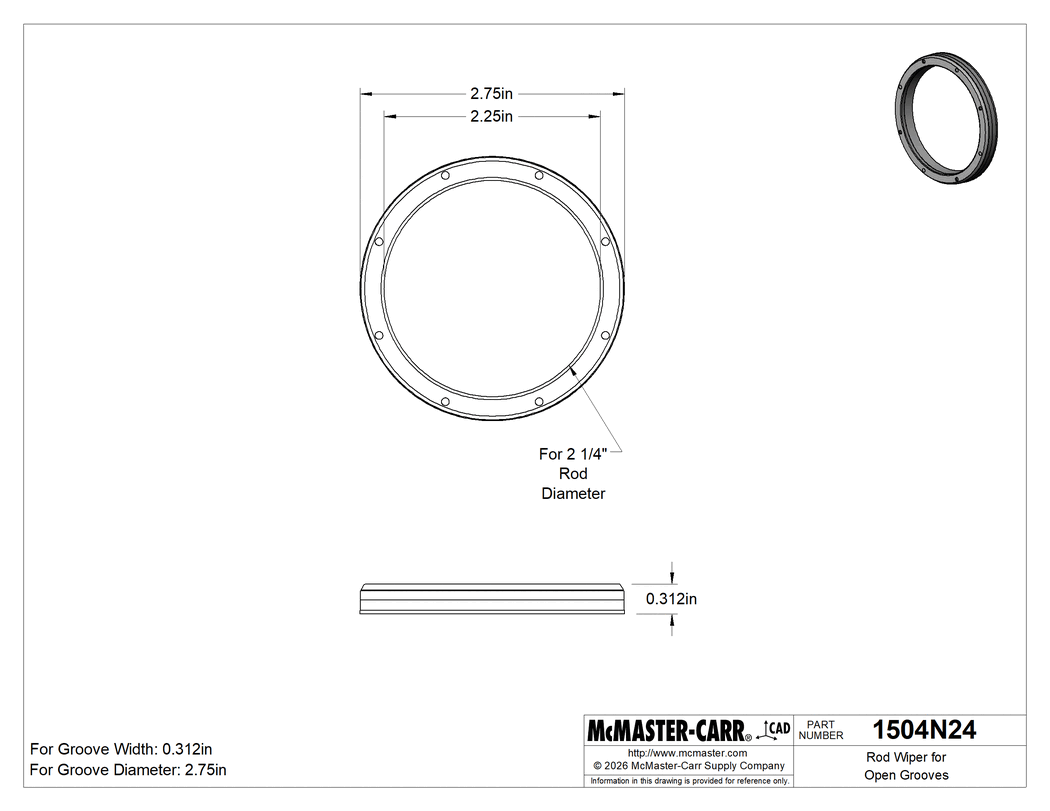

    Technical Drawing of Rod Wiper for Open Grooves, for 2-1/4" Rod Diameter.

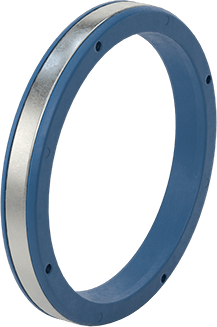

    Image of Product. Back orientation. Rod Wiper for Open Grooves, for 2-1/4" Rod Diameter.

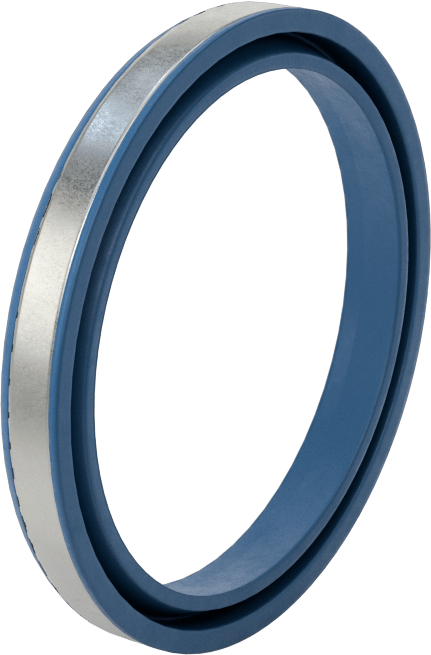

    Image of Product. Side1 orientation. Contains SizingReference. Rod Wiper for Open Grooves, for 2-1/4" Rod Diameter.
    2-D PDF
    000000 each
    1504N24
    In stock
    1504N24
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Sealing

    Rods

    For Groove Type

    Open

    Material

    Polyurethane Rubber

    Case Material

    Steel

    For Rod Diameter

    2 1/4"

    For Groove

    Diameter

    2.750"

    Width

    0.312"

    Maximum Speed

    4.9 ft/sec

    Temperature Range

    -50° F to 250° F

    Hardness

    Durometer 95A (Extra Hard)

    Color

    Blue

    Cylinder Seal Type

    Rod Wiper

    Environment

    Food and Beverage

    For Cylinder Type

    Hydraulic, Air Powered

    For Shaft Motion

    Reciprocating

    For Use With

    Animal Oil
    Boric Acid
    Calcium Hydroxide
    Citric Acid
    Diluted Salt Solutions
    Ethylene Glycol
    Food
    Fuel
    Glycerin
    Grease
    Hydraulic Oil
    Mineral Oil
    Motor Oil
    Oil
    Petroleum
    R-12 Refrigerant
    Sodium Bicarbonate (Baking Soda)
    Synthetic Lubricants
    Transmission Fluid
    Vegetable Oil
    Water

    Maximum Pressure

    Not Rated

    Reinforcement Type

    Case

    Seal

    ID

    2.250"

    OD

    2.750"

    Width

    0.312"

    System of Measurement

    Inch

    Country of Origin

    United States, Mexico

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    392690.4500

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Replace wipers in open-groove cylinders—these wipers have an integral steel case that press fits into the groove around the rod.

    Note: Maximum performance values cannot be achieved simultaneously; for example, speed is affected by pressure, temperature, and other operating conditions.

    The information in this 3-D model is provided for reference only.
