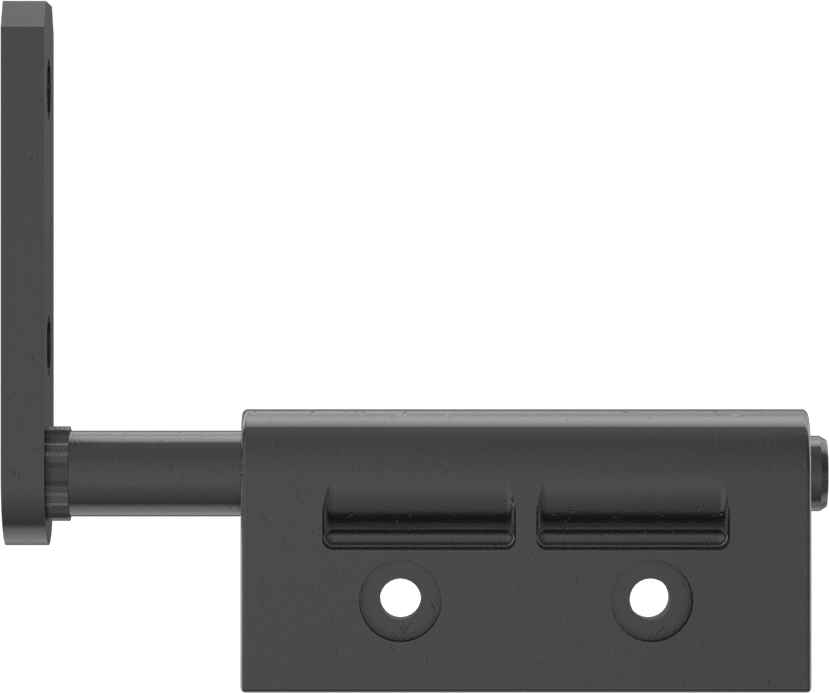

360 Degree Friction Hinge
Side Door Mount, Black Zinc, 7/16" x 1-3/8" Door Leaf
Mounting Location | Surface |
Movement | 360° Rotation |
Style | 3 |
Torque | 10 in·lbf |
Door Leaf | |
Height | 7/16" |
Width | 1 3/8" |
Range of Motion | 360° |
Frame Leaf | |
Height | 1 5/8" |
Width | 13/16" |
Color | Black |
Material | Painted Zinc Alloy |
Door Mounting Location | Left Side, Right Side |
Mounting Holes | |
Holes | With Holes |
Number of | 4 |
Fasteners Included | No |
Screw Size | No. 4, No. 8 |
Style | Straight |
For Door Type | Cabinet, Chest, Enclosure, Hatch |
Hinge Type | Friction |
Leaf Thickness | 0.375" |
Mount Type | Screw On |
Pin Diameter | 1/4" |
Pin Material | Steel |
Pin Type | Nonremovable |
Weight Capacity | Not Rated |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 830210.4090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Position lids, panels, guards, and displays at any angle and resistance keeps them in place.
Black Painted Zinc Alloy—The dark finish blends in or stands out. Zinc hinges hold up to moisture but aren’t as strong as steel hinges.

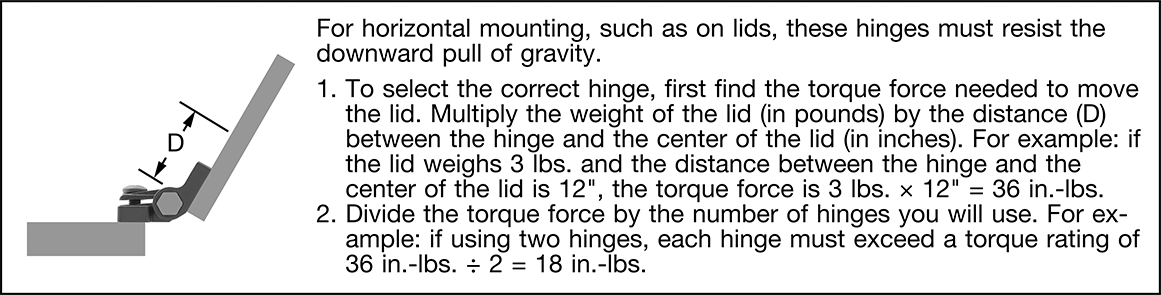

Torque—When selecting a hinge to use with a lid, first find the torque force needed to move the lid. Multiply the weight of the lid (in pounds) by the distance between the hinge and the center of the lid (in inches). For example: if the lid weighs 3 lbs. and the distance between the hinge and the center of the lid is 12", the torque force is 3 lbs. × 12"= 36 in.-lbs. Divide the torque force by the number of hinges. For example, if using two hinges 36 in.-lbs. ÷ 2 = 18 in.-lbs. each.

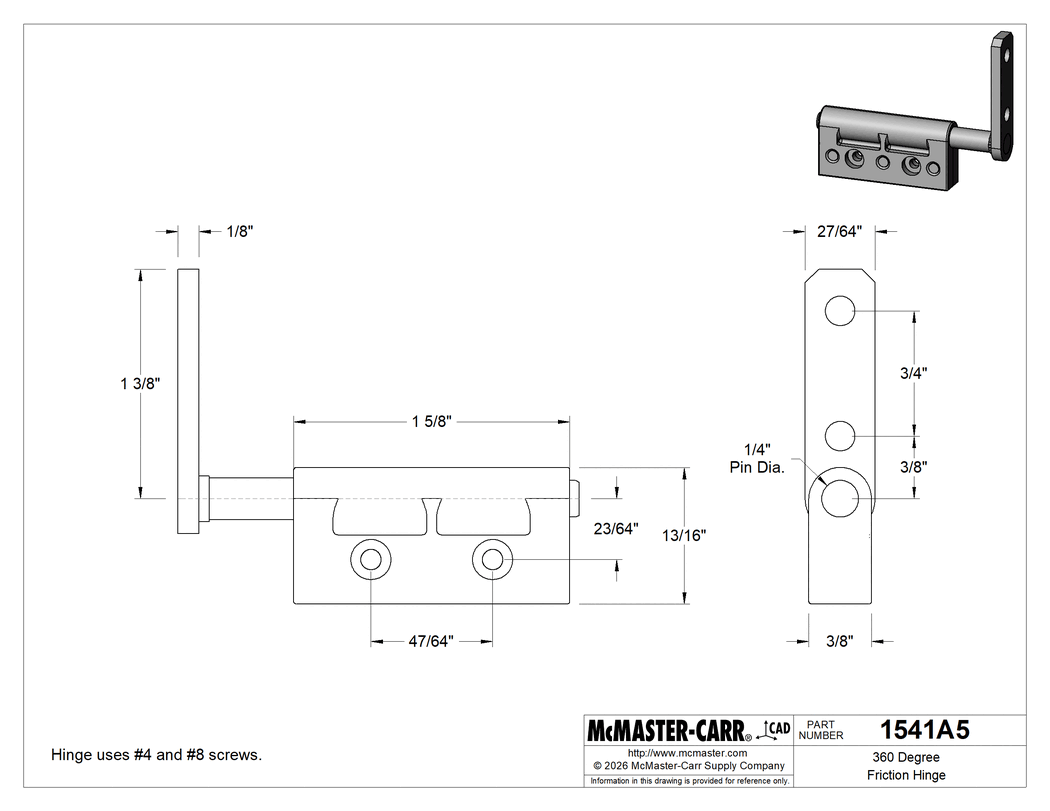

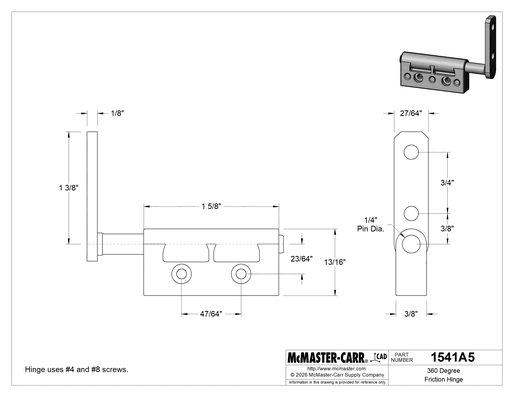

The information in this 3-D model is provided for reference only.
