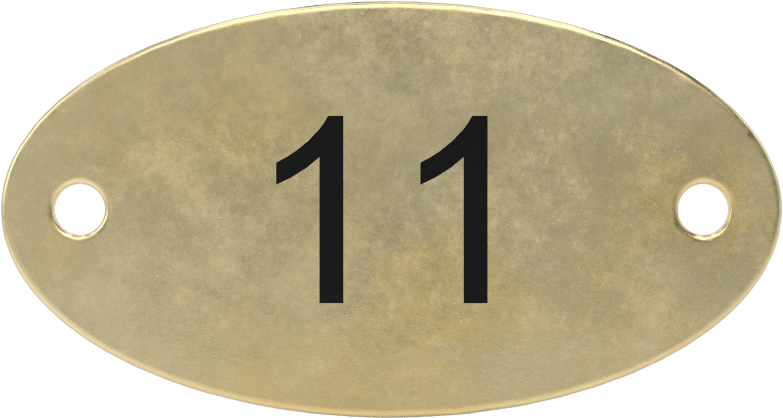

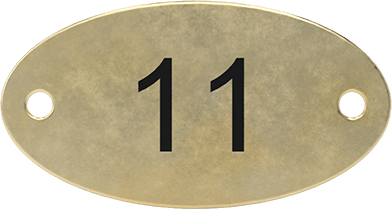

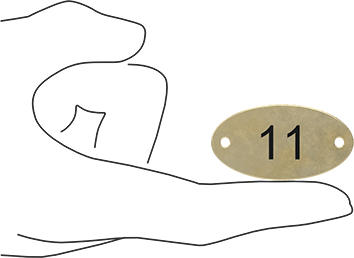

Numbered Plate
Brass, 1" High x 1-7/8" Wide
2-D PDF
00000 each
1576T224
Please specify a starting number up to 15 digits.
Ships by next week
Please specify a starting number up to 15 digits.
1576T224
1-49 each00000
50 or more00000
Each
Select a compatible file type: Parasolid
Learn more about our Solidworks Add-In
Material | Brass |
Style | A |
Shape | Oval |
Height | 1" |
Width | 1 7/8" |
Thickness | 0.04" |
Message Color | Black |
Maximum Temperature | 1,800° F |
Mounting Holes | |
Number of | 2 |
Diameter | 1/8" |
Center-to-Center | 1 1/2" |
Character | Made-to-Order |
Character Finish | Enamel Coated |
Message | Sequential Numbers, Made-to-Order |
Message Contains | Text |
Message Type | Identification, Made-to-Order |
Mount Type | Mounting Hole |
Visibility | Standard |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 831000.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Specify the number series you need to label machinery, storage areas, and completed work in sequence. The largest character size will be used, up to 1/2" high.
Brass—Brass plates withstand abrasion and wear better than aluminum plates.
Style A—For styles A and B, please specify a starting number up to 15 digits.

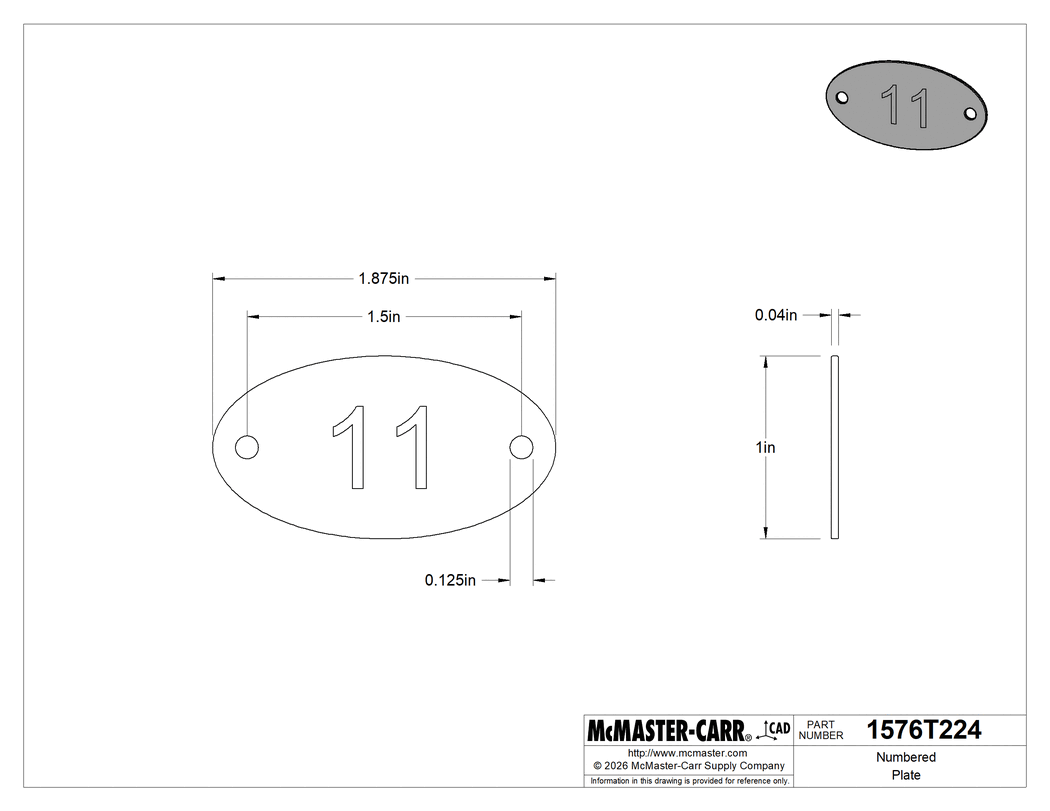

The information in this 3-D model is provided for reference only.
