    Screw-In Hydraulic Pressure-Relief Valve

    Detrol Equivalent Model Drv2-080-N-K-4, 3/4"-16 Thread

    Image of Product. Front orientation. Screw-In Hydraulic Pressure-Relief Valve, Detrol Equivalent Model Drv2-080-N-K-4, 3/4"-16 Thread.

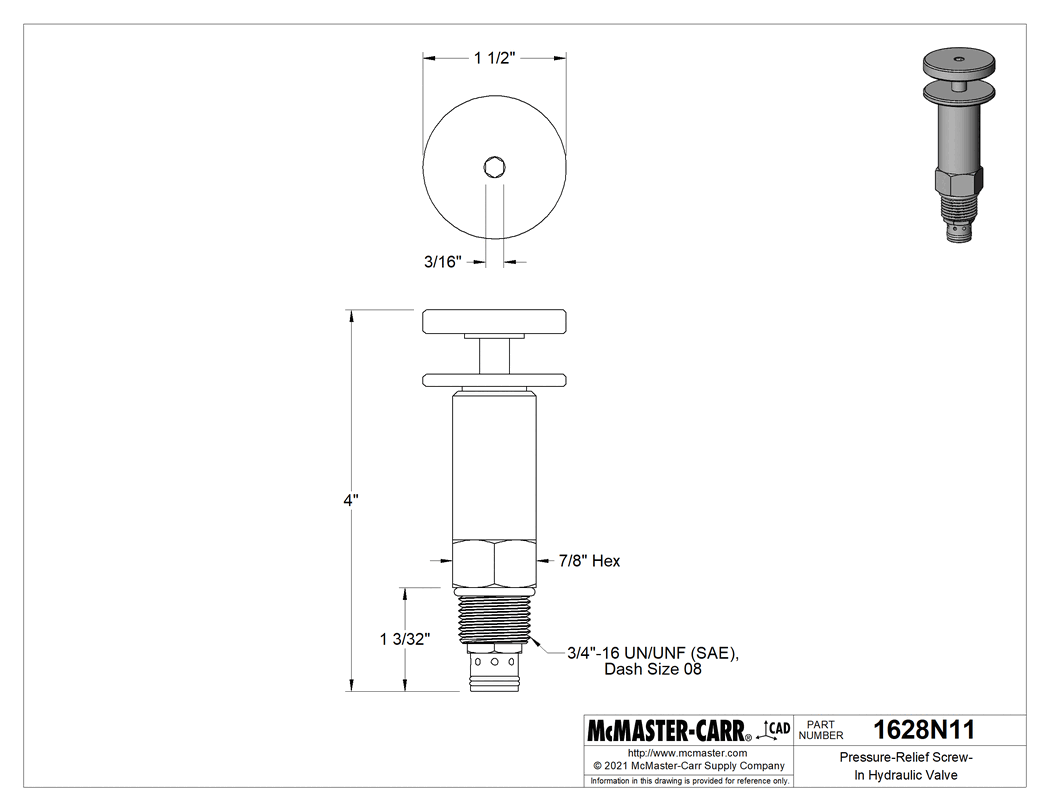

    Technical Drawing of Screw-In Hydraulic Pressure-Relief Valve, Detrol Equivalent Model Drv2-080-N-K-4, 3/4"-16 Thread.
    2-D PDF
    000000 each
    1628N11
    In stock
    1628N11
    000000 each
    Each
    In stock
    Learn more about our Solidworks Add-In
    Material

    Body

    Anodized Aluminum

    Seal

    Buna-N

    Deltrol Equivalent Model No.

    DRV2-080-N-K-4

    Body—UN/UNF (SAE Straight)

    Thread Size

    3/4"-16

    Thread Type

    UN/UNF (SAE Straight)

    Dash Size

    08

    Maximum Flow Rate

    10 gpm

    Maximum Pressure

    3,000 psi

    Set Pressure

    Range

    100 psi to 400 psi

    Accuracy

    Not Rated

    Configuration

    Adjustable

    Adjustment Method

    Knob

    Overall Height

    4"

    For Use With

    Hydraulic Fluid

    Valve Type

    Relief

    Actuation

    Pressure

    Manufacturer Equivalent - A

    Deltrol

    Number of Inlet Ports

    1

    Number of Relief Ports

    1

    Return Actuation

    Spring

    Total Number of Ports

    2

    Valve Function

    Pressure Relief

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(a)

    Schedule B Number

    848140.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Set a specific pressure and these valves will maintain it. Also known as cartridge valves, these compact valves screw into your mounting block. They begin opening at the set pressure and fully open at about 20% over the set pressure. They begin closing as pressure drops and fully close when the system pressure is restored below the set pressure.
