Magnetic Latch
Surface Mount, Screw on, Dull Aluminum, 7 lbs. Maximum Pull

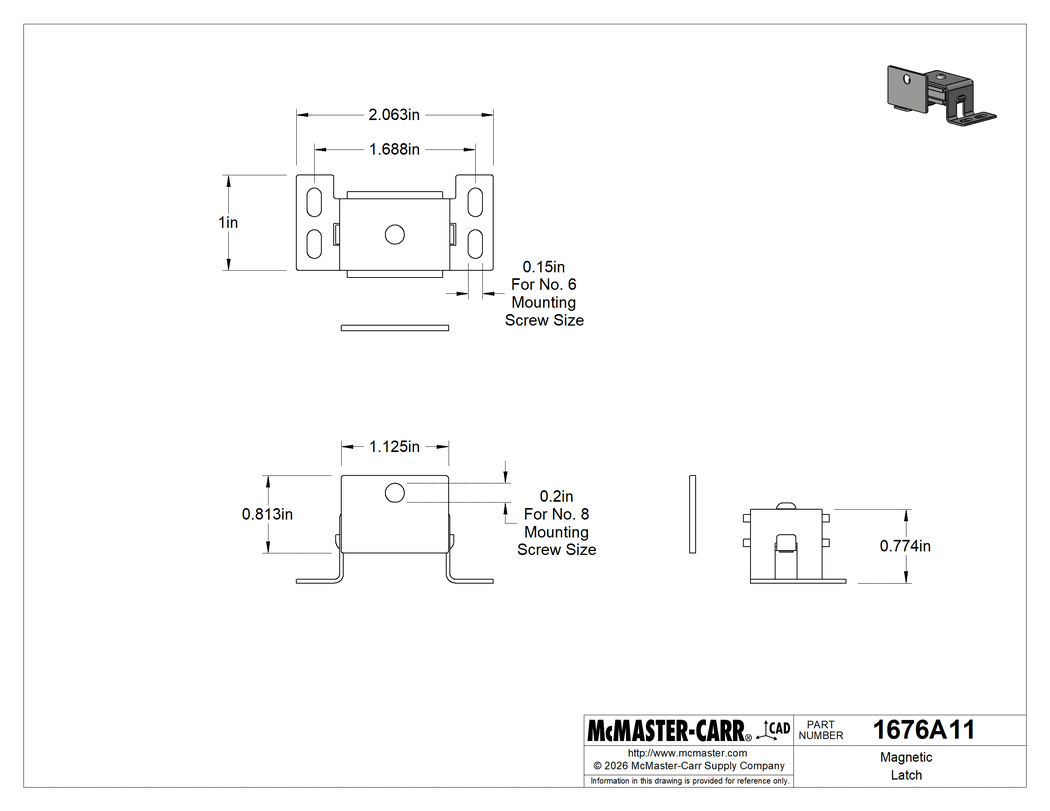

2-D PDF
00000 each
1676A11
In stock
1676A11
00000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.

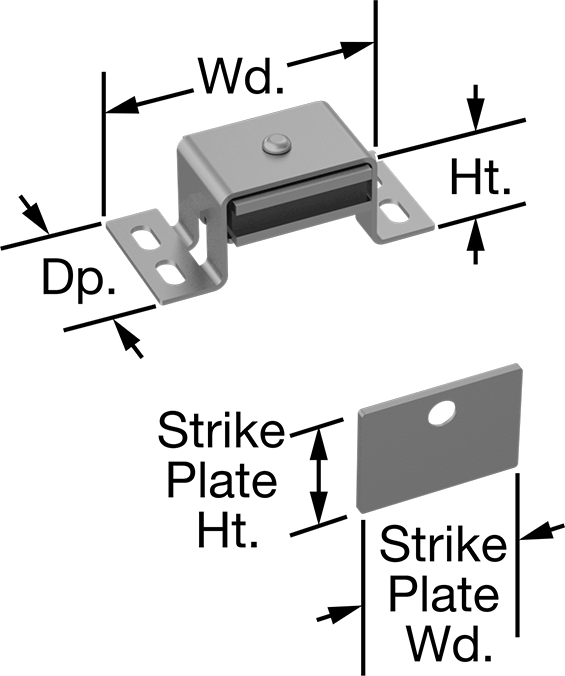

Mounting | |
Location | Surface |
Fasteners Included | Yes |
Screw Size | No. 6, No. 8 |
Mount Type | Screw On |
Material | Aluminum |
Appearance | Dull |
Style | 1 |
Maximum Pull Strength | 7 lbf |
Height | 3/4" |
Width | 2 1/16" |
Depth | 1" |
Mounting Hole Center-to-Center | 7/16", 1 11/16" |
Strike Plate | |
Material | Steel |
Height | 13/16" |
Width | 1 1/8" |
Push-to-Close Latch Type | Nonlocking |
Temperature Range | |
Minimum | Not Rated |
Maximum | Not Rated |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 830242.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Often used on audio/visual cabinets, magnetic force keeps your doors closed.
Note: Maximum pull-strength rating given is based on installation with the furnished strike plate; pull strength may be different based on the application.
The information in this 3-D model is provided for reference only.
