    Zinc-Plated Steel Tool Holder

    3/4"-1-1/8" Tool Diameter

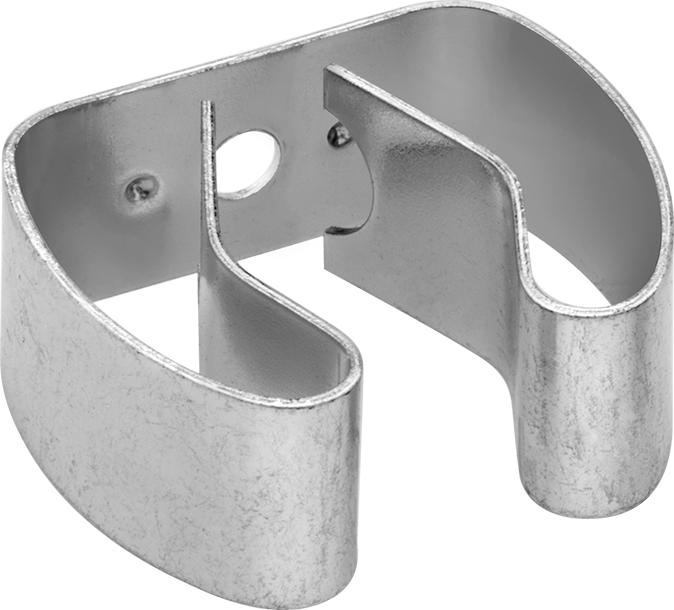

    Image of Product. Front orientation. Zinc-Plated Steel Tool Holder, 3/4"-1-1/8" Tool Diameter.

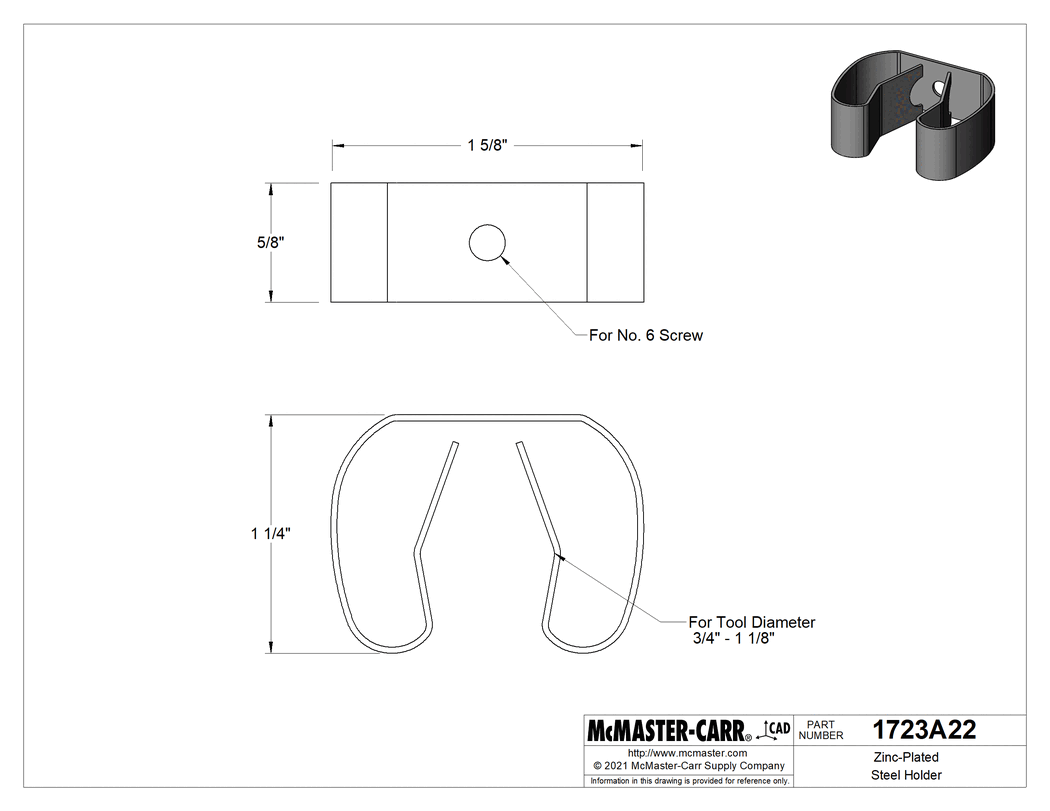

    Technical Drawing of Zinc-Plated Steel Tool Holder, 3/4"-1-1/8" Tool Diameter.
    2-D PDF
    000000 per pack of 10
    1723A22
    In stock
    1723A22
    000000 per pack of 10
    Pack of 10
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Mounting Location

    Wall

    Style

    A

    For Item Diameter

    3/4" to 1 1/8"

    Overall

    Width

    1 5/8"

    Height

    5/8"

    Depth

    1 1/4"

    Weight Capacity

    Not Rated

    Material

    Zinc-Plated Steel

    Appearance

    Dull

    Number of Mounting Holes

    1

    Screw Size

    No. 6

    Mounting Fasteners Included

    Yes

    Mount Type

    Screw

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    732690.8695

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Store tools such as brooms, cordless drills, screwdrivers, and flashlights.

    Style A—Styles A-G are spring clips that securely hold tools.

    The information in this 3-D model is provided for reference only.
