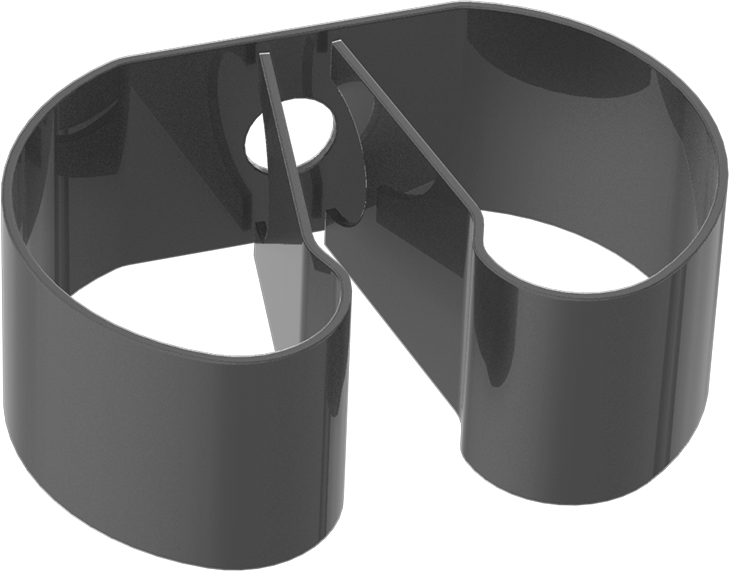

Vinyl-Coated Steel Tool Holder
3/8"-5/8" Tool Diameter

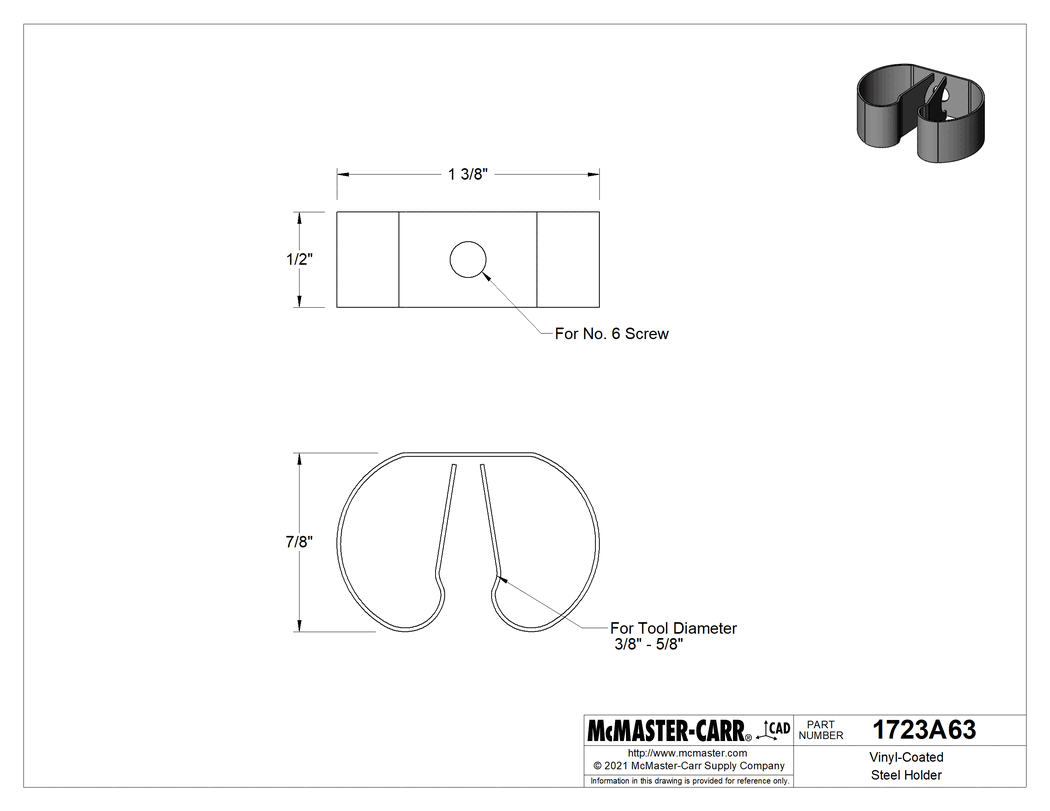

2-D PDF
00000 per pack of 1
1723A63
In stock
1723A63
00000 per pack of 1
Pack of 1
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Mounting Location | Wall |
Style | A |
For Item Diameter | 3/8" to 5/8" |
Overall | |
Width | 1 3/8" |
Height | 1/2" |
Depth | 7/8" |
Weight Capacity | Not Rated |
Material | Black Vinyl-Coated Steel |
Number of Mounting Holes | 1 |
Screw Size | No. 6 |
Mounting Fasteners Included | Yes |
Mount Type | Screw |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732690.8695 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Store tools such as brooms, cordless drills, screwdrivers, and flashlights.
Style A—Styles A-G are spring clips that securely hold tools.
Vinyl-Coated Steel—Nylon-coated and vinyl-coated holders protect items from scratches.
The information in this 3-D model is provided for reference only.
