    Low-Profile Break-Through Multi-Cord Grip

    Submersible, for 78 Cords, M50 Knockout Trade Size

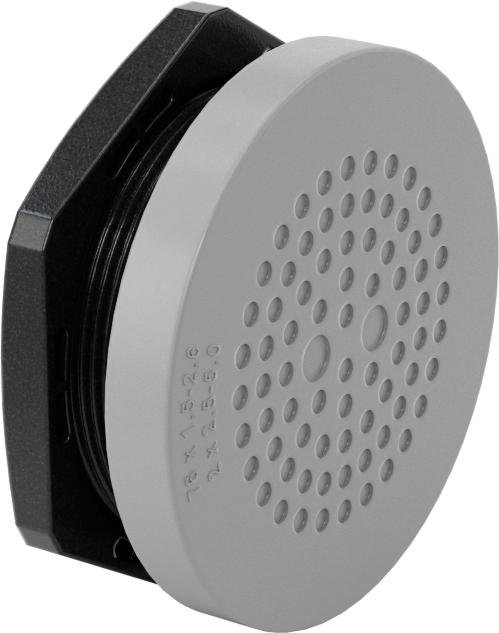

    Image of Product. Front orientation. Low-Profile Break-Through Multi-Cord Grip, Submersible, for 78 Cords, M50 Knockout Trade Size.

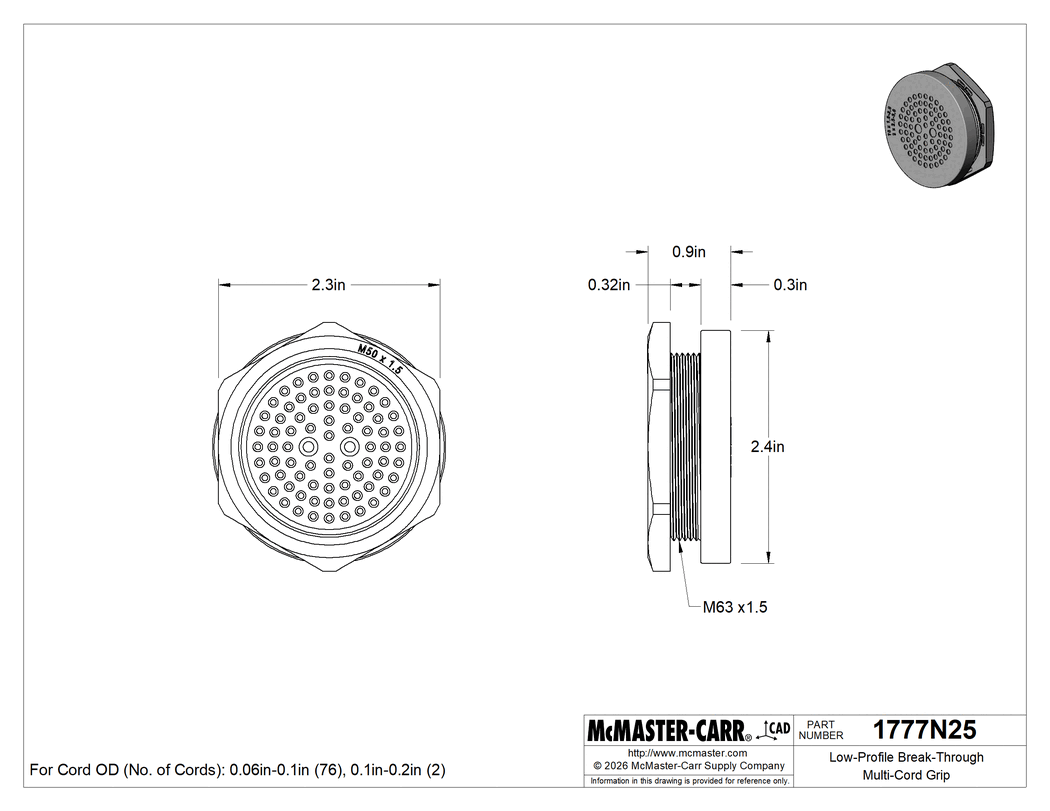

    Technical Drawing of Low-Profile Break-Through Multi-Cord Grip, Submersible, for 78 Cords, M50 Knockout Trade Size.

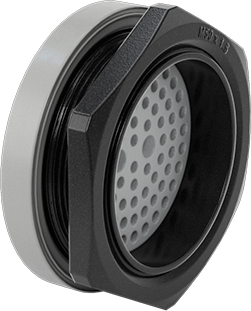

    Image of Product. Back orientation. Low-Profile Break-Through Multi-Cord Grip, Submersible, for 78 Cords, M50 Knockout Trade Size.

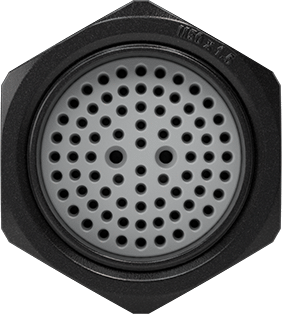

    Image of Product. Back orientation. Low-Profile Break-Through Multi-Cord Grip, Submersible, for 78 Cords, M50 Knockout Trade Size.
    Image of Product. Side1 orientation. Contains SizingReference. Low-Profile Break-Through Multi-Cord Grip, Submersible, for 78 Cords, M50 Knockout Trade Size.
    2-D PDF
    000000 each
    1777N25
    In stock
    1777N25
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Mounting Location

    Knockout

    Material

    Gray Nylon

    For Total Number of Cords

    78

    Shape

    Straight

    For Cord OD (No. of Cords)

    0.06" to 0.1" (76), 0.1" to 0.2" (2)

    For Knockout Trade Size

    M50

    Thread Type

    Metric

    For Maximum Panel Thickness

    0.32"

    Temperature Range

    -40° F to 190° F

    Features

    Nylon Plastic Locknut

    Enclosure Rating

    NEMA 4X, NEMA 12, IP66, IP68

    Certification

    UL Recognized Component, C-UL Recognized Component, DNV-GL Type Approved

    Cord Holding Type

    Break-Through Seal

    Environment

    Corrosive, Dusty, Wet, Oily, Outdoor, Submersible, Washdown

    Flammability Rating

    UL 94 V-0

    Flexibility

    Rigid

    For Cord Shape

    Round

    Knockout Connection

    Threaded

    Seal Material

    Rubber

    Thread Size

    M50

    Country of Origin

    Germany

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    392690.9988

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    The face of these panels is flush with the cable-entry point for a seamless appearance. They have a thin, flexible seal that covers the holes until you push a cord through.

    NEMA 4X Enclosure Rating—Panels are rated IP66, IP68, NEMA 4X, and NEMA 12 for protection from continuous submersion, washdowns and oil/coolant splashing.

    NEMA 12 Enclosure Rating—Panels are rated IP66, IP68, NEMA 4X, and NEMA 12 for protection from continuous submersion, washdowns and oil/coolant splashing.

    IP66 Enclosure Rating—Panels are rated IP66, IP68, NEMA 4X, and NEMA 12 for protection from continuous submersion, washdowns and oil/coolant splashing.

    IP68 Enclosure Rating—Panels are rated IP66, IP68, NEMA 4X, and NEMA 12 for protection from continuous submersion, washdowns and oil/coolant splashing.
