    Tight-Hold Draw Latch

    with Safety Catch, Zinc-Steel, 2-3/4" Long x 1-1/8" Wide

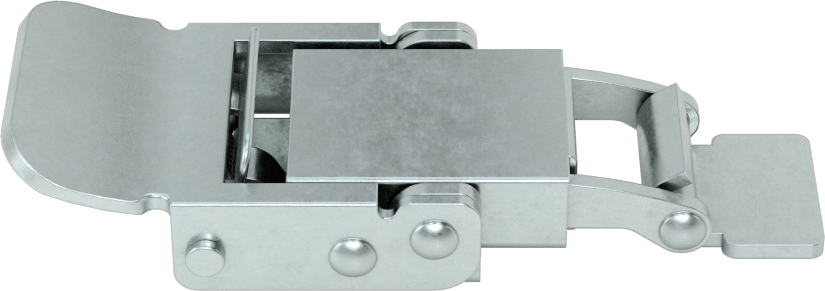

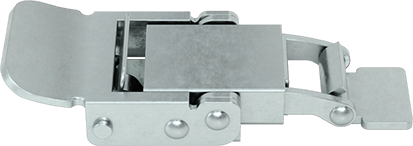

    Image of Product. Bottom orientation. Tight-Hold Draw Latch, with Safety Catch, Zinc-Steel, 2-3/4" Long x 1-1/8" Wide.

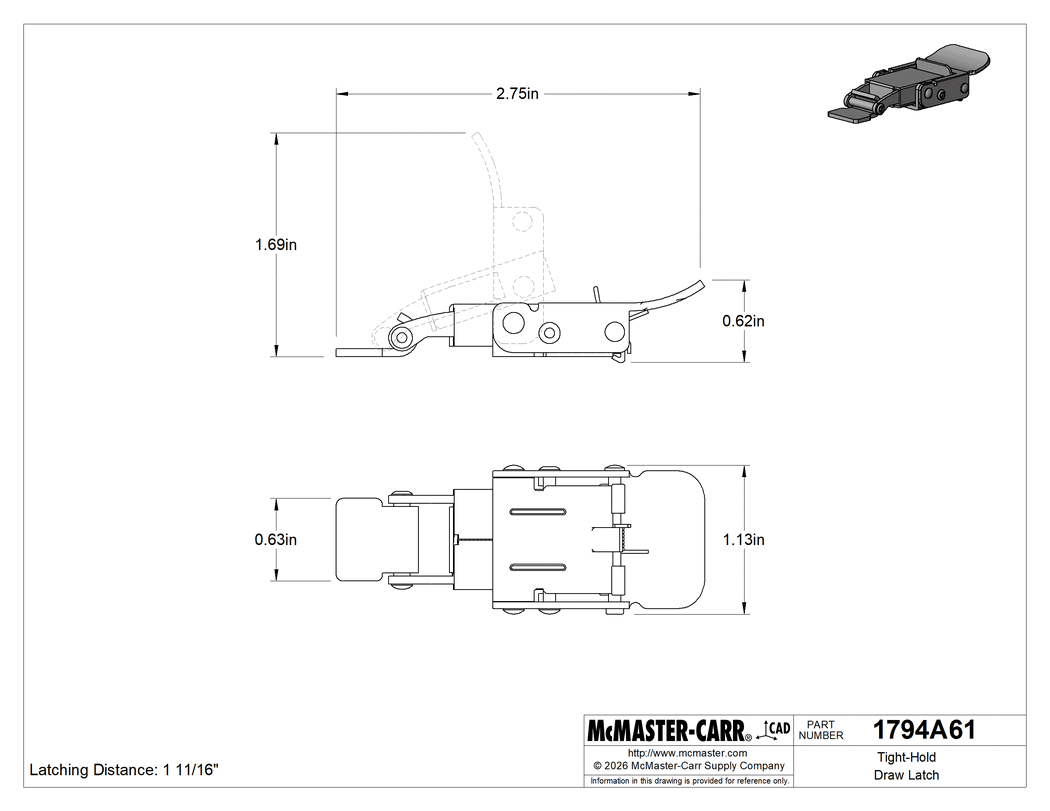

    Technical Drawing of Tight-Hold Draw Latch, with Safety Catch, Zinc-Steel, 2-3/4" Long x 1-1/8" Wide.

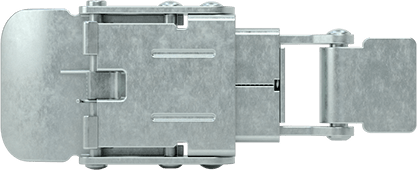

    Image of Product. Back orientation. Tight-Hold Draw Latch, with Safety Catch, Zinc-Steel, 2-3/4" Long x 1-1/8" Wide.

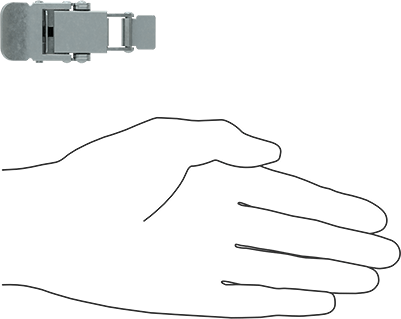

    Image of Product. Side1 orientation. Contains SizingReference. Tight-Hold Draw Latch, with Safety Catch, Zinc-Steel, 2-3/4" Long x 1-1/8" Wide.
    2-D PDF
    000000 each
    1794A61
    In stock
    1794A61
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Mounting

    Type

    Weld On

    Location

    Surface

    Style

    A

    Material

    Zinc-Plated Steel

    Appearance

    Dull

    Latching Distance

    1 11/16"

    Overall

    Length

    2 3/4"

    Width

    1 1/8"

    Projection

    5/8"

    Weight Capacity

    400 lb.

    Draw Latch Type

    Nonlocking

    Features

    Safety Catch

    Latching Distance Adjustability

    Fixed

    Performance

    Tight Hold

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    830249.7500

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    To prevent accidental opening, this latch has a safety catch. Designed with compression springs to withstand vibration better than standard draw latches, it offers a more secure hold. Capacity is the maximum amount of force the latch can withstand. The overall length listed includes the strike plate.

    The information in this 3-D model is provided for reference only.
