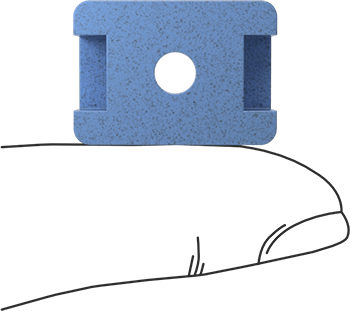

Metal-Detectable Cable Tie Mounts
for 0.32" x 0.09" Cable Tie and Number 8 Screw, Screw-In

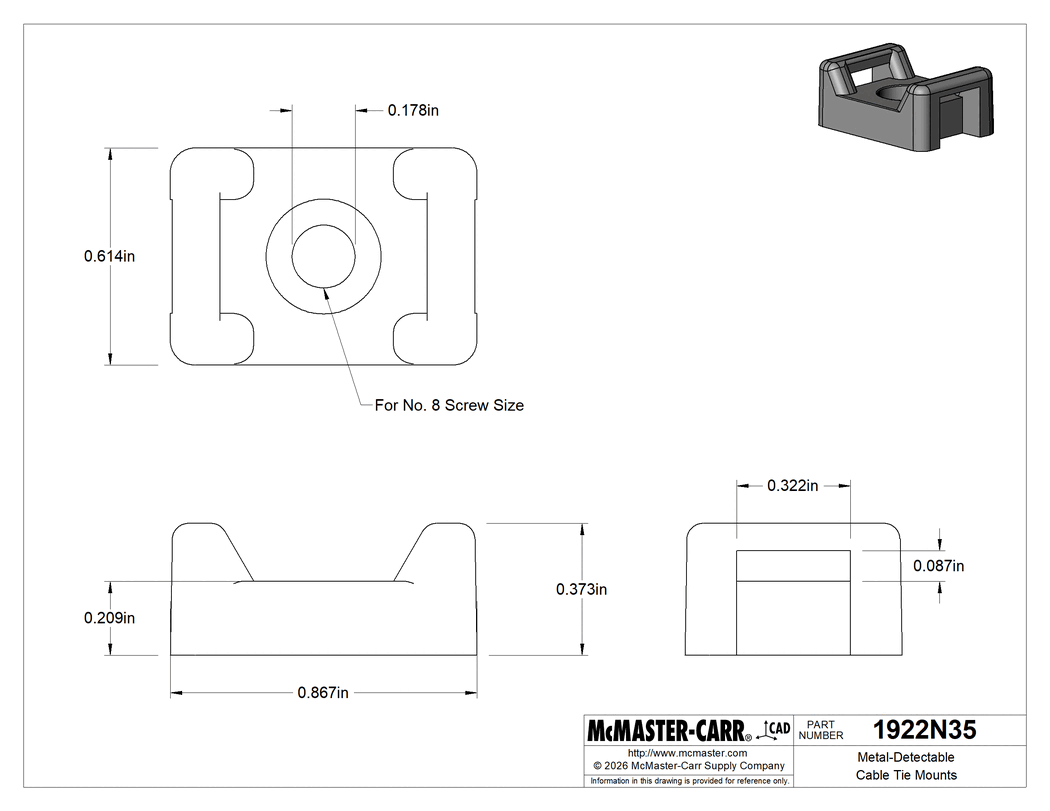

2-D PDF
00000 per pack of 5
1922N35
In stock
1922N35
00000 per pack of 5
Pack of 5
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Mount Type | Screw In |
Material | Nylon |
Cable Tie Orientation | Two Way |
Color | Blue |
For Maximum Number of Bundles | 1 |
For Cable Tie | |
Style | Narrow, Standard |
Maximum Width | 0.32" |
Maximum Thickness | 0.09" |
For Screw Size | No. 8 |
Mounting Hole Diameter | 0.18" |
Overall | |
Length | 7/8" |
Width | 5/8" |
Height | 3/8" |
For Use Outdoors | No |
Flammability Rating | UL 94 HB |
Temperature Range | -40° F to 185° F |
Environment | Food and Beverage |
Mounting Fasteners Included | No |
Performance | Metal Detectable |
UV Protection | None |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
Schedule B Number | 392690.9988 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |

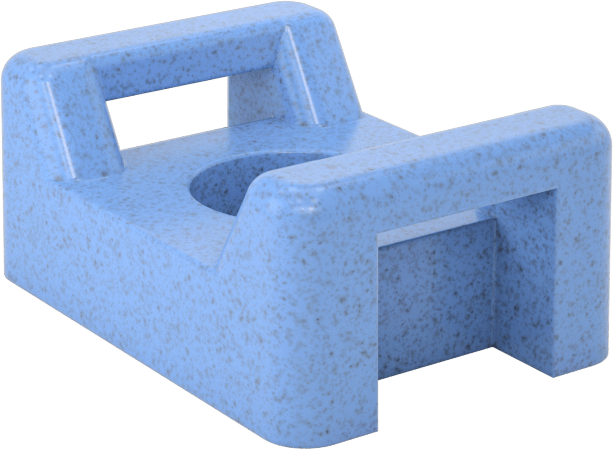

Use these plastic mounts with metal-detector-grade cable ties when detection and retrieval is essential, such as in food processing applications. Mounts are brightly colored for visibility and contain a special compound that can be picked up by X-ray equipment and metal detectors.
Two Way—Two-way mounts allow ties to be inserted from opposite sides.
The information in this 3-D model is provided for reference only.
