    UV-Resistant Neoprene Vibration-Damping Pad Set

    4 Smooth and 4 Crisscross Pads, 6" Long x 6" Wide

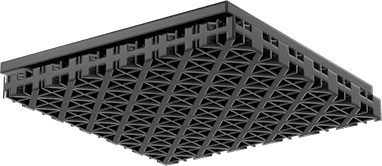

    Image of Product. Top orientation. UV-Resistant Neoprene Vibration-Damping Pad Set, 4 Smooth and 4 Crisscross Pads, 6" Long x 6" Wide.

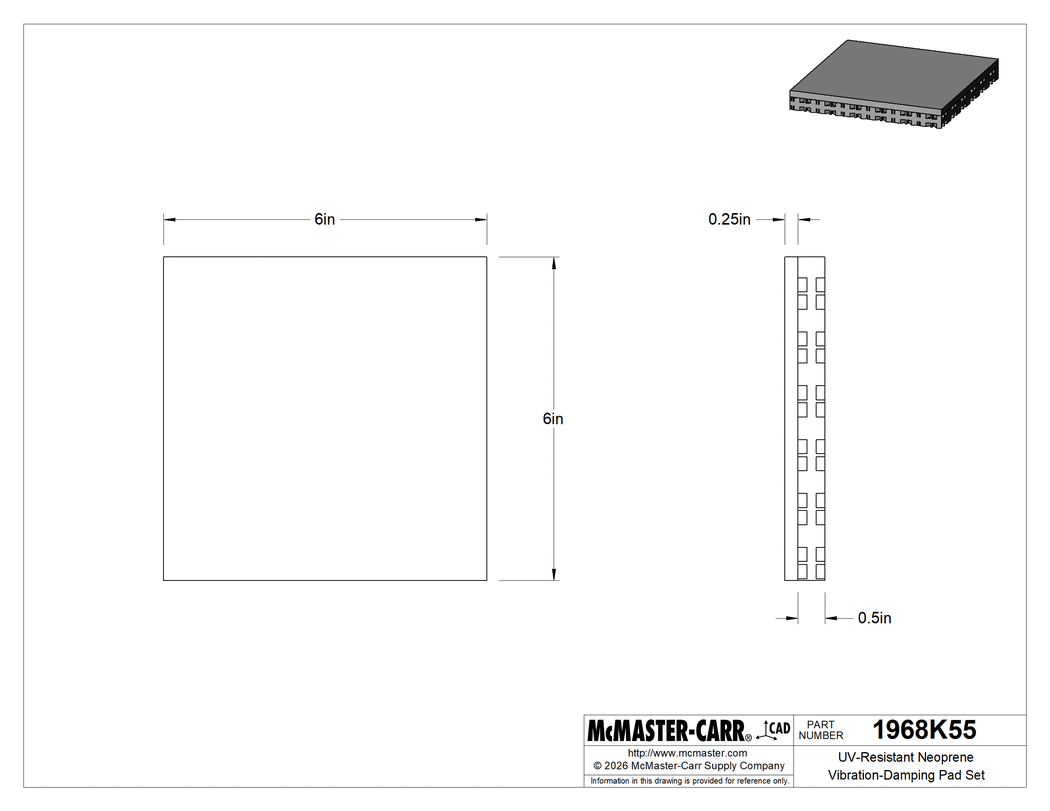

    Technical Drawing of UV-Resistant Neoprene Vibration-Damping Pad Set, 4 Smooth and 4 Crisscross Pads, 6" Long x 6" Wide.
    Image of Product. Top orientation. UV-Resistant Neoprene Vibration-Damping Pad Set, 4 Smooth and 4 Crisscross Pads, 6" Long x 6" Wide.

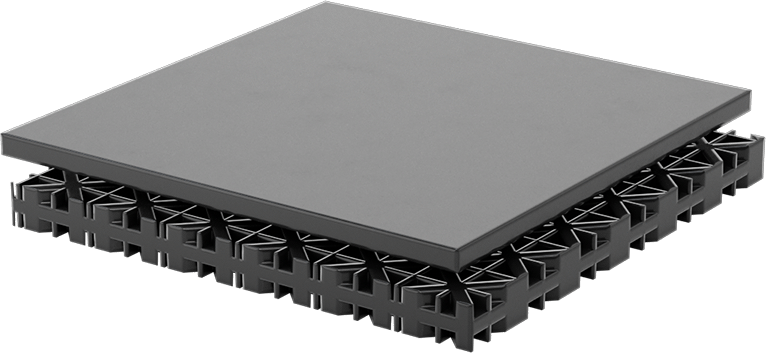

    Image of Product. Side1 orientation. Contains SizingReference. UV-Resistant Neoprene Vibration-Damping Pad Set, 4 Smooth and 4 Crisscross Pads, 6" Long x 6" Wide.
    2-D PDF
    0000000 per pack of 8
    1968K55
    In stock
    1968K55
    0000000 per pack of 8
    Pack of 8
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Sold As

    Assortment

    Performance

    UV Resistant

    Material

    Neoprene

    Shape

    Square

    Length

    6"

    Width

    6"

    Capacity per Mounting Point

    60 psi

    Smooth

    Thickness

    1/4"

    Number of Pads Included

    4

    Crisscross

    Thickness

    1/2"

    Number of Pads Included

    4

    Deflection @ Capacity

    0.12"

    Construction

    Solid

    Hardness

    Durometer 45A

    Hardness Rating

    Medium Soft

    Color

    Black

    Temperature Range

    0° F to 175° F

    Mount Type

    Rest On

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    400811.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Create a custom vibration-damping solution. Combine pads within an assortment to increase vibration isolation, improve load distribution, and adjust the height of your equipment.

    Great for use outdoors, these durable pads withstand exposure to UV, ozone, oxidation, and moisture. They're also resistant to oil and solvents. Smooth and crisscross pads are designed to be used together—place smooth pads on top of crisscross pads, which grip the floor. Packs contain four smooth pads and four crisscross pads.

    The information in this 3-D model is provided for reference only.
