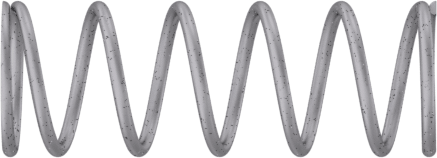

Mil. Spec. Compression Springs

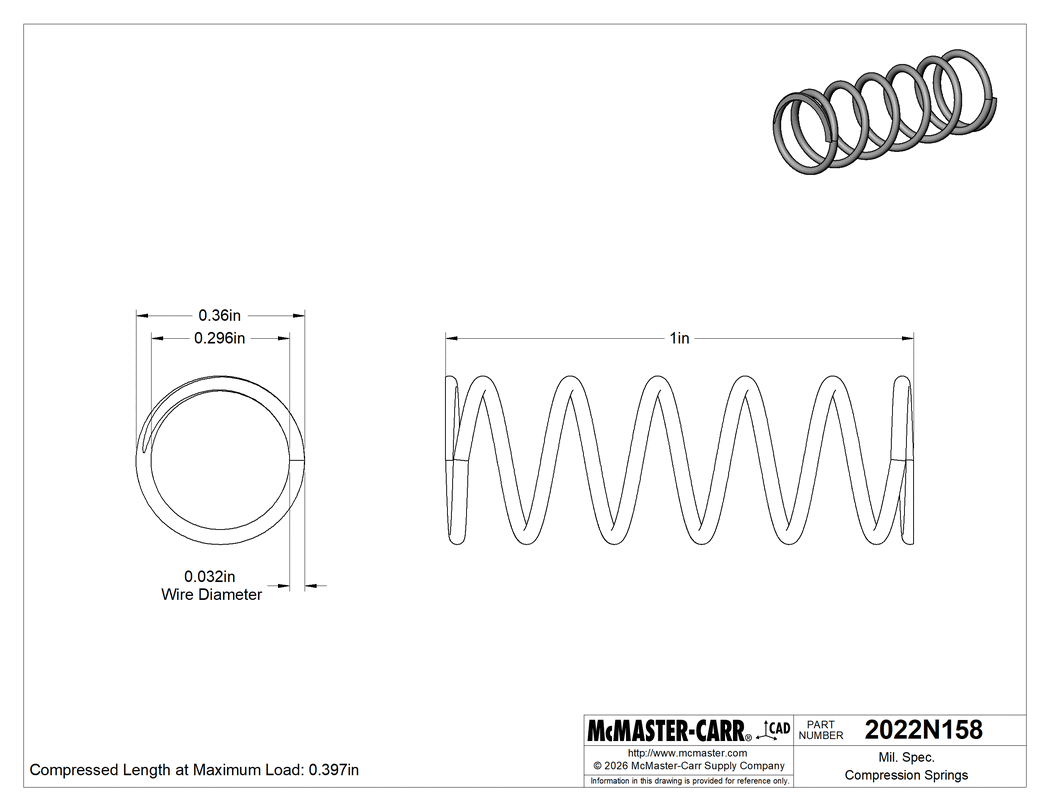

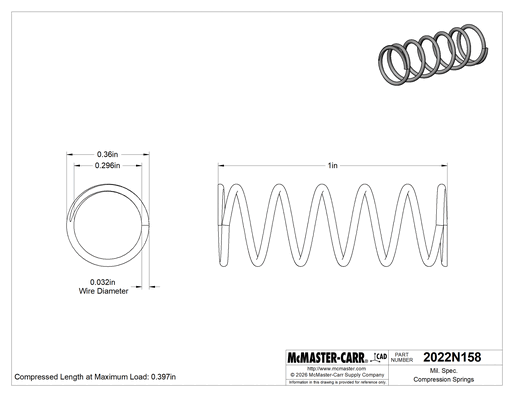

1" Long, 0.36" OD, 0.296" ID, MS24585-1238
2-D PDF
000000 per pack of 5
2022N158
In stock
2022N158
000000 per pack of 5
Pack of 5
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Material | Spring Steel |
Length | 1" |
OD | 0.36" |
ID | 0.296" |
Wire Diameter | 0.032" |
Compressed Length @ Maximum Load | 0.397" |
Maximum Load | 5.1 lb. |
Spring Rate | 8.5 lbf/in |
End Type | Closed and Ground |
Military Specification | MS24585-1238 |
Certificate | |
Type | Material Certificate with Traceable Lot Number and Test Report |
Form | Paper |
Compression Spring Type | Straight |
Finish | Cadmium Plated |
Maximum Temperature | 250° F |
Spring Type | Compression |
Steel Grade | Music-Wire Steel |
System of Measurement | Inch |
Country of Origin | China, Germany, India, Mexico, South Korea, United Kingdom, United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 732020.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These springs are manufactured and tested to strict U.S. military standards for material and construction. All come with a traceable lot number and material test report.
Spring Steel—Strong and resilient, but best suited for dry environments since moisture will cause these springs to rust.
