Mounted Open Needle-Roller Bearing

for 12 mm Shaft Diameter

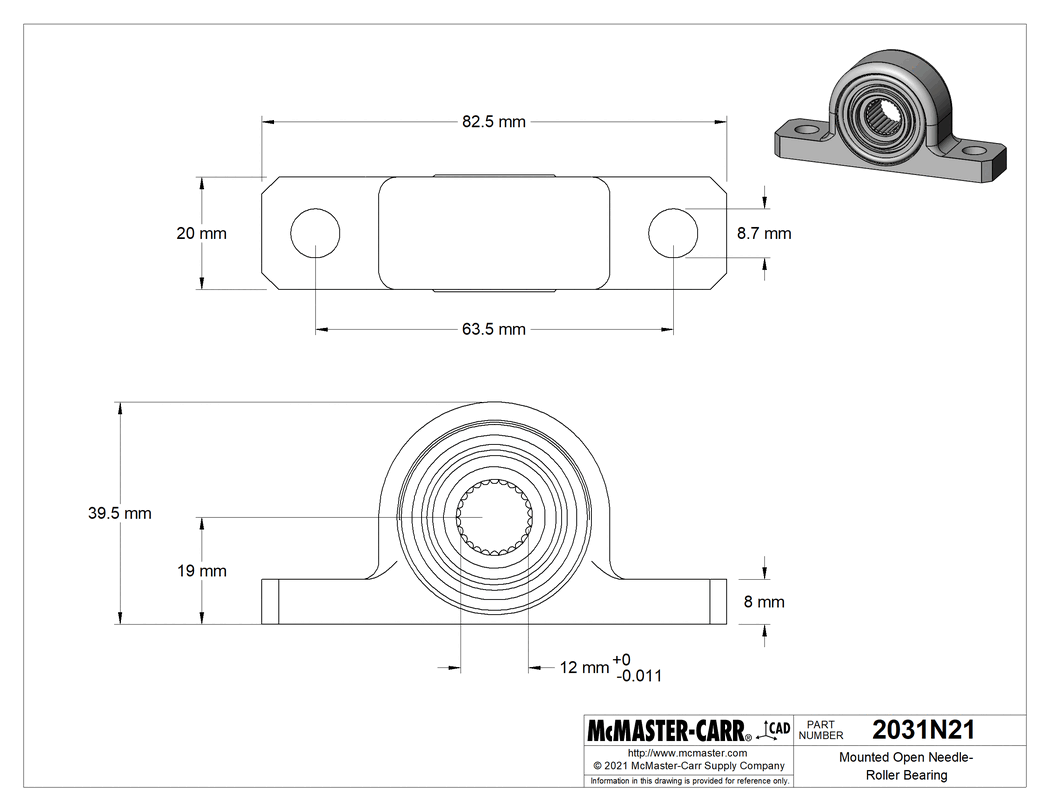

Technical Drawing of Mounted Open Needle-Roller Bearing, for 12 mm Shaft Diameter.

2-D PDF

000000 each

2031N21

In stock

2031N21

000000 each

QuantityEach

In stock

Select a compatible file type: Parasolid

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Mounted Bearing Type	Base Mount
Bearing Type	Roller
Roller Bearing Type	Needle
Housing Material	Aluminum
Shaft Mount Type	Press Fit
For Shaft Diameter	12 mm

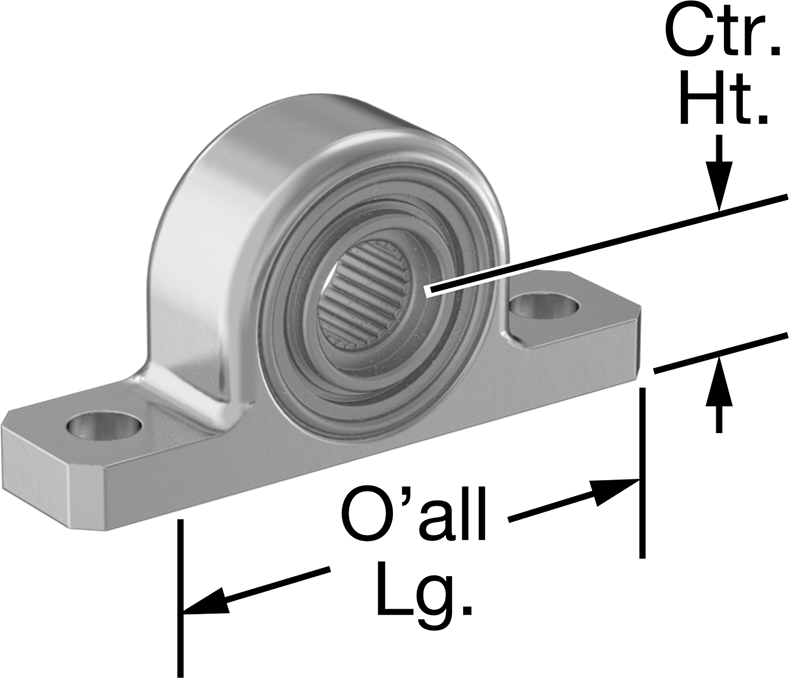

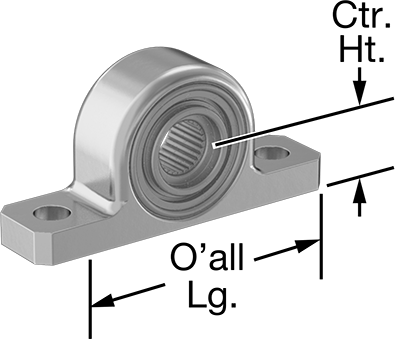

Center Height	19 mm
Overall
Height	39.5 mm
Length	82.5 mm
Width	20 mm
Dynamic Radial Load Capacity	1,100 lb.
Maximum Rotation Speed	12,420 rpm
Bearing Material	Steel
Bearing Seal Type	Open
Misalignment Capability	5°
Alignment Style	Self-Aligning
For Load Direction	Radial
For Shaft Surface Smoothness, Ra	16 μin
For Shaft Type	Round
Grease Fitting Included	No
ID	12 mm
ID Tolerance	-0.011 mm to 0 mm
Lubricant	Grease with Lithium Thickener
Lubrication	Lubricated
Mounting Hole
Hole Diameter	8.7 mm
Hole Center-to-Center	63.5 mm
Number of Holes	2
Fasteners Included	No
Static Radial Load Capacity	1,350 lb.
System of Measurement	Metric
Temperature	-20° F to 210° F
Weight	0.3 lb.
Country of Origin	United States
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	848320.0050
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes

Slim but sturdy, needle roller bearings have a thinner profile than ball bearings. They're better than other roller bearings at handling light loads at high speeds. The solid housing bolts down to support shafts as they turn.

Lubricate your bearings regularly to keep them in tip-top shape. These bearings are not sealed, which may attract dust and debris in the grease.

Aluminum Housing—One-third the weight of cast iron but not as strong. Aluminum also resists corrosion.

Press Fit—Mount directly onto a hardened and ground shaft.

Misalignment Capability—Bearings compensate for as much shaft misalignment as the degree listed. This extends the life of the bearing and protects against wear if shafts are slightly askew.
