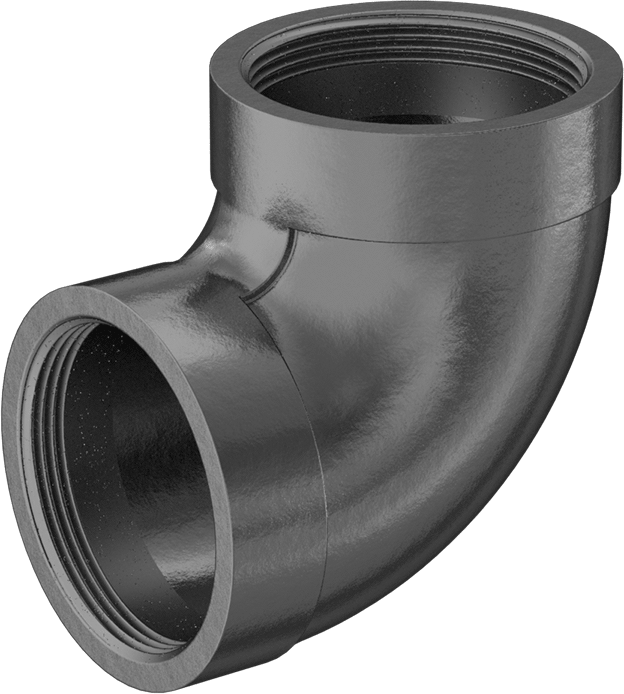

Medium-Pressure Galvanized Iron Pipe Fitting
90 Degree Elbow Connector, 2 NPT Female

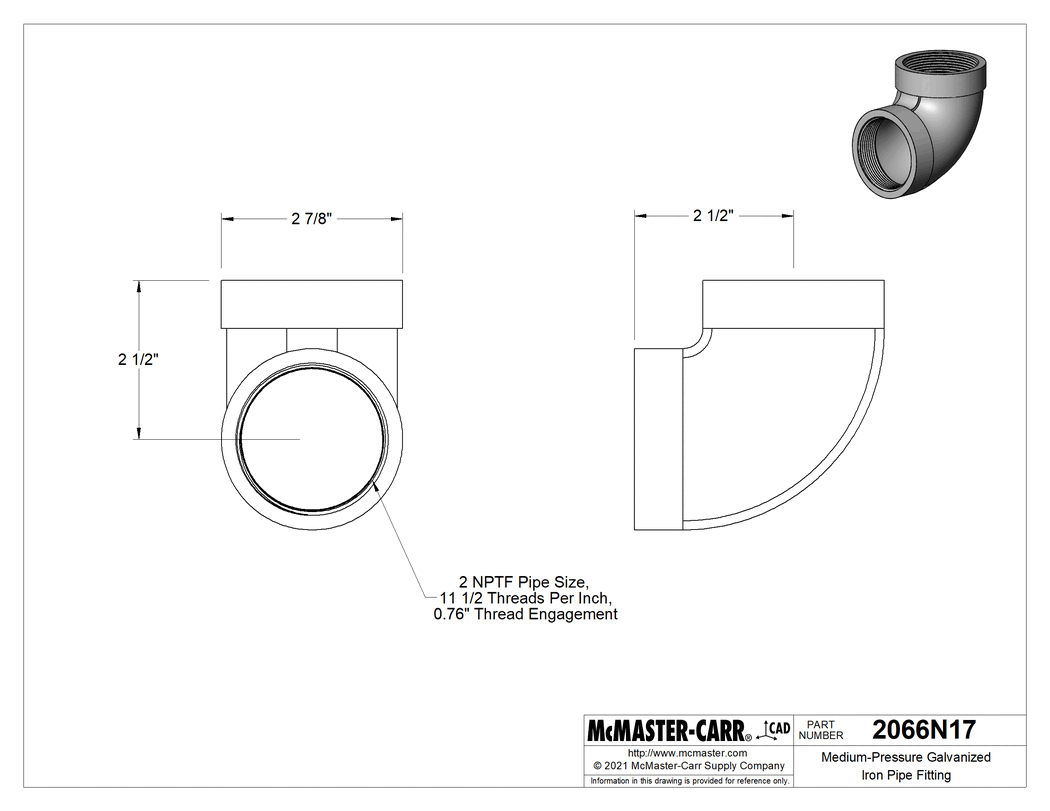

2-D PDF
0000000 each
2066N17
In stock
2066N17
0000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Pressure Rating | Medium Pressure |
Shape | 90° Elbow |
Fitting Type | Connector |
Fitting Connection | NPT Female |
Pipe Size | 2 |
Pressure Class | 300 |
Material | Galvanized Iron |
Maximum Pressure @ Temperature | 1,500 psi @ 72° F |
Maximum Steam Pressure @ Temperature | 300 psi @ 550° F |
Connects To | Pipe |
For Flange | |
Class | 300 |
Material | Galvanized Steel |
For Pipe Material | Galvanized Steel |
For Pipe Schedule | 80 |
For Use With | Air, Natural Gas, Steam, Water |
Specifications Met | ASME B1.20.1, ASME B16.3, ASTM A153, ASTM A197 |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 730719.9090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
A galvanized finish gives these fittings fair corrosion resistance. They have the strength to handle medium-pressure applications.
The information in this 3-D model is provided for reference only.
